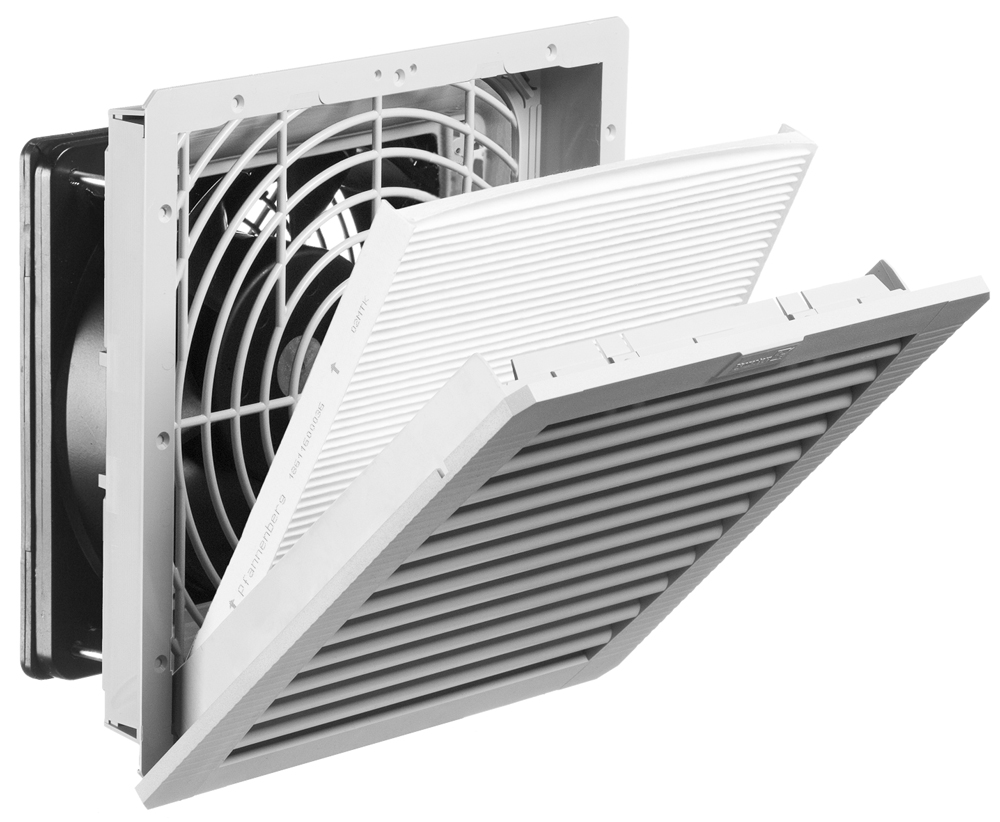

65 CFM Filterfans · PF GEN4 Series

Brand: Hammond Manufacturing · 8 part numbers

Type 12

■Maintains a UL Tested NEMA Type 12 seal against enclosure
■UL Recognized to UL 508, category NITW2/8, UL File #E175229
■Patented “Click & Fit” design provides a hardware-free installation
■Plastic made from strong, heat resistant (ABS-FR), UL 94 V0 fire approved material
■Fan Motor is CSA Approved

from $52.46

7 of 8 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents

Configure & price

Find your PF GEN4 Series part number

Filter 7 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

7 of 7 part numbers · 6 priced online

PF32000T12BK

65 Cfm Filter Fan T12

Voltage 115V AC
Power 20W

$204.15In stock

Buy now

PF32000T12BK230

65 Cfm Filter Fan T12

Voltage 230V AC
Power 18W

$210.30Backorder

Buy now

PF32000T12BK24

65 Cfm Filter Fan T12

Voltage 24V DC
Power 5W

QuoteRequest a quote

PF32000T12LG

65 Cfm Filter Fan T12

Voltage 115V AC
Power 20W

$204.15In stock

Buy now

PF32000T12LG230

65 Cfm Filter Fan T12

Voltage 230V AC
Power 18W

$210.30In stock

Buy now

PF32000T12LG24

65 Cfm Filter Fan T12

Voltage 24V DC
Power 5W

$227.13Backorder

Buy now

PFA30000BK

8" Exhaust Filter T12

Voltage 24V DC
Power 5W

$52.46In stock

Buy now

Dimension tables (inches / mm)

RAL7035 · Light Gray	Part No · RAL9011 · Black	Voltage	Power	Exhaust Filter · RAL7035 · Light Gray (Part No.)	Exhaust Filter · RAL9011 · Black (Part No.)	Price	Order
PF32000T12LG	PF32000T12BK	115V AC	20W	PFA30000LG	PFA30000BK	$204.15In stockPF32000T12LG	Buy now
PF32000T12LG230	PF32000T12BK230	230V AC	18W	PFA30000LG	PFA30000BK	$210.30In stockPF32000T12LG230	Buy now
PF32000T12LG24	PF32000T12BK24	24V DC	5W	PFA30000LG	PFA30000BK	$227.13BackorderPF32000T12LG24	Buy now

Airflow data	PF 32000	PFA 30000	Price	Order
Filter material	Type 12 filter mat	Type 12 filter mat	Quote	Quote
Unimpeded airflow	65 CFM	-	Quote	Quote
Capacity free-flow	37 W/K	-	Quote	Quote
Airflow in combination	38 CFM	-	Quote	Quote
(Filterfan + Exhaust Filter)	(PF 32000 + PFA 30000)	-	Quote	Quote
Capacity in combination	21 W/K	-	Quote	Quote
(Filterfan + Exhaust Filter)	(PF 32000 + PFA 30000)	-	Quote	Quote
Max. static pressure (Airflow = 0 m3/h)	61 Pa	-	Quote	Quote
Filtration efficiency	0.91	-	Quote	Quote
Filter material grade	G 4 (DIN EN 779)	G 4 (DIN EN 779)	Quote	Quote
Duty cycle	1	-	Quote	Quote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Technical data	PF 32000 · AC	PF 32000 · DC	PFA 30000	Price	Order
Outside dimensions in mm	202 x 202 x 87	202 x 202 x 81	202 x 202 x 34	Quote	Quote
(height x width x installation depth)				Quote	Quote
Bearing type	sleeve bearings	ball bearings	-	Quote	Quote
Fitting position	vertical	any	any	Quote	Quote
Construction	housing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VO	housing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VO	housing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VO	Quote	Quote
Weight	0.87 kg	0.61 kg	0.26 kg	Quote	Quote
Safety protection	in accordance with DIN 31 001	in accordance with DIN 31 001	-	Quote	Quote
Color LG	RAL 7035, Light Grey	RAL 7035, Light Grey	RAL 7035, Light Grey	Quote	Quote
Color BK	RAL9011 Black	RAL9011 Black	RAL9011 Black	Quote	Quote
Connections	terminal strip	2 wires, 310mm long	-	Quote	Quote
Noise Level (EN ISO 3741)	40 dB (A)	40 dB (A)		Quote	Quote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Supplementary data	PF 32000 AC	PF 32000 DC	PFA 30000	Price	Order
Operating temperature	– 15 °C (- 5 °F) to / bis + 55 °C (+ 131 °F)	– 15 °C (- 5 °F) to / bis + 55 °C (+ 131 °F)	– 15 °C (- 5 °F) to / bis + 55 °C (+ 131 °F)	Quote	Quote
Storage temperature	– 20 °C (- 4 °F) to / bis + 70 °C (+ 158 °F)	– 20 °C (- 4 °F) to / bis + 70 °C (+ 158 °F)	– 20 °C (- 4 °F) to / bis + 70 °C (+ 158 °F)	Quote	Quote
Max. relative humidity	0.9	0.9	0.9	Quote	Quote
System of protection	NEMA Type 12, IP 55 (EN 60 529), when installed as specified	NEMA Type 12, IP 55 (EN 60 529), when installed as specified	NEMA Type 12, IP 55 (EN 60 529), when installed as specified	Quote	Quote
Basic Accessories	parts kit filter mat, user manual radiant heater, fan heater, thermostat, hygrostat	parts kit filter mat, user manual radiant heater, fan heater, thermostat, hygrostat	parts kit filter mat, user manual radiant heater, fan heater, thermostat, hygrostat	Quote	Quote
Approvals	UL Recognized	UL Recognized	UL Recognized	Quote	Quote
* Tolerance installation cutout	177 + 1/-0 thickness of material to 2 mm	177 + 1/-0 thickness of material to 2 mm	177 + 1/-0 thickness of material to 2 mm	Quote	Quote
	178 + 1/-0 thickness of material > 2 mm < 3 mm	178 + 1/-0 thickness of material > 2 mm < 3 mm	178 + 1/-0 thickness of material > 2 mm < 3 mm	Quote	Quote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Features

■Maintains a UL Tested NEMA Type 12 seal against enclosure
■UL Recognized to UL 508, category NITW2/8, UL File #E175229
■Patented “Click & Fit” design provides a hardware-free installation
■Plastic made from strong, heat resistant (ABS-FR), UL 94 V0 fire approved material
■Fan Motor is CSA Approved
