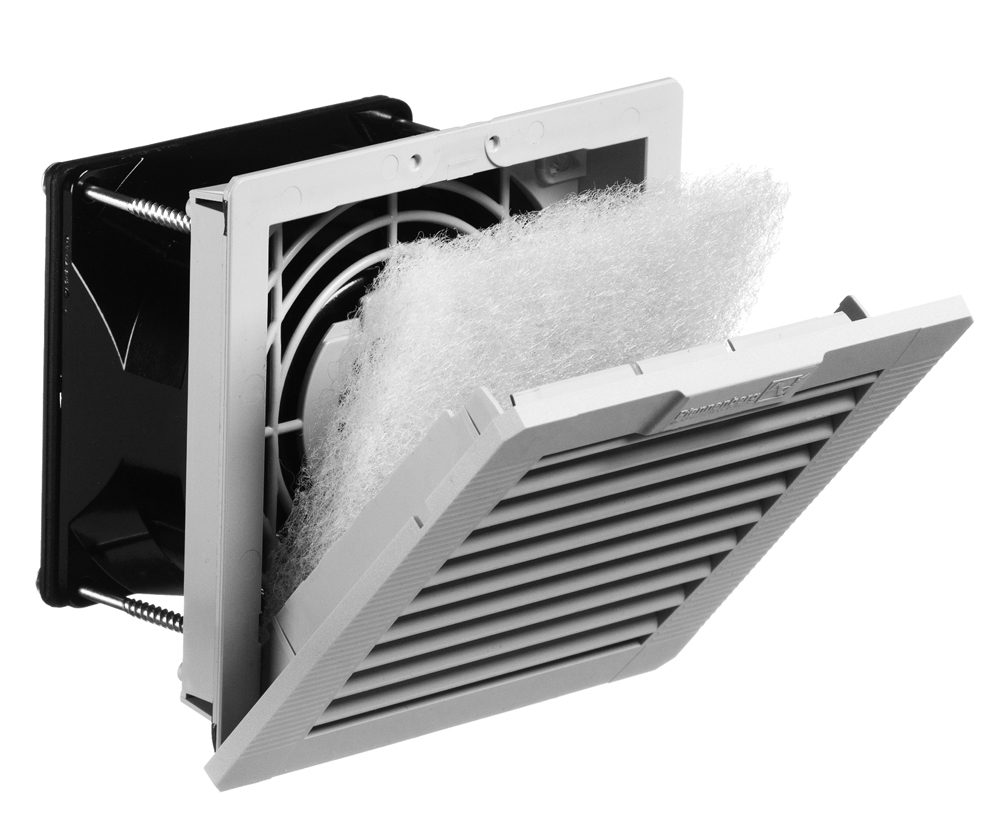

17-38 CFM Filterfans PF GEN4 Series

17-38 CFM Filterfans · PF GEN4 Series

Brand: Hammond Manufacturing · 17 part numbers

Type 12

  • ■Maintains a UL Tested NEMA Type 12 seal against enclosure
  • ■UL Recognized to UL 508, category NITW2/8, UL File #E175229
  • ■Patented “Click & Fit” design provides a hardware free installation!
  • ■Plastic made from strong, heat resistant (ABS-FR), UL 94 V0 fire approved material
  • ■Fan motor is CSA approved
  • ■Options: Black grills

from $13.63

15 of 17 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your PF GEN4 Series part number

Filter 15 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

15 of 15 part numbers · 13 priced online

PF11000T12BK

16 Cfm Filter Fan T12

  • Voltage 115V AC
  • Power 11W
$135.01In stock
Buy now
PF11000T12LG

16 Cfm Filter Fan T12

  • Voltage 115V AC
  • Power 11W
$135.01In stock
Buy now
PF22000T12BK

38 Cfm Filter Fan T12

  • Voltage 115V AC
  • Power 20W
$185.56In stock
Buy now
PF22000T12LG

38 Cfm Filter Fan T12

  • Voltage 115V AC
  • Power 20W
$185.56In stock
Buy now
PFA10000BK

4" Exhaust Filter T12

  • Voltage 24V DC
  • Power 2W
$35.29In stock
Buy now
PFA20000BK

6" Exhaust Filter T12

  • Voltage 24V DC
  • Power 5W
$44.32In stock
Buy now
Dimension tables (inches / mm)
RAL7035 · Light GrayPart No · RAL9011 · BlackVoltagePowerExhaust Filter · RAL7035 · Light Gray (Part No.)Exhaust Filter · RAL9011 · Black (Part No.)PriceOrder
PF11000T12LGPF11000T12BK115V AC11WPFA10000LGPFA10000BK$135.01In stockPF11000T12LGBuy now
PF11000T12LG230PF11000T12BK230230V AC11WPFA10000LGPFA10000BK$141.75In stockPF11000T12LG230Buy now
PF11000T12LG24PF11000T12BK2424V DC2WPFA10000LGPFA10000BK$150.93In stockPF11000T12BK24Buy now
PF22000T12LGPF22000T12BK115V AC20WPFA20000LGPFA20000BK$185.56In stockPF22000T12LGBuy now
PF22000T12LG230PF22000T12BK230230V AC18WPFA20000LGPFA20000BK$194.88In stockPF22000T12LG230Buy now
PF22000T12LG24PF22000T12BK2424V DC5WPFA20000LGPFA20000BK$208.59In stockPF22000T12BK24Buy now
Airflow dataPF 11000PF 22000PFA 1-20000PriceOrder
Filter materialType 12 filter matType 12 filter matType 12 filter matQuoteQuote
Unimpeded airflow17 CFM38 CFM-QuoteQuote
Capacity free-flow10 W/K21 W/K-QuoteQuote
Airflow in combination11 CFM28 CFM-QuoteQuote
(Filterfan + Exhaust Filter)(PF 11000 + PFA 10000)(PF 22000 + PFA 20000)-QuoteQuote
Capacity in combination6 W/K15 W/K-QuoteQuote
(Filterfan + Exhaust Filter)(PF 11000 + PFA 10000)(PF 22000 + PFA 20000)-QuoteQuote
Max. static pressure (Airflow = 0 m3/h)38 Pa57 Pa-QuoteQuote
Filtration efficiency0.880.9188/91%QuoteQuote
Filter material gradeG 3 (DIN EN 779)G 4 (DIN EN 779)G3/ G4 (DIN EN 779)QuoteQuote
Duty cycle11-QuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Technical dataPF 11000 · ACPF 11000 · DCPF 22000 · ACPF 22000 · DCPFA 10000 · PFA 20000PriceOrder
Outside dimensions in mm109 x 109 x 62109 x 109 x 49145 x 145 x 70145 x 145 x 64109 x 109 x 26/QuoteQuote
(height x width x installation depth)145 x 145 x 26QuoteQuote
Bearing typesleeve bearingsball bearingssleeve bearingsball bearings-QuoteQuote
Fitting positionverticalanyverticalany-QuoteQuote
Constructionhousing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VOhousing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VOhousing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VOhousing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VOhousing and guard of sprayed thermoplastic, self-extinguishing, UL 94 VOQuoteQuote
Weight0.55 kg0.16 kg0.7 kg0.44 kg0.06 kg / 0.12 kgQuoteQuote
Safety protectionin accordance with DIN 31 001in accordance with DIN 31 001in accordance with DIN 31 001in accordance with DIN 31 001in accordance with DIN 31 001QuoteQuote
Color LGRAL 7035, Light GreyRAL 7035, Light GreyRAL 7035, Light GreyRAL 7035, Light GreyRAL 7035, Light GreyQuoteQuote
Color BKRAL 9011 BlackRAL 9011 BlackRAL 9011 BlackRAL 9011 BlackRAL 9011 BlackQuoteQuote
Connection2 wires, 310 mm long2 wires, 310 mm longterminal strip2 wires, 310 mm longQuoteQuote
System of protectionNEMA Type 12, IP 55 (EN 60 529), when installed as specifiedNEMA Type 12, IP 55 (EN 60 529), when installed as specifiedNEMA Type 12, IP 55 (EN 60 529), when installed as specifiedNEMA Type 12, IP 55 (EN 60 529), when installed as specifiedNEMA Type 12, IP 55 (EN 60 529), when installed as specifiedQuoteQuote
Noise Level (EN ISO 3741)33 dB (A)33 dB (A)44 dB (A)44 dB (A)QuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Cord Kit for PF22000T12LG

col1col2PriceOrder
Part No.DNFCPF120$13.63In stockBuy now

Features

  • ■Maintains a UL Tested NEMA Type 12 seal against enclosure
  • ■UL Recognized to UL 508, category NITW2/8, UL File #E175229
  • ■Patented “Click & Fit” design provides a hardware free installation!
  • ■Plastic made from strong, heat resistant (ABS-FR), UL 94 V0 fire approved material
  • ■Fan motor is CSA approved
  • ■Options: Black grills

Documents

Specification SheetReversing Filter Fan AirflowPF Manual
