Isolation 117/234V IN/OUT250VA
- VA 250
- Sec. VAC RMS Paral 117V @ 2.14A
- Sec. VAC RMS Serie 234V @ 1.07A
$90.60In stock
Buy now

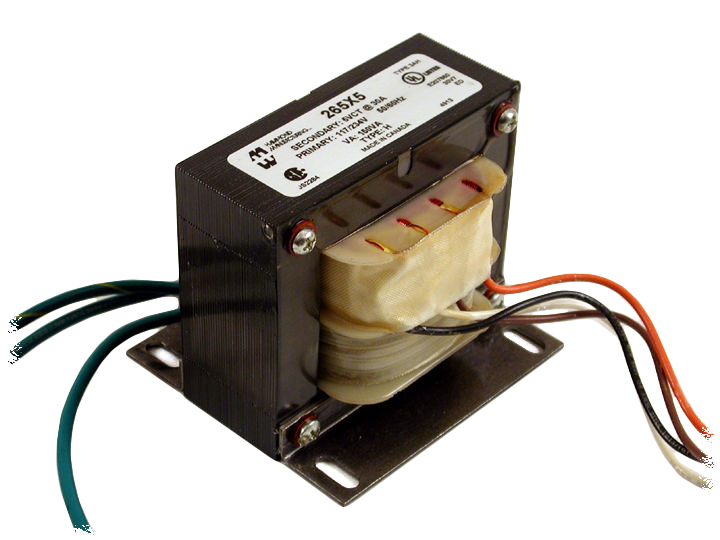

Low Voltage, Filament High Current, Chassis Mount - 150 VA to 450 VA · 265 Series
Brand: Hammond Manufacturing · 13 part numbers
117/234 V Primary
- ■117/234 VAC - 50/60 Hz. dual primary
- ■Secondaries are either center tapped (C.T.) or dual secondaries (see tables below) for added versatility.
- ■Open style, 4 hole frame chassis mount.
- ■Minimum 6" long leads or copper tabs with holes.
- ■Dual bobbin design - no electrostatic shield required.
- ■Class B insulation (130 degrees, C).
from $61.72
12 of 13 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 265 Series part number
Filter 13 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
13 of 13 part numbers · 12 priced online
Isolation 117/234V IN/OUT350VA
- VA 350
- Sec. VAC RMS Paral 117V @ 3A
- Sec. VAC RMS Serie 234V @ 1.5A
$101.08In stock
Buy nowIsolation 117/234V IN/OUT450VA
- VA 450
- Sec. VAC RMS Paral 117V @ 3.84A
- Sec. VAC RMS Serie 234V @ 1.92A
$112.88In stock
Buy now117/234V S.24VCT 10A P.12V 20A
- VA 240
- Sec. VAC RMS Paral 12V @ 20A
- Sec. VAC RMS Serie 24V @ 10A
$91.91In stock
Buy now117/234V 10VCT 17.5A 175VA
- VA 175
- Sec. Current (Amps 17.5
- Sec. VAC RMS 10 C.T.
$78.77In stock
Buy now117/234V S.24VCT 15A P.12V 30A
- VA 360
- Sec. VAC RMS Paral 12V @ 30A
- Sec. VAC RMS Serie 24V @ 15A
$110.26In stock
Buy now117/234V 6.3VCT 16A 100.8VA
- VA 101
- Sec. Current (Amps 16
- Sec. VAC RMS 6.3 C.T.
$65.64In stock
Buy now117/234V S.24VCT 20A P.12V 40A
- VA 480
- Sec. VAC RMS Paral 12V @ 40A
- Sec. VAC RMS Serie 24V @ 20A
$120.78In stock
Buy now117/234V 6.3VCT 20A 126VA
- VA 126
- Sec. Current (Amps 20
- Sec. VAC RMS 6.3 C.T.
$72.20In stock
Buy now117/234V, 5VCT 250VA
QuoteRequest a quote
117/234V 5 Vct 30A 150VA
- VA 150
- Sec. Current (Amps 30
- Sec. VAC RMS 5.0 C.T.
$61.72In stock
Buy now117/234V 6.3VCT 25A 157.5VA
- VA 158
- Sec. Current (Amps 25
- Sec. VAC RMS 6.3 C.T.
$78.77In stock
Buy now115/230V SER.10V@50APAR.5@100A
- VA 450
- Sec. Current (Amps 90
- Sec. VAC RMS 5 C.T.
$170.68In stock
Buy nowDimension tables (inches / mm)
117/234 VAC - 50/60 Hz. DUAL PRIMARY - SINGLE SECONDARY
| Part No. | VA | Secondary (R.M.S.) · VAC | Secondary (R.M.S.) · Amps | col5 | Price | Order |
|---|---|---|---|---|---|---|
| 265X5 | 150 | 5.0 C.T. | 30 | $61.72In stock | Buy now | |
| 265U6 | 101 | 6.3 C.T. | 16 | $65.64In stock | Buy now | |
| 265V6 | 126 | 6.3 C.T. | 20 | $72.20In stock | Buy now | |
| 265X6 | 158 | 6.3 C.T. | 25 | $78.77In stock | Buy now | |
| 265U10 | 175 | 10 C.T. | 17.5 | $78.77In stock | Buy now | |
| 265W5 | 250 | 5.0 C.T. | 50 | Quote | Quote | |
| 265Z5 | 450 | 5 C.T. | 90 | * 5kV Insulation | $170.68In stock | Buy now |
117/234 VAC - 50/60 Hz. DUAL PRIMARY - DUAL SECONDARY
| Part No. | VA | Secondary VAC (R.M.S.) · Series Wired (C.T.) | Secondary VAC (R.M.S.) · Parallel Wired | Price | Order |
|---|---|---|---|---|---|
| 265S24 | 240 | 24V @ 10A | 12V @ 20A | $91.91In stock | Buy now |
| 265U24 | 360 | 24V @ 15A | 12V @ 30A | $110.26In stock | Buy now |
| 265V24 | 480 | 24V @ 20A | 12V @ 40A | $120.78In stock | Buy now |
| 265J234 | 250 | 234V @ 1.07A | 117V @ 2.14A | $90.60In stock | Buy now |
| 265K234 | 350 | 234V @ 1.5A | 117V @ 3A | $101.08In stock | Buy now |
| 265L234 | 450 | 234V @ 1.92A | 117V @ 3.84A | $112.88In stock | Buy now |
Features
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
- ■117/234 VAC - 50/60 Hz. dual primary
- ■Secondaries are either center tapped (C.T.) or dual secondaries (see tables below) for added versatility.
- ■Open style, 4 hole frame chassis mount.
- ■Minimum 6" long leads or copper tabs with holes.
- ■Dual bobbin design - no electrostatic shield required.
- ■Class B insulation (130 degrees, C).
- ■Hi-Pot test of 2,000V RMS.
- ■UL listed (# E207860) Type 3AH
- ■CSA certified (# LR209651).
Documents
Additional information
117/234 VAC - 50/60 Hz. DUAL PRIMARY - SINGLE SECONDARY
| Part No. | VA | Secondary (R.M.S.) · VAC | Secondary (R.M.S.) · Amps | col5 |
|---|---|---|---|---|
| 265X5 | 150 | 5.0 C.T. | 30 | |
| 265U6 | 101 | 6.3 C.T. | 16 | |
| 265V6 | 126 | 6.3 C.T. | 20 | |
| 265X6 | 158 | 6.3 C.T. | 25 | |
| 265U10 | 175 | 10 C.T. | 17.5 | |
| 265W5 | 250 | 5.0 C.T. | 50 | |
| 265Z5 | 450 | 5 C.T. | 90 | * 5kV Insulation |
117/234 VAC - 50/60 Hz. DUAL PRIMARY - DUAL SECONDARY
| Part No. | VA | Secondary VAC (R.M.S.) · Series Wired (C.T.) | Secondary VAC (R.M.S.) · Parallel Wired |
|---|---|---|---|
| 265S24 | 240 | 24V @ 10A | 12V @ 20A |
| 265U24 | 360 | 24V @ 15A | 12V @ 30A |
| 265V24 | 480 | 24V @ 20A | 12V @ 40A |
| 265J234 | 250 | 234V @ 1.07A | 117V @ 2.14A |
| 265K234 | 350 | 234V @ 1.5A | 117V @ 3A |
| 265L234 | 450 | 234V @ 1.92A | 117V @ 3.84A |
