Audio TX Broadcast PC Mount
- Application Emitter or mic to Line
- Ohms 12/48
- Ohms 150/600
$55.53In stock
Buy now
Audio Broadcast Quality · 560 Series
Brand: Hammond Manufacturing · 7 part numbers

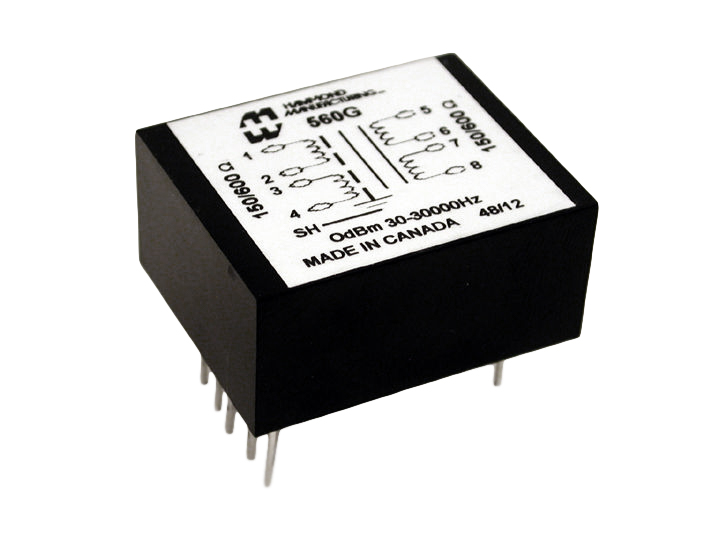

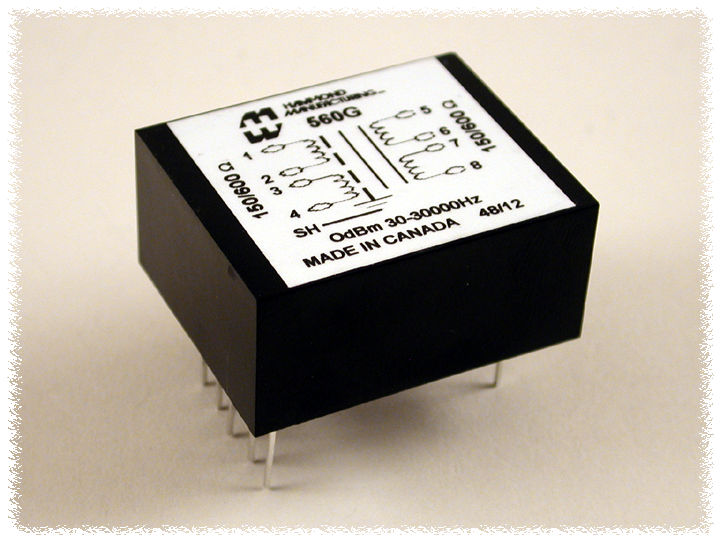

- ■Rugged black epoxy potted case with 9 pin connections (.025" square by 0.5" long).
- ■Frequency response minimum @ 0 dbm +/- 1 db max. (+/- 0.5 db is typical) of 30 Hz. to 30 Khz., except 560Q which is 30 Hz. to 15 Khz. - see data sheets below for more detail.
- ■Higher signal levels possible with reduced low frequency performance.
- ■Insertion loss of 1 db maximum
- ■Electrostatic shield between primary & secondary connected to core and brought out to pin "SH".
- ■Humbucking construction
from $55.53
7 of 7 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 560 Series part number
Filter 7 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
7 of 7 part numbers · 7 priced online
Audio TX Broadcast PC Mount
- Application Emitter or mic to Line
- Ohms 50/200
- Ohms 150/600
$55.53In stock
Buy nowAudio TX Broadcast PC Mount
- Application Isolating or Hybrid
- Ohms 150/600
- Ohms 150/600
$55.54In stock
Buy nowAudio TX Broadcast PC Mount
- Application Collector to Line or Line to Base
- Ohms 150/600
- Ohms 1200/4800
$55.53In stock
Buy nowAudio TX Broadcast PC Mount
- Application Collector to Line or Matching
- Ohms 150/600
- Ohms 5K/20K
$55.53In stock
Buy nowAudio TX Broadcast PC Mount
- Application Collector to Line
- Ohms 150/600
- Ohms 10K/40K
$55.53In stock
Buy nowAudio TX Broadcast PC Mount
- Application Matching or Bridging
- Ohms 10k/40k
- Ohms 10K/40K
$55.53In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Application | Nominal Impedance (Ohms) · Primary | Nominal Impedance (Ohms) · Secondary | Overall Dimensions · A | Overall Dimensions · B | Overall Dimensions · C | Overall Dimensions · D | Overall Dimensions · E | Overall Dimensions · F | Overall Dimensions · G | Overall Dimensions · H | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 560C | Emitter or mic to Line | 12/48 | 150/600 | 1.33 | 1.64 | 0.85 | 0.20 | 1.30 | 0.14 | 0.36 | 0.17 | $55.53In stock | Buy now |
| 560E | Emitter or mic to Line | 50/200 | 150/600 | 1.33 | 1.64 | 0.85 | 0.20 | 1.30 | 0.14 | 0.36 | 0.17 | $55.53In stock | Buy now |
| 560G | Isolating or Hybrid | 150/600 | 150/600 | 1.33 | 1.64 | 0.85 | 0.20 | 1.30 | 0.14 | 0.36 | 0.17 | $55.54In stock | Buy now |
| 560J | Collector to Line or Line to Base | 150/600 | 1200/4800 | 1.33 | 1.64 | 0.85 | 0.20 | 1.30 | 0.14 | 0.36 | 0.17 | $55.53In stock | Buy now |
| 560L | Collector to Line or Matching | 150/600 | 5K/20K | 1.33 | 1.64 | 0.85 | 0.20 | 1.30 | 0.14 | 0.36 | 0.17 | $55.53In stock | Buy now |
| 560N | Collector to Line | 150/600 | 10K/40K | 1.33 | 1.64 | 0.85 | 0.20 | 1.30 | 0.14 | 0.36 | 0.17 | $55.53In stock | Buy now |
| 560Q | Matching or Bridging | 10k/40k | 10K/40K | 1.33 | 1.64 | 0.85 | 0.20 | 1.30 | 0.14 | 0.36 | 0.17 | $55.53In stock | Buy now |
Features
- ■Rugged black epoxy potted case with 9 pin connections (.025" square by 0.5" long).
- ■Frequency response minimum @ 0 dbm +/- 1 db max. (+/- 0.5 db is typical) of 30 Hz. to 30 Khz., except 560Q which is 30 Hz. to 15 Khz. - see data sheets below for more detail.
- ■Higher signal levels possible with reduced low frequency performance.
- ■Insertion loss of 1 db maximum
- ■Electrostatic shield between primary & secondary connected to core and brought out to pin "SH".
- ■Humbucking construction
- ■Balanced split windings on pri. & sec. for circuit versatility.
- ■Primaries and secondaries can be reversed for impedance matching.
- ■Overall dimensions 1.64" (41.7 mm) x 1.33" (33.8 mm) x 0.85" (21.6 mm) high max.
- ■Shipping weight 4 oz. (0.1 kg)
