Audio TX Driver PC Mount
- Application Driver
- mW 200
- ma 56
- Pri. D.C. Resistan 24
$18.08In stock
Buy now

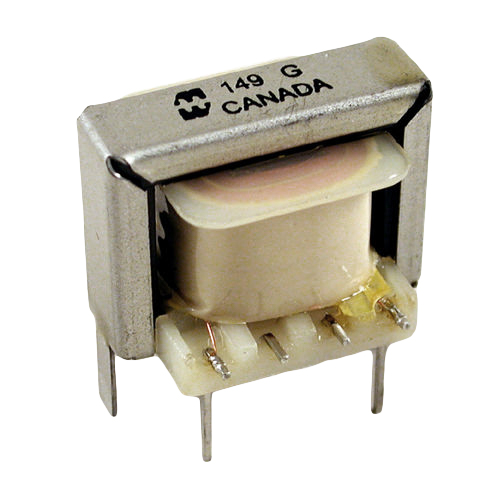

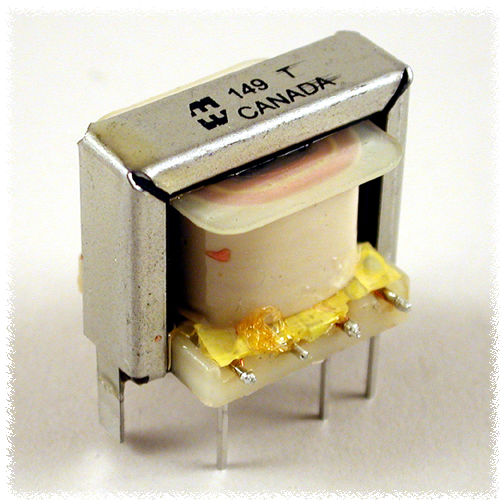

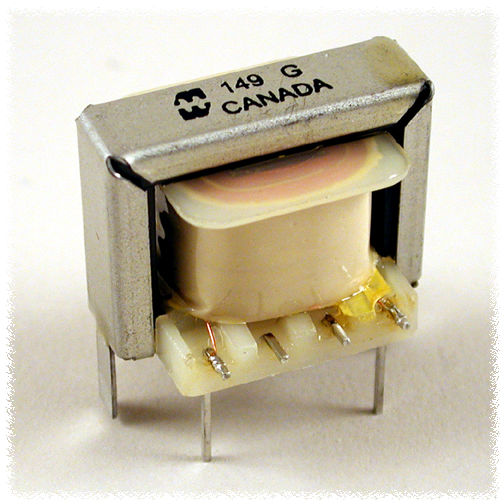

Audio Open Frame · 149 Series
Brand: Hammond Manufacturing · 10 part numbers
PC Board Mount
- ■Pin type (0.25" length & 0.025" square), P.C. board mount.
- ■Economical, open type, horizontal bracket construction.
- ■Includes clinching lugs for extra mounting strength.
- ■Frequency response 200 Hz. - 15 Khz. (+/- 1 db, ref. @ 1 Khz.).
- ■Total distortion approximately 2% for drivers and 1% for outputs at 200 Hz., decreasing at higher frequencies.
- ■Insertion loss less than 1/2 db.
from $18.08
10 of 10 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 149 Series part number
Filter 10 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
10 of 10 part numbers · 10 priced online
Audio TX Driver PC Mount
- Application Driver
- mW 200
- ma 42
- Pri. D.C. Resistan 41
$18.08Backorder
Buy nowAudio TX Driver PC Mount
- Application Driver
- mW 200
- ma 33
- Pri. D.C. Resistan 52
$18.08Backorder
Buy nowAudio TX Driver PC Mount
- Application Driver
- mW 200
- ma 29
- Pri. D.C. Resistan 92
$18.08In stock
Buy nowAudio TX Driver PC Mount
- Application Driver
- mW 200
- ma 22
- Pri. D.C. Resistan 155
$18.08In stock
Buy nowAudio TX Output PC Mount
- Application Output
- mW 1000
- ma 7
- Pri. D.C. Resistan 19
$18.08In stock
Buy nowAudio TX Output PC Mount
- Application Output
- mW 1000
- ma 4
- Pri. D.C. Resistan 53
$18.08In stock
Buy nowAudio TX Output PC Mount
- Application Output
- mW 1000
- ma 4
- Pri. D.C. Resistan 53
$18.08In stock
Buy nowAudio TX Output PC Mount
- Application Output
- mW 1000
- ma 4
- Pri. D.C. Resistan 53
$18.08In stock
Buy nowAudio TX Hybrid PC Mount
- Application Hybrid
- mW 1000
- ma 4
- Pri. D.C. Resistan 53
$18.08In stock
Buy nowDimension tables (inches / mm)
| Part No. | Applicaton | Nominal Impedance · (Ohms) · Primary | Nominal Impedance · (Ohms) · Secondary | Max. Primary · D.C. current · (ma.) | D.C. Resistance · (Ohms) +/- 15% · Primary | D.C. Resistance · (Ohms) +/- 15% · Secondary | Output · (Milliwatts) | Schematic · Drawing · Figure | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| 149C | Driver | 160 | 20/80 | 56 | 24 | 7 | 200 | 2 | $18.08In stock | Buy now |
| 149E | Driver | 300 | 30/120 | 42 | 41 | 10 | 200 | 2 | $18.08Backorder | Buy now |
| 149F | Driver | 450 | 40/160 | 33 | 52 | 19 | 200 | 2 | $18.08Backorder | Buy now |
| 149G | Driver | 600 | 150/600 | 29 | 92 | 58 | 200 | 2 | $18.08In stock | Buy now |
| 149H | Driver | 1000 | 60/240 | 22 | 155 | 24 | 200 | 2 | $18.08In stock | Buy now |
| 149Q | Output | 200 ct | 3.2 | 7 | 19 | 0.4 | 1000 | 4 | $18.08In stock | Buy now |
| 149S | Output | 600 ct | 150 ct | 4 | 53 | 17 | 1000 | 5 | $18.08In stock | Buy now |
| 149T | Output | 600 ct | 600 ct | 4 | 53 | 70 | 1000 | 5 | $18.08In stock | Buy now |
| 149U | Output | 150/600 | 8 | 4 | 53 | 1.012 | 1000 | 6 | $18.08In stock | Buy now |
| 149V | Hybrid | 600 ct | 300/1200 | 4 | 53 | 63 | 1000 | 7 | $18.08In stock | Buy now |
Features
- ■Pin type (0.25" length & 0.025" square), P.C. board mount.
- ■Economical, open type, horizontal bracket construction.
- ■Includes clinching lugs for extra mounting strength.
- ■Frequency response 200 Hz. - 15 Khz. (+/- 1 db, ref. @ 1 Khz.).
- ■Total distortion approximately 2% for drivers and 1% for outputs at 200 Hz., decreasing at higher frequencies.
- ■Insertion loss less than 1/2 db.
- ■Bifilar wound for balanced capacitive and resistance characteristics, on pin bobbins for standard 0.2" grid pin spacing.
- ■Insulation test 250V rms.
- ■For rugged epoxy cast type units refer to our 102 , 104 , 106 or 107 , 108 , and 109 series.
- ■Net weight: 1.0 oz.
