Interstage Audio TX
- Ohms 5K
- Rated D.C. Bias Cu 15 ma.
- Ohms 5K
- Ohms 178
$93.87In stock
Buy now

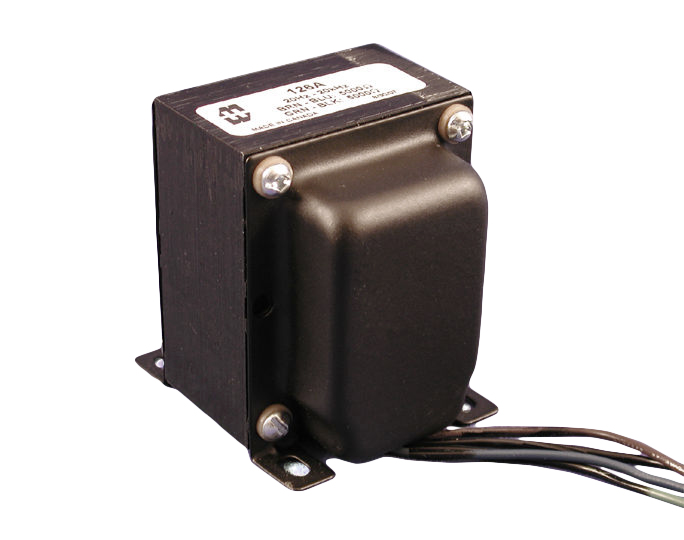

Tube Driver - Interstage · 126 Series
Brand: Hammond Manufacturing · 3 part numbers
- ■Designed for driver use ONLY in single ended tube output amplifiers. These units replace coupling capacitor circuits for improved sound.
- ■Closed style with minimum 8" long leads.
- ■All models use bifilar wound windings for exceptional coupling and bandwidth.
- ■Minimum frequency response 20 Hz. - 20 Khz (+/- 1db max. ref. 1 Khz.).
- ■The core is gapped to support the specified D.C. bias current.
- ■Maximum working voltage - 400 VDC
from $93.87
3 of 3 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 126 Series part number
Filter 3 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Audio · Watts | Primary · Impedance · (Ohms) | Primary · D.C. · Resistance · (Ohms) | Secondary · Impedance · (Ohms) | Secondary · D.C. · Resistance · (Ohms) | Inductance | Rated D.C. · Bias Current | Dimensions · A | Dimensions · B | Dimensions · C | Dimensions · D | Dimensions · E | Dimensions · G · Mtg Slot | Dimensions · G · Mtg Slot (2) | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

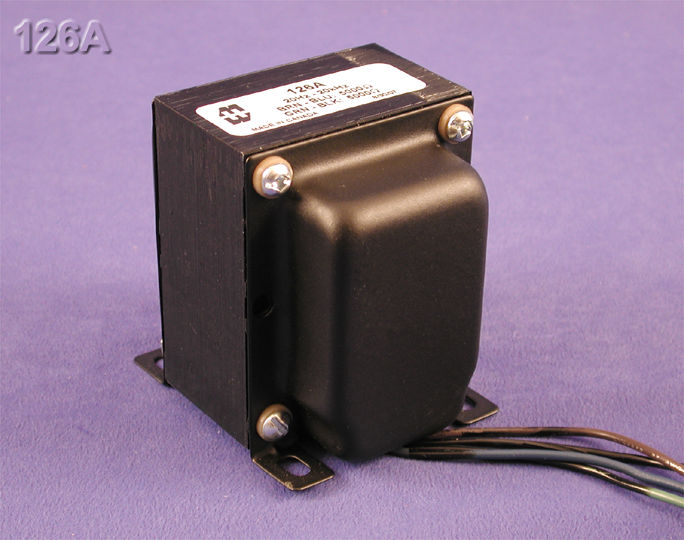

| 126A | 4 | 5K | 178 | 5K | 178 | 59 Henrys | 15 ma. | 2.50 | 3.12 | 3.12 | 2.00 | 2.25 | 0.20 | 0.38 | $93.87In stock | Buy now |
| 126B | 4 | 5K | 178 | 5K | 178 | 44 Henries | 30 ma. | 2.50 | 3.12 | 3.12 | 2.00 | 2.25 | 0.20 | 0.38 | $93.87In stock | Buy now |
| 126C | 4 | 10K | 375 | 10K | 375 | 106 Henrys | 15 ma. | 2.50 | 3.12 | 3.12 | 2.00 | 2.25 | 0.20 | 0.38 | $93.87Backorder | Buy now |
Features
- ■Designed for driver use ONLY in single ended tube output amplifiers. These units replace coupling capacitor circuits for improved sound.
- ■Closed style with minimum 8" long leads.
- ■All models use bifilar wound windings for exceptional coupling and bandwidth.
- ■Minimum frequency response 20 Hz. - 20 Khz (+/- 1db max. ref. 1 Khz.).
- ■The core is gapped to support the specified D.C. bias current.
- ■Maximum working voltage - 400 VDC
- ■Units are Hi-Pot tested at 1,000 VDC
- ■Core uses Hi grade silicon laminations (29M6).
- ■Units weight - 3 lbs. 2 oz.
