ABS Sealed Enclosure
- Assembly Method Self-Tapping Stainless Steel Screws
- Lid Gasket Installed
$6.00In stock
Buy now

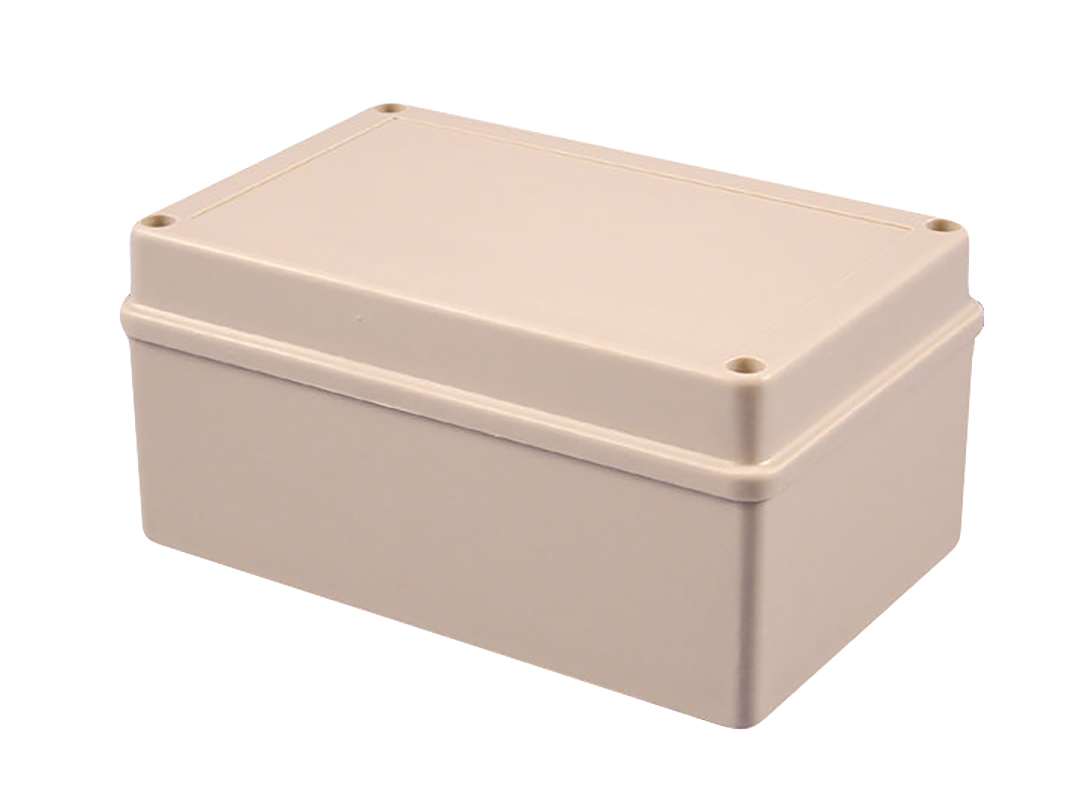

ABS Plastic Sealed Enclosures · RS Series
Brand: Hammond Manufacturing · 9 part numbers
- ■Designed to house P.C. boards sealed from dust and water (not for outdoor use).
- ■Molded in light grey general purpose ABS plastic with a light texture (material carries a UL flammability rating of UL94 HB).
- ■Two-part styled lid construction. Top half includes smooth recessed area for membrane, label or silkscreen.

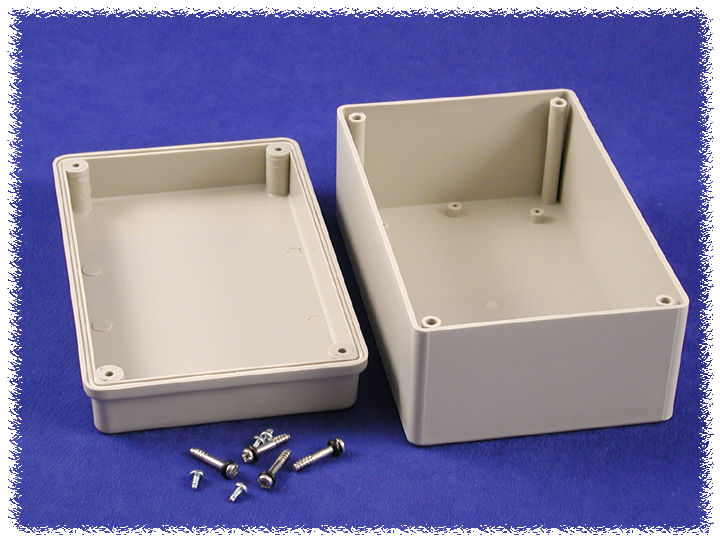

- ■P.C. board standoffs are molded into the bottom (two smallest sizes) and molded into both halves of the enclosure (two largest sizes). See photo tables for details. Four short M3 self tapping screws included.
- ■Gasketed lid with two piece "tongue & groove" construction provides protection against access of oil, dust and water.
- ■Designed to meet IP65.
from $2.20
7 of 9 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your RS Series part number
Filter 7 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
7 of 7 part numbers · 7 priced online
RS510 Gasket- 2PK
- Assembly Method Self-Tapping Stainless Steel Screws
- Lid Gasket Installed
$2.20In stock
Buy now
ABS Sealed Enclosure
- Assembly Method Self-Tapping Stainless Steel Screws
- Lid Gasket Installed
$8.20In stock
Buy nowRS530 Gasket- 2PK
- Assembly Method Self-Tapping Stainless Steel Screws
- Lid Gasket Installed
$2.64In stock
Buy now
ABS Sealed Enclosure
- Assembly Method Stainless Steel Machine Screws Into Stainless Steel Inserts
- Lid Gasket Kit (Included)
$33.18In stock
Buy nowRS570 / RS580 Gasket- 2PK
- Assembly Method Stainless Steel Machine Screws Into Stainless Steel Inserts
- Lid Gasket Kit (Included)
$3.54In stock
Buy now
ABS Sealed Enclosure
- Assembly Method Stainless Steel Machine Screws Into Stainless Steel Inserts
- Lid Gasket Kit (Included)
$36.14In stock
Buy nowDimension tables (inches / mm)
| Part Number | Color | Assembly Method | Lid Gasket | Length (mm) | Width (mm) | Height (mm) | Replacement · Gasket (Part No.) | Replacement · Lid Screws (Part No.) | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| RS5105S | Grey | Self-Tapping Stainless Steel Screws | Installed | 108 | 108 | 54.5 | RS510GASKET | SC624-50 | $6.00In stockRS5105S | Buy now |

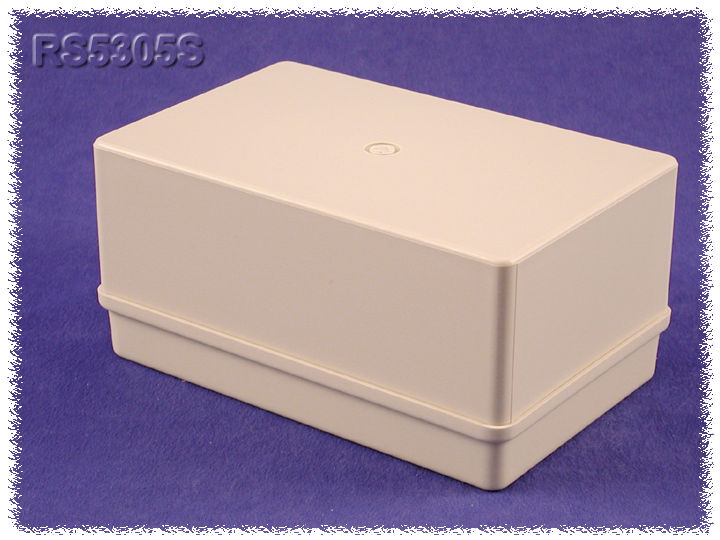

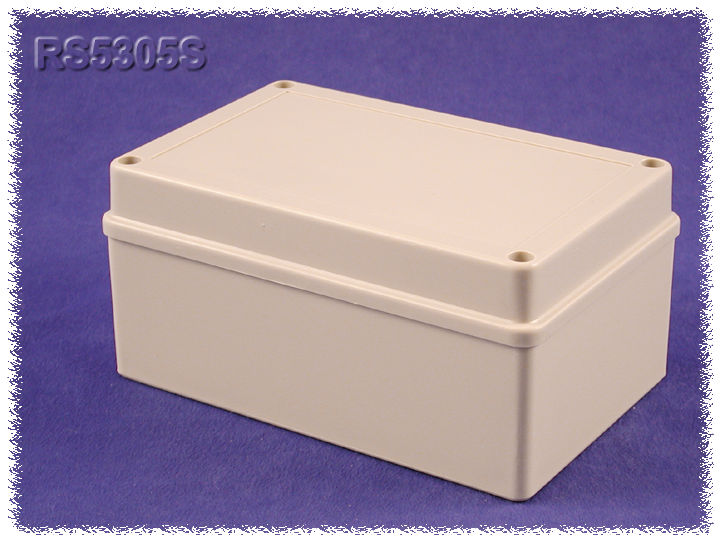

| RS5305S | Grey | Self-Tapping Stainless Steel Screws | Installed | 168 | 108 | 78.5 | RS530GASKET | SC624-50 | $8.20In stockRS5305S | Buy now |
| RS5705 | Grey | Stainless Steel Machine Screws Into Stainless Steel Inserts | Kit (Included) | 254 | 204 | 90 | RS570GASKET | SC618-50 | $33.18In stockRS5705 | Buy now |

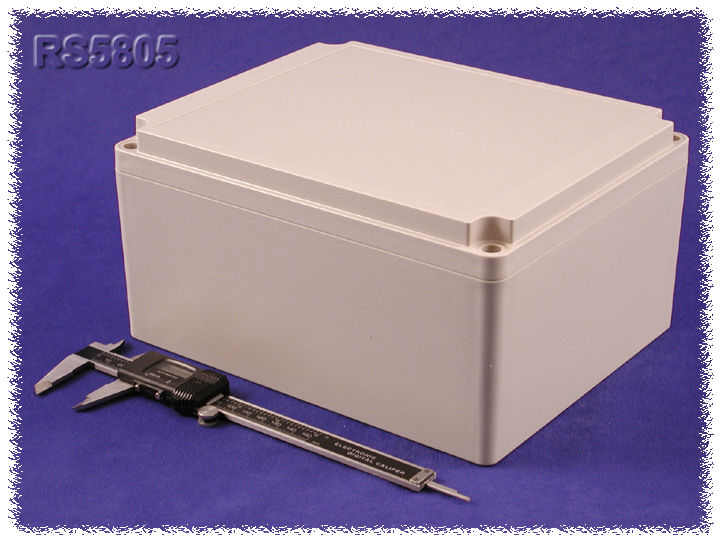

| RS5805 | Grey | Stainless Steel Machine Screws Into Stainless Steel Inserts | Kit (Included) | 254 | 204 | 130 | RS570GASKET | SC618-50 | $36.14In stockRS5805 | Buy now |
Key Features:
- ■Designed to house P.C. boards sealed from dust and water (not for outdoor use).
- ■Molded in light grey general purpose ABS plastic with a light texture (material carries a UL flammability rating of UL94 HB).
- ■Two-part styled lid construction. Top half includes smooth recessed area for membrane, label or silkscreen.
- ■P.C. board standoffs are molded into the bottom (two smallest sizes) and molded into both halves of the enclosure (two largest sizes). See photo tables for details. Four short M3 self tapping screws included.
- ■Gasketed lid with two piece "tongue & groove" construction provides protection against access of oil, dust and water.
- ■Designed to meet IP65.
- ■Includes four M4 assembly screws (see table below for type).
- ■Lid screws are self captivating (lid holes are threaded with the first installation of lid screws).
- ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
