ABS Plastic Instrument Enclosures · RM Series

Key Features:

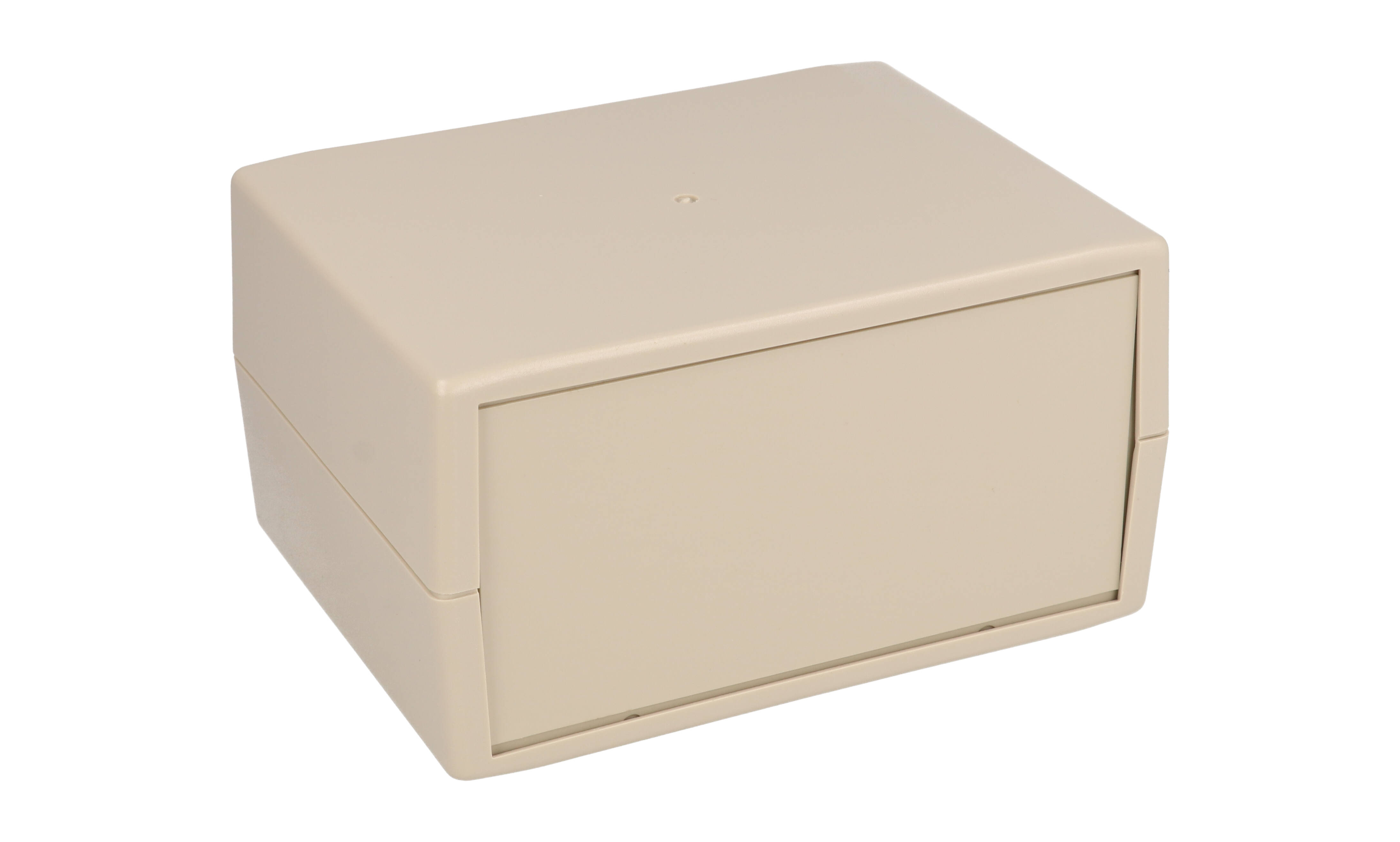

• ■Designed to house P.C. boards - for instrument use.

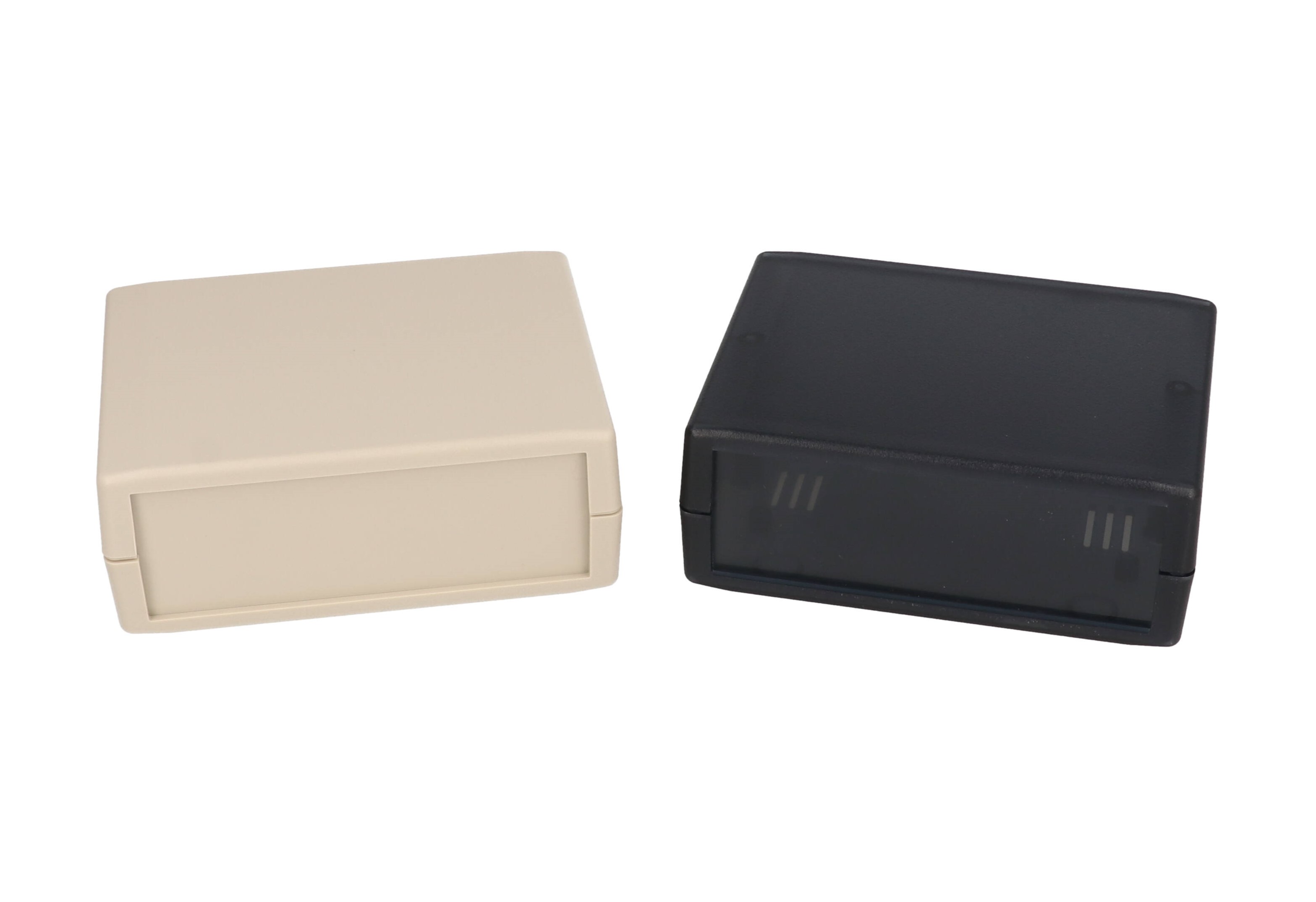

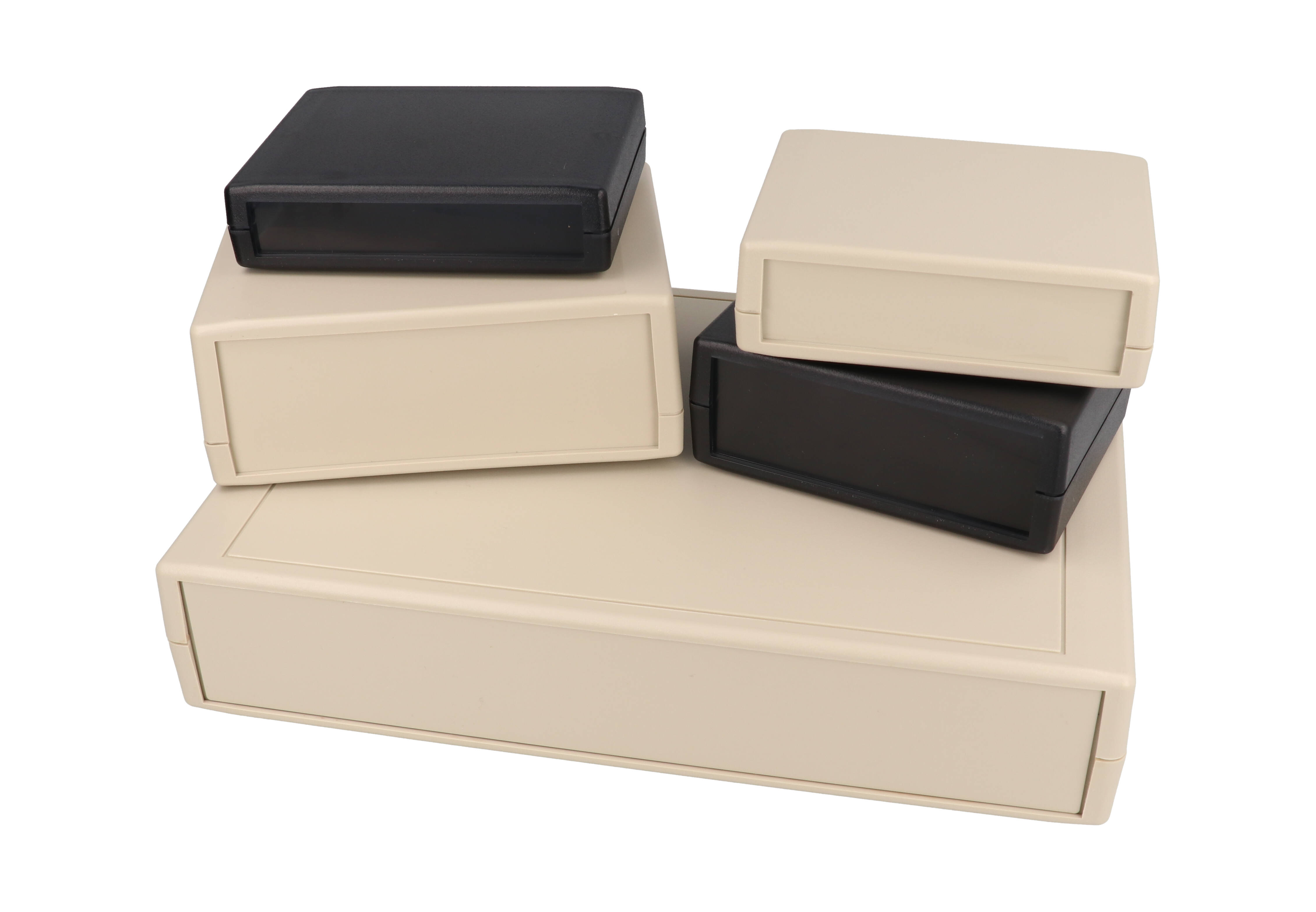

• ■Molded in light grey or translucent black general purpose ABS plastic with a light texture (front & rear panels are smooth). Material carries a UL flammability rating of UL94 HB.
• ■Two-part clam shell construction. Bottom half includes molded in standoffs for easy P.C. board installation. Larger enclosures also include P.C. board standoffs on the top half (see photo tables for details). Four short M3 screws included
• ■Front & rear panels are interchangeable and easily removable for modifications.
• ■Tongue and groove construction provides protection against dust & water. Designed to meet IP43.
• ■Includes two (or four) assembly screws (depending on size).
• ■Units are secured with M3 Philips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required. See part number table below for replacement screw packs.
• ■See part number table below for replacement screw packs.
• ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.

Folding Foot Kit

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

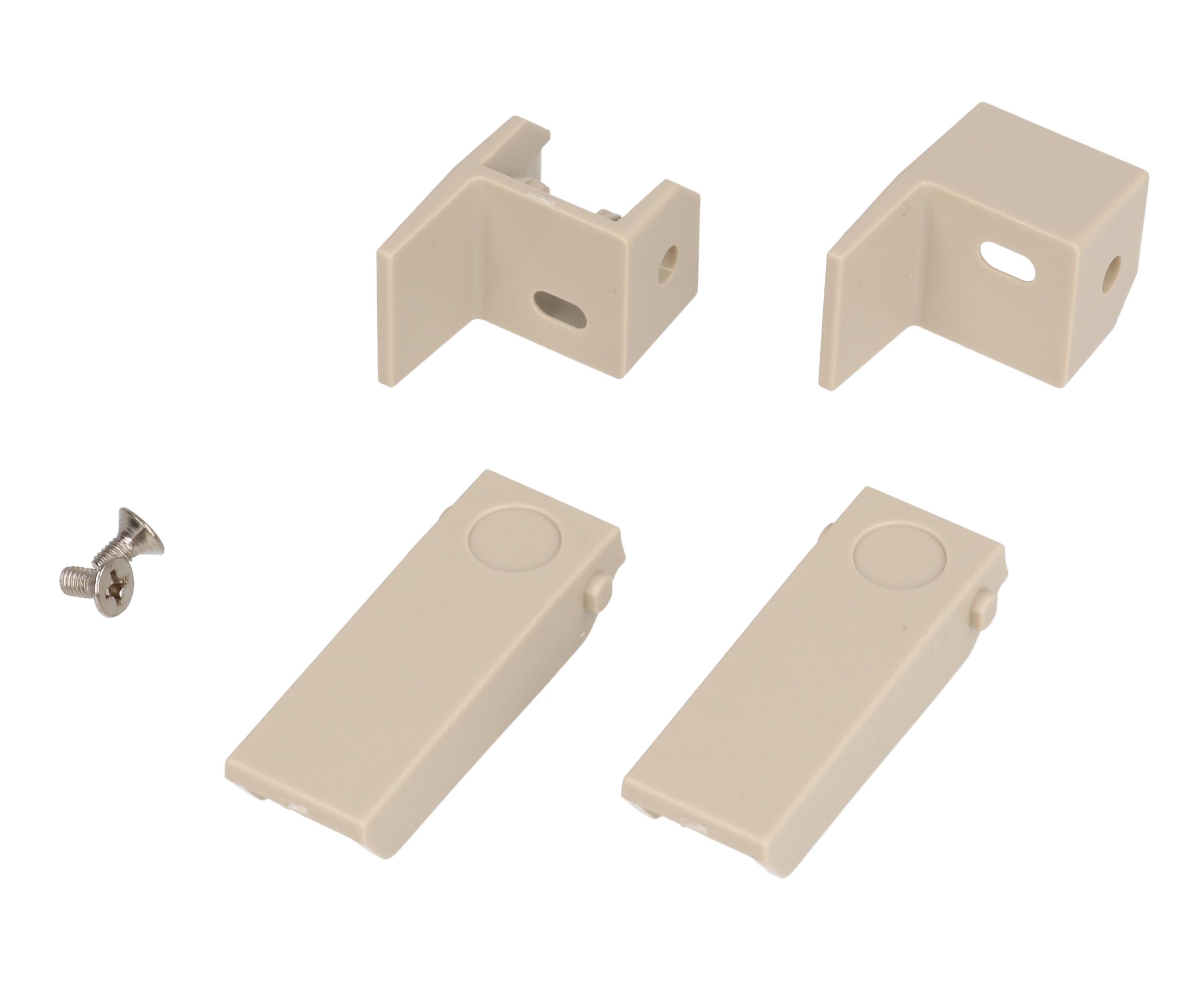

• ■Kit consists of two (2) enclosure brackets, two (2) mounting screws & two (2) hinged feet
• ■Mounts to the bottom half - towards the front of the enclosure
• ■Allows angled view of enclosure front panel
• ■Part Number: FT-01
