Thick-Wall Plastic Enclosures w/ EMI/ RFI Shielding · 1594RFI Series

Features:

For non-shielded applications, try general purpose or water-tight series 1594.

• ■Designed for EMI/RFI shielding applications
• ■Made with a conductive compound of stainless steel fibers and flame retardant ABS plastic
• ■Plastic carries a UL flammability rating of 94V-0
• ■Black with matte textured finish
• ■Thick wall design with an average wall thickness of 0.13” (3.3 mm)
• ■Designed to meet IP54

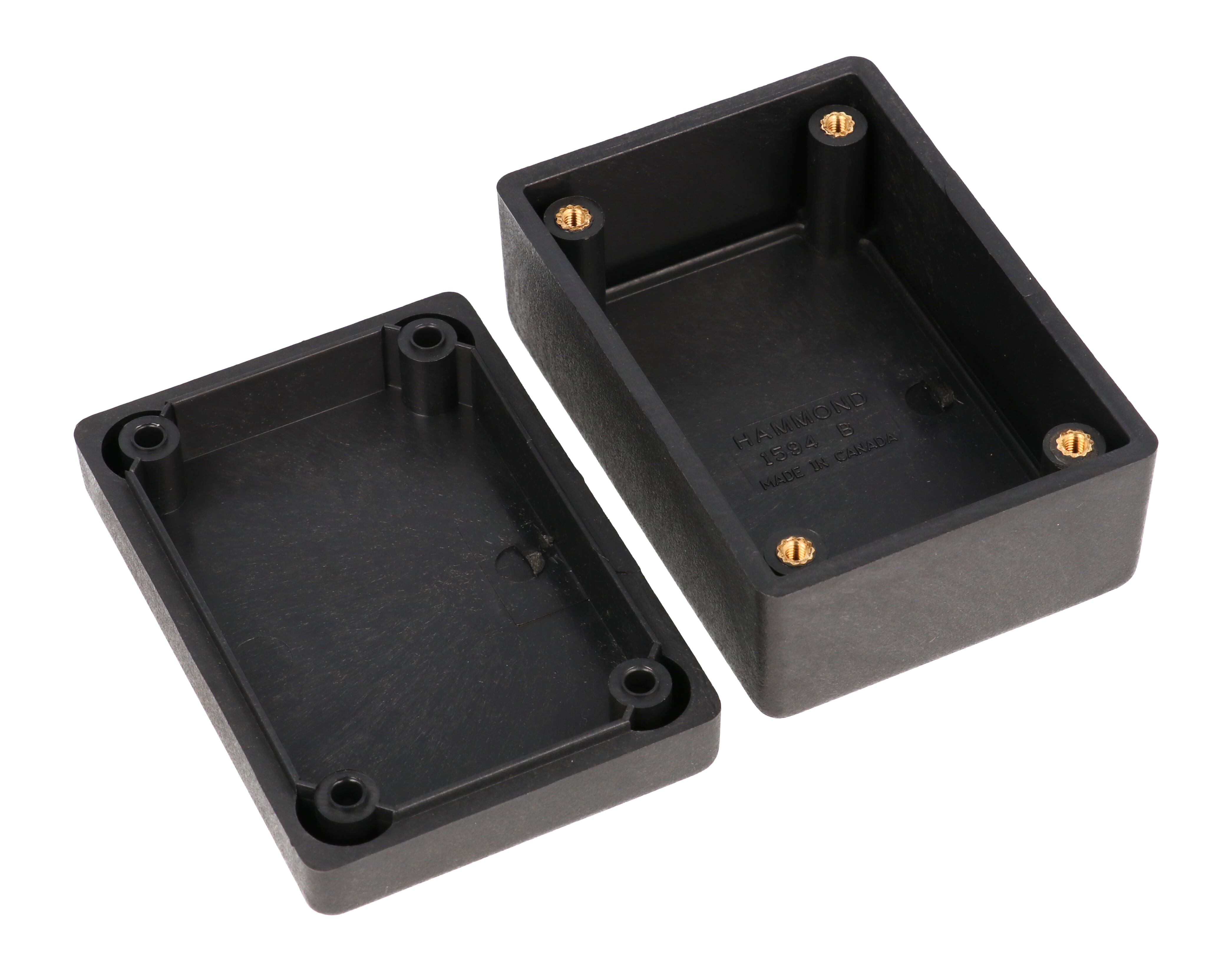

• ■Countersunk lid is secured with four M3-0.5 x 18mm long Philips machine screws threaded into integral brass bushings
• ■Replacement screws sold in packs of 100, part number 1594MS100
• ■NOTE: Material is brittle, similar to phenolic. Not for high impact use
• ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
• ■Conductive plastic is NOT an insulator. These enclosures must be treated like a metal enclosure
• ■Conductive plastic will act as a heating element. Any significant current flow will cause the plastic to heat and produce smoke
