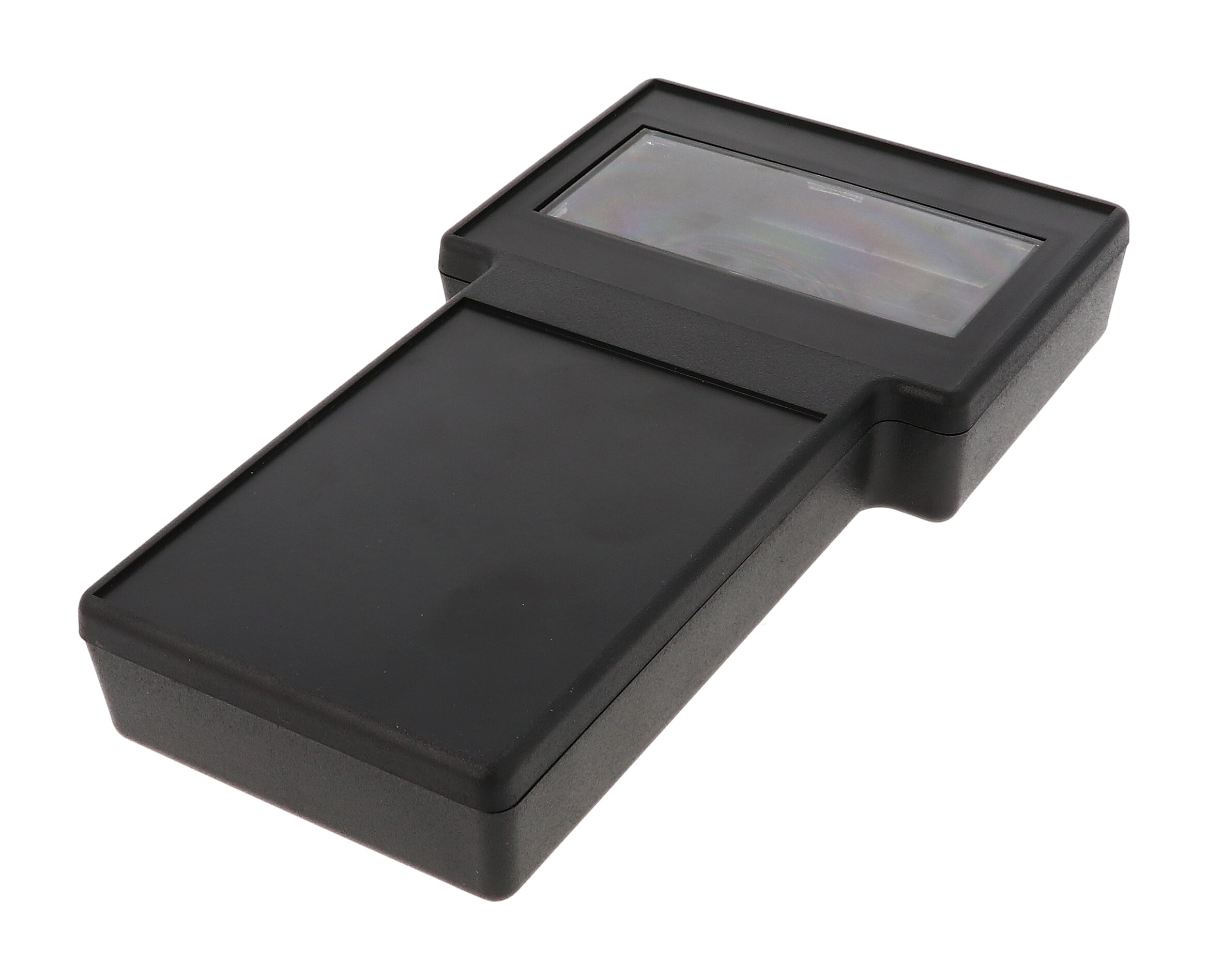

"T" Display Enclosures · 1592 Series

Key Features:

• ■Perfect for instrument or mobile data enclosures requiring a keypad and display.
• ■Available with either a solid display area or an opening with a clear lens. Solid display area is 122mm x 85mm (4.8” x 3.4”) and will accommodate display boards up to 118mm x 60mm (4.6” x 2.37”). Clear polycarbonate lens 102mm x 45mm (4.0” x 1.77”) and a plain mylar mask kit allows for installation of a wide variety of display boards with the protection of the clear lens and dressed by the mylar frame. The lens fits snugly into the case and provides protection from dirt and dust.
• ■Solid display area is 122mm x 85mm (4.8” x 3.4”) and will accommodate display boards up to 118mm x 60mm (4.6” x 2.37”).
• ■Clear polycarbonate lens 102mm x 45mm (4.0” x 1.77”) and a plain mylar mask kit allows for installation of a wide variety of display boards with the protection of the clear lens and dressed by the mylar frame.
• ■The lens fits snugly into the case and provides protection from dirt and dust.

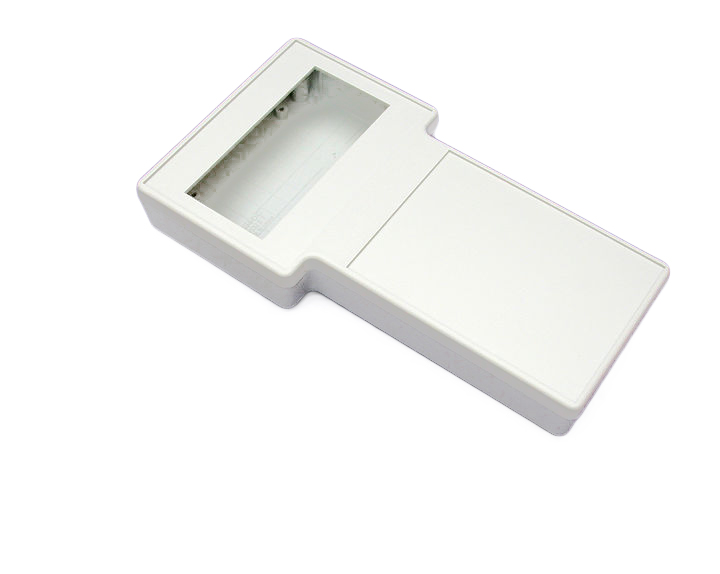

• ■Molded from flame retardant ABS plastic with a UL flammability rating of UL94 V-0 in black or grey.

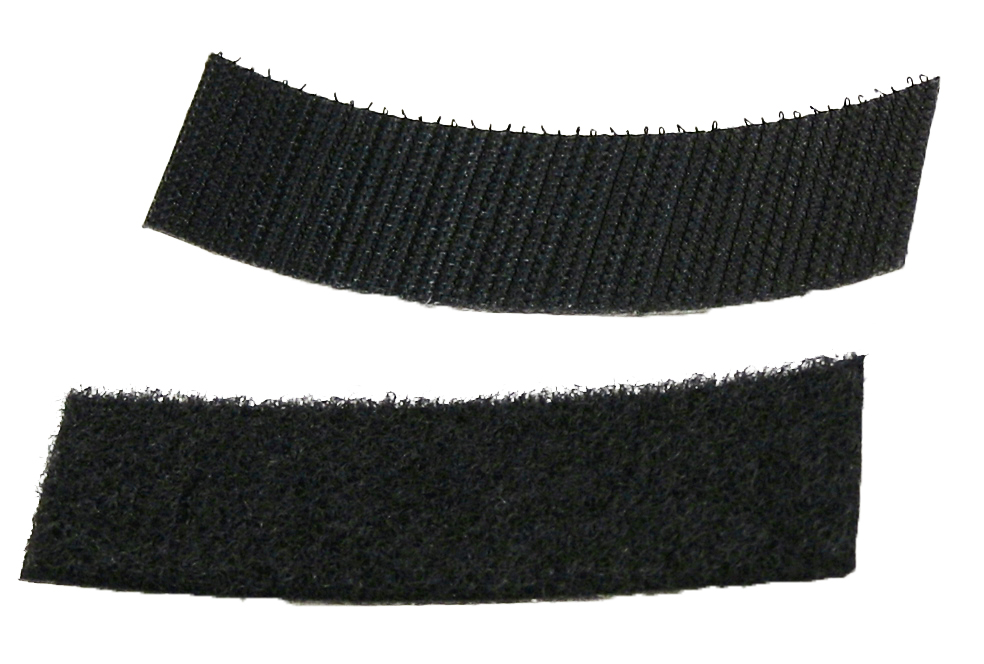

• ■The back of the case has been designed to accept a magnetic strip or hook and loop fabric mounting tab, available separately.
• ■The display area has been insert tooled in order to provide the capability of custom molding a low-cost display area to specific requirements.
• ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
