Mini Pushbutton Box
$69.58In stock
Buy now
Type 12 Mild Steel Miniature Pushbutton Enclosures · MPB Series
Brand: Hammond Manufacturing · 14 part numbers
- ■Designed to accept 22mm miniature oil tight pushbuttons, switches and pilot lights.
- ■Provides protection from dirt, dust, oil and water.
- ■UL 508A Type 12 and 13
- ■CSA Type 12 and 13
- ■Complies with NEMA Type 12 and 13 IEC 60529, IP54
- ■NEMA Type 12 and 13
from $69.58
14 of 14 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your MPB Series part number
Filter 14 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
14 of 14 part numbers · 14 priced online
Mini Pushbutton Box
$151.43In stock
Buy now

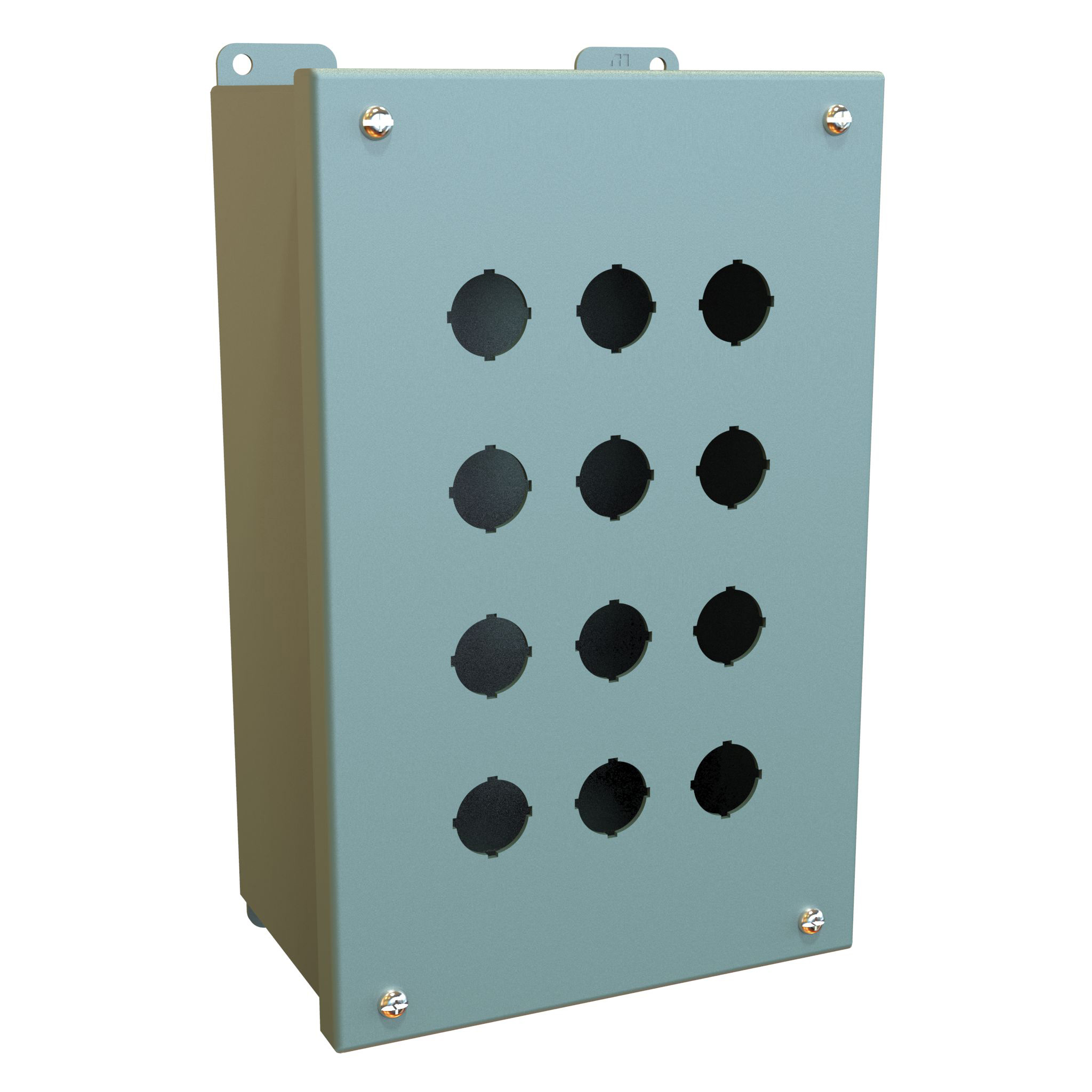

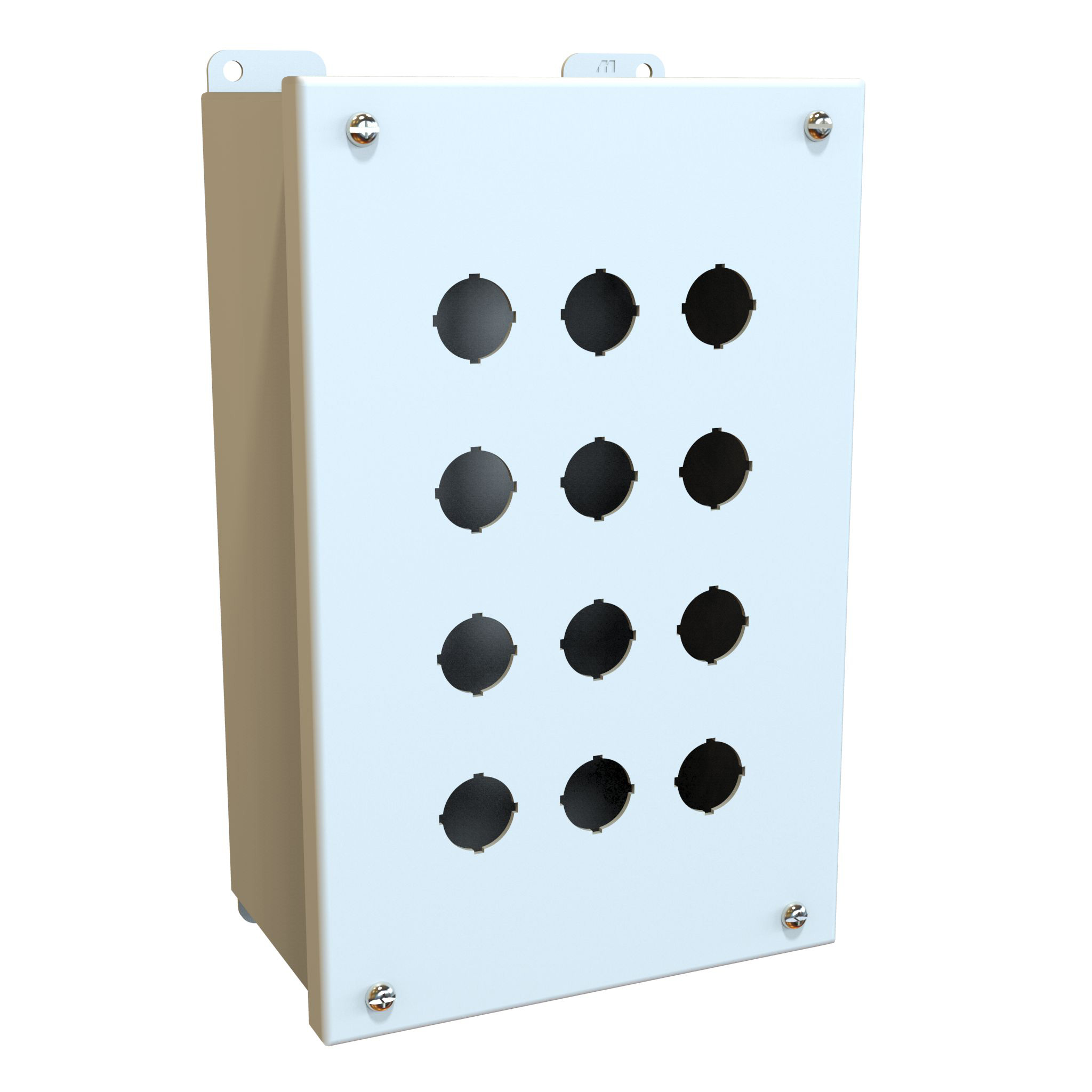

12 Hole 22MM Pushbutton Box
$151.43In stock
Buy now

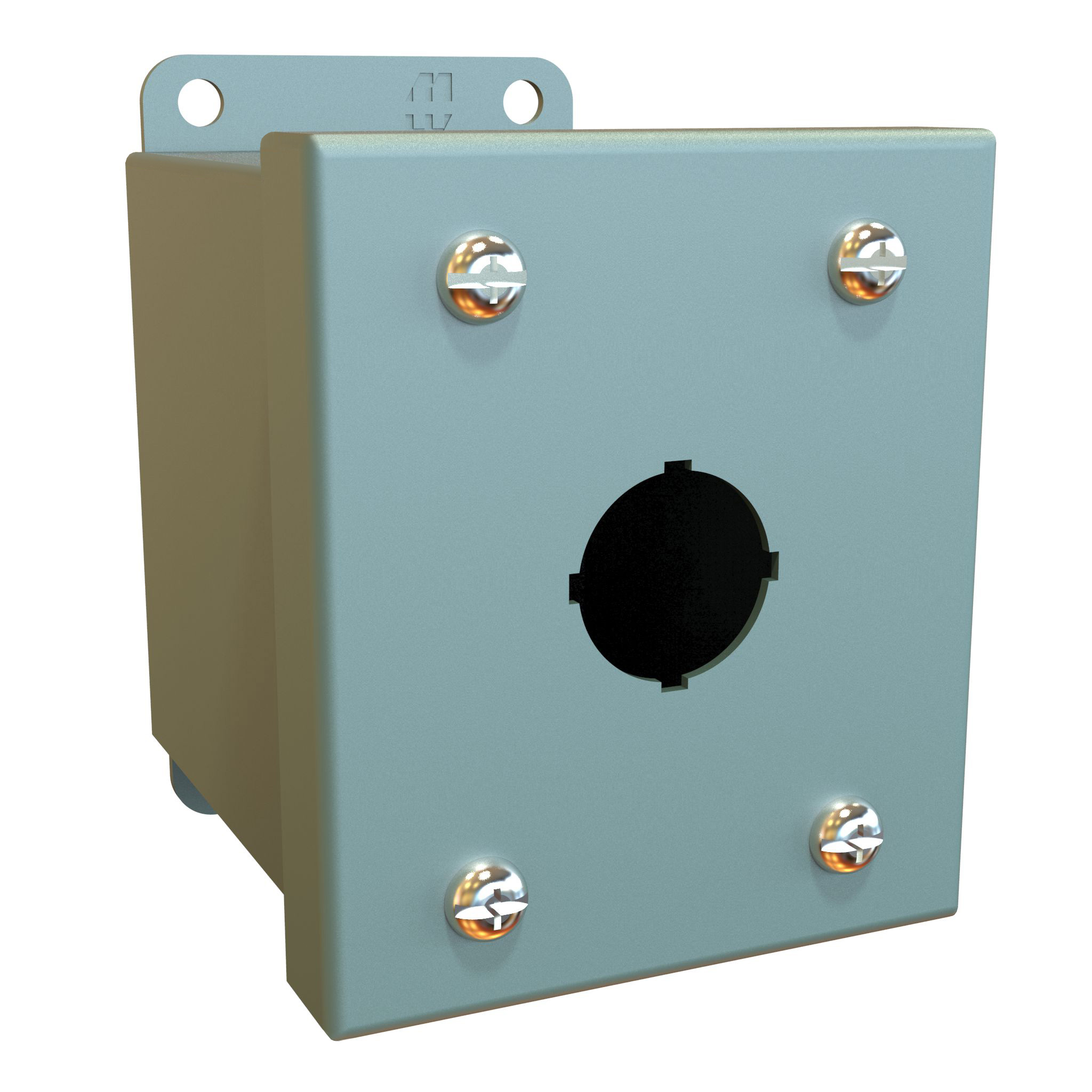

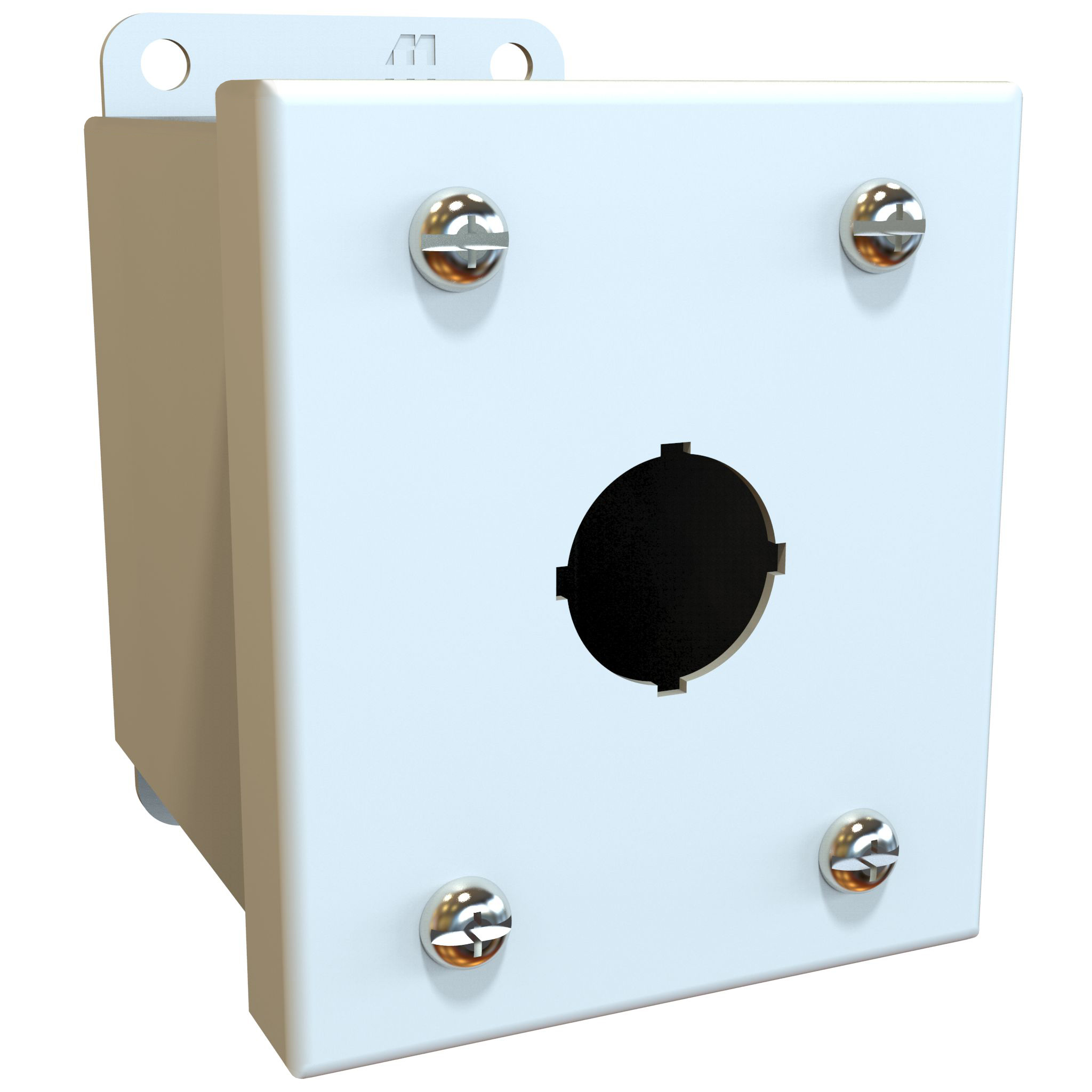

1 Hole 22MM Pushbutton Box
$69.58Backorder
Buy now
Mini Pushbutton Box
$79.82Backorder
Buy now

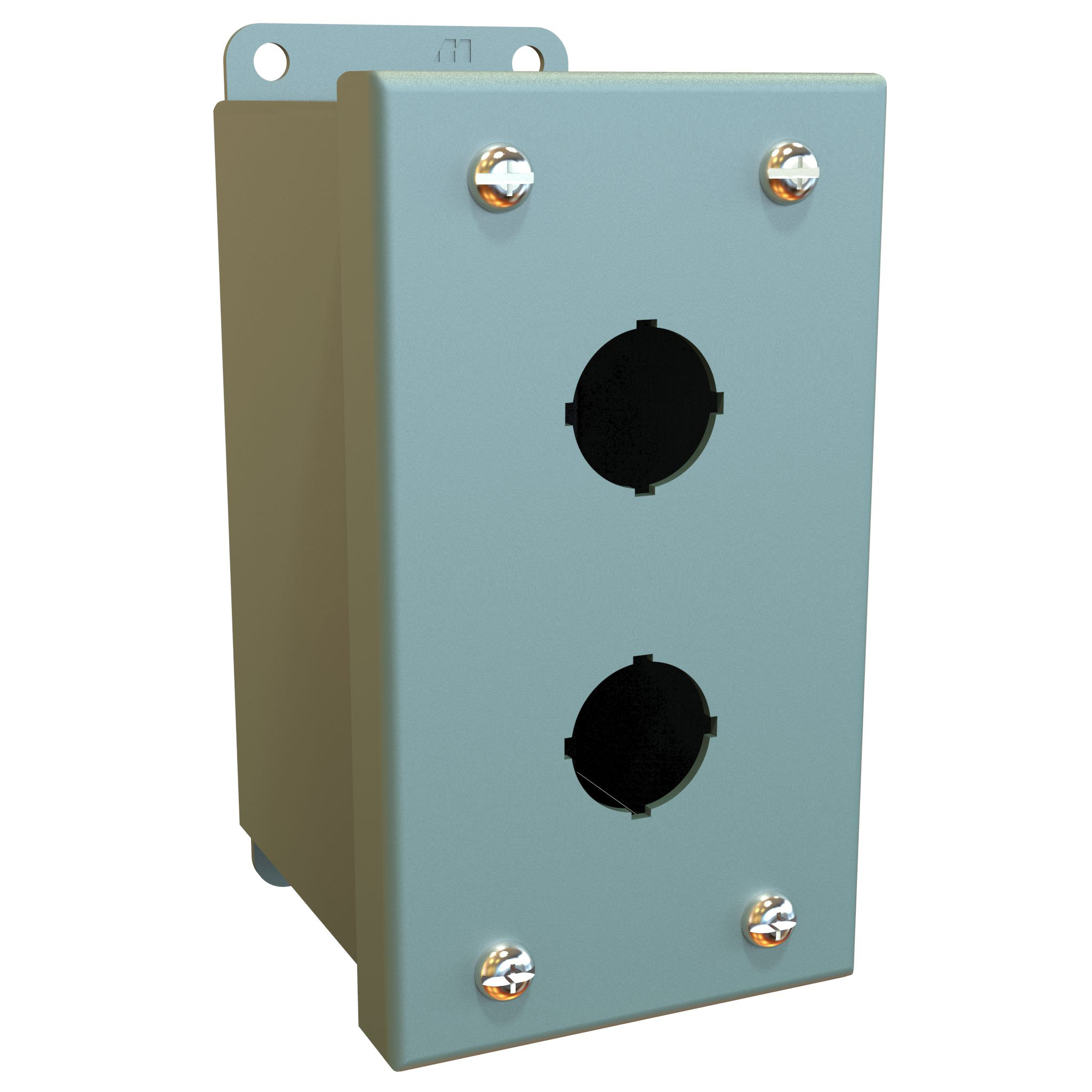

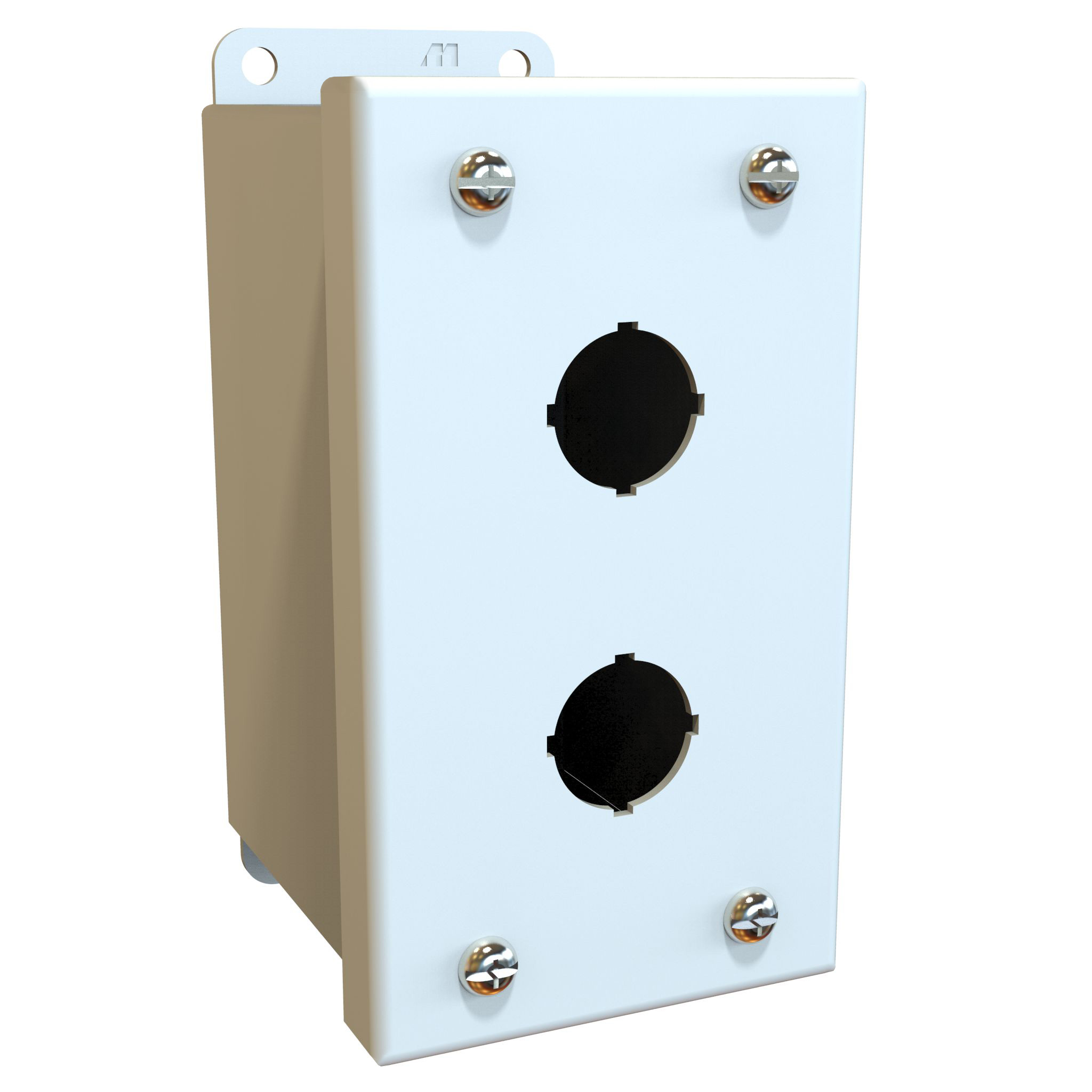

2 Hole 22MM Pushbutton Box
$79.82In stock
Buy now
Mini Pushbutton Box
$88.00Backorder
Buy now

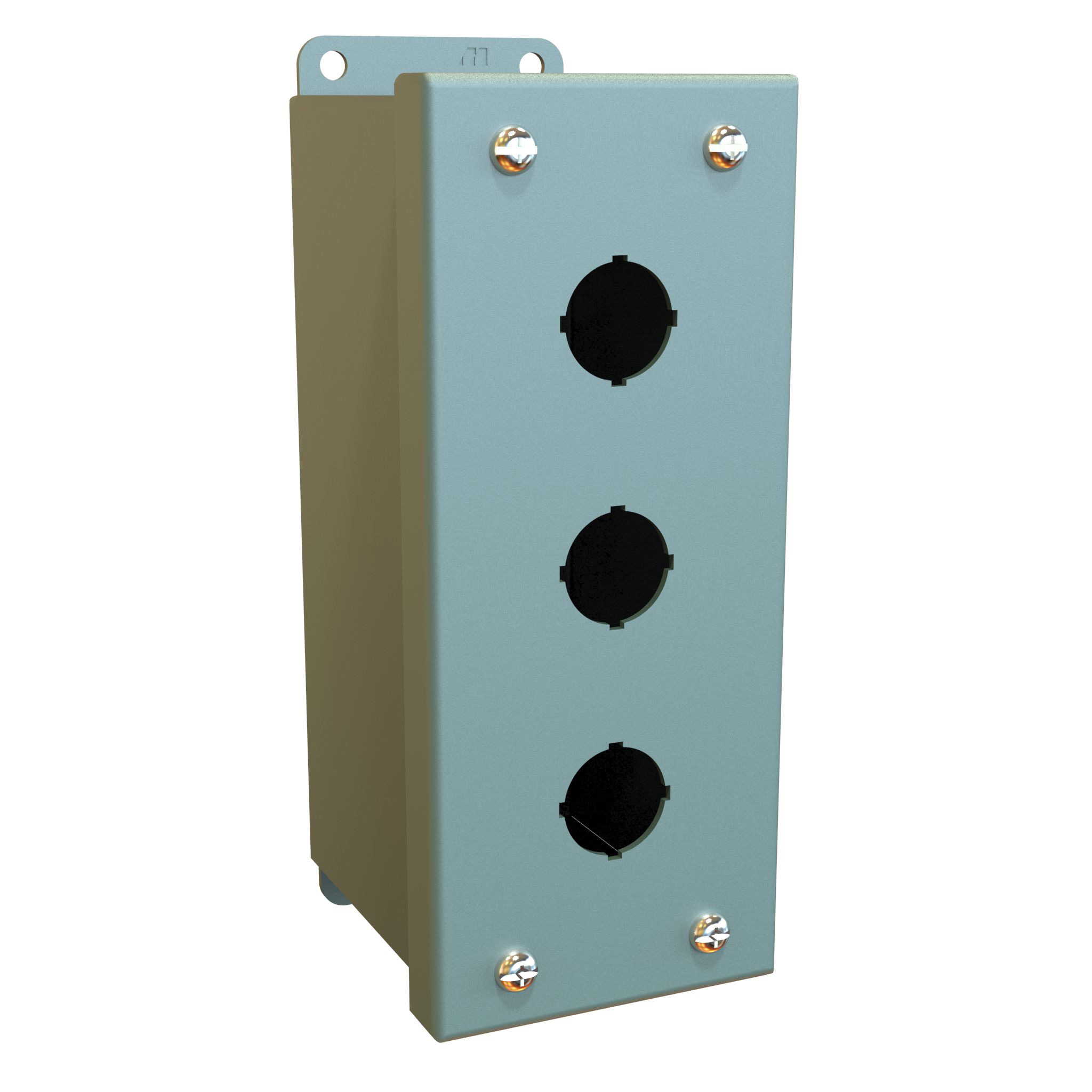

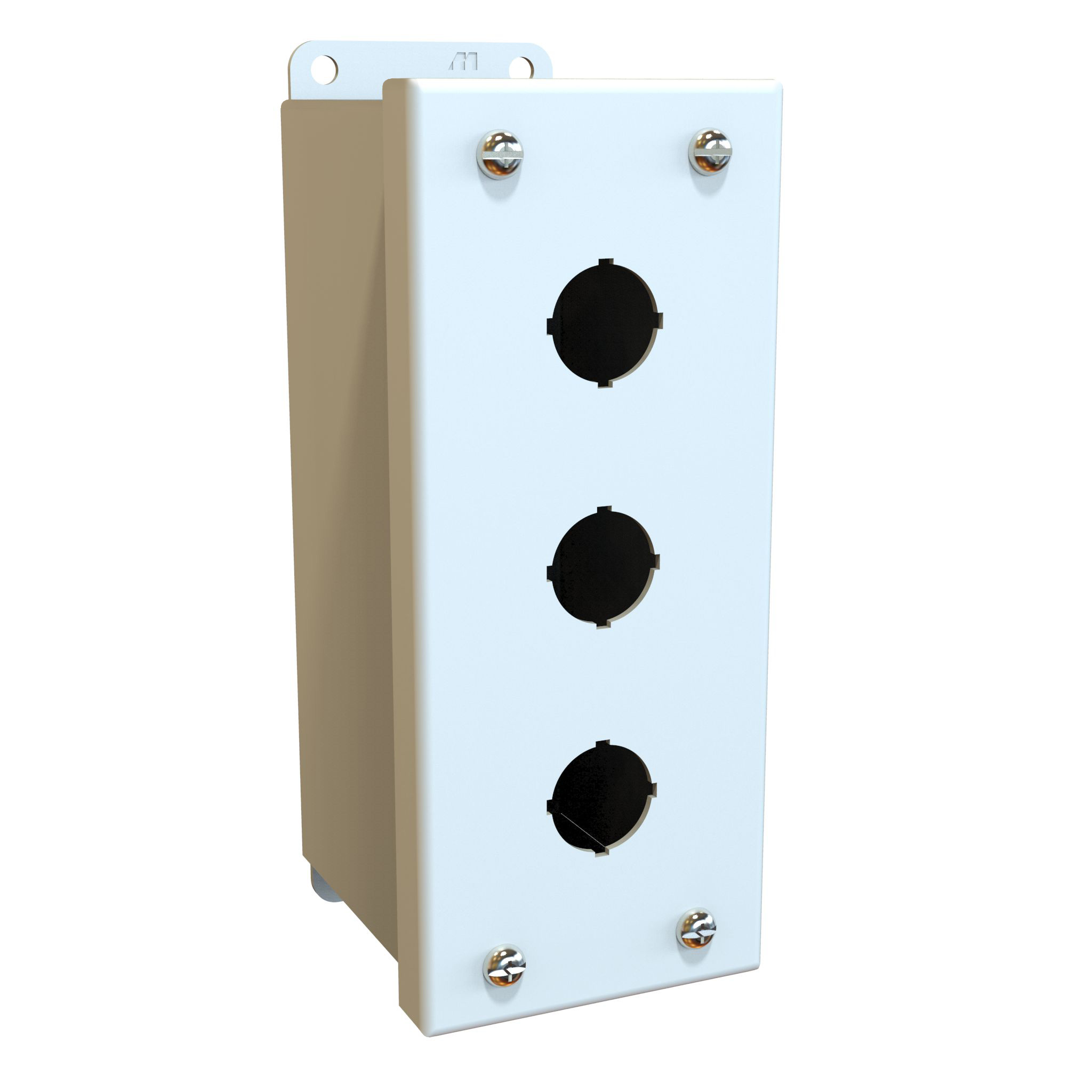

3 Hole 22MM Pushbutton Box
$88.00Backorder
Buy now
Mini Pushbutton Box
$97.54In stock
Buy now

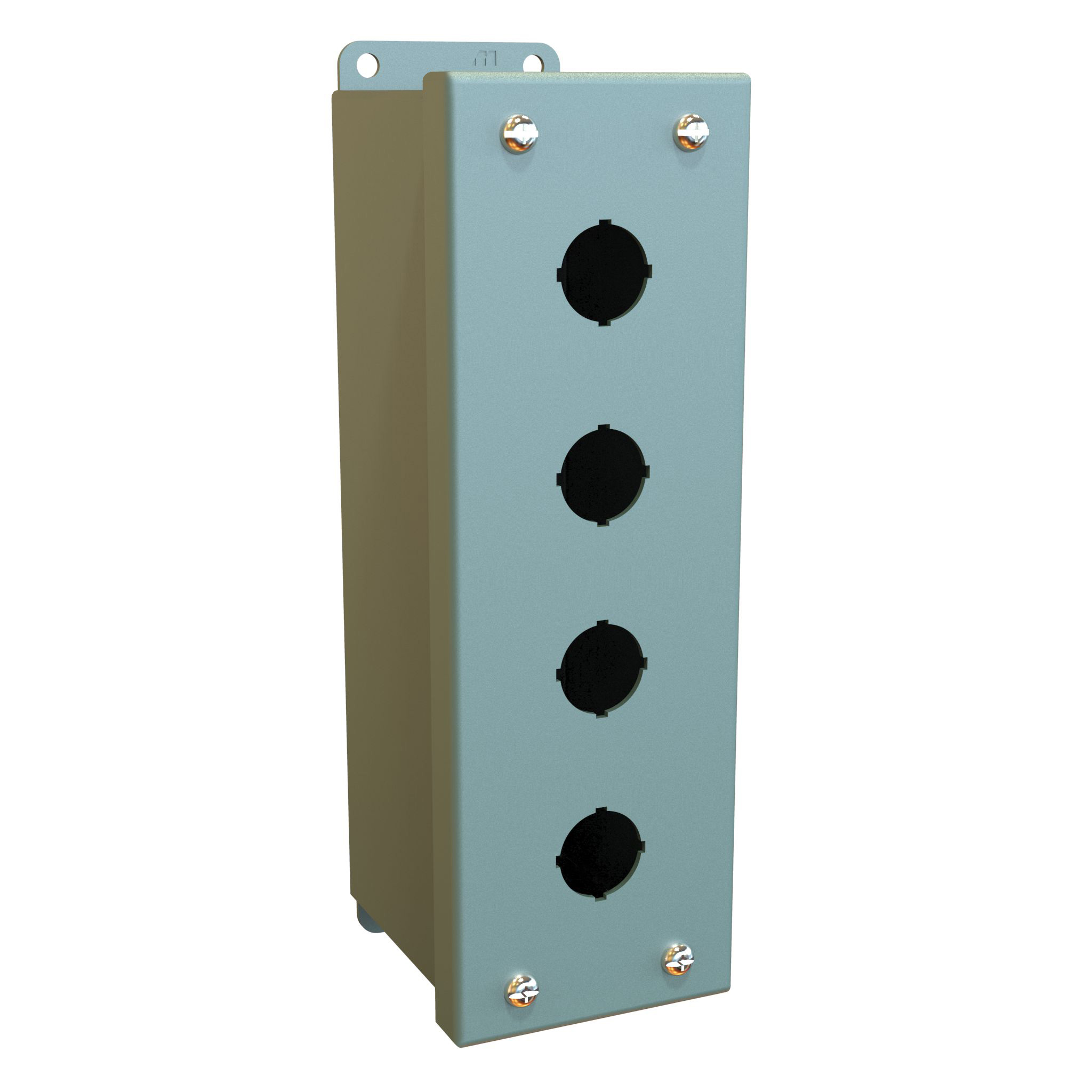

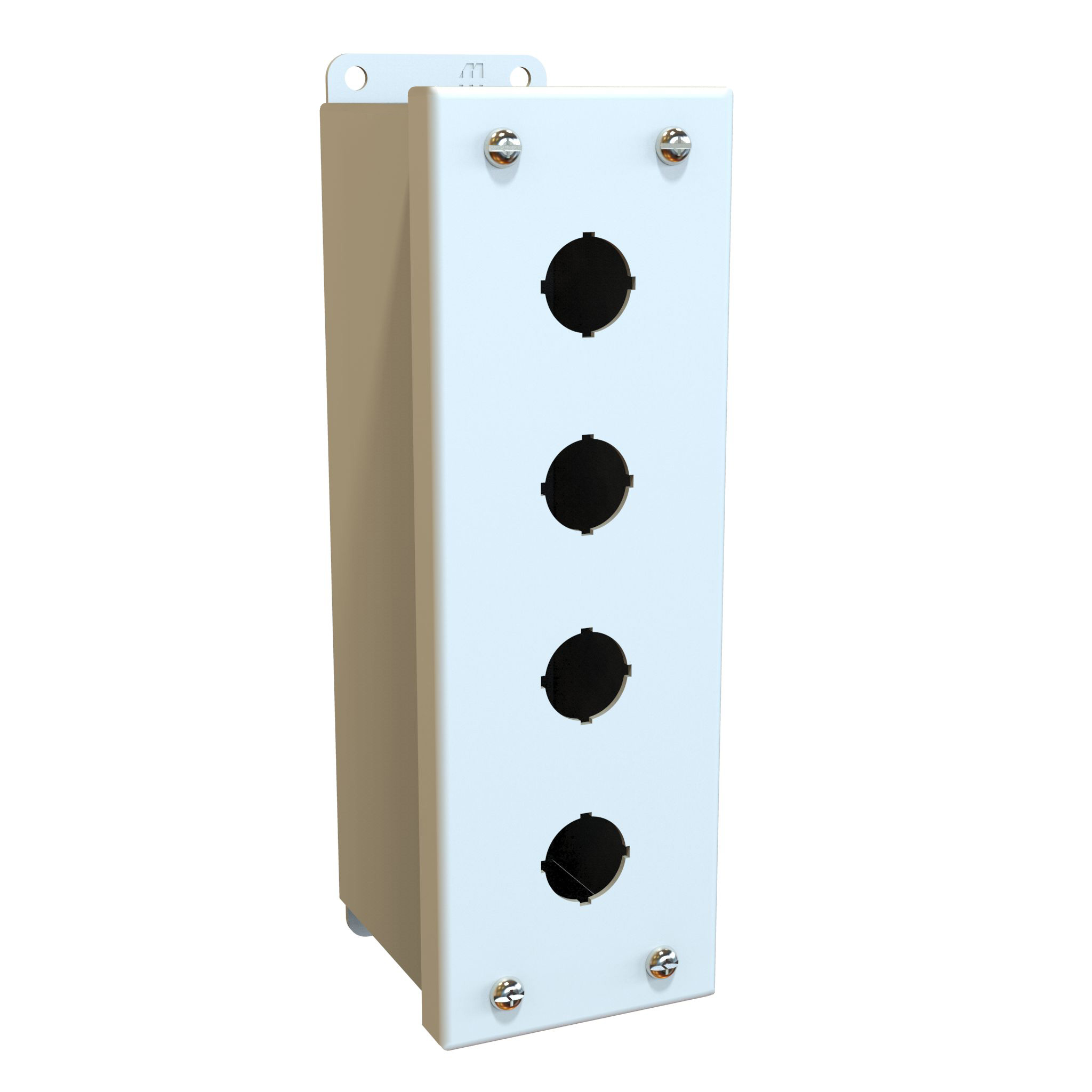

4 Hole 22MM Pushbutton Box
$97.54In stock
Buy now
Mini Pushbutton Box
$124.15In stock
Buy now

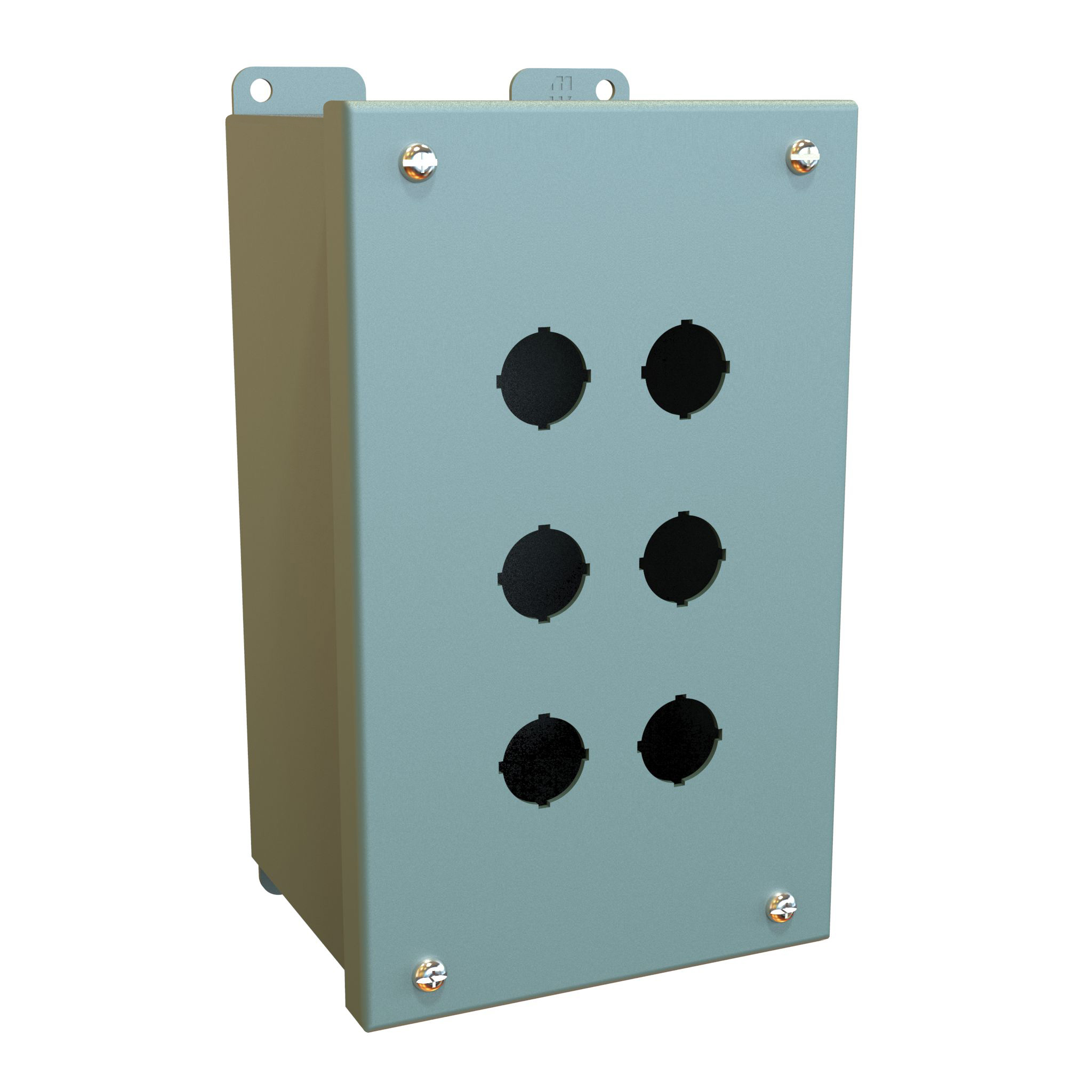

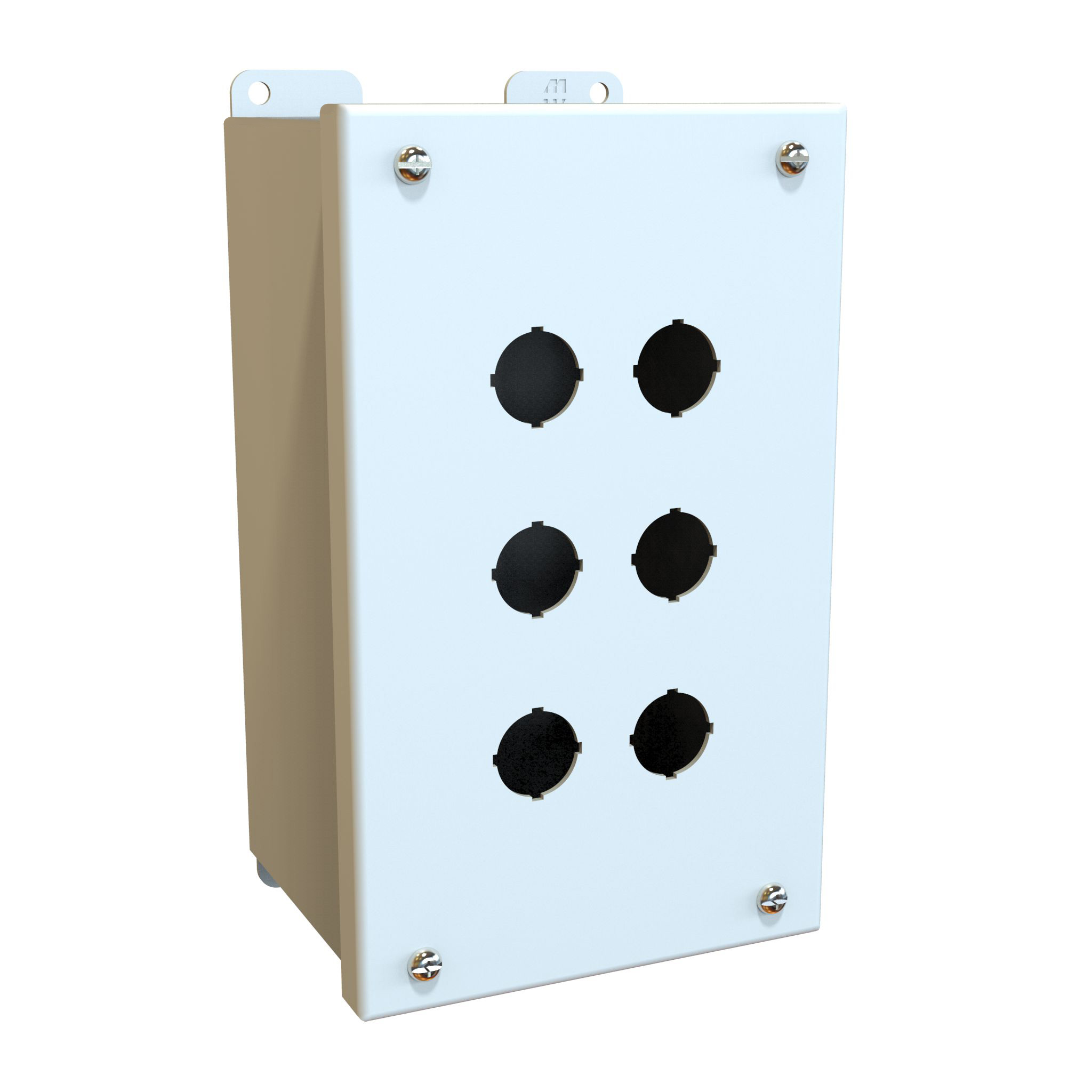

6 Hole 22MM Pushbutton Box
$124.15Backorder
Buy now
Mini Pushbutton Boxes
$136.42In stock
Buy now

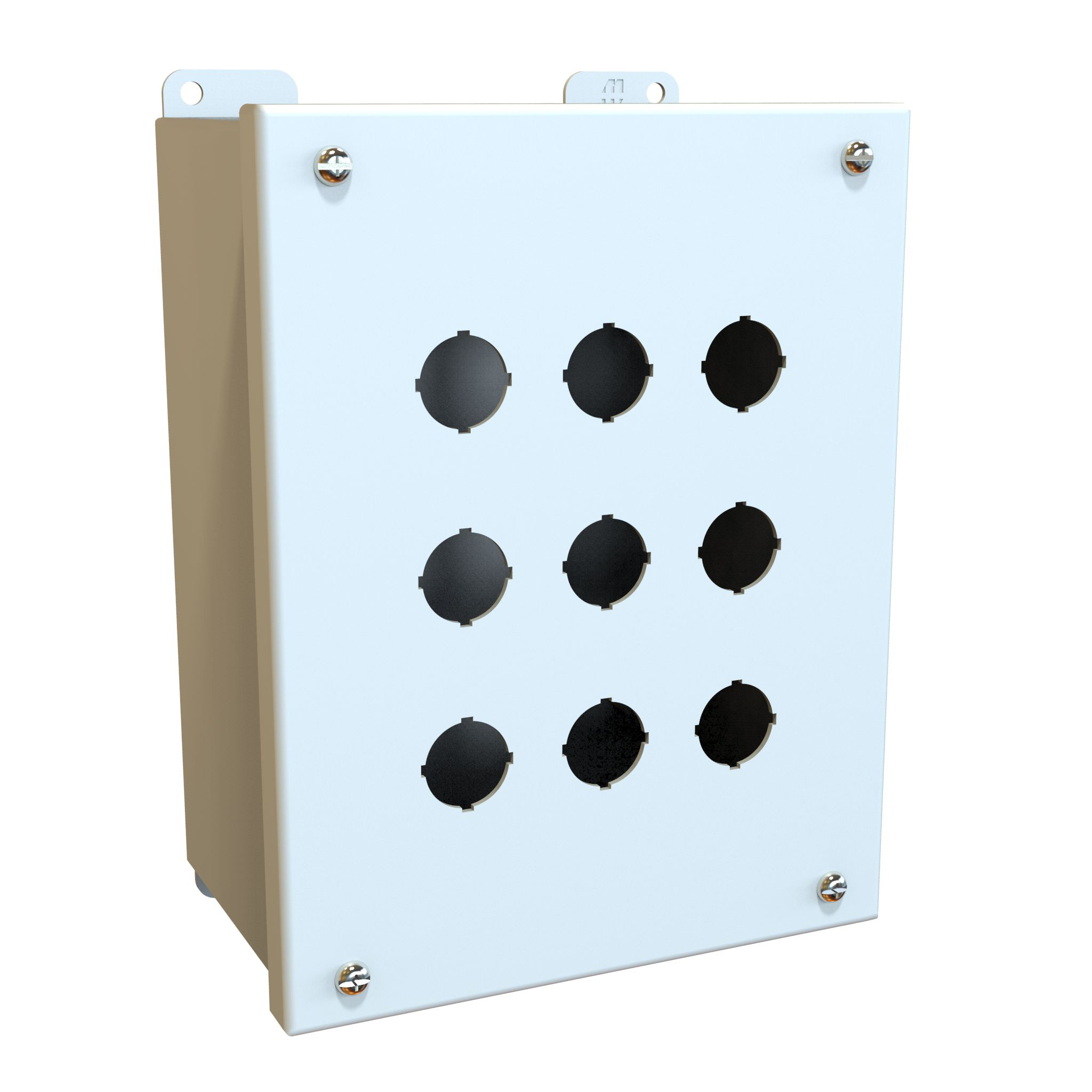

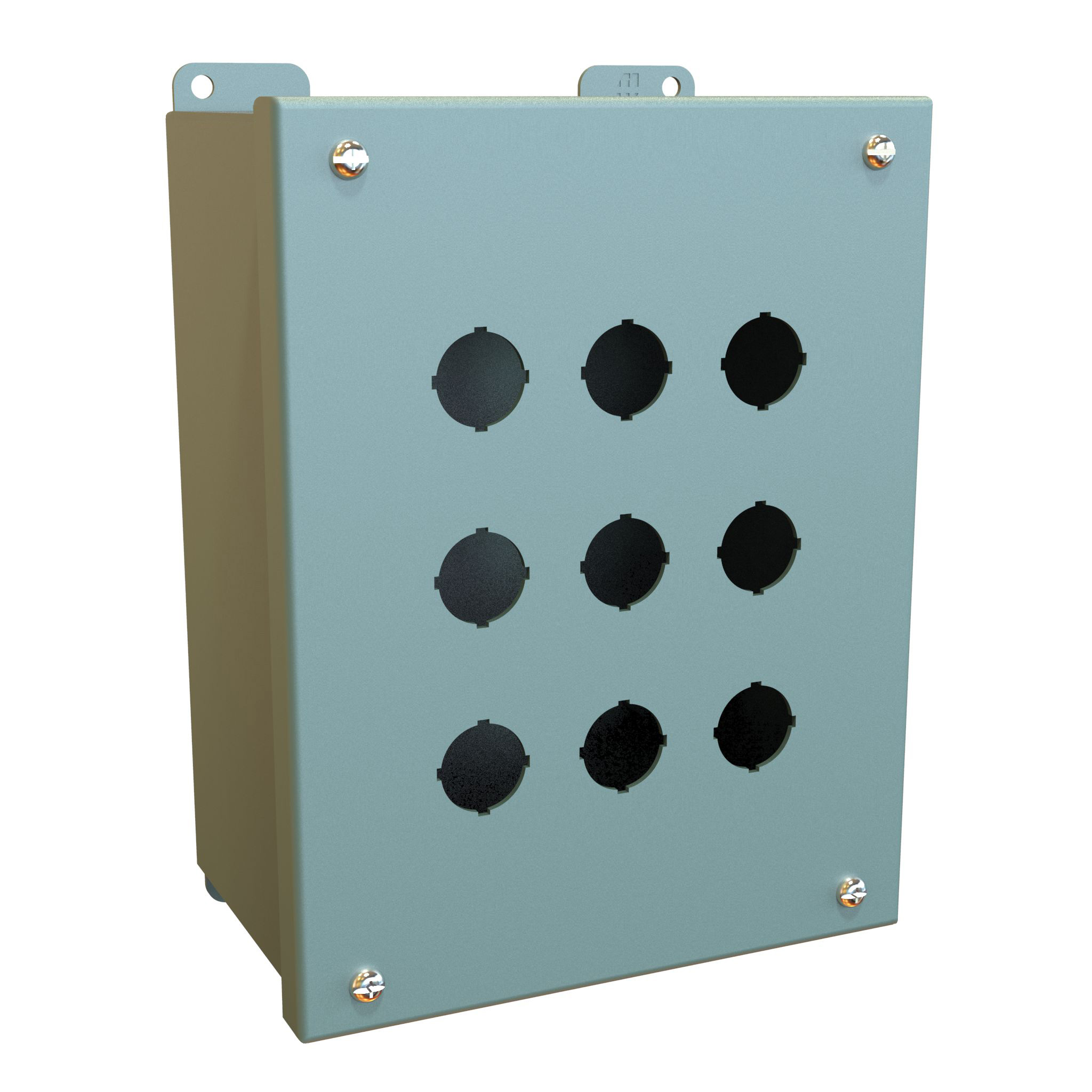

9 Hole 22MM Pushbutton Box
$136.42In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| ANSI 61 Gray · Part No. | RAL7035 Light Gray · Part No. | No. of · Holes | Enclosure · H | Enclosure · W | Enclosure · D | Price | Order |
|---|---|---|---|---|---|---|---|
| MPB1 | MPB1LG | 1 | 3.25 | 2.75 | 3.50 | $69.58In stockMPB1 | Buy now |
| MPB2 | MPB2LG | 2 | 5.13 | 2.75 | 3.50 | $79.82BackorderMPB2 | Buy now |
| MPB3 | MPB3LG | 3 | 7.00 | 2.75 | 3.50 | $88.00BackorderMPB3 | Buy now |
| MPB4 | MPB4LG | 4 | 8.88 | 2.75 | 3.50 | $97.54In stockMPB4 | Buy now |
| MPB6 | MPB6LG | 6 | 8.50 | 5.00 | 4.25 | $124.15In stockMPB6 | Buy now |
| MPB9 | MPB9LG | 9 | 8.50 | 6.50 | 4.25 | $136.42In stockMPB9 | Buy now |
| MPB12 | MPB12LG | 12 | 10.38 | 6.50 | 4.25 | $151.43In stockMPB12 | Buy now |
Application
- ■Designed to accept 22mm miniature oil tight pushbuttons, switches and pilot lights.
- ■Provides protection from dirt, dust, oil and water.
Standards
- ■UL 508A Type 12 and 13
- ■CSA Type 12 and 13
- ■Complies with NEMA Type 12 and 13 IEC 60529, IP54
- ■NEMA Type 12 and 13
- ■IEC 60529, IP54
- ■Appropriate components are required to maintain these standards.
Construction
- ■Formed 16 gauge steel.
- ■Smooth continuously welded seams.
- ■Welded brackets provide for enclosure mounting.
- ■Captive cover screws thread into sealed wells.
- ■Larger enclosures provide internally hinged removable covers, designed to hold the cover open during wiring (see table).
- ■Oil resistant gasket and adhesive.
- ■A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
Finish
- ■Offered in 2 colors - Cover and enclosure are phosphatized and finished in (a) ANSI 61 gray or (b) RAL7035 light gray powder coating.
Documents
Additional information
Part Details

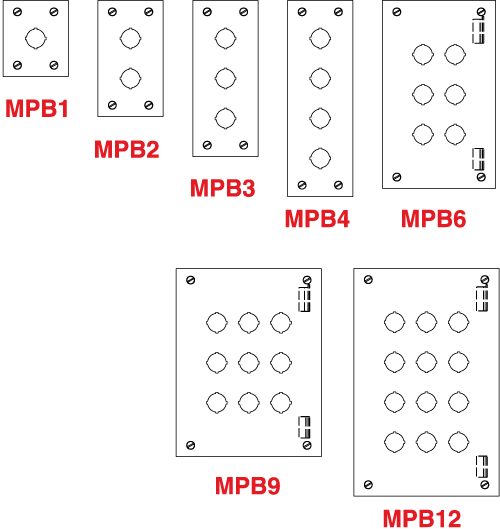

| ANSI 61 Gray · Part No. | RAL7035 Light Gray · Part No. | No. of · Holes | Enclosure · H | Enclosure · W | Enclosure · D |
|---|---|---|---|---|---|
| MPB1 ¹ | MPB1LG ¹ | 1 | 3.25 | 2.75 | 3.50 |
| MPB2 ¹ | MPB2LG ¹ | 2 | 5.13 | 2.75 | 3.50 |
| MPB3 ¹ | MPB3LG ¹ | 3 | 7.00 | 2.75 | 3.50 |
| MPB4 ¹ | MPB4LG ¹ | 4 | 8.88 | 2.75 | 3.50 |
| MPB6 | MPB6LG | 6 | 8.50 | 5.00 | 4.25 |
| MPB9 | MPB9LG | 9 | 8.50 | 6.50 | 4.25 |
| MPB12 | MPB12LG | 12 | 10.38 | 6.50 | 4.25 |
