P-Btn Enc 4X4
$78.91In stock
Buy now
Type 12 Mild Steel Pushbutton Enclosures · 1437 Series
Brand: Hammond Manufacturing · 22 part numbers
Extra Deep
- ■Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
- ■Provides protection from dirt, dust, oil and water.
- ■UL 508A Type 12 and 13
- ■CSA Enclosure 12 and 13
- ■Complies with NEMA Type 12 and 13 IEC 60529, IP54
- ■NEMA Type 12 and 13
from $75.56
22 of 22 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1437 Series part number
Filter 22 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
22 of 22 part numbers · 22 priced online
P-Btn Enc 6X4
$90.28In stock
Buy now
P-Btn Enc 8X4
$101.65In stock
Buy now
P-Btn Enc 10X4
$113.01In stock
Buy now
P-Btn Enc 7.2X6.2
$115.69In stock
Buy now
P-Btn Enc 9.5X6X2
$131.07In stock
Buy now
P-Btn Enc 9.5X8.5
$149.13In stock
Buy now
22MM P-Btn Enc 4X4
$75.56In stock
Buy now
22MM P-Btn Enc 6X4
$87.60In stock
Buy now
22MM P-Btn Enc 8X4
$99.64In stock
Buy now
22MM P-Btn Enc 10X4
$111.00In stock
Buy now
22MM P-Btn Enc 7.2X6.2
$112.34In stock
Buy now
22MM P-Btn Enc 9.5X6X2
$127.72In stock
Buy now
22MM P-Btn Enc 9.5X8.5
$145.78In stock
Buy now
22MM P-Btn Enc 11.7X8.5
$166.51In stock
Buy now
22MM P-Btn Enc 11.7X10.7
$190.59In stock
Buy now
22MM P-Btn Enc 14.0X10.7
$211.98In stock
Buy now
22MM P-Btn Enc 14X0X13.0
$238.06Backorder
Buy now
P-Btn Enc 11.7X8.5
$171.19In stock
Buy now
P-Btn Enc 11.7X10.7
$195.27In stock
Buy now
P-Btn Enc 14.0X10.7
$218.00In stock
Buy now
P-Btn Enc 14X0X13.0
$246.09In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm

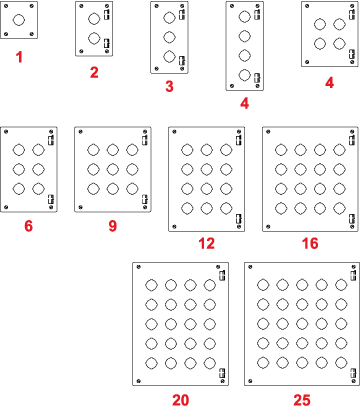

| 30.5mm PB · Part No. | 22.5mm PB · Part No. | No. of · Holes | Enclosure · H | Enclosure · W | Enclosure · D | Price | Order |
|---|---|---|---|---|---|---|---|
| 1437A | 1437MA | 1 | 4.00 | 4.00 | 4.75 | $78.91In stock1437A | Buy now |
| 1437B | 1437MB | 2 | 6.00 | 4.00 | 4.75 | $90.28In stock1437B | Buy now |

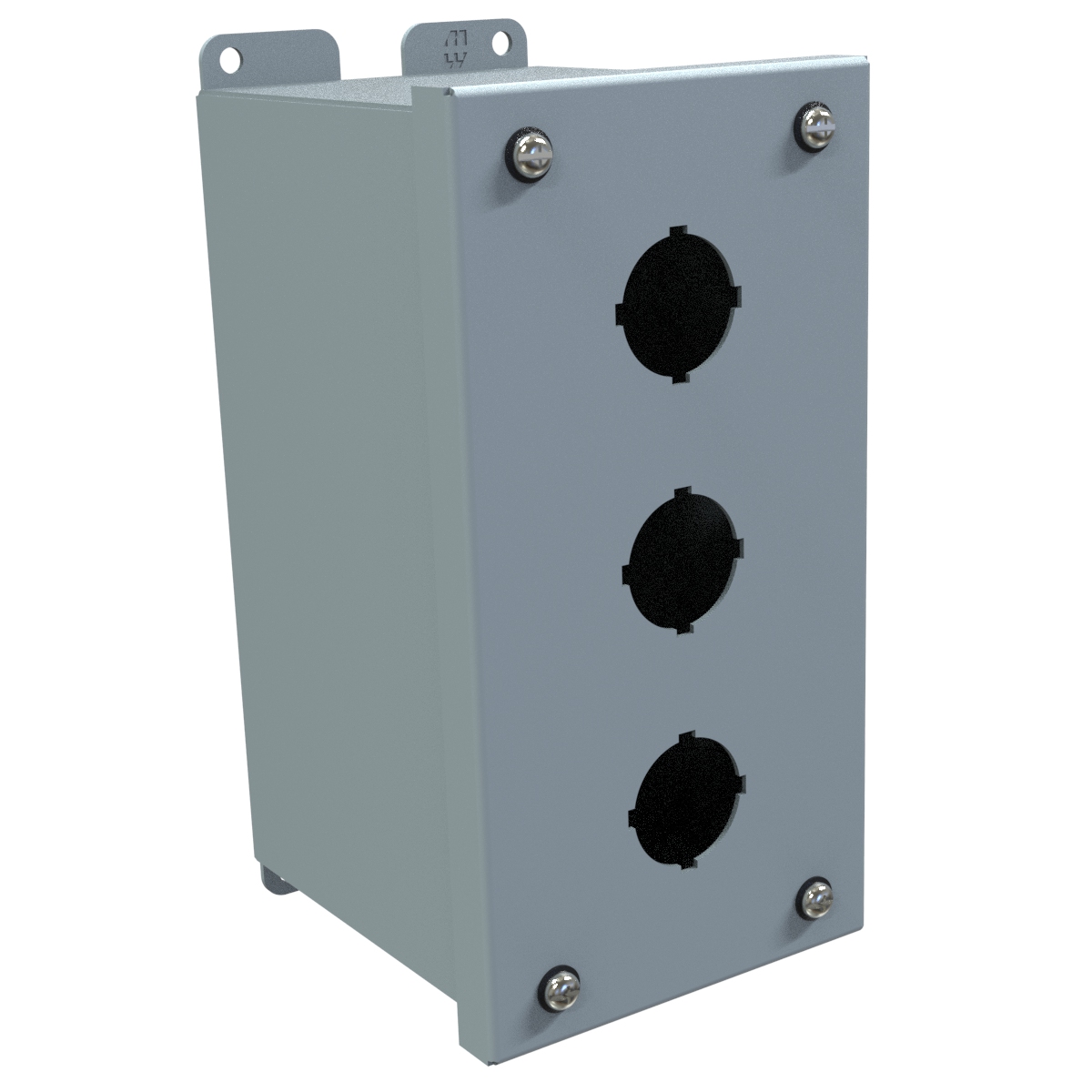

| 1437C | 1437MC | 3 | 8.00 | 4.00 | 4.75 | $101.65In stock1437C | Buy now |

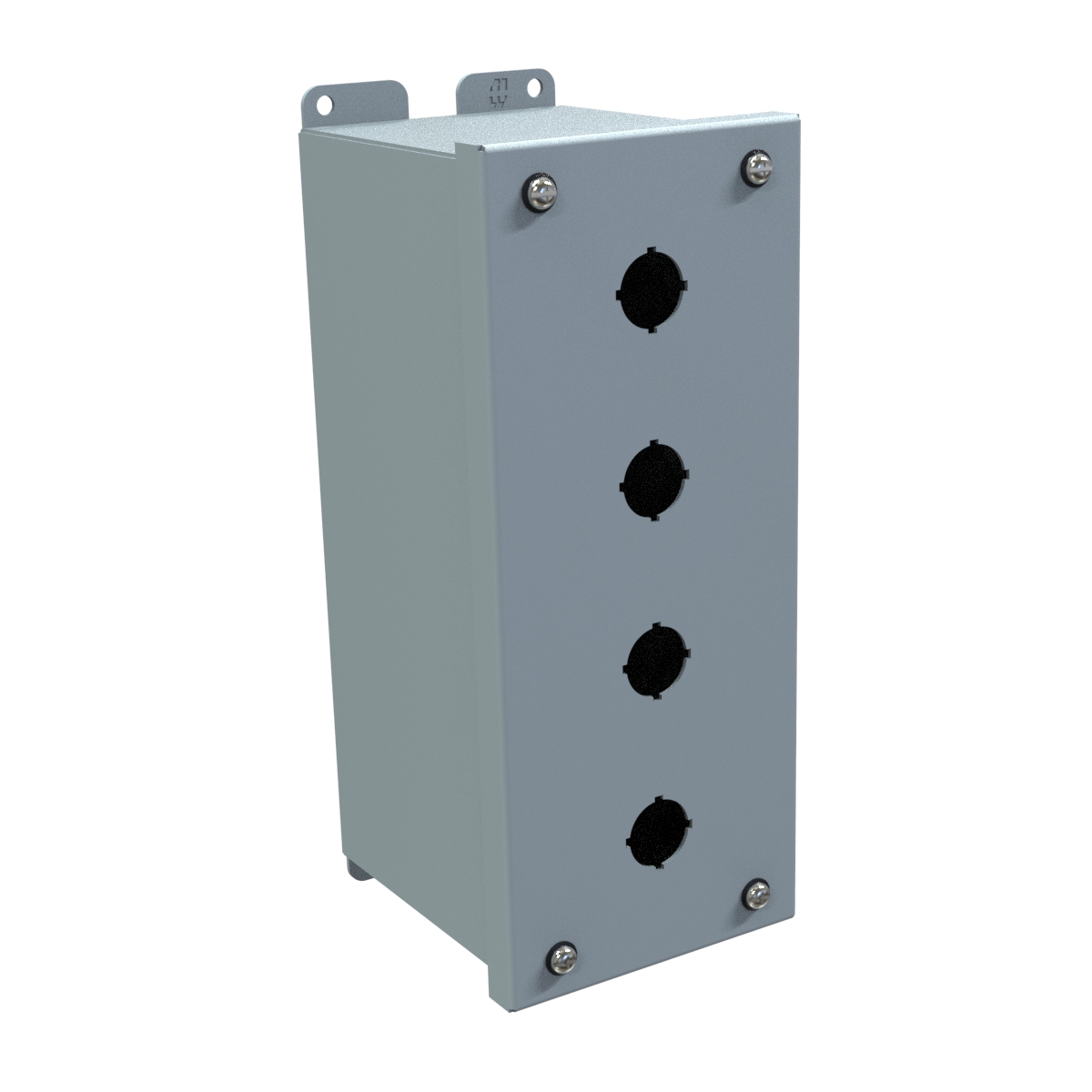

| 1437D | 1437MD | 4 | 10.00 | 4.00 | 4.75 | $113.01In stock1437D | Buy now |
| 1437F | 1437MF | 4 | 7.25 | 6.25 | 4.75 | $115.69In stock1437F | Buy now |
| 1437H | 1437MH | 6 | 9.50 | 6.25 | 4.75 | $131.07In stock1437H | Buy now |

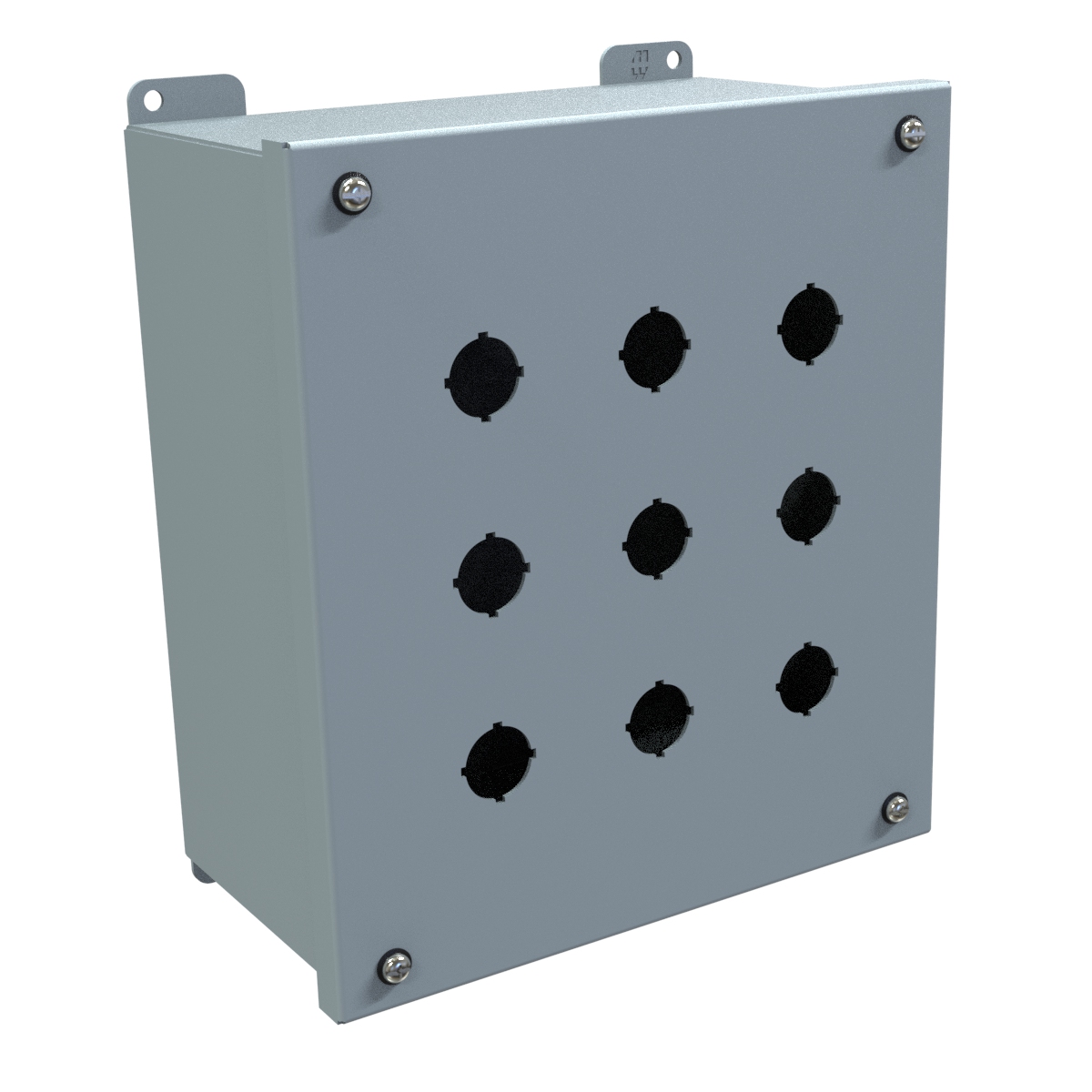

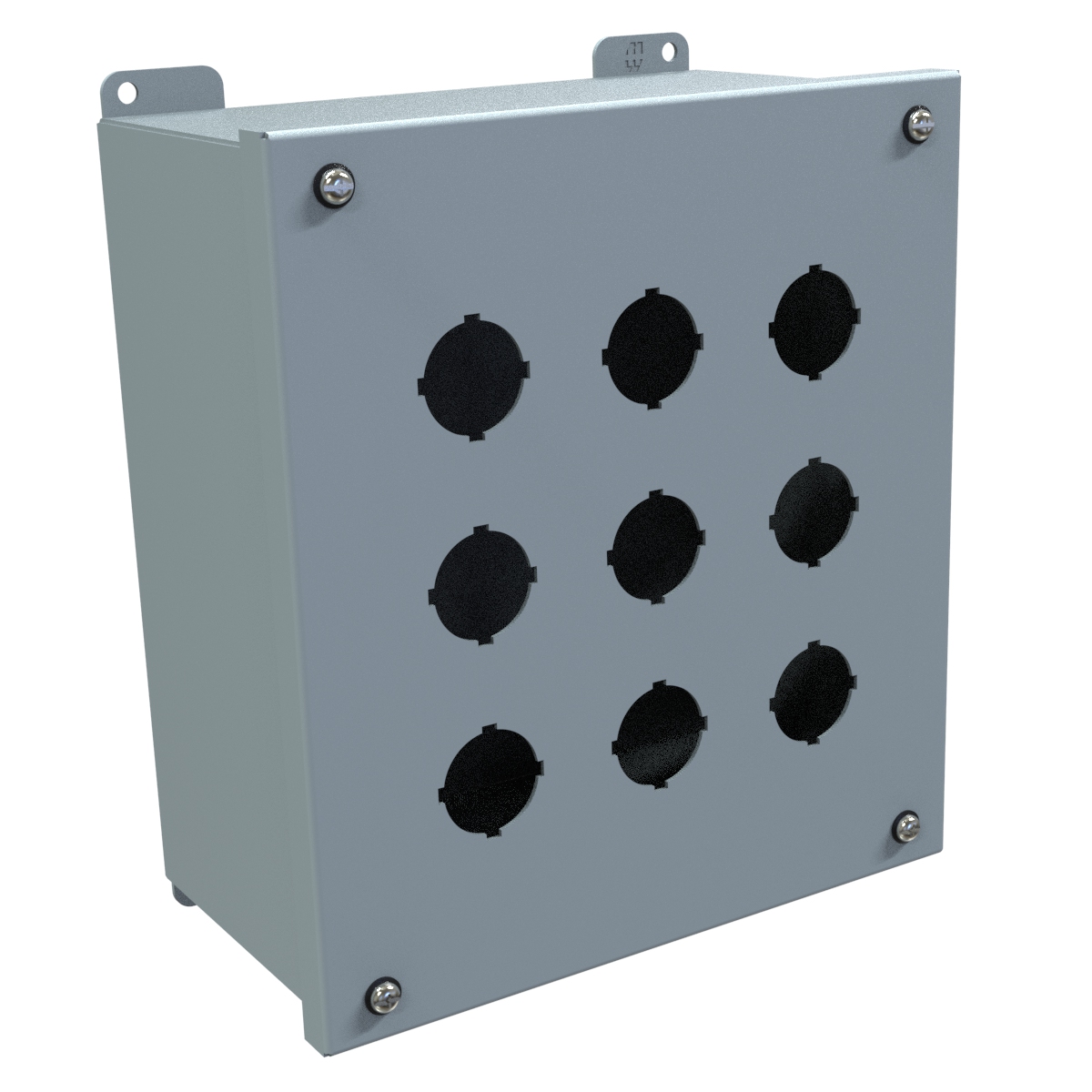

| 1437K | 1437MK | 9 | 9.50 | 8.50 | 4.75 | $149.13In stock1437K | Buy now |
| 1437O | 1437MO | 12 | 11.75 | 8.50 | 4.75 | $171.19In stock1437O | Buy now |

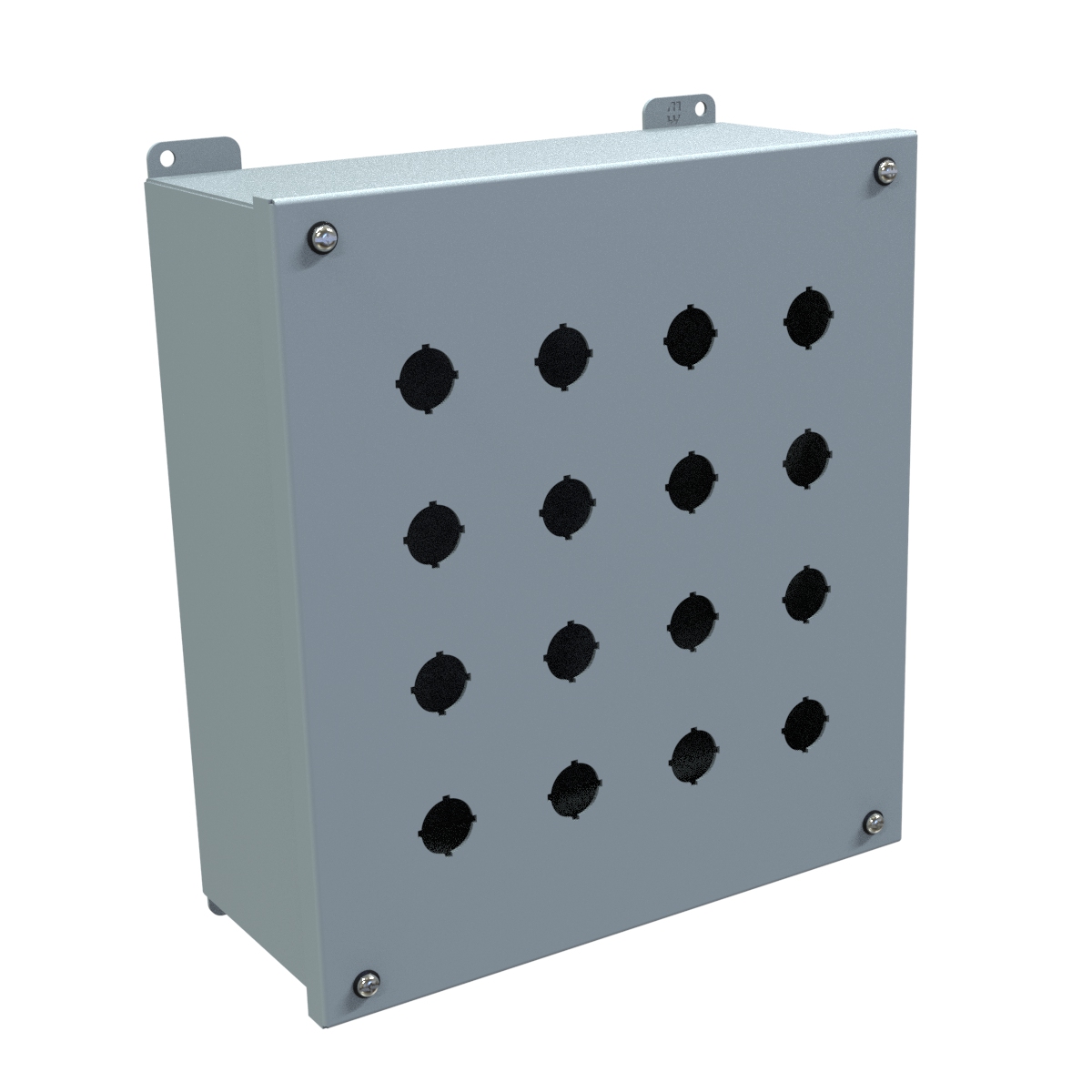

| 1437S | 1437MS | 16 | 11.75 | 10.75 | 4.75 | $195.27In stock1437S | Buy now |

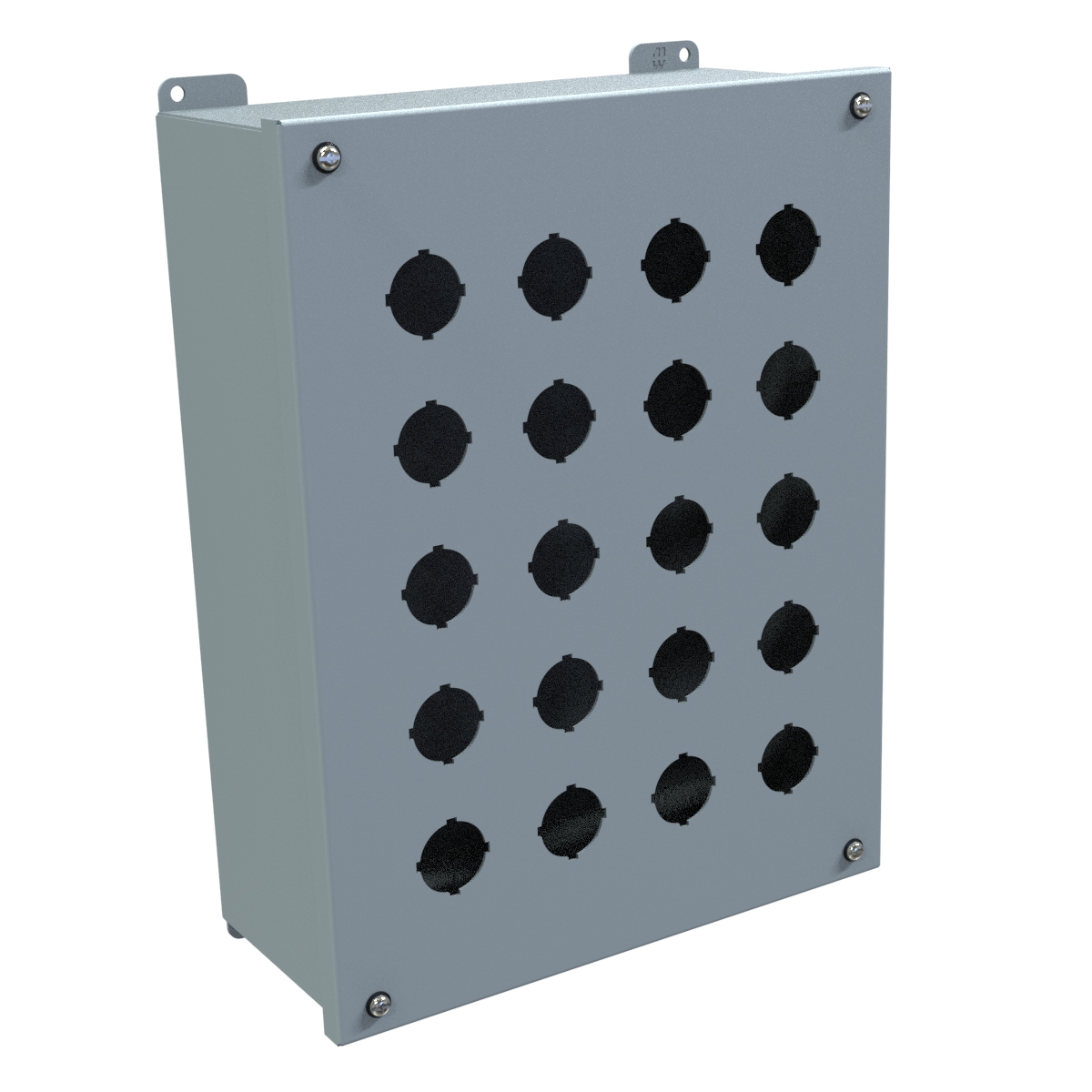

| 1437V | 1437MV | 20 | 14.00 | 10.75 | 4.75 | $218.00In stock1437V | Buy now |

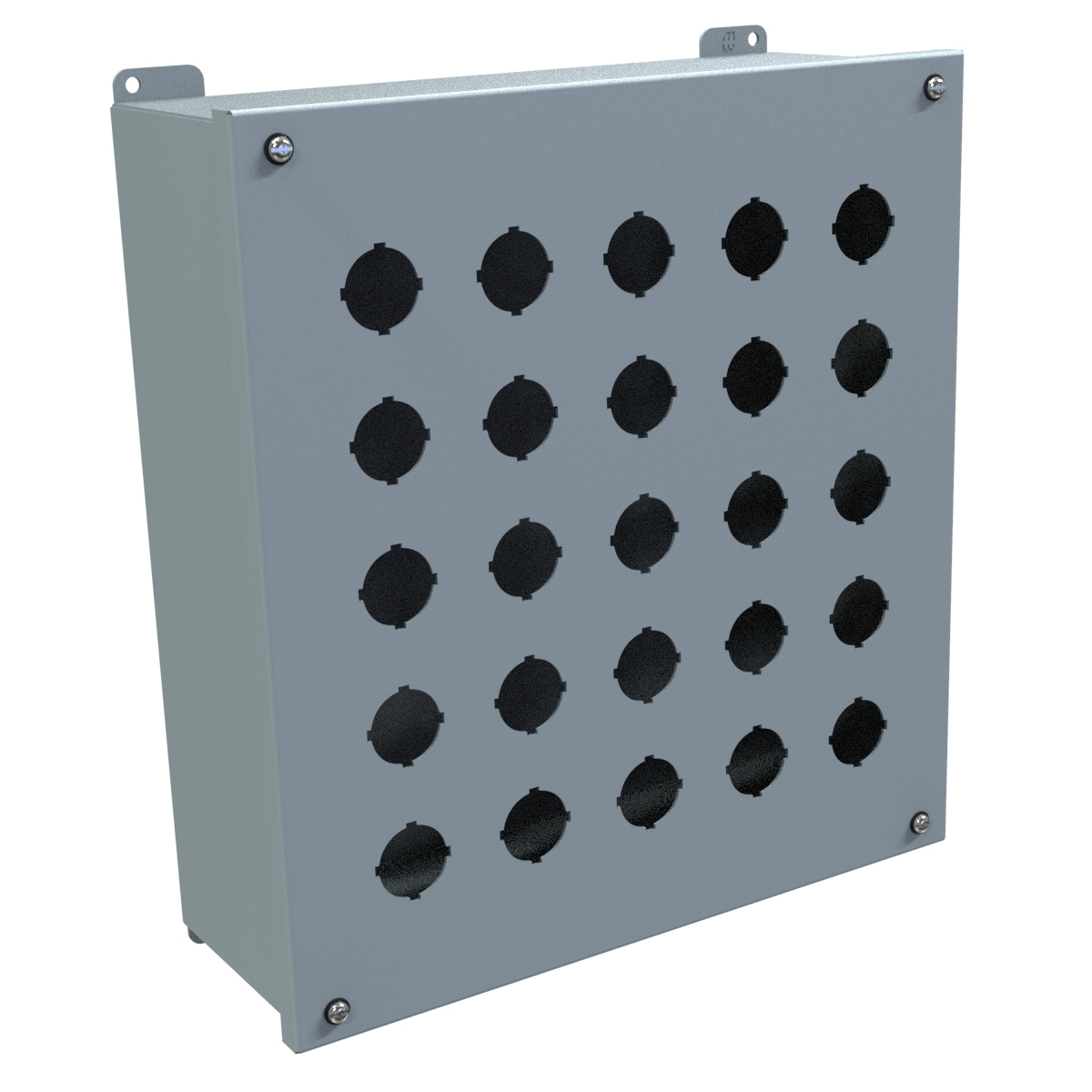

| 1437X | 1437MX | 25 | 14.00 | 13.00 | 4.75 | $246.09In stock1437X | Buy now |
Application
- ■Designed to accept standard heavy duty oil tight pushbuttons, switches and pilot lights.
- ■Provides protection from dirt, dust, oil and water.
Standards
- ■UL 508A Type 12 and 13
- ■CSA Enclosure 12 and 13
- ■Complies with NEMA Type 12 and 13 IEC 60529, IP54
- ■NEMA Type 12 and 13
- ■IEC 60529, IP54
- ■Appropriate components are required to maintain these standards.
Construction
- ■Formed from 16 gauge steel.
- ■Smooth continuously welded seams.
- ■Welded brackets provide for enclosure mounting.
- ■Captive cover screws fasten into threaded, sealed wells.
- ■Larger enclosures provide internally hinged removable covers, designed to hold the cover open during wiring (see drawings).
- ■Oil resistant gasket and adhesive.
- ■A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
Finish
- ■Cover and enclosure are phosphatized and finished in ANSI 61 gray powder coating.
Documents
Additional information
Part Details
| 30.5mm PB · Part No. | 22.5mm PB · Part No. | No. of · Holes | Enclosure · H | Enclosure · W | Enclosure · D |
|---|---|---|---|---|---|

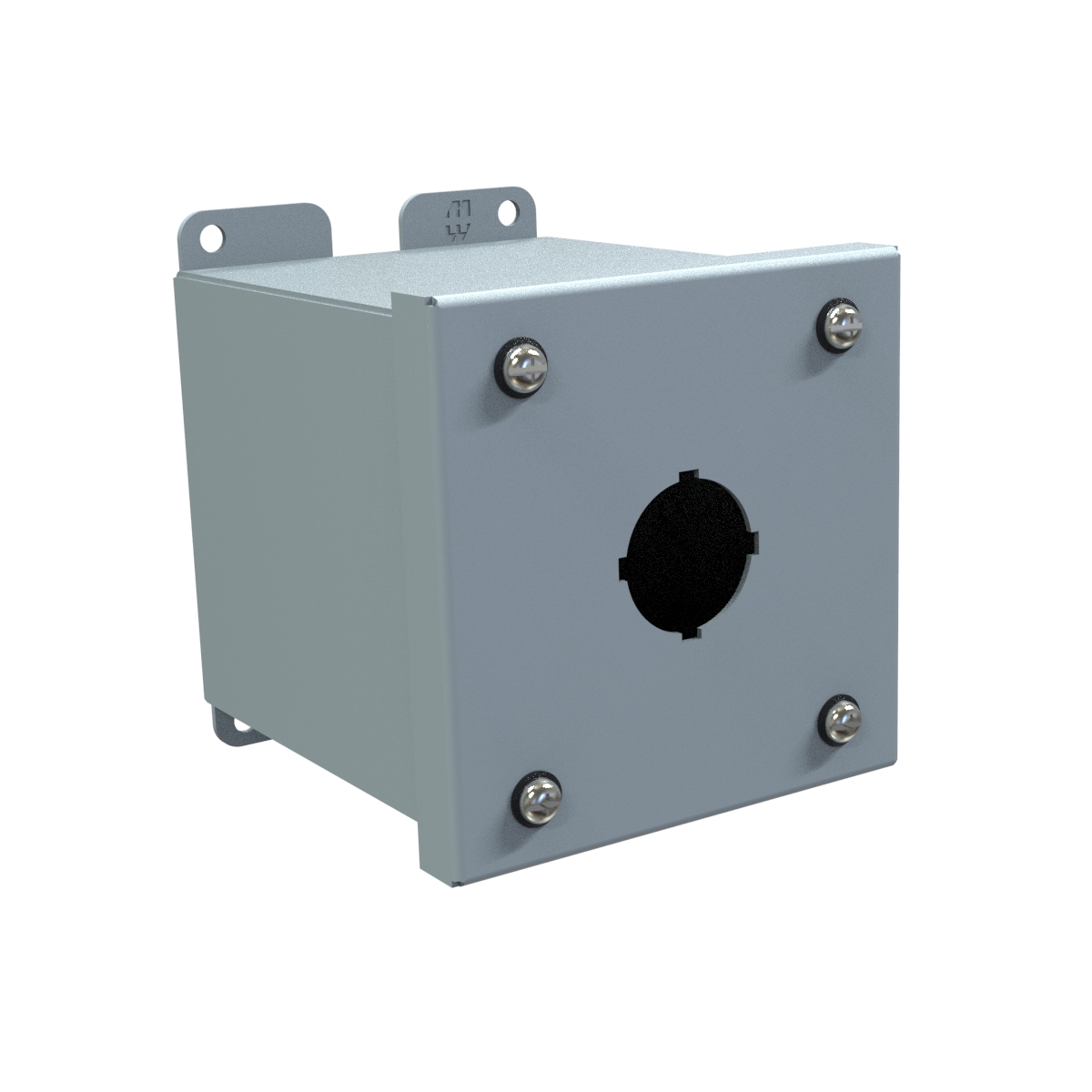

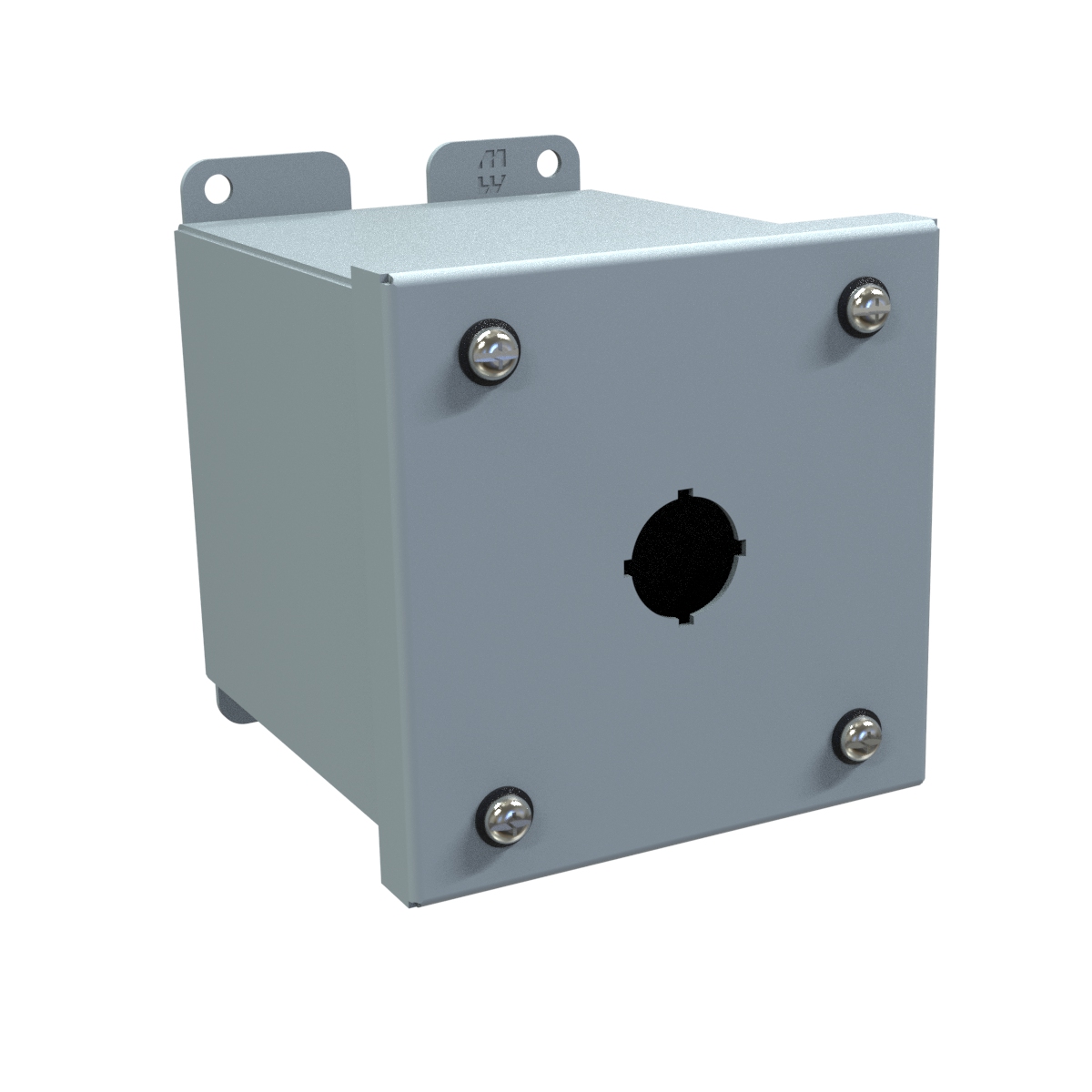

| 1437A ¹ | 1437MA ¹ | 1 | 4.00 | 4.00 | 4.75 |

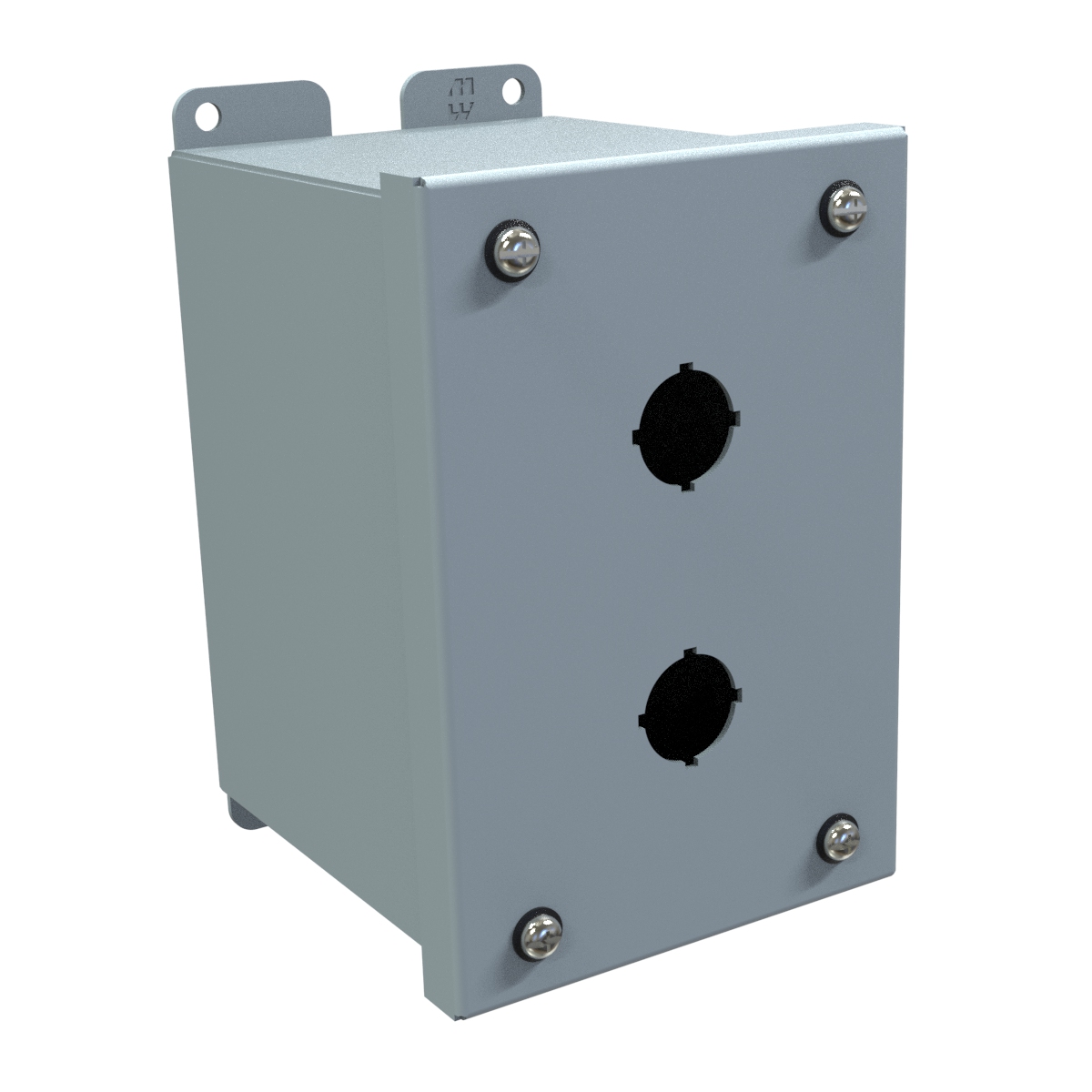

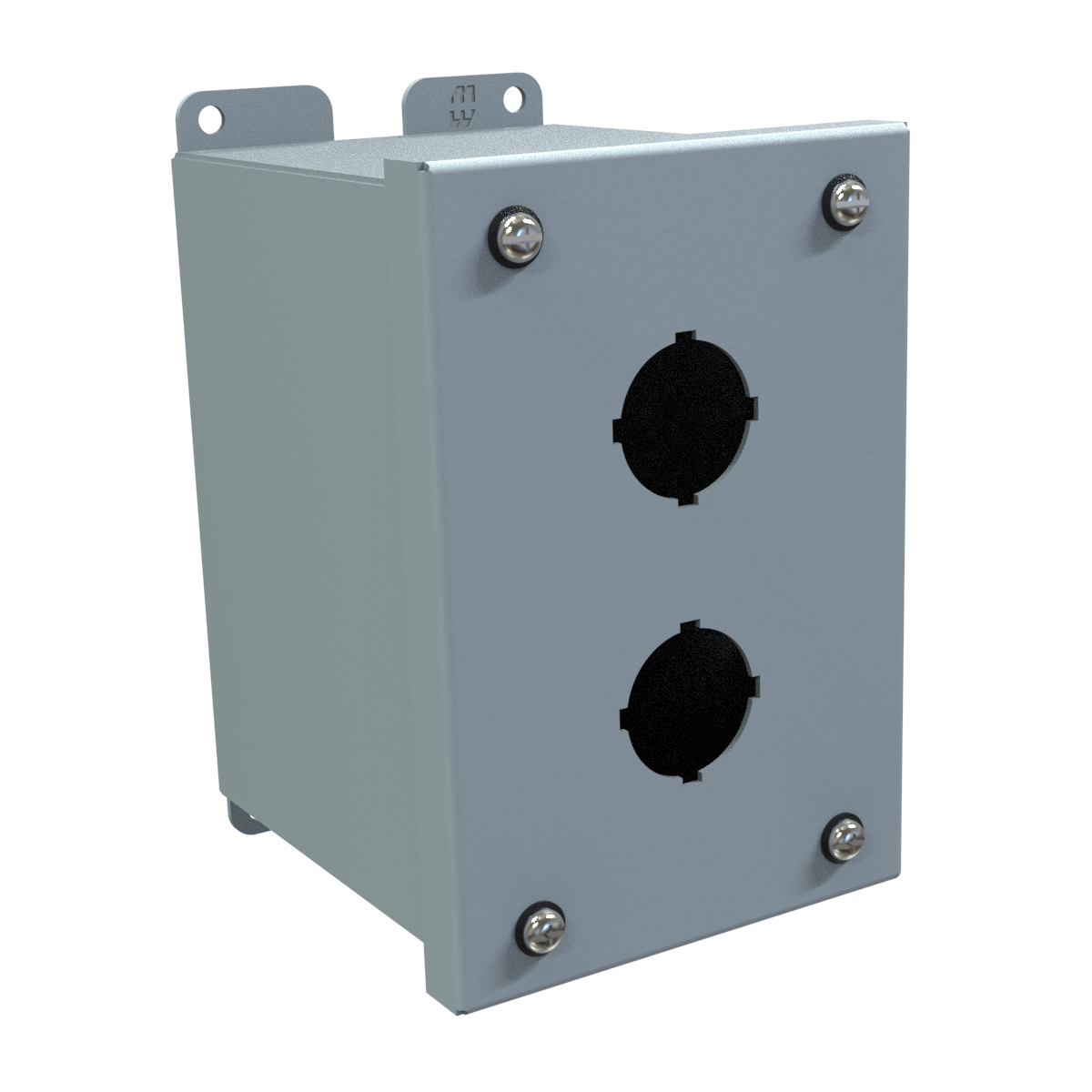

| 1437B | 1437MB | 2 | 6.00 | 4.00 | 4.75 |

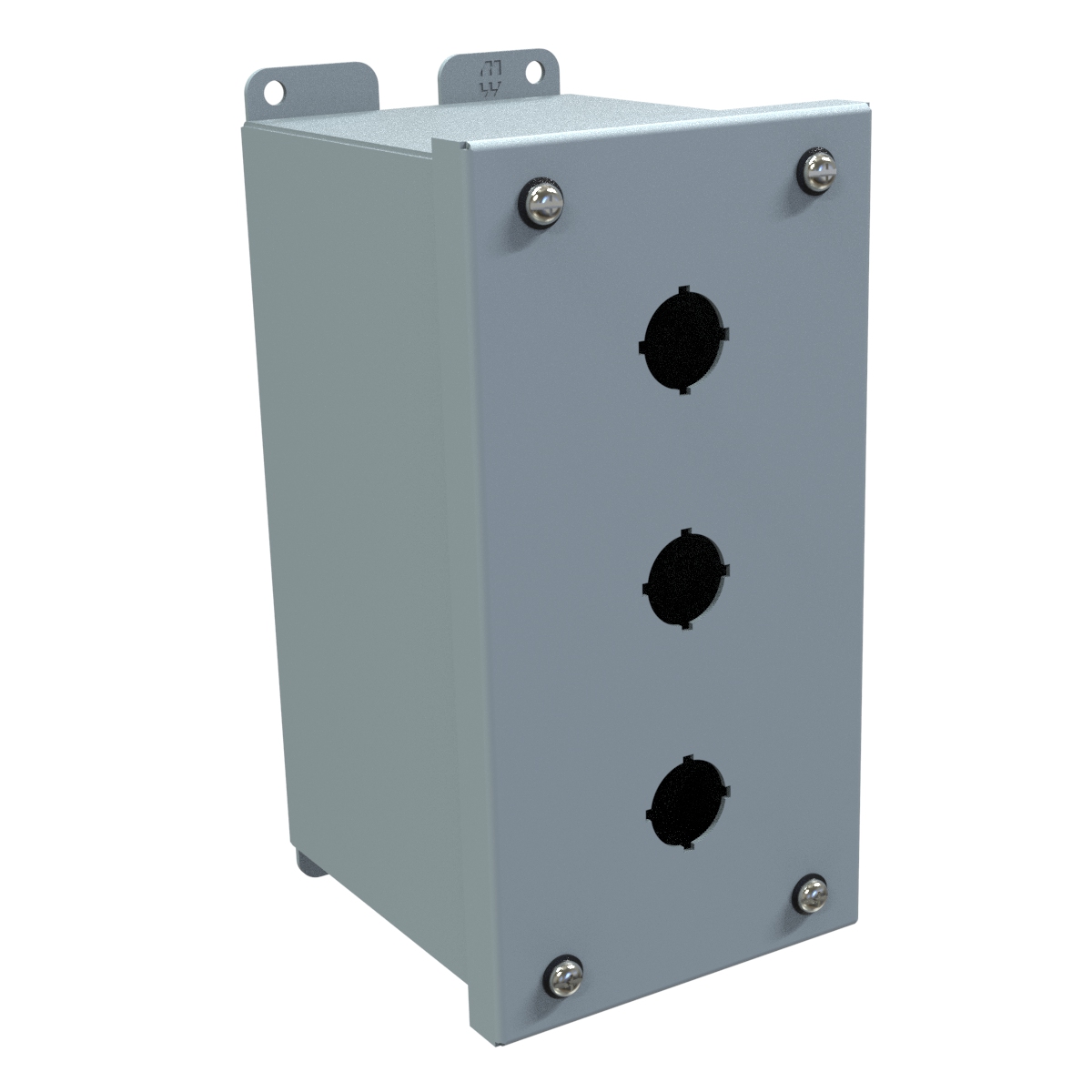

| 1437C | 1437MC | 3 | 8.00 | 4.00 | 4.75 |

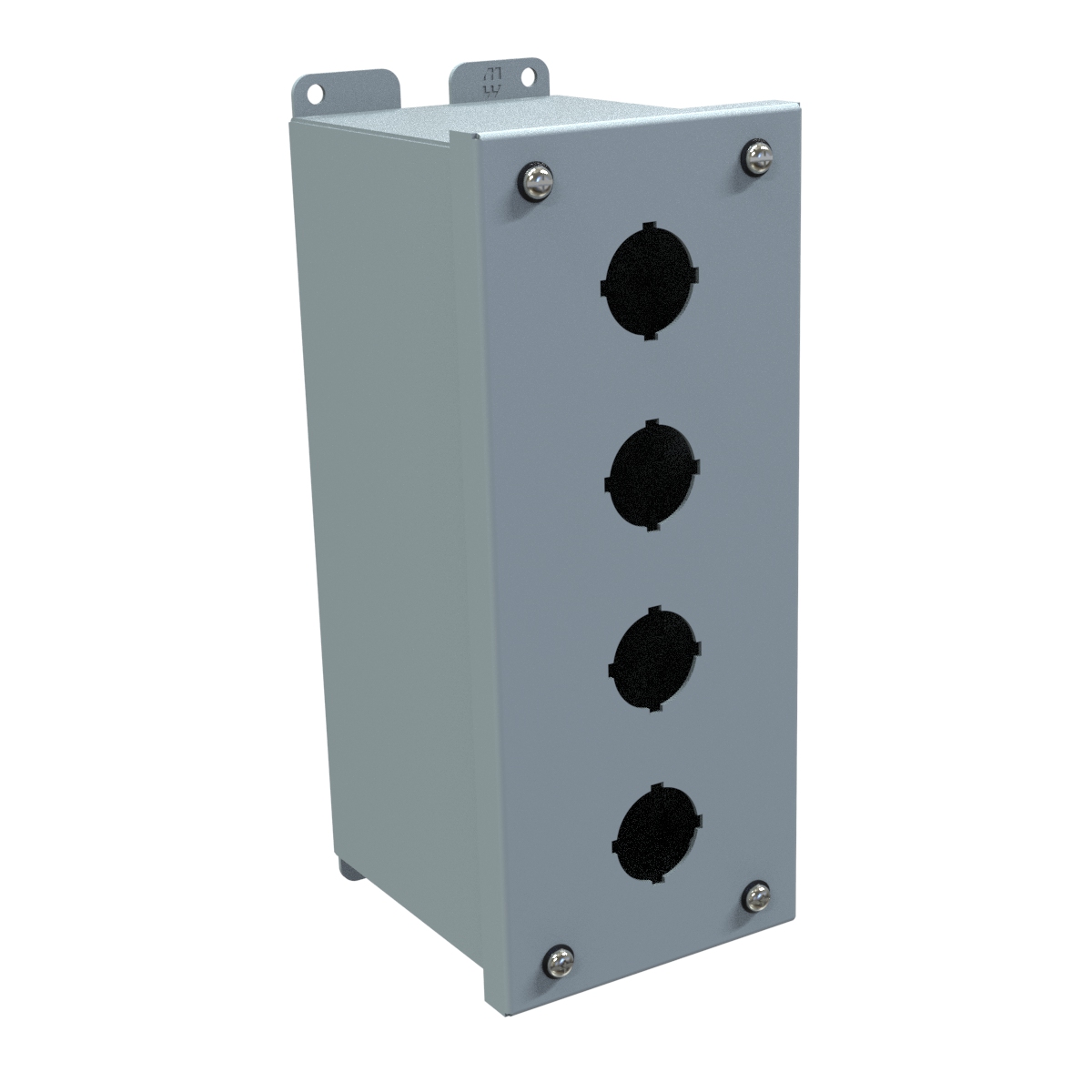

| 1437D | 1437MD | 4 | 10.00 | 4.00 | 4.75 |

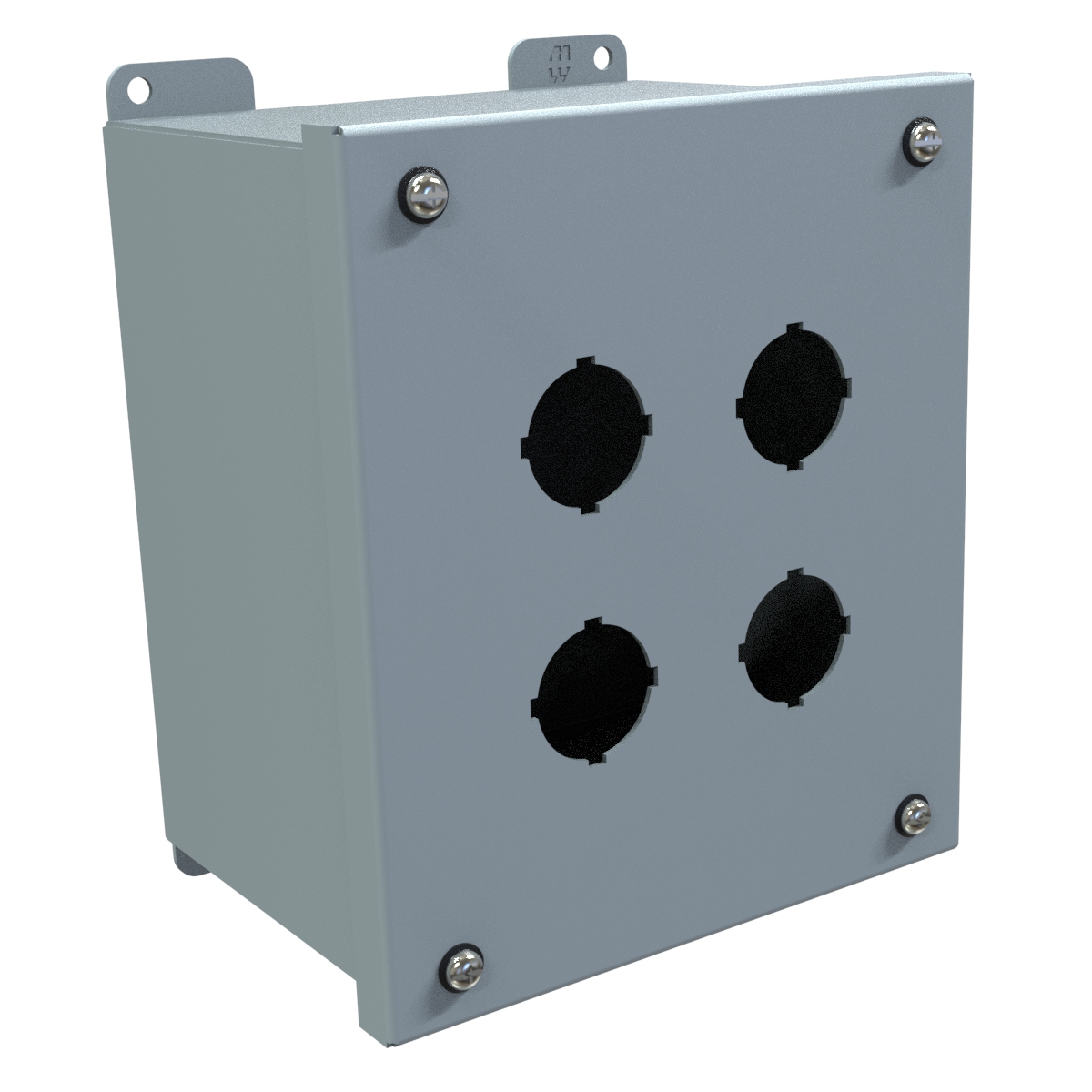

| 1437F | 1437MF | 4 | 7.25 | 6.25 | 4.75 |

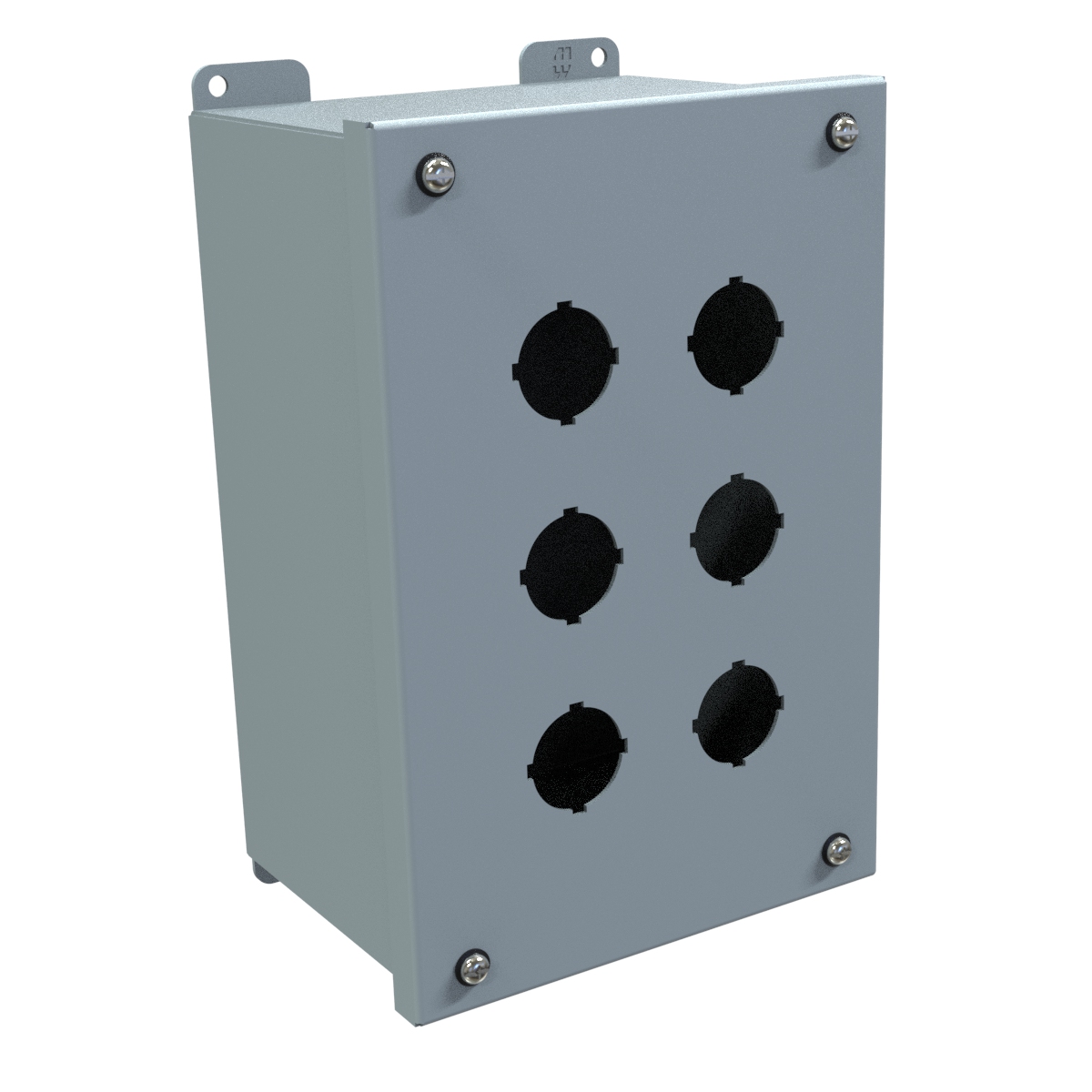

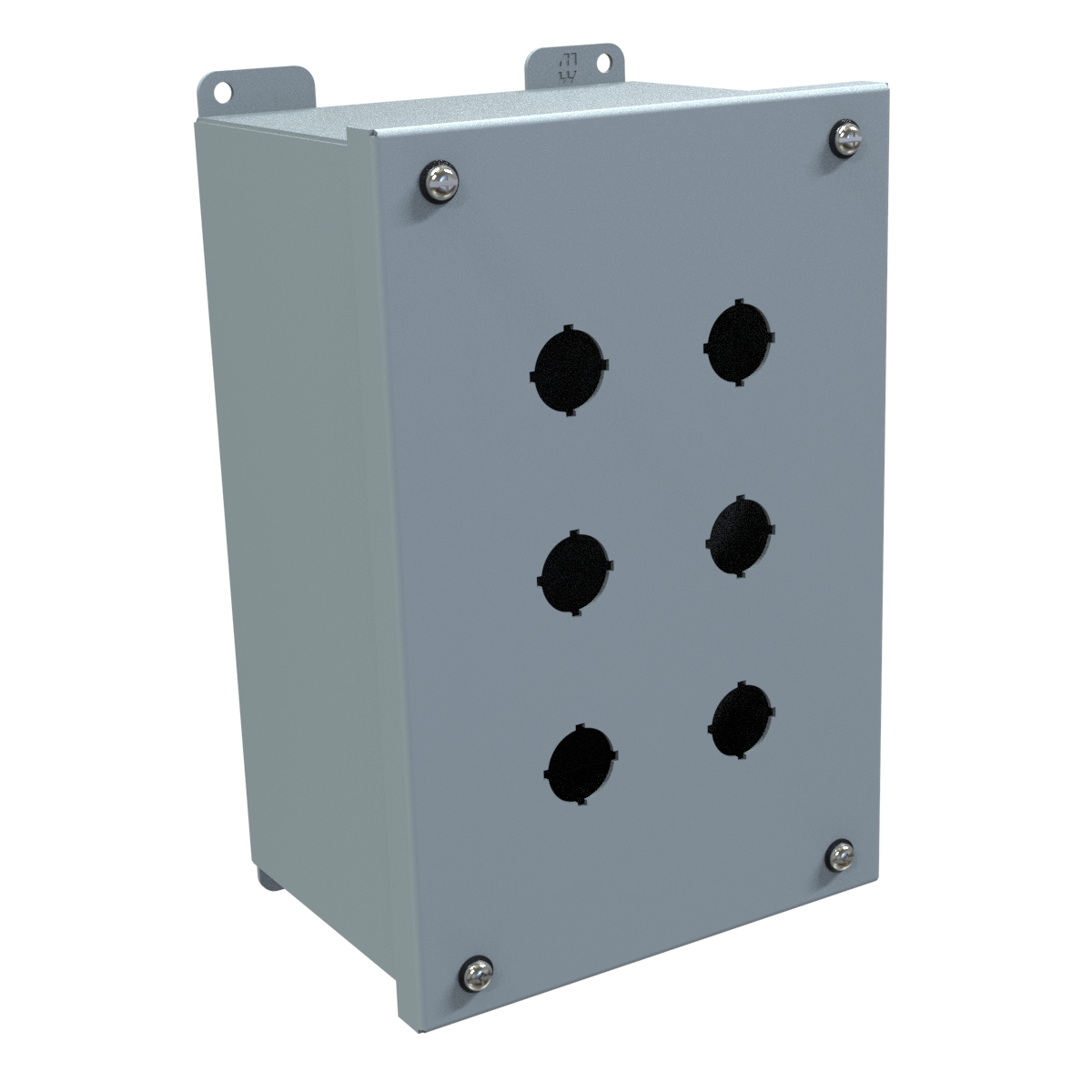

| 1437H | 1437MH | 6 | 9.50 | 6.25 | 4.75 |
| 1437K | 1437MK | 9 | 9.50 | 8.50 | 4.75 |

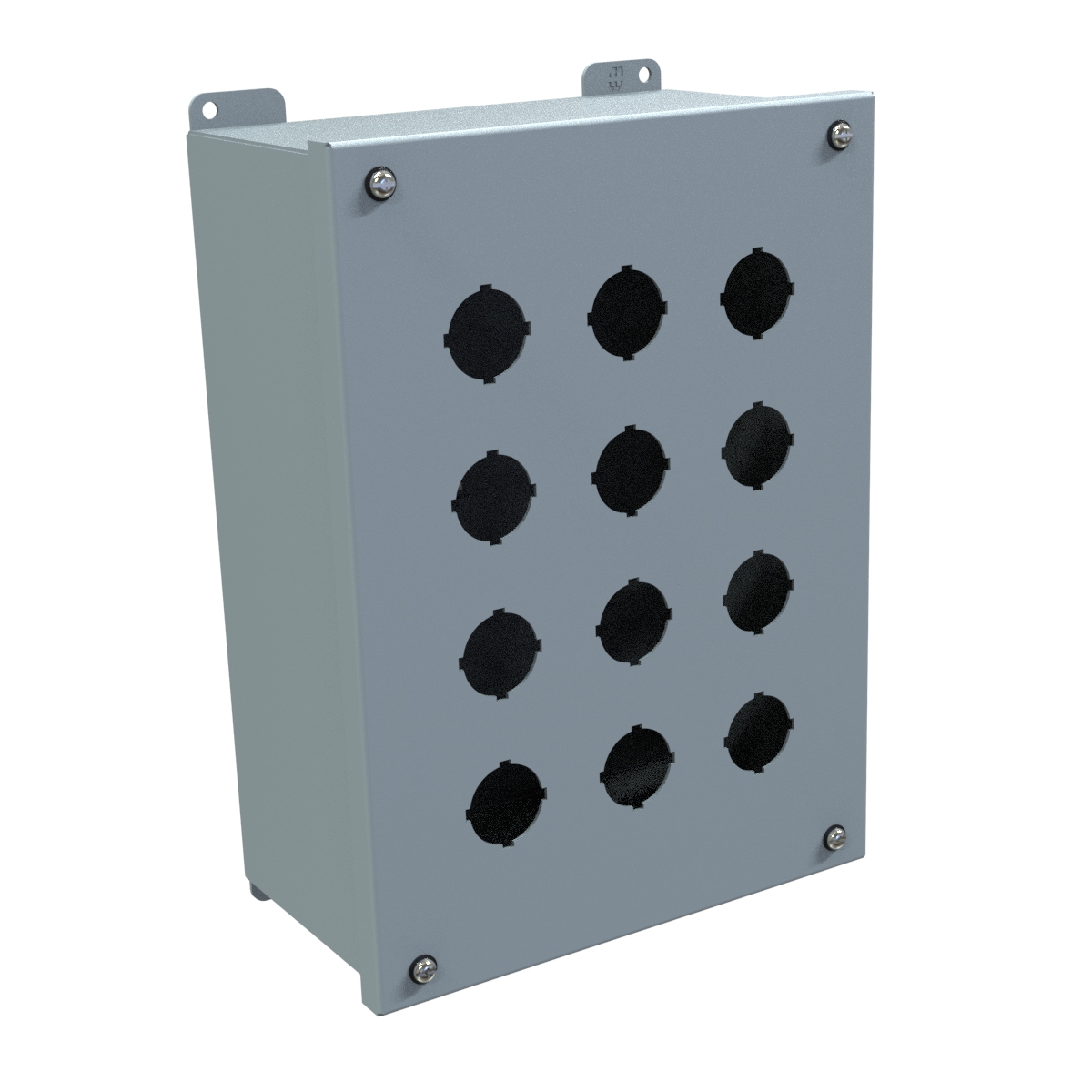

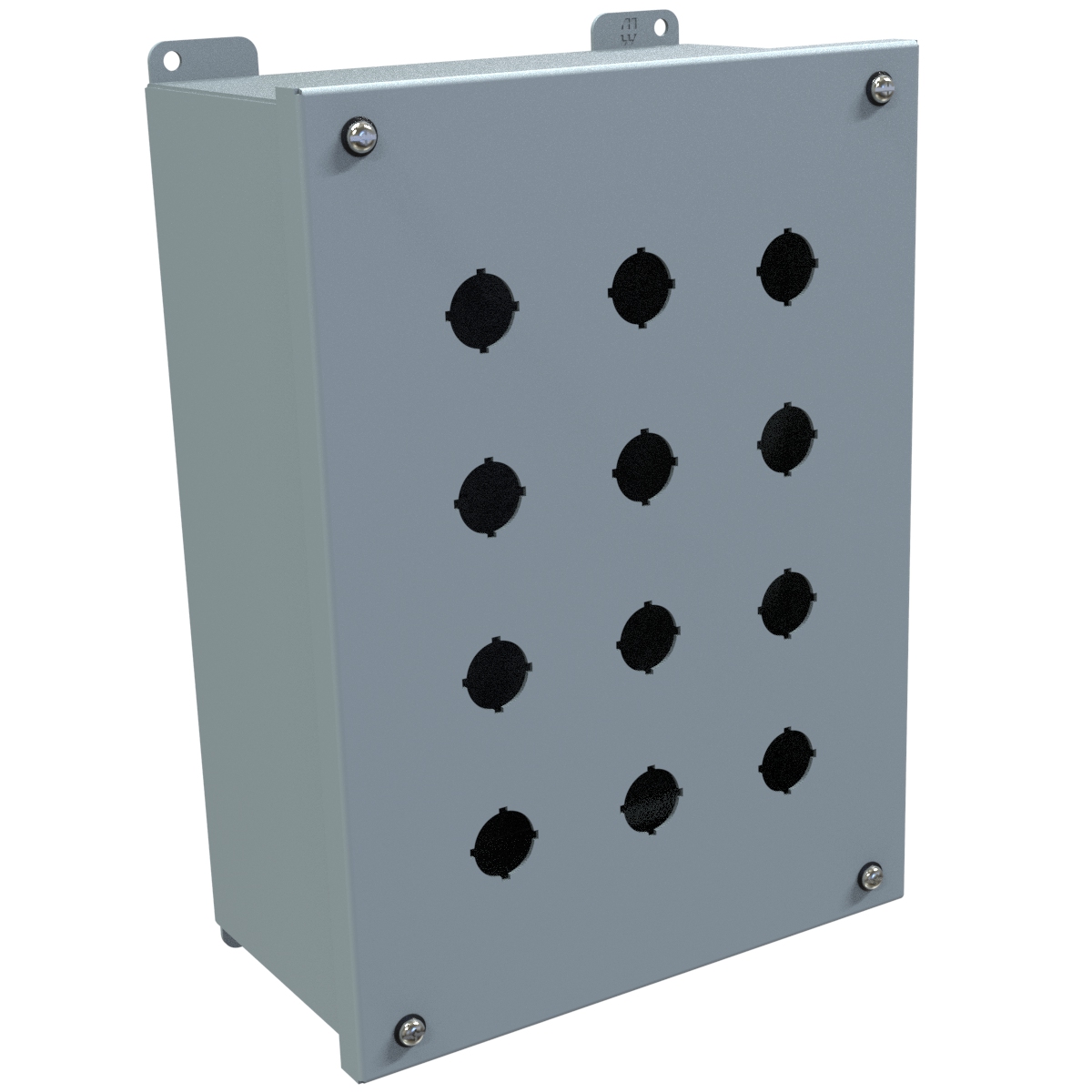

| 1437O | 1437MO | 12 | 11.75 | 8.50 | 4.75 |

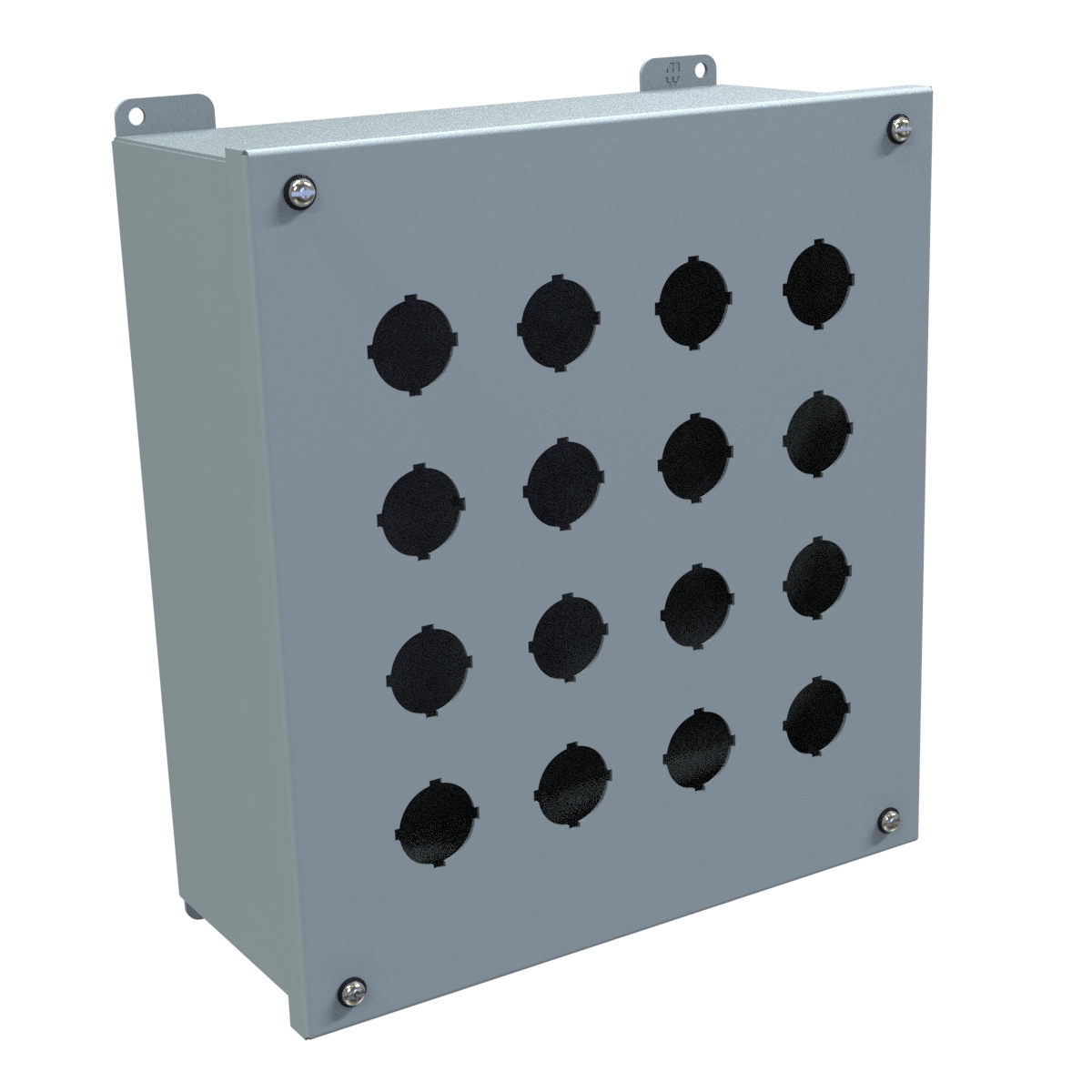

| 1437S | 1437MS | 16 | 11.75 | 10.75 | 4.75 |

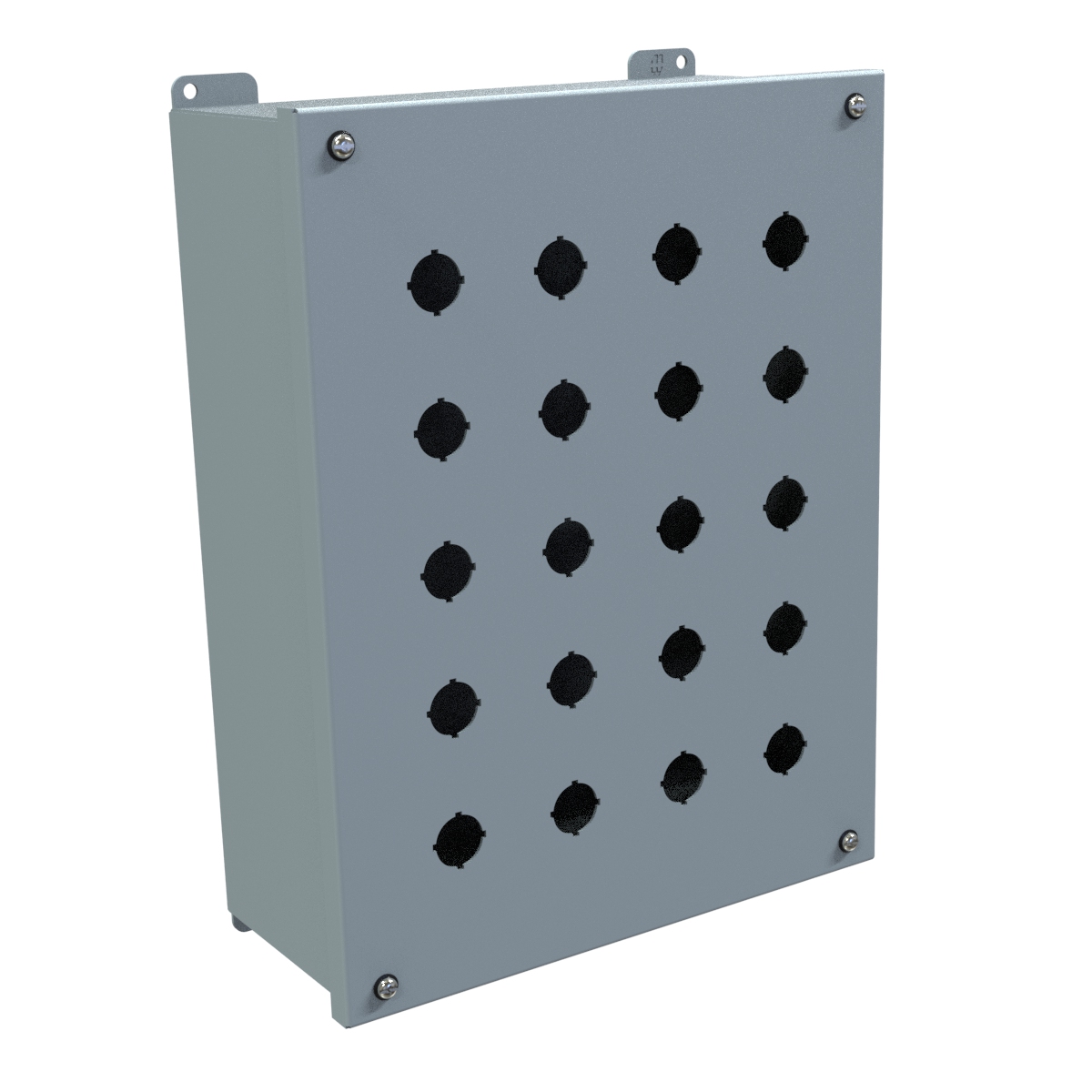

| 1437V | 1437MV | 20 | 14.00 | 10.75 | 4.75 |

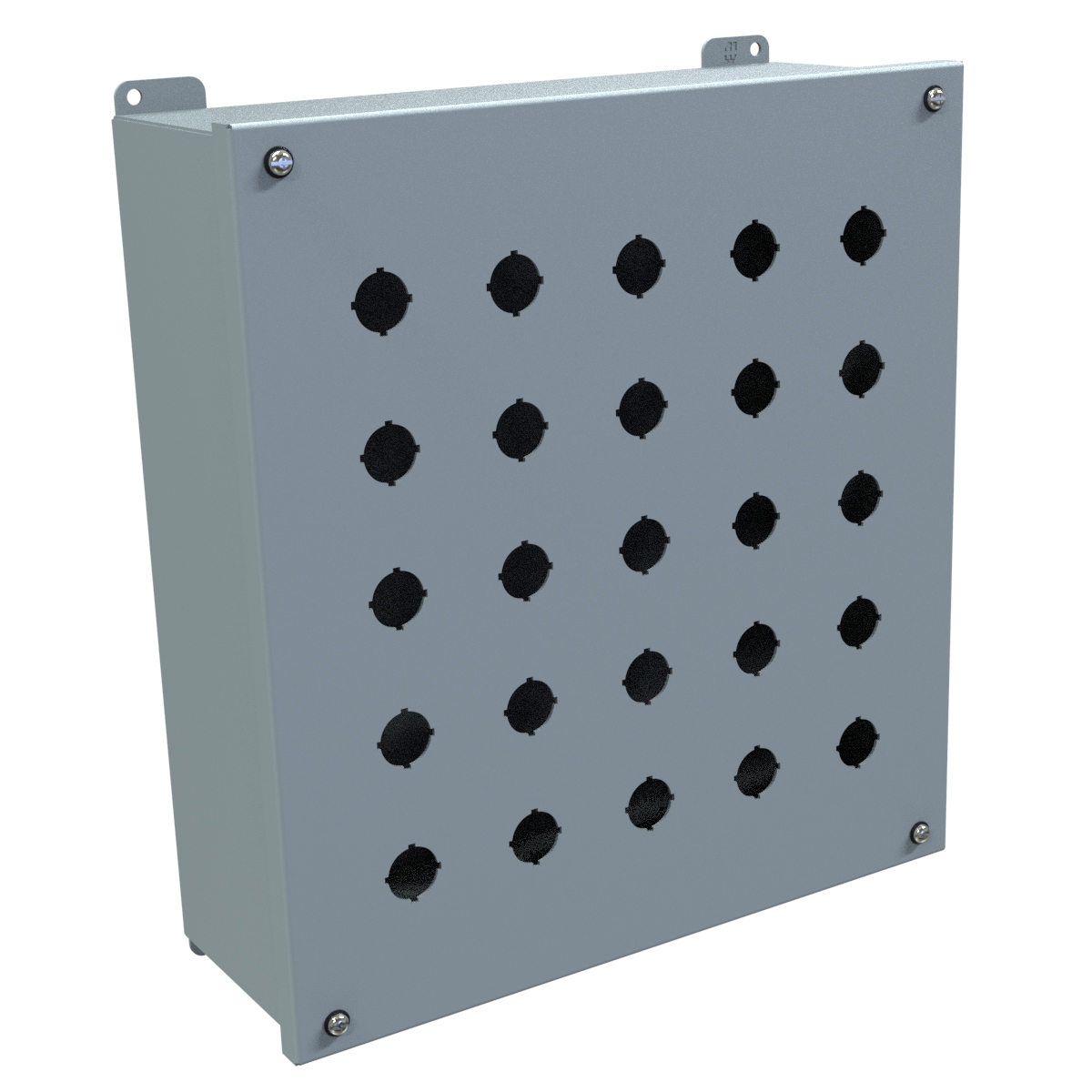

| 1437X | 1437MX | 25 | 14.00 | 13.00 | 4.75 |
