N12 Modular Disconnect
- Description Flat barrier plate with mounting hardware
$448.21Backorder
Buy now

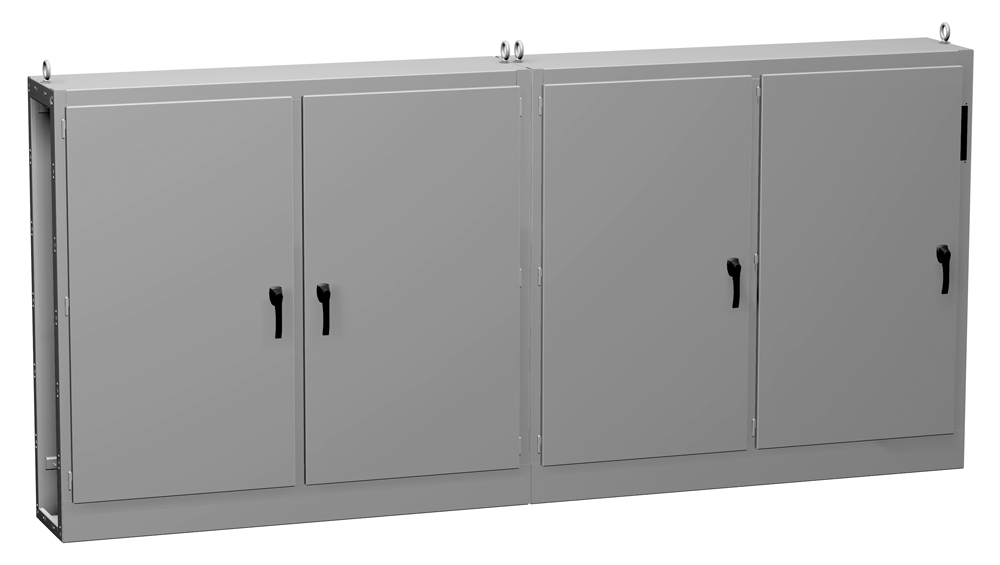

Type 12 Mild Steel Modular Freestanding Disconnect Enclosure · UHD M Series
Brand: Hammond Manufacturing · 23 part numbers
Hinge Door with Handle (Flange w/ multi-vendor cutout)
- ■ABB Controls flange mounted variable depth operating mechanism for disconnect switches and circuit breakers.
- ■Allen Bradley 1494V and 1494U variable depth flange mounted disconnect switches and circuit breaker mechanisms.
- ■C-H Westinghouse Type C361 disconnect switches and operator mechanism. Cutler Hammer Type C371 circuit breaker operating mechanisms. Flex Shaft™ handle operators for circuit breakers.
- ■General Electric Type STDA flange handles and variable depth operating mechanisms for disconnect switches and circuit breakers. Also Spectra-Flex™ cable operators for circuit breakers.
- ■I-T-E Max-Flex™ flange mounted variable depth operating handles for disconnect switches and circuit breakers.
- ■Square D disconnect switches and circuit breakers used with Class 9422 flange mounted variable depth operating mechanisms or cable mechanisms. These enclosures will not receive Class 9422 bracket mounted disconnect devices or Class 9422TG1 or TG2 devices.
from $213.39
23 of 23 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your UHD M Series part number
Filter 23 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
23 of 23 part numbers · 23 priced online
N12 Modular Disconnect
- Description Formed end plate with mounting hardware
$667.15Backorder
Buy nowN12 Modular Disconnect
- Description Flat end plate with mounting hardware
$489.46In stock
Buy nowSingle Door Modular Disconnect
- Door Type Single
$3,231.04Backorder
Buy nowSingle Door Modular Disconnect
- Door Type Single
$3,190.58Backorder
Buy now2UHDMSFTC - Assembly
- Door Type Double
$5,794.93Backorder
Buy now2UHDMMFTC - Assembly
- Door Type Double
$5,836.97Backorder
Buy nowN12 Modular Disconnect
- Description Flat barrier plate with mounting hardware
$491.83In stock
Buy nowN12 Modular Disconnect
- Description Formed end plate with mounting hardware
$734.58In stock
Buy nowN12 Modular Disconnect
- Description Flat end plate with mounting hardware
$536.26Backorder
Buy nowN12 Modular Disconnect
- Description Flat barrier plate with mounting hardware
$534.68Backorder
Buy nowN12 Modualr Disconnect
- Description Formed end plate with mounting hardware
$798.83In stock
Buy nowN12 Modular Disconnect
- Description Flat end plate with mounting hardware
$599.72Backorder
Buy nowSingle Door Modular Disconnect
- Door Type Single
$3,593.57In stock
Buy nowSingle Door Modular Disconnect
- Door Type Single
$3,549.15Backorder
Buy nowSingle Door Modular Disconnect
- Door Type Single
$3,914.05In stock
Buy nowSingle Door Modular Disconnect
- Door Type Single
$3,864.08In stock
Buy now2UHDMSFTC - Assembly
- Door Type Double
$6,424.79Backorder
Buy now2UHDMSFTC - Assembly
- Door Type Double
$6,859.51Backorder
Buy now2UHDMMFTC - Assembly
- Door Type Double
$6,470.81Backorder
Buy now2UHDMMFTC - Assembly
- Door Type Double
$6,911.87Backorder
Buy nowBridge Panel For 72" Uhdm-Ftc
- Description Inner panel bridge kit
$213.39Backorder
Buy nowBridge Panel For 84" Uhdm-Ftc
- Description Inner panel bridge kit
$250.68In stock
Buy nowDimension tables (inches / mm)
Main Enclosures
Units shown: inch . Switch units to: mm
| Left Side Open · Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W | Door · Type | Price | Order |
|---|---|---|---|---|---|---|---|---|
| UHDM724118MFTC | 72.13 | 40.75 | 18.13 | 60.00 | 33.75 | Single | $3,231.04Backorder | Buy now |
| UHDM844118MFTC | 84.13 | 40.75 | 18.13 | 72.00 | 33.75 | Single | $3,593.57In stock | Buy now |
| UHDM844124MFTC | 84.13 | 40.75 | 24.13 | 72.00 | 33.75 | Single | $3,914.05In stock | Buy now |
| UHDM727918MFTC | 72.13 | 79.00 | 18.13 | 60.00 | 72.00 | Double | $5,836.97Backorder | Buy now |
| UHDM847918MFTC | 84.13 | 79.00 | 18.13 | 72.00 | 72.00 | Double | $6,470.81Backorder | Buy now |
| UHDM847924MFTC | 84.13 | 79.00 | 24.13 | 72.00 | 72.00 | Double | $6,911.87Backorder | Buy now |
Secondary Enclosures
Units shown: inch . Switch units to: mm
| Both Sides Open · Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W | Door · Type | Price | Order |
|---|---|---|---|---|---|---|---|---|
| UHDM724118SFTC | 72.13 | 40.25 | 18.13 | 60.00 | 33.75 | Single | $3,190.58Backorder | Buy now |
| UHDM844118SFTC | 84.13 | 40.25 | 18.13 | 72.00 | 33.75 | Single | $3,549.15Backorder | Buy now |
| UHDM844124SFTC | 84.13 | 40.25 | 24.13 | 72.00 | 33.75 | Single | $3,864.08In stock | Buy now |
| UHDM727818SFTC | 72.13 | 78.50 | 18.13 | 60.00 | 72.00 | Double | $5,794.93Backorder | Buy now |
| UHDM847818SFTC | 84.13 | 78.50 | 18.13 | 72.00 | 72.00 | Double | $6,424.79Backorder | Buy now |
| UHDM847824SFTC | 84.13 | 78.50 | 24.13 | 72.00 | 72.00 | Double | $6,859.51Backorder | Buy now |
Accessories
Units shown: inch . Switch units to: mm
| Part No. | H | W | Description | Price | Order |
|---|---|---|---|---|---|
| UHDM7218ECA | 71.86 | 17.87 | Formed end plate with mounting hardware | $667.15Backorder | Buy now |
| UHDM8418ECA | 83.87 | 17.87 | Formed end plate with mounting hardware | $734.58In stock | Buy now |
| UHDM8424ECA | 83.87 | 23.87 | Formed end plate with mounting hardware | $798.83In stock | Buy now |
| UHDM7218EPA | 71.87 | 17.87 | Flat end plate with mounting hardware | $489.46In stock | Buy now |
| UHDM8418EPA | 83.87 | 17.87 | Flat end plate with mounting hardware | $536.26Backorder | Buy now |
| UHDM8424EPA | 83.87 | 23.87 | Flat end plate with mounting hardware | $599.72Backorder | Buy now |
| UHDM7218BPA | 71.87 | 17.87 | Flat barrier plate with mounting hardware | $448.21Backorder | Buy now |
| UHDM8418BPA | 83.87 | 17.87 | Flat barrier plate with mounting hardware | $491.83In stock | Buy now |
| UHDM8424BPA | 83.87 | 23.87 | Flat barrier plate with mounting hardware | $534.68Backorder | Buy now |
| UHDMFTC72BK | 60.00 | - | Inner panel bridge kit | $213.39Backorder | Buy now |
| UHDMFTC84BK | 72.00 | - | Inner panel bridge kit | $250.68In stock | Buy now |
Application
- ■ABB Controls flange mounted variable depth operating mechanism for disconnect switches and circuit breakers.
- ■Allen Bradley 1494V and 1494U variable depth flange mounted disconnect switches and circuit breaker mechanisms.
- ■C-H Westinghouse Type C361 disconnect switches and operator mechanism. Cutler Hammer Type C371 circuit breaker operating mechanisms. Flex Shaft™ handle operators for circuit breakers.
- ■General Electric Type STDA flange handles and variable depth operating mechanisms for disconnect switches and circuit breakers. Also Spectra-Flex™ cable operators for circuit breakers.
- ■I-T-E Max-Flex™ flange mounted variable depth operating handles for disconnect switches and circuit breakers.
- ■Square D disconnect switches and circuit breakers used with Class 9422 flange mounted variable depth operating mechanisms or cable mechanisms. These enclosures will not receive Class 9422 bracket mounted disconnect devices or Class 9422TG1 or TG2 devices.
- ■Refer to the Universal Heavy Duty Disconnect Modular Selection Guide.
Standards
- ■UL 508A Type 12
- ■CSA Type 12
- ■Complies with NEMA Type 12 IEC 60529, IP54
- ■NEMA Type 12
- ■IEC 60529, IP54
- ■Appropriate components are required to maintain these standards.
Construction
- ■Formed from 10 gauge steel with smooth continuously welded seams.
- ■Body stiffeners are provided in the larger enclosures for extra rigidity.
- ■Heavy duty lifting eyes are anchored into reinforced top corners.
- ■Removable doors are secured with heavy duty lift off hinges.
- ■Flange trough collar (FTC) around door excludes liquids and contaminants.
- ■Formed 10 gauge steel inner panels are provided on collar studs.
- ■Panel supports are provided.
- ■Center post is removable, providing easy panel installation.
- ■Heavy duty three point latching door mechanism.
- ■Side openings are reinforced to provide structural strength, smooth edges and preset gasket compression.
- ■Oil resistant gaskets on doors and side openings are permanently secured. No gasket kit is provided.
- ■Main door handle complete with screw defeater and padlock hasp.
- ■Secondary door handle complete with padlock hasp.
- ■A mechanical interlock activated by the main door prevents the auxiliary door from being opened first.
- ■The universal flange cutout provides mounting for disconnect operators by use of the appropriate operator adaptor kit.
- ■A bonding stud is provided in the door and a grounding stud is provided in the enclosure for each door.
- ■A literature pocket is provided.
- ■Formed End Plates and Flat End Plates Formed from 12 gauge steel. Used to enclose the open end(s) of one or more modular enclosures. Two types are available. No separate gasket kit is required.
- ■Formed from 12 gauge steel.
- ■Used to enclose the open end(s) of one or more modular enclosures.
- ■Two types are available. No separate gasket kit is required.
- ■Flat Barrier Plate Formed from 14 gauge steel. May be used to provide a barrier between modular enclosures. They are supplied complete with gasket.
- ■Formed from 14 gauge steel.
- ■May be used to provide a barrier between modular enclosures. They are supplied complete with gasket.
- ■Panel Bridge Kit Formed from 10 gauge steel. May be used to join back panels together between modular enclosures to provide a continuous panel surface.
- ■Formed from 10 gauge steel.
- ■May be used to join back panels together between modular enclosures to provide a continuous panel surface.
Note:
- ■Disconnect switches, circuit breakers and operators are not provided with the enclosure, and must be ordered separately from the manufacturer.
Finish
- ■Cover and enclosure are phosphatized and finished in recoatable smooth ANSI 61 gray powder coating.
- ■Inner panel is finished in white powder coating.
Documents
Additional information
Main Enclosures
| Left Side Open · Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W | Door · Type |
|---|---|---|---|---|---|---|
| UHDM724118MFTC | 72.13 | 40.75 | 18.13 | 60.00 | 33.75 | Single |
| UHDM844118MFTC | 84.13 | 40.75 | 18.13 | 72.00 | 33.75 | Single |
| UHDM844124MFTC | 84.13 | 40.75 | 24.13 | 72.00 | 33.75 | Single |
| UHDM727918MFTC | 72.13 | 79.00 | 18.13 | 60.00 | 72.00 | Double |
| UHDM847918MFTC | 84.13 | 79.00 | 18.13 | 72.00 | 72.00 | Double |
| UHDM847924MFTC | 84.13 | 79.00 | 24.13 | 72.00 | 72.00 | Double |
Secondary Enclosures
| Both Sides Open · Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W | Door · Type |
|---|---|---|---|---|---|---|
| UHDM724118SFTC | 72.13 | 40.25 | 18.13 | 60.00 | 33.75 | Single |
| UHDM844118SFTC | 84.13 | 40.25 | 18.13 | 72.00 | 33.75 | Single |
| UHDM844124SFTC | 84.13 | 40.25 | 24.13 | 72.00 | 33.75 | Single |
| UHDM727818SFTC | 72.13 | 78.50 | 18.13 | 60.00 | 72.00 | Double |
| UHDM847818SFTC | 84.13 | 78.50 | 18.13 | 72.00 | 72.00 | Double |
| UHDM847824SFTC | 84.13 | 78.50 | 24.13 | 72.00 | 72.00 | Double |
Accessories
| Part No. | H | W | Description |
|---|---|---|---|
| UHDM7218ECA | 71.86 | 17.87 | Formed end plate with mounting hardware |
| UHDM8418ECA | 83.87 | 17.87 | Formed end plate with mounting hardware |
| UHDM8424ECA | 83.87 | 23.87 | Formed end plate with mounting hardware |
| UHDM7218EPA | 71.87 | 17.87 | Flat end plate with mounting hardware |
| UHDM8418EPA | 83.87 | 17.87 | Flat end plate with mounting hardware |
| UHDM8424EPA | 83.87 | 23.87 | Flat end plate with mounting hardware |
| UHDM7218BPA | 71.87 | 17.87 | Flat barrier plate with mounting hardware |
| UHDM8418BPA | 83.87 | 17.87 | Flat barrier plate with mounting hardware |
| UHDM8424BPA | 83.87 | 23.87 | Flat barrier plate with mounting hardware |
| UHDMFTC72BK | 60.00 | - | Inner panel bridge kit |
| UHDMFTC84BK | 72.00 | - | Inner panel bridge kit |
