Disc W/Handle 20X21-3/8X10
$602.65In stock
Buy now

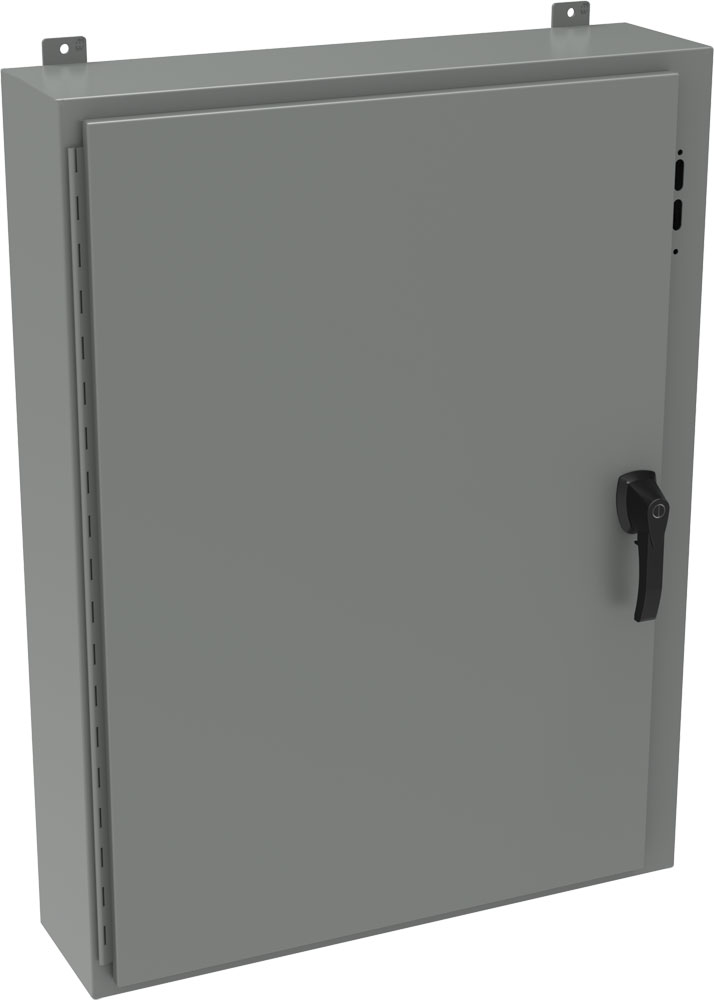

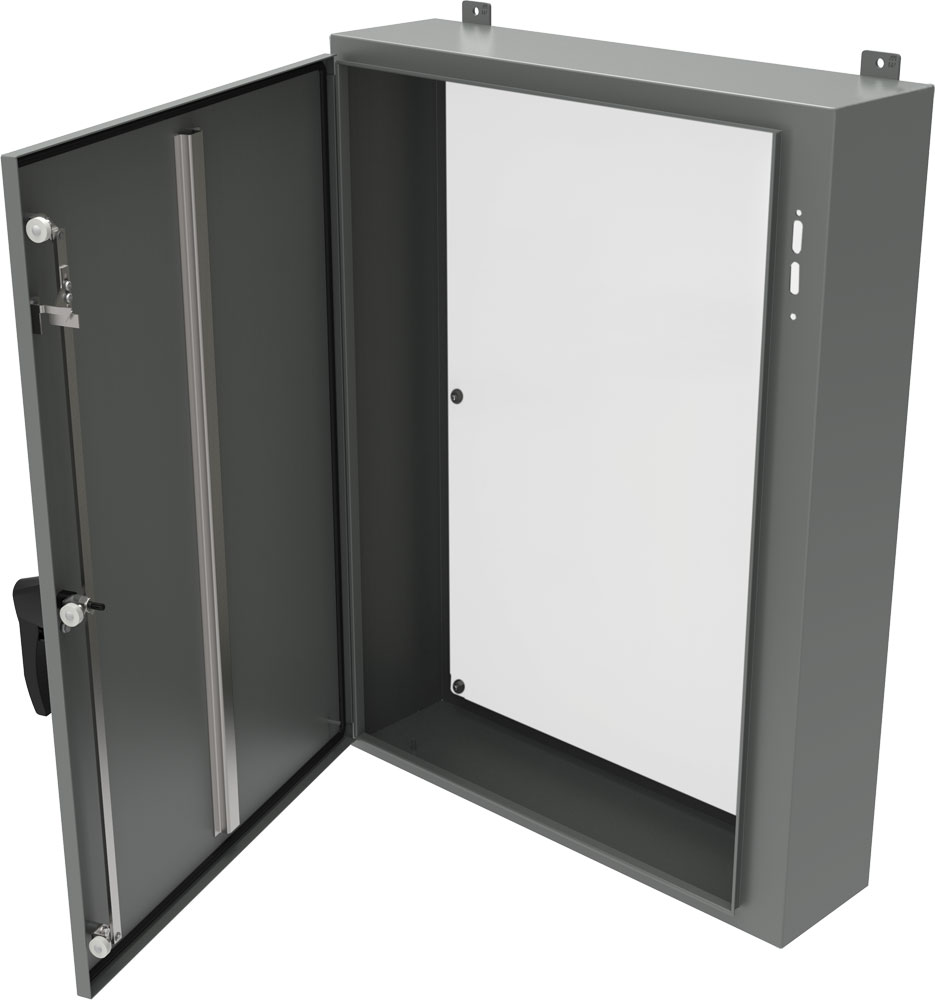

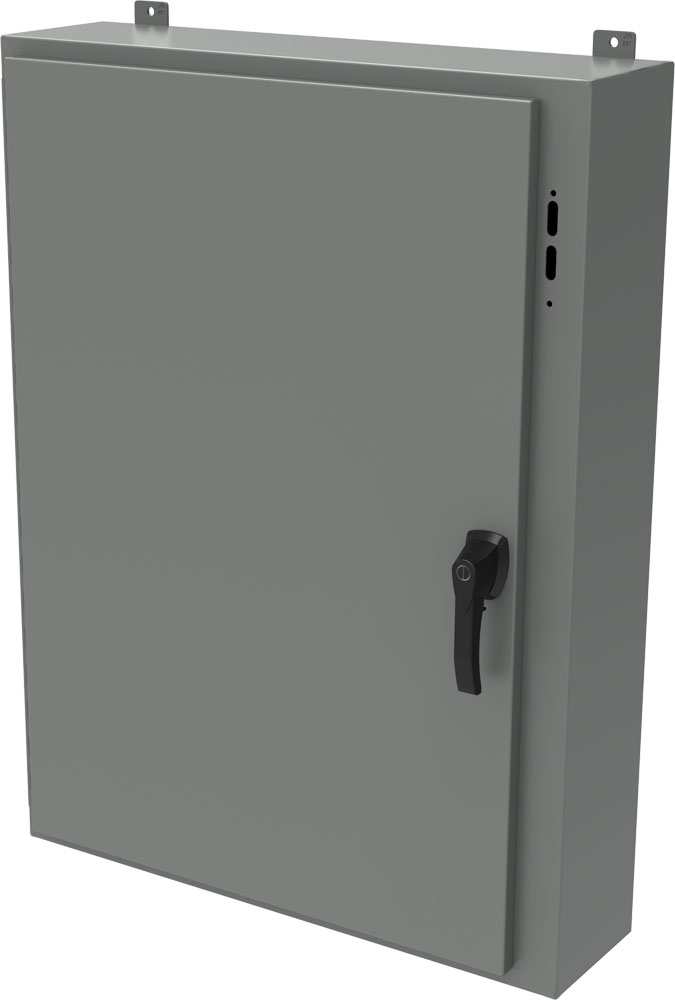

Type 4 Mild Steel Wallmount Disconnect Enclosure · 1447S HK Series
Brand: Hammond Manufacturing · 34 part numbers
Continuous Hinge Door (Flange w/ multi-vendor cutout) with Defeater Handle
- ■ABB Controls flange-mounted variable depth operating mechanism for disconnect switches and circuit breakers. Also cable version for circuit breakers.
- ■Allen Bradley 1494V and 1494U variable depth flange mounted disconnect switches and circuit breaker mechanisms.
- ■C-H Westinghouse C361 flange mounted variable depth operating mechanism with disconnect switches and C371 flange mounted variable depth operating mechanisms for circuit breakers. Also Flex-Shaft™ handle mechanisms for circuit breakers.
- ■General Electric Type STDA flange handles and variable depth operating mechanism for disconnect switches and circuit breakers. Also SpectraFlex™ cable operators for circuit breakers.
- ■Siemens I-T-E Max-Flex™ flange mounted variable depth handles for disconnect switches and circuit breakers.
- ■Square D class 9422 disconnect switches with flange mounted variable depth operating mechanisms or cable mechanisms and Class 9422 flange-mounted variable depth operating mechanisms or cable mechanisms for circuit breakers. Will not accept Square D Class 9422 bracket-mounted disconnect devices, 9422TG1 or TG2 devices
from $579.25
34 of 34 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1447S HK Series part number
Filter 34 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
34 of 34 part numbers · 34 priced online
Disc W/Handle 20X21-3/8X8
$579.25In stock
Buy nowDisc W/Handle 24X21-3/8X10
$651.40Backorder
Buy nowDisc W/Handle 24X21-3/8X8
$625.99Backorder
Buy nowDisc W/Handle 24X25-3/8X10
$701.48In stock
Buy nowDisc W/Handle 24X25-3/8X8
$672.73In stock
Buy nowDisc W/Handle 30X21-3/8X10
$718.87Backorder
Buy nowDisc W/Handle 30X21-3/8X8
$688.12In stock
Buy nowDisc W/Handle 30X25-3/8X10
$778.39In stock
Buy nowDisc W/Handle 30X25-3/8X12
$806.48In stock
Buy nowDisc W/Handle 30X25-3/8X8
$744.94In stock
Buy nowDisc W/Handle 36X25-3/8X10
$852.61In stock
Buy nowDisc W/Handle 36X25-3/8X8
$798.45In stock
Buy nowDisc W/Handle 36X31-3/8X10
$970.31Backorder
Buy nowDisc W/Handle 36X31-3/8X12
$1,007.75In stock
Buy nowDisc W/Handle 36X31-3/8X16
$1,085.33In stock
Buy nowDisc W/Handle 36X31-3/8X8
$929.51In stock
Buy nowDisc W/Handle 42X31-3/8X10
$1,059.92In stock
Buy nowDisc W/Handle 42X31-3/8X12
$1,102.05In stock
Buy nowDisc W/Handle 42X31-3/8X16
$1,136.82Backorder
Buy nowDisc W/Handle 42X31-3/8X8
$1,016.44Backorder
Buy nowDisc W/Handle 42X37-3/8X10
$1,178.96Backorder
Buy nowDisc W/Handle 42X37-3/8X12
$1,225.76Backorder
Buy nowDisc W/Handle 42X37-3/8X16
$1,241.81Backorder
Buy nowDisc W/Handle 42X37-3/8X8
$1,131.47Backorder
Buy nowDisc W/Handle 48X37-3/8X10
$1,283.26Backorder
Buy nowDisc W/Handle 48X37-3/8X12
$1,334.09In stock
Buy nowDisc W/Handle 48X37-3/8X16
$1,430.39Backorder
Buy nowDisc W/Handle 48X37-3/8X8
$1,233.78Backorder
Buy nowDisc W/Handle 60X37-3/8X10
$1,493.25In stock
Buy nowDisc W/Handle 60X37-3/8X12
$1,546.07In stock
Buy nowDisc W/Handle 60X37-3/8X16
$1,658.43Backorder
Buy nowDisc W/Handle 60X37-3/8X8
$1,437.07Backorder
Buy nowDisc W/Handle 48X25 -3/8X10
$1,138.83In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · D | Price | Order |
|---|---|---|---|---|---|---|---|
| 1447SA8HK | 20.00 | 21.38 | 8.00 | 17.00 | 17.00 | $579.25In stock | Buy now |
| 1447SB8HK | 24.00 | 21.38 | 8.00 | 21.00 | 17.00 | $625.99Backorder | Buy now |
| 1447SC8HK | 24.00 | 25.38 | 8.00 | 21.00 | 21.00 | $672.73In stock | Buy now |
| 1447SD8HK | 30.00 | 21.38 | 8.00 | 27.00 | 17.00 | $688.12In stock | Buy now |
| 1447SE8HK | 30.00 | 25.38 | 8.00 | 27.00 | 21.00 | $744.94In stock | Buy now |
| 1447SF8HK | 36.00 | 25.38 | 8.00 | 33.00 | 21.00 | $798.45In stock | Buy now |
| 1447SG8HK | 36.00 | 31.38 | 8.00 | 33.00 | 27.00 | $929.51In stock | Buy now |
| 1447SH8HK | 42.00 | 31.38 | 8.00 | 39.00 | 27.00 | $1,016.44Backorder | Buy now |
| 1447SJ8HK | 42.00 | 37.38 | 8.00 | 39.00 | 33.00 | $1,131.47Backorder | Buy now |
| 1447SK8HK | 48.00 | 37.38 | 8.00 | 45.00 | 33.00 | $1,233.78Backorder | Buy now |
| 1447SL8HK | 60.00 | 37.38 | 8.00 | 57.00 | 33.00 | $1,437.07Backorder | Buy now |
| 1447SA10HK | 20.00 | 21.38 | 10.00 | 17.00 | 17.00 | $602.65In stock | Buy now |
| 1447SB10HK | 24.00 | 21.38 | 10.00 | 21.00 | 17.00 | $651.40Backorder | Buy now |
| 1447SC10HK | 24.00 | 25.38 | 10.00 | 21.00 | 21.00 | $701.48In stock | Buy now |
| 1447SD10HK | 30.00 | 21.38 | 10.00 | 27.00 | 17.00 | $718.87Backorder | Buy now |
| 1447SE10HK | 30.00 | 25.38 | 10.00 | 27.00 | 21.00 | $778.39In stock | Buy now |
| 1447SF10HK | 36.00 | 25.38 | 10.00 | 33.00 | 21.00 | $852.61In stock | Buy now |
| 1447SG10HK | 36.00 | 31.38 | 10.00 | 33.00 | 27.00 | $970.31Backorder | Buy now |
| 1447SH10HK | 42.00 | 31.38 | 10.00 | 39.00 | 27.00 | $1,059.92In stock | Buy now |
| 1447SJ10HK | 42.00 | 37.38 | 10.00 | 39.00 | 33.00 | $1,178.96Backorder | Buy now |
| 1447SQ10HK | 48.00 | 25.40 | 10.00 | 45.00 | 21.00 | $1,138.83In stock | Buy now |
| 1447SK10HK | 48.00 | 37.38 | 10.00 | 45.00 | 33.00 | $1,283.26Backorder | Buy now |
| 1447SL10HK | 60.00 | 37.38 | 10.00 | 57.00 | 33.00 | $1,493.25In stock | Buy now |
| 1447SE12HK | 30.00 | 25.38 | 12.00 | 27.00 | 21.00 | $806.48In stock | Buy now |
| 1447SG12HK | 36.00 | 31.38 | 12.00 | 33.00 | 27.00 | $1,007.75In stock | Buy now |
| 1447SH12HK | 42.00 | 31.38 | 12.00 | 39.00 | 27.00 | $1,102.05In stock | Buy now |
| 1447SJ12HK | 42.00 | 37.38 | 12.00 | 39.00 | 33.00 | $1,225.76Backorder | Buy now |
| 1447SK12HK | 48.00 | 37.38 | 12.00 | 45.00 | 33.00 | $1,334.09In stock | Buy now |
| 1447SL12HK | 60.00 | 37.38 | 12.00 | 57.00 | 33.00 | $1,546.07In stock | Buy now |
| 1447SG16HK | 36.00 | 31.38 | 16.00 | 33.00 | 27.00 | $1,085.33In stock | Buy now |
| 1447SH16HK | 42.00 | 31.38 | 16.00 | 39.00 | 27.00 | $1,136.82Backorder | Buy now |
| 1447SJ16HK | 42.00 | 37.38 | 16.00 | 39.00 | 33.00 | $1,241.81Backorder | Buy now |
| 1447SK16HK | 48.00 | 37.38 | 16.00 | 45.00 | 33.00 | $1,430.39Backorder | Buy now |
| 1447SL16HK | 60.00 | 37.38 | 16.00 | 57.00 | 33.00 | $1,658.43Backorder | Buy now |
Application
- ■ABB Controls flange-mounted variable depth operating mechanism for disconnect switches and circuit breakers. Also cable version for circuit breakers.
- ■Allen Bradley 1494V and 1494U variable depth flange mounted disconnect switches and circuit breaker mechanisms.
- ■C-H Westinghouse C361 flange mounted variable depth operating mechanism with disconnect switches and C371 flange mounted variable depth operating mechanisms for circuit breakers. Also Flex-Shaft™ handle mechanisms for circuit breakers.
- ■General Electric Type STDA flange handles and variable depth operating mechanism for disconnect switches and circuit breakers. Also SpectraFlex™ cable operators for circuit breakers.
- ■Siemens I-T-E Max-Flex™ flange mounted variable depth handles for disconnect switches and circuit breakers.
- ■Square D class 9422 disconnect switches with flange mounted variable depth operating mechanisms or cable mechanisms and Class 9422 flange-mounted variable depth operating mechanisms or cable mechanisms for circuit breakers. Will not accept Square D Class 9422 bracket-mounted disconnect devices, 9422TG1 or TG2 devices
- ■Refer to the Type 12 Wallmount Selection Guide.
Standards
- ■UL 508A Type 4, 12, and 13
- ■CSA Type 4, 12, and 13
- ■Complies with NEMA Type 4, 12 and 13 IEC 60529, IP66 Appropriate components are required to maintain these standards.
- ■NEMA Type 4, 12 and 13
- ■IEC 60529, IP66
- ■Appropriate components are required to maintain these standards.
Construction
- ■Formed 14-gauge steel.
- ■Continuously welded seams.
- ■Larger sizes include door and body stiffeners.
- ■Welded brackets provide for enclosure mounting.
- ■Formed lip on enclosure exclude flowing liquids and contaminants.
- ■Seamless poured-in place gasket.
- ■Cutouts and holes are provided to suit the flange handle operating mechanism.
- ■Continuously hinged doors may be removed by pulling the hinge pin.
- ■Pad lock defeater handle mechanism is provided along with latching rods and interlock brackets.
- ■Collar studs are provided for mounting inner panels.
- ■A removable 12 gauge inner panel is included.
- ■A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
- ■A literature pocket is provided.
Finish
- ■Cover and enclosure are finished in ANSI61 gray powder coat finish inside and out.
- ■Inner panel finished in white powder coat finish.
Note
- ■Disconnects, operating mechanisms are not provided with the enclosure, and must be ordered separately from the manufacturer.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · D |
|---|---|---|---|---|---|
| 1447SA8HK | 20.00 | 21.38 | 8.00 | 17.00 | 17.00 |
| 1447SB8HK | 24.00 | 21.38 | 8.00 | 21.00 | 17.00 |
| 1447SC8HK | 24.00 | 25.38 | 8.00 | 21.00 | 21.00 |
| 1447SD8HK | 30.00 | 21.38 | 8.00 | 27.00 | 17.00 |
| 1447SE8HK | 30.00 | 25.38 | 8.00 | 27.00 | 21.00 |
| 1447SF8HK | 36.00 | 25.38 | 8.00 | 33.00 | 21.00 |
| 1447SG8HK | 36.00 | 31.38 | 8.00 | 33.00 | 27.00 |
| 1447SH8HK | 42.00 | 31.38 | 8.00 | 39.00 | 27.00 |
| 1447SJ8HK | 42.00 | 37.38 | 8.00 | 39.00 | 33.00 |
| 1447SK8HK | 48.00 | 37.38 | 8.00 | 45.00 | 33.00 |
| 1447SL8HK | 60.00 | 37.38 | 8.00 | 57.00 | 33.00 |
| 1447SA10HK | 20.00 | 21.38 | 10.00 | 17.00 | 17.00 |
| 1447SB10HK | 24.00 | 21.38 | 10.00 | 21.00 | 17.00 |
| 1447SC10HK | 24.00 | 25.38 | 10.00 | 21.00 | 21.00 |
| 1447SD10HK | 30.00 | 21.38 | 10.00 | 27.00 | 17.00 |
| 1447SE10HK | 30.00 | 25.38 | 10.00 | 27.00 | 21.00 |
| 1447SF10HK | 36.00 | 25.38 | 10.00 | 33.00 | 21.00 |
| 1447SG10HK | 36.00 | 31.38 | 10.00 | 33.00 | 27.00 |
| 1447SH10HK | 42.00 | 31.38 | 10.00 | 39.00 | 27.00 |
| 1447SJ10HK | 42.00 | 37.38 | 10.00 | 39.00 | 33.00 |
| 1447SQ10HK | 48.00 | 25.40 | 10.00 | 45.00 | 21.00 |
| 1447SK10HK | 48.00 | 37.38 | 10.00 | 45.00 | 33.00 |
| 1447SL10HK | 60.00 | 37.38 | 10.00 | 57.00 | 33.00 |
| 1447SE12HK | 30.00 | 25.38 | 12.00 | 27.00 | 21.00 |
| 1447SG12HK | 36.00 | 31.38 | 12.00 | 33.00 | 27.00 |
| 1447SH12HK | 42.00 | 31.38 | 12.00 | 39.00 | 27.00 |
| 1447SJ12HK | 42.00 | 37.38 | 12.00 | 39.00 | 33.00 |
| 1447SK12HK | 48.00 | 37.38 | 12.00 | 45.00 | 33.00 |
| 1447SL12HK | 60.00 | 37.38 | 12.00 | 57.00 | 33.00 |
| 1447SG16HK | 36.00 | 31.38 | 16.00 | 33.00 | 27.00 |
| 1447SH16HK | 42.00 | 31.38 | 16.00 | 39.00 | 27.00 |
| 1447SJ16HK | 42.00 | 37.38 | 16.00 | 39.00 | 33.00 |
| 1447SK16HK | 48.00 | 37.38 | 16.00 | 45.00 | 33.00 |
| 1447SL16HK | 60.00 | 37.38 | 16.00 | 57.00 | 33.00 |
