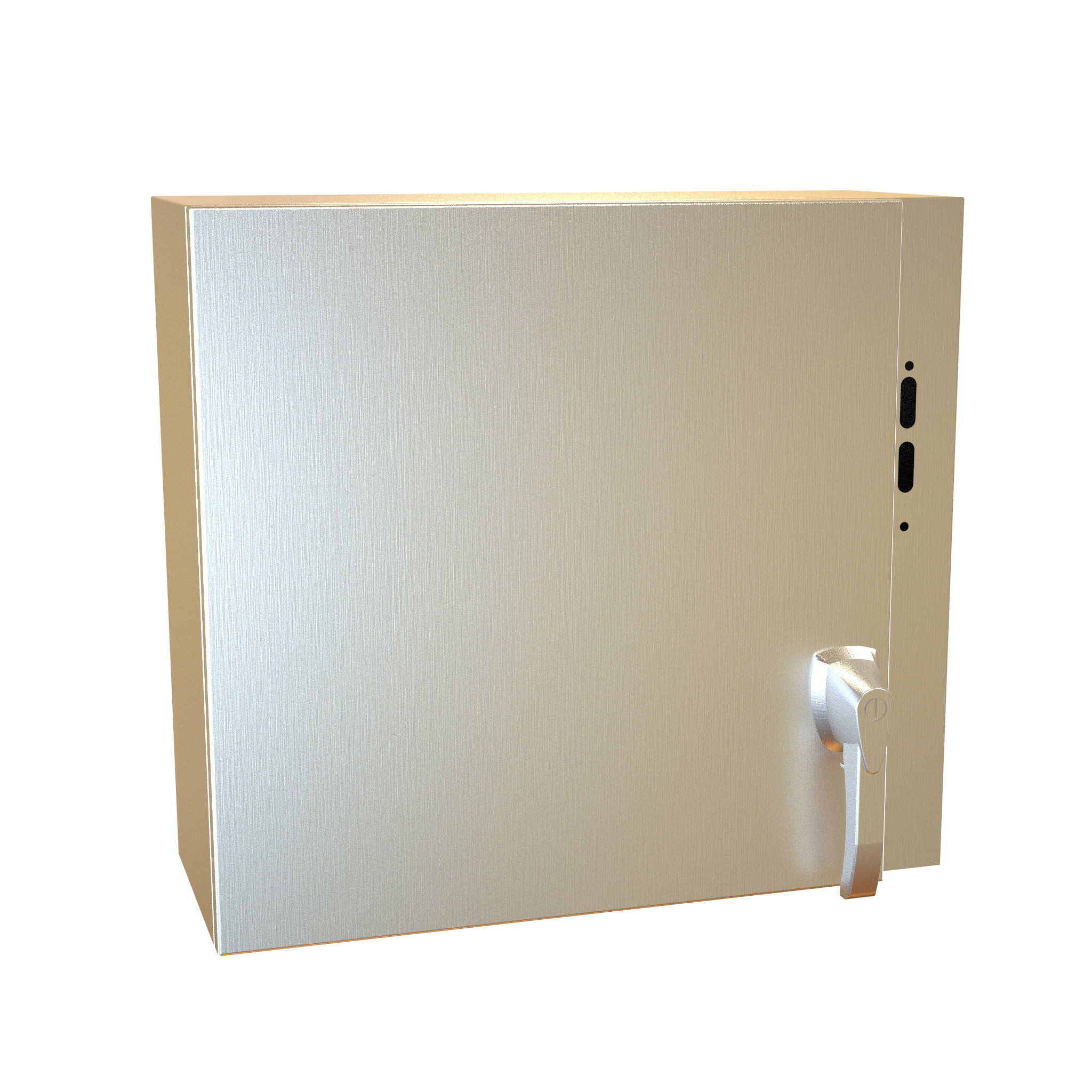

Disc W/Han 22X22X8 304SS
- Optional Inner Pan EP2020
$1,331.63In stock
Buy now
Type 4X Stainless Steel Wallmount Disconnect Enclosure · Eclipse Series
Brand: Hammond Manufacturing · 10 part numbers
Hinge Door with Handle (Flange w/ multi-vendor cutout)
- ■ABB Controls flange mounted variable depth operating mechanisms for disconnect switches and circuit breakers. Cable version for circuit breakers also available.
- ■Allen Bradley 1494V and 1494U variable depth flange mounted disconnect switches and circuit breaker mechanisms.
- ■Cutler Hammer C361 variable depth flange mounted disconnect switches and C371 circuit breaker operators. Also Flex-Shaft™ handle mechanisms for circuit breakers. Use Cutler Hammer NEMA 4X rated operating handles to maintain NEMA 4X integrity.
- ■Siemens I-T-E Max-Flex™ flange mounted variable depth handles for disconnect switch and circuit breakers. Use handle for NEMA 4 rating.
- ■General Electric Type STDA flange handles and variable depth operating mechanisms for disconnect switches and circuit breakers. Also SpectraFlex™ cable operators for circuit breakers.
- ■Square D Class 9422 disconnect switches with flange mounted variable depth operating mechanisms or cable mechanisms and Class 9422 flange mounted variable depth operating mechanism or cable mechanisms for circuit breakers. SN4SS enclosures will not accept Square D Class 9422 bracket-mounted disconnect devices, 9422TG1 or TG2 devices.
from $1,331.63
10 of 10 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your Eclipse Series part number
Filter 10 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
10 of 10 part numbers · 10 priced online

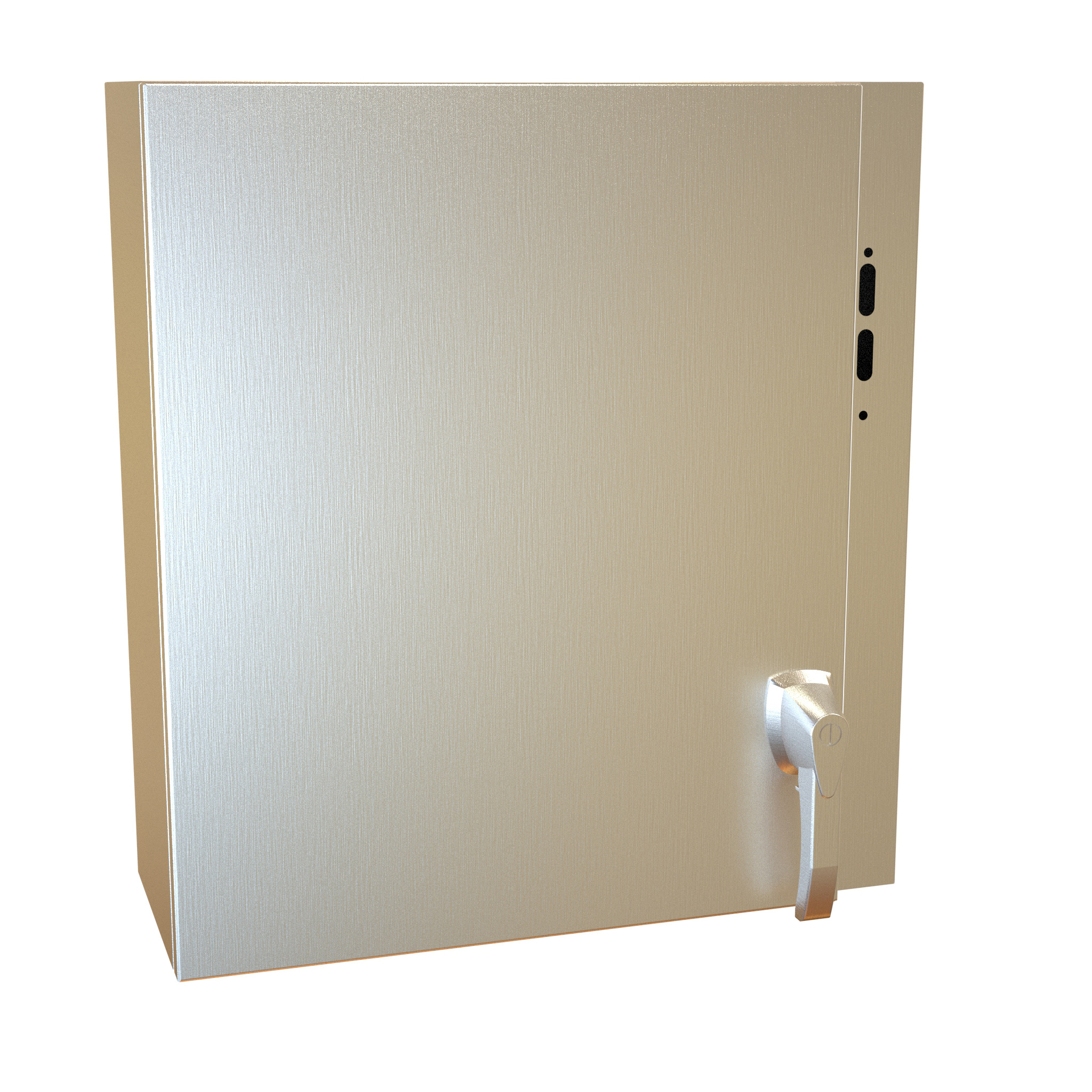

Disc W/Han 24X22X8 304SS
- Optional Inner Pan EP2420
$1,405.82In stock
Buy now

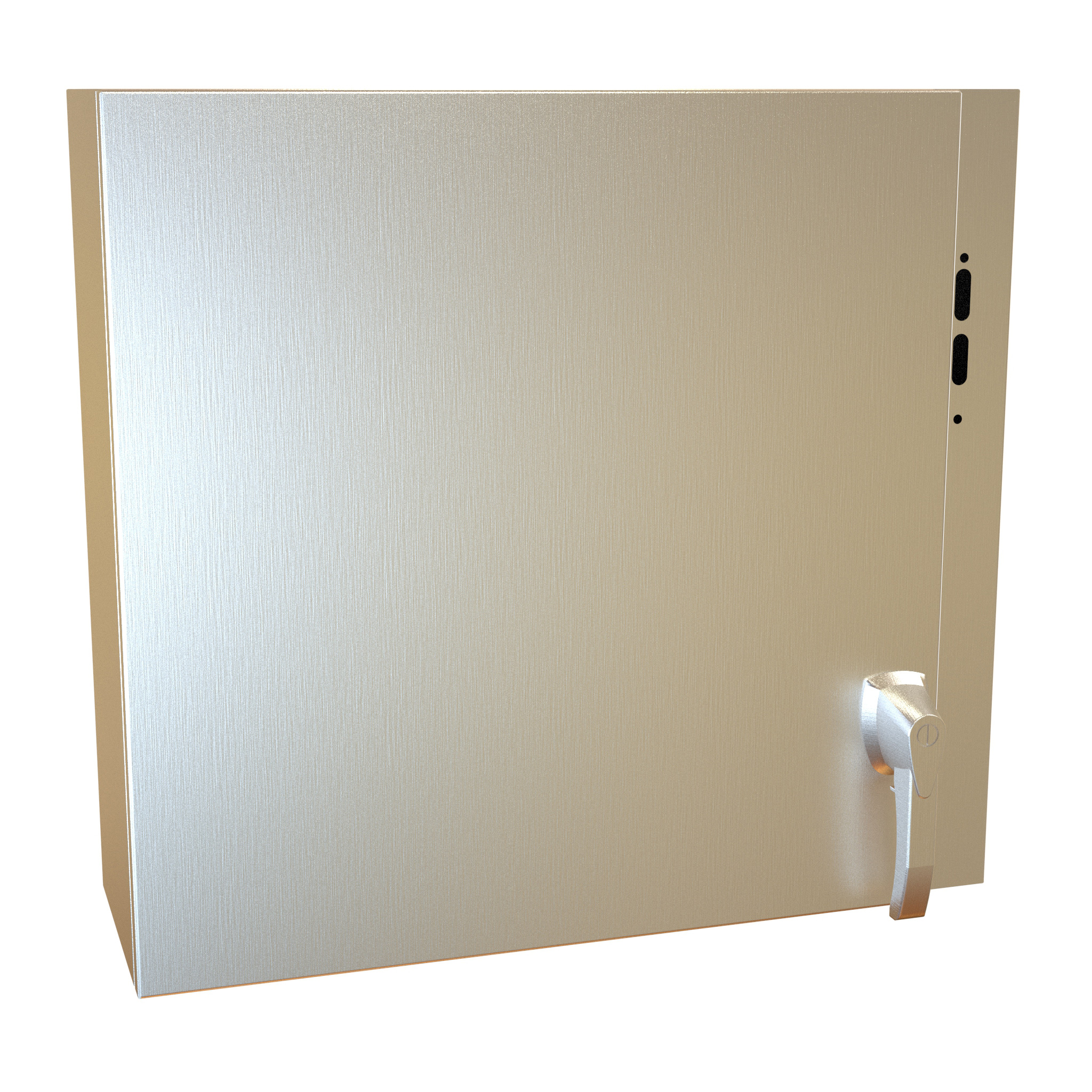

Disc W/Han 24X26X8 304SS
- Optional Inner Pan EP2424
$1,489.68In stock
Buy now

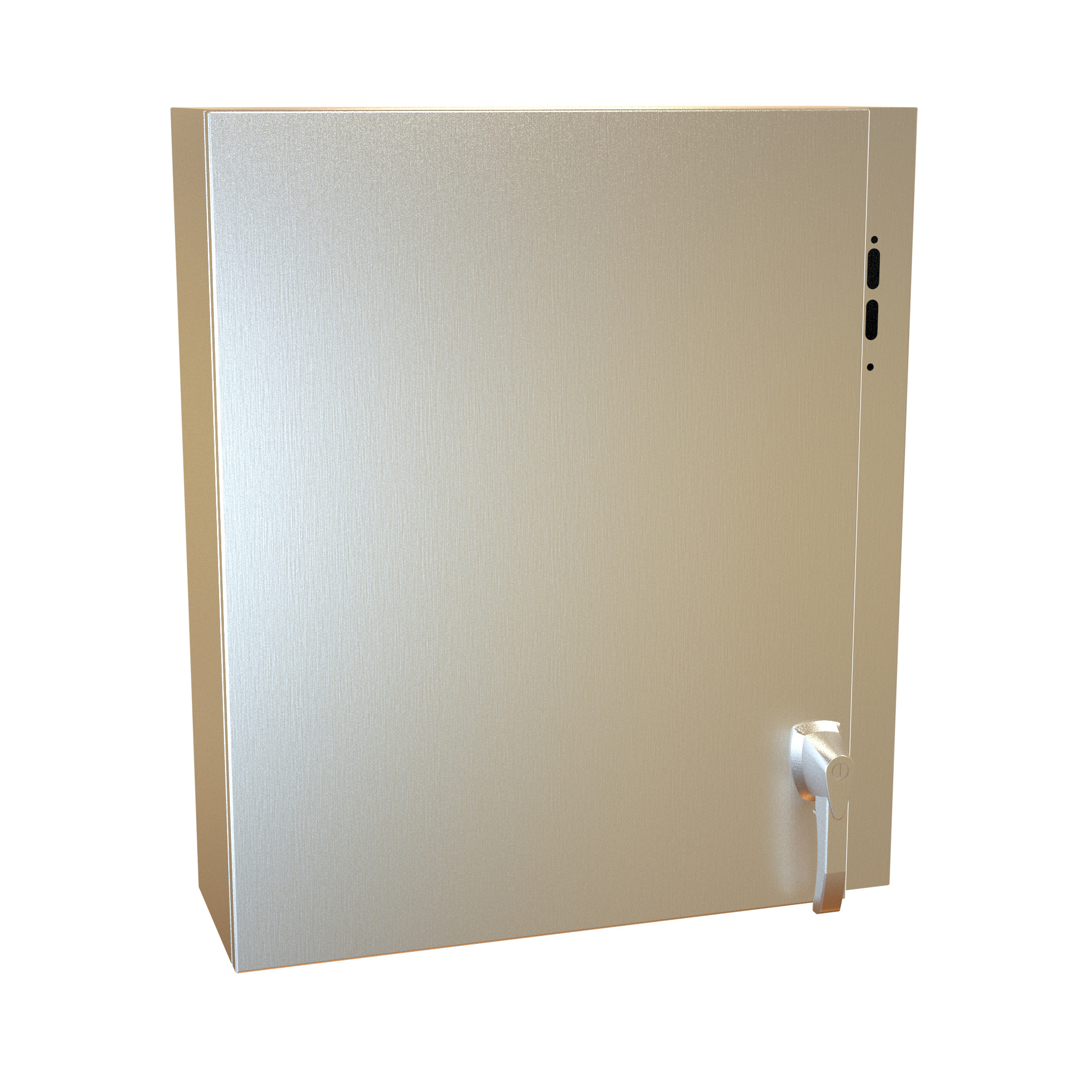

Disc W/Han 30X26X8 304SS
- Optional Inner Pan EP3024
$1,620.31In stock
Buy now

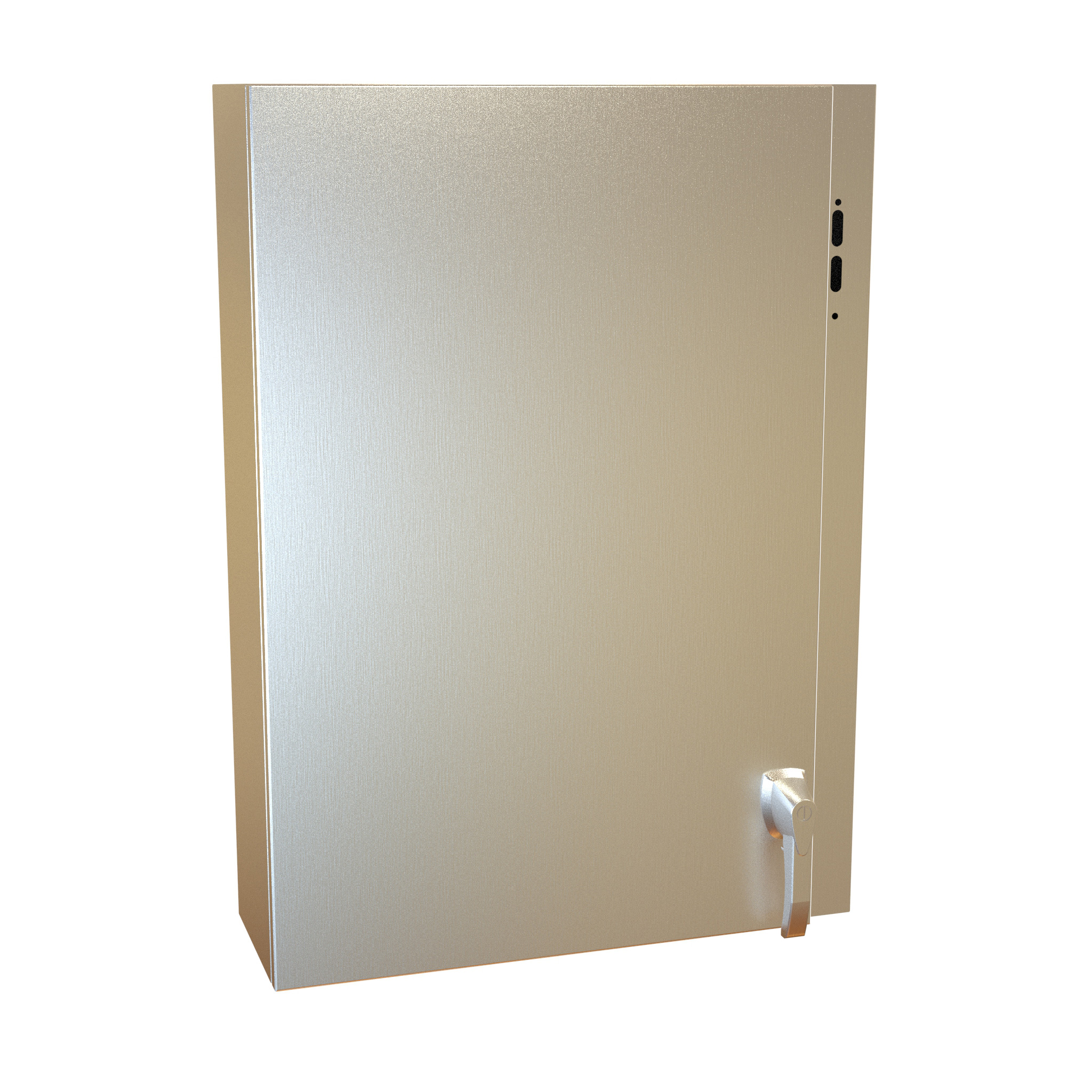

Disc W/Han 36X26X8 304SS
- Optional Inner Pan EP3624
$1,671.38In stock
Buy now

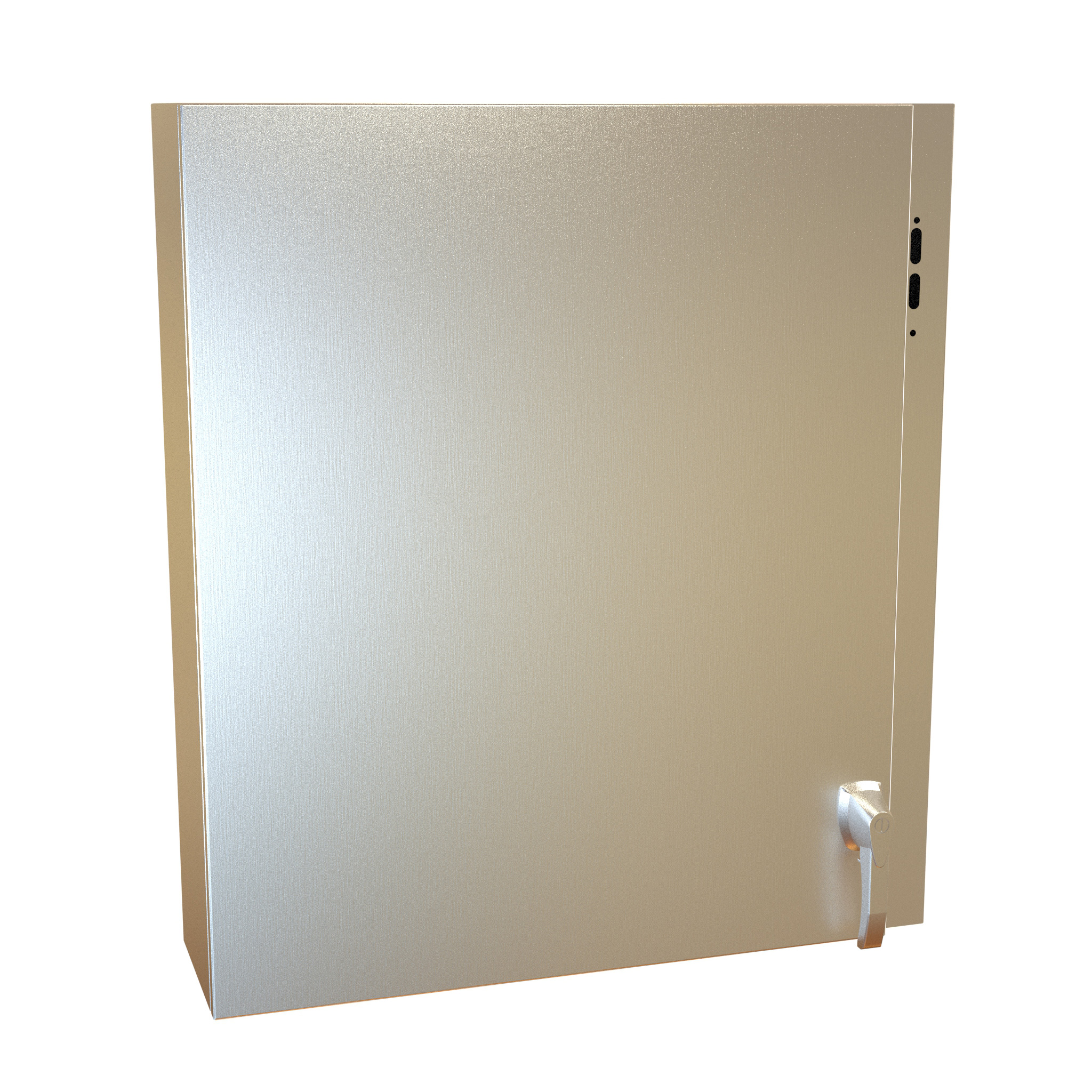

Disc W/Han 36X32X8 304SS
- Optional Inner Pan EP3630
$1,769.23In stock
Buy now

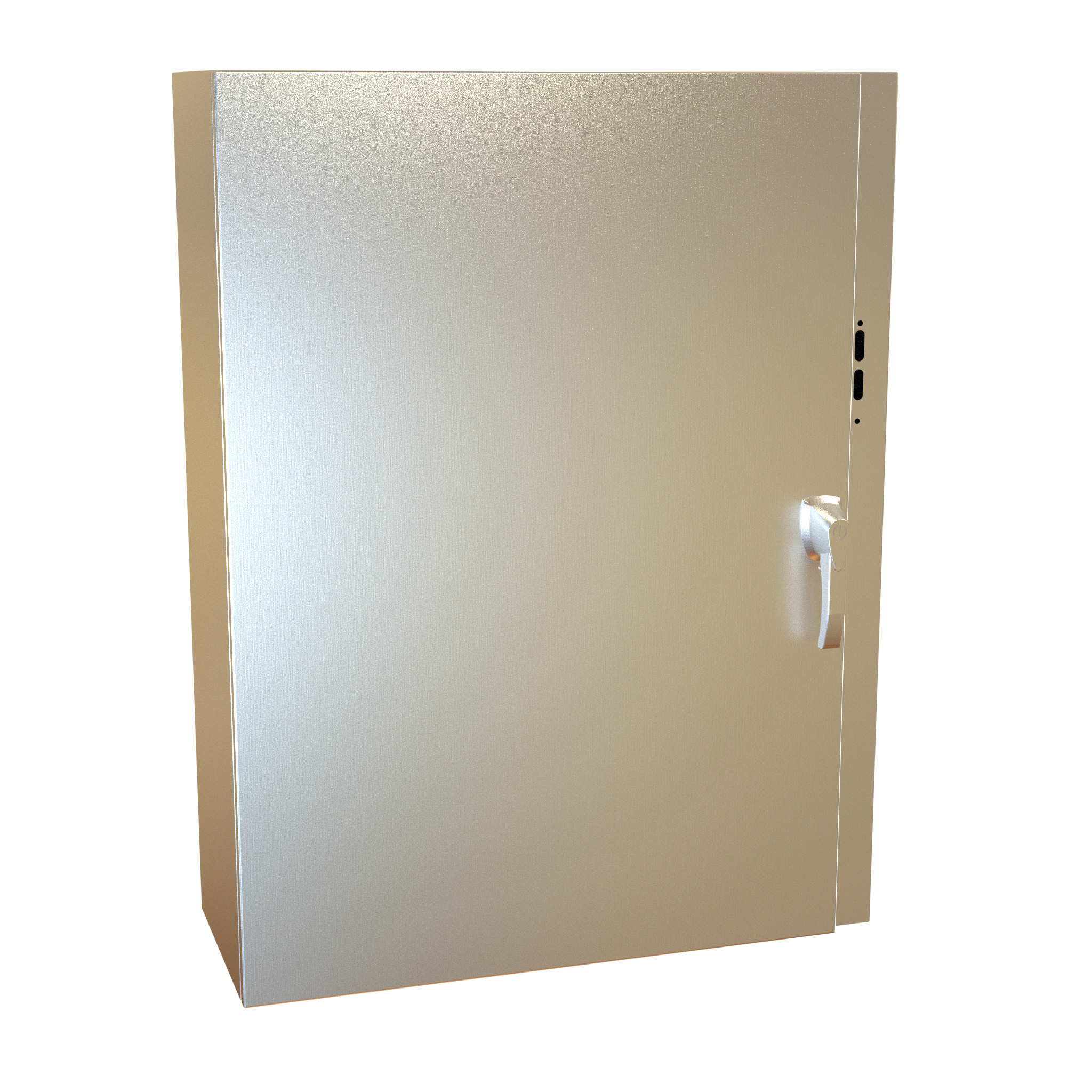

Disc W/Han 42X32X12 304SS
- Optional Inner Pan EP4230
$2,467.56Backorder
Buy now

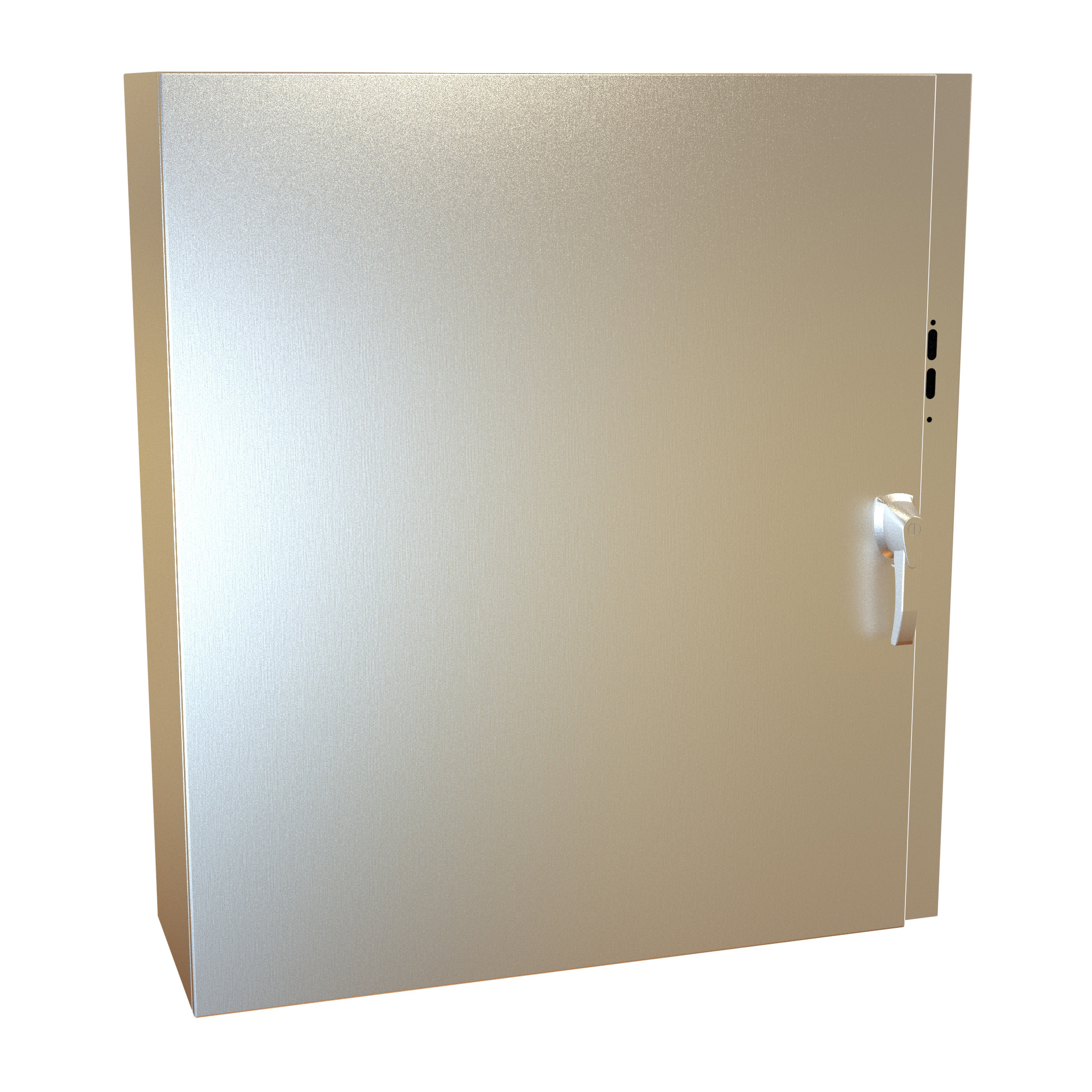

Disc W/Han 42X38X12 304SS
- Optional Inner Pan EP4236
$2,519.18In stock
Buy now

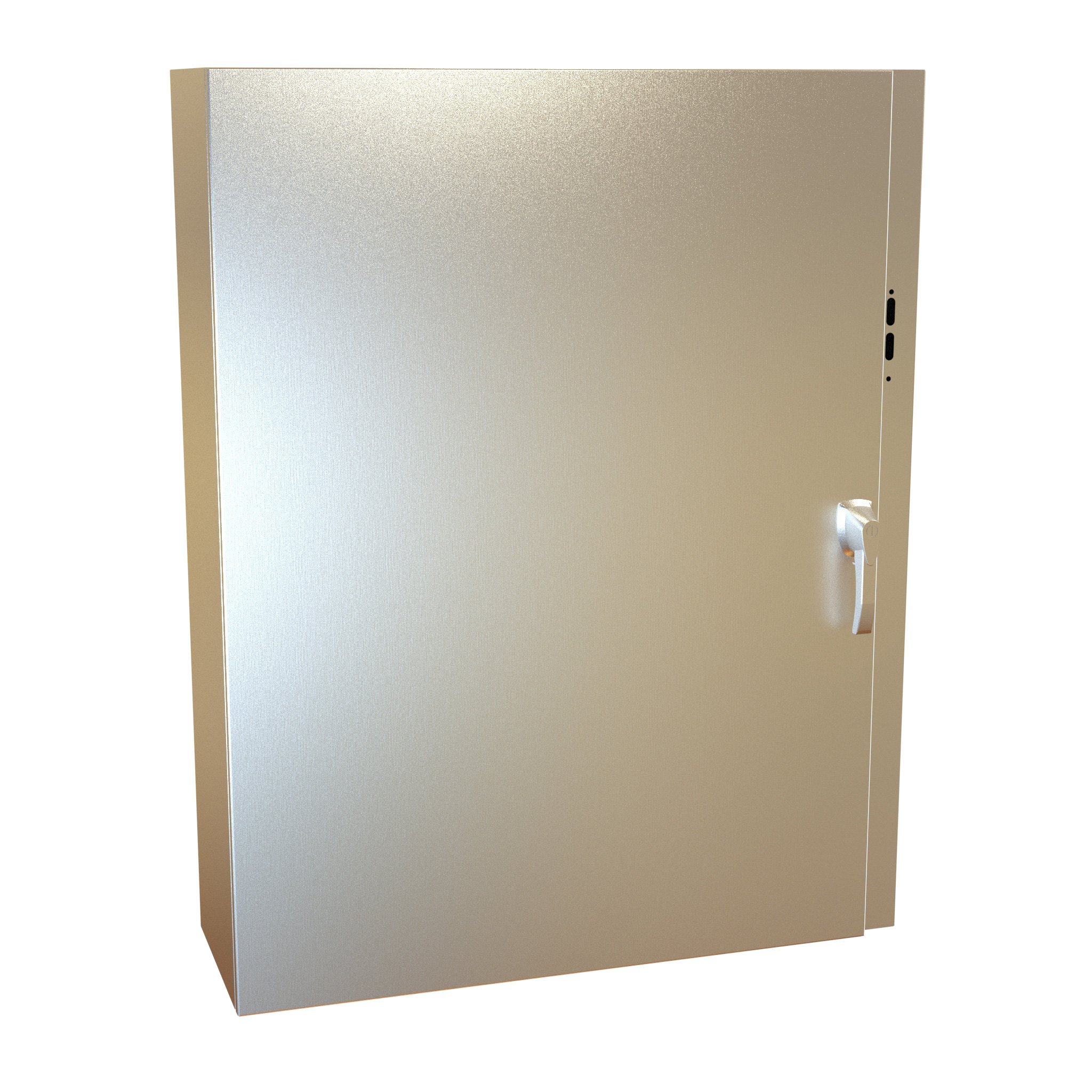

Disc W/Han 48X38X12 304SS
- Optional Inner Pan EP4836
$2,715.39In stock
Buy now

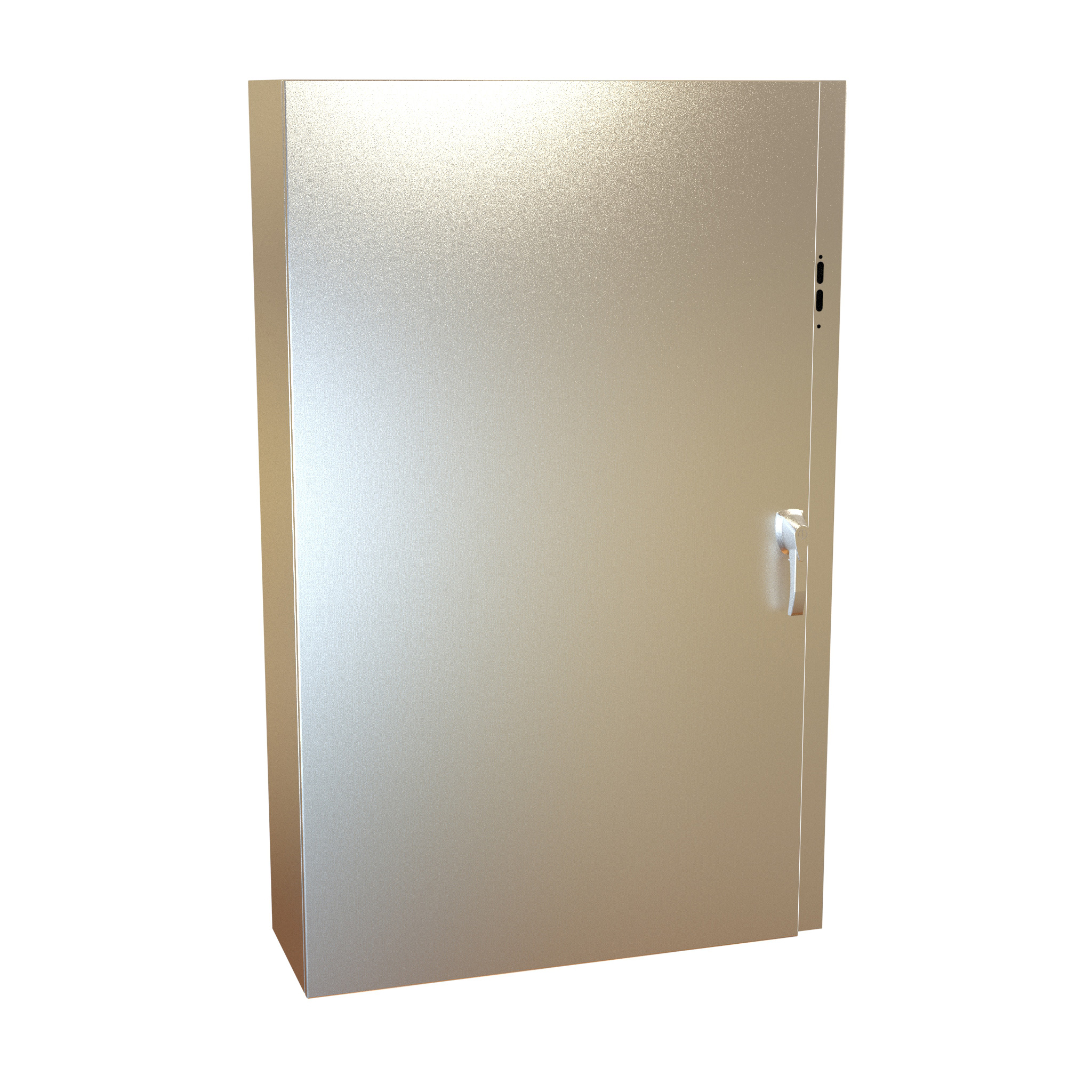

Disc W/Han 60X38X12 304SS
- Optional Inner Pan EP6036
$3,191.18In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|---|
| EN4DSC20228SS | 20.00 | 22.00 | 8.00 | EP2020 | 18.17 | 18.17 | $1,331.63In stock | Buy now |
| EN4DSC24228SS | 24.00 | 22.00 | 8.00 | EP2420 | 22.17 | 18.17 | $1,405.82In stock | Buy now |
| EN4DSC24268SS | 24.00 | 26.00 | 8.00 | EP2424 | 22.17 | 22.17 | $1,489.68In stock | Buy now |
| EN4DSC30268SS | 30.00 | 26.00 | 8.00 | EP3024 | 28.17 | 22.17 | $1,620.31In stock | Buy now |
| EN4DSC36268SS | 36.00 | 26.00 | 8.00 | EP3624 | 34.17 | 22.17 | $1,671.38In stock | Buy now |
| EN4DSC36328SS | 36.00 | 32.00 | 8.00 | EP3630 | 34.17 | 28.17 | $1,769.23In stock | Buy now |
| EN4DSC423212SS | 42.00 | 32.00 | 12.00 | EP4230 | 40.17 | 28.17 | $2,467.56Backorder | Buy now |
| EN4DSC423812SS | 42.00 | 38.00 | 12.00 | EP4236 | 40.17 | 34.17 | $2,519.18In stock | Buy now |
| EN4DSC483812SS | 48.00 | 38.00 | 12.00 | EP4836 | 46.17 | 34.17 | $2,715.39In stock | Buy now |
| EN4DSC603812SS | 60.00 | 38.00 | 12.00 | EP6036 | 58.17 | 34.17 | $3,191.18In stock | Buy now |
Application
- ■ABB Controls flange mounted variable depth operating mechanisms for disconnect switches and circuit breakers. Cable version for circuit breakers also available.
- ■Allen Bradley 1494V and 1494U variable depth flange mounted disconnect switches and circuit breaker mechanisms.
- ■Cutler Hammer C361 variable depth flange mounted disconnect switches and C371 circuit breaker operators. Also Flex-Shaft™ handle mechanisms for circuit breakers. Use Cutler Hammer NEMA 4X rated operating handles to maintain NEMA 4X integrity.
- ■Siemens I-T-E Max-Flex™ flange mounted variable depth handles for disconnect switch and circuit breakers. Use handle for NEMA 4 rating.
- ■General Electric Type STDA flange handles and variable depth operating mechanisms for disconnect switches and circuit breakers. Also SpectraFlex™ cable operators for circuit breakers.
- ■Square D Class 9422 disconnect switches with flange mounted variable depth operating mechanisms or cable mechanisms and Class 9422 flange mounted variable depth operating mechanism or cable mechanisms for circuit breakers. SN4SS enclosures will not accept Square D Class 9422 bracket-mounted disconnect devices, 9422TG1 or TG2 devices.
- ■Refer to the Type 4 Wallmount Selection Guide .
Standards
- ■UL 508A Type 3R, 4 and 4X
- ■CSA Type 3R, 4 and 4X
- ■Complies with NEMA Type 3R, 4, 4X, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4, 4X, 12 and 13
- ■IEC 60529, IP66
- ■Appropriate components are required to maintain these standards.
Construction
- ■Formed 14 gauge doors with 16 or 14 (36x32" and larger) gauge type 304 stainless steel.
- ■Continuously welded seams.
- ■Larger sizes include door stiffeners.
- ■Formed lip on door and enclosure exclude flowing liquids and contaminants.
- ■Cutouts and holes are provided to suit the flange handle operating mechanism.
- ■Doors may be easily removed for modifications and are interchangeable.
- ■Door is secured with easily operated 2 or 3 point, padlockable handle.
- ■Cover interlock bracket is included on the door.
- ■Collar studs are provided for mounting inner panels.
- ■Removable inner panel is sold separately.
- ■Seamless poured-in place gasket.
- ■A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
- ■Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
Finish
- ■Disconnects and operating mechanisms are not provided with the enclosure, and must be ordered separately from the manufacturer.
