400/600AMP Sfty Encl. 60X37X12
QuoteRequest a quote

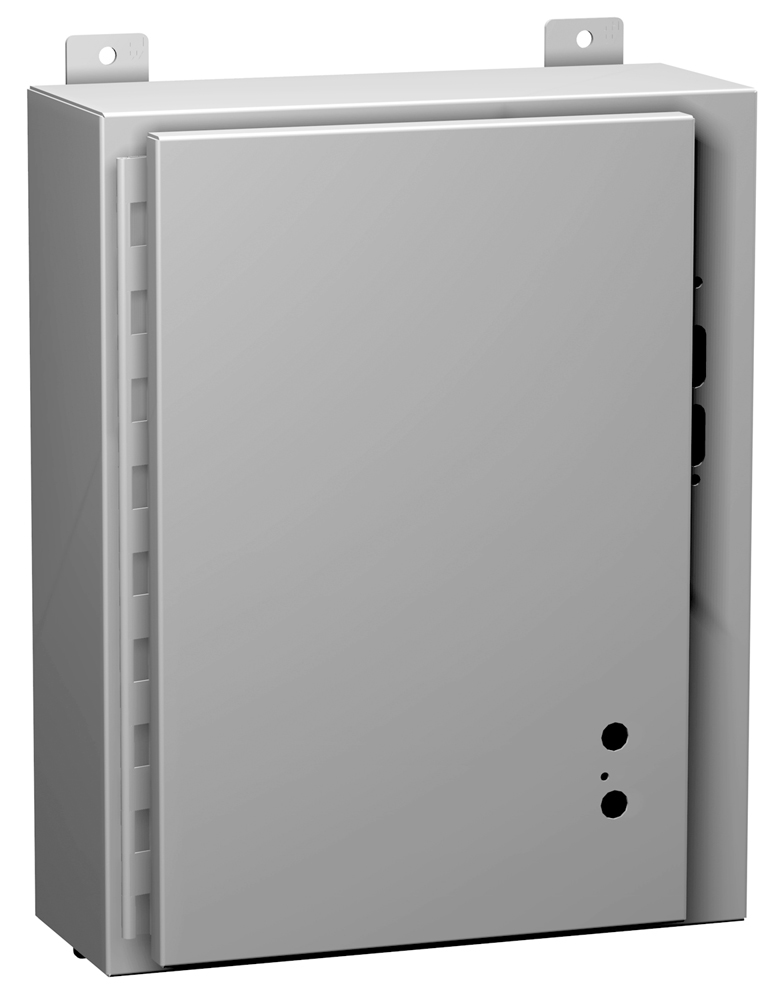

Type 12 Mild Steel Wallmount Disconnect Enclosure · 1447S Series
Brand: Hammond Manufacturing · 32 part numbers
Continuous Hinge Door (Flange w/ multi-vendor cutout)
- ■ABB Controls flange-mounted variable depth operating mechanism for disconnect switches and circuit breakers. Also cable version for circuit breakers.
- ■Allen Bradley 1494V and 1494U variable depth flange mounted disconnect switches and circuit breaker mechanisms.
- ■C-H Westinghouse C361 flange mounted variable depth operating mechanism with disconnect switches and C371 flange mounted variable depth operating mechanisms for circuit breakers. Also Flex-Shaft™ handle mechanisms for circuit breakers.
- ■General Electric Type STDA flange handles and variable depth operating mechanism for disconnect switches and circuit breakers. Also SpectraFlex™ cable operators for circuit breakers.
- ■Siemens I-T-E Max-Flex™ flange mounted variable depth handles for disconnect switches and circuit breakers.
- ■Square D class 9422 disconnect switches with flange mounted variable depth operating mechanisms or cable mechanisms and Class 9422 flange-mounted variable depth operating mechanisms or cable mechanisms for circuit breakers. Will not accept Square D Class 9422 bracket-mounted disconnect devices, 9422TG1 or TG2 devices
Quoted per order
Choose your part numbers below — we price 1447S Series within one business day, with volume tiers.
Configure & price
Find your 1447S Series part number
Filter 32 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
32 of 32 part numbers
Sng Dr Sfty Enclosure 20X20.5X10.25
QuoteRequest a quote
Sng Dr Sfty Enclosure 20X20.5X8
QuoteRequest a quote
Sng Dr Sfty Enclosure 24X20.5X10.25
QuoteRequest a quote
Sng Dr Sfty Enclosure 24X20.5X8
QuoteRequest a quote
Sng Dr Sfty Enclosure 24X24.5X10.25
QuoteRequest a quote
Sng Dr Sfty Enclosure 24X24.5X8
QuoteRequest a quote
Sng Dr Sfty Enclosure 30X20.5X10.25
QuoteRequest a quote
Sng Dr Sfty Enclosure 30X20.5X8
QuoteRequest a quote
Sng Dr Sfty Enclosure 30X24.5X10.25
QuoteRequest a quote
1447 Safety Enclosure
QuoteRequest a quote
Sng Dr Sfty Enclosure 30X24.5X8
QuoteRequest a quote
Sng Dr Sfty Enclosure 36X24.5X10.25
QuoteRequest a quote
Sng Dr Sfty Enclosure 36X24.5X8
QuoteRequest a quote
Sng Dr Sfty Enclosure 36X30.5X10.25
QuoteRequest a quote
1447 Safety Enclosure
QuoteRequest a quote
1447 Safety Enclosure
QuoteRequest a quote
Sng Dr Sfty Enclosure 36X30.5X8
QuoteRequest a quote
Sng Dr Sfty Enclosure 42X30.5X10.25
QuoteRequest a quote
1447 Safety Enclosure
QuoteRequest a quote
Sng Dr Sfty Enclosure 42X30.5X8
QuoteRequest a quote
Sng Dr Sfty Enclosure 42X36.5X10.25
QuoteRequest a quote
1447 Safety Enclosure
QuoteRequest a quote
Sng Dr Sfty Enclosure 42X36.5X8
QuoteRequest a quote
Sng Dr Sfty Enclosure 48X36.5X10.25
QuoteRequest a quote
1447 Safety Enclosure
QuoteRequest a quote
1447 Safety Enclosure
QuoteRequest a quote
Sng Dr Sfty Enclosure 48X36.5X8
QuoteRequest a quote
Sng Dr Sfty Enclosure 60X36.5X10.25
QuoteRequest a quote
1447 Safety Enclosure
QuoteRequest a quote
1447 Safety Enclosure
QuoteRequest a quote
Sng Dr Sfty Enclosure 60X36.5X8
QuoteRequest a quote
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|
| 1447SA8 | 20.00 | 21.38 | 8.00 | 17.00 | 17.00 | Quote | Quote |
| 1447SB8 | 24.00 | 21.38 | 8.00 | 21.00 | 17.00 | Quote | Quote |
| 1447SC8 | 24.00 | 25.38 | 8.00 | 21.00 | 21.00 | Quote | Quote |
| 1447SD8 | 30.00 | 21.38 | 8.00 | 27.00 | 17.00 | Quote | Quote |
| 1447SE8 | 30.00 | 25.38 | 8.00 | 27.00 | 21.00 | Quote | Quote |
| 1447SF8 | 36.00 | 25.38 | 8.00 | 33.00 | 21.00 | Quote | Quote |
| 1447SG8 | 36.00 | 31.38 | 8.00 | 33.00 | 27.00 | Quote | Quote |
| 1447SH8 | 42.00 | 31.38 | 8.00 | 39.00 | 27.00 | Quote | Quote |
| 1447SJ8 | 42.00 | 37.38 | 8.00 | 39.00 | 33.00 | Quote | Quote |
| 1447SK8 | 48.00 | 37.38 | 8.00 | 45.00 | 33.00 | Quote | Quote |
| 1447SL8 | 60.00 | 37.38 | 8.00 | 57.00 | 33.00 | Quote | Quote |
| 1447SA10 | 20.00 | 21.38 | 10.00 | 17.00 | 17.00 | Quote | Quote |
| 1447SB10 | 24.00 | 21.38 | 10.00 | 21.00 | 17.00 | Quote | Quote |
| 1447SC10 | 24.00 | 25.38 | 10.00 | 21.00 | 21.00 | Quote | Quote |
| 1447SD10 | 30.00 | 21.38 | 10.00 | 27.00 | 17.00 | Quote | Quote |
| 1447SE10 | 30.00 | 25.38 | 10.00 | 27.00 | 21.00 | Quote | Quote |
| 1447SF10 | 36.00 | 25.38 | 10.00 | 33.00 | 21.00 | Quote | Quote |
| 1447SG10 | 36.00 | 31.38 | 10.00 | 33.00 | 27.00 | Quote | Quote |
| 1447SH10 | 42.00 | 31.38 | 10.00 | 39.00 | 27.00 | Quote | Quote |
| 1447SJ10 | 42.00 | 37.38 | 10.00 | 39.00 | 33.00 | Quote | Quote |
| 1447SK10 | 48.00 | 37.38 | 10.00 | 45.00 | 33.00 | Quote | Quote |
| 1447SL10 | 60.00 | 37.38 | 10.00 | 57.00 | 33.00 | Quote | Quote |
| 1447SE12 | 30.00 | 25.38 | 12.00 | 27.00 | 21.00 | Quote | Quote |
| 1447SG12 | 36.00 | 31.38 | 12.00 | 33.00 | 27.00 | Quote | Quote |
| 1447SH12 | 42.00 | 31.38 | 12.00 | 39.00 | 27.00 | Quote | Quote |
| 1447SJ12 | 42.00 | 37.38 | 12.00 | 39.00 | 33.00 | Quote | Quote |
| 1447SK12 | 48.00 | 37.38 | 12.00 | 45.00 | 33.00 | Quote | Quote |
| 1447SL12 | 60.00 | 37.38 | 12.00 | 57.00 | 33.00 | Quote | Quote |
| 1447S46L12 | 60.00 | 37.38 | 12.00 | 57.00 | 34.50 | Quote | Quote |
| 1447SG16 | 36.00 | 31.38 | 16.00 | 33.00 | 27.00 | Quote | Quote |
| 1447SK16 | 48.00 | 37.38 | 16.00 | 45.00 | 33.00 | Quote | Quote |
| 1447SL16 | 60.00 | 37.38 | 16.00 | 57.00 | 33.00 | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
Application
- ■ABB Controls flange-mounted variable depth operating mechanism for disconnect switches and circuit breakers. Also cable version for circuit breakers.
- ■Allen Bradley 1494V and 1494U variable depth flange mounted disconnect switches and circuit breaker mechanisms.
- ■C-H Westinghouse C361 flange mounted variable depth operating mechanism with disconnect switches and C371 flange mounted variable depth operating mechanisms for circuit breakers. Also Flex-Shaft™ handle mechanisms for circuit breakers.
- ■General Electric Type STDA flange handles and variable depth operating mechanism for disconnect switches and circuit breakers. Also SpectraFlex™ cable operators for circuit breakers.
- ■Siemens I-T-E Max-Flex™ flange mounted variable depth handles for disconnect switches and circuit breakers.
- ■Square D class 9422 disconnect switches with flange mounted variable depth operating mechanisms or cable mechanisms and Class 9422 flange-mounted variable depth operating mechanisms or cable mechanisms for circuit breakers. Will not accept Square D Class 9422 bracket-mounted disconnect devices, 9422TG1 or TG2 devices
- ■Refer to the Type 12 Wallmount Selection Guide .
Standards
- ■UL 508A Type 12, 13
- ■CSA Type 12, 13
- ■Complies with NEMA Type 12 and 13 IEC 60529, IP54 Appropriate components are required to maintain these standards.
- ■NEMA Type 12 and 13
- ■IEC 60529, IP54
- ■Appropriate components are required to maintain these standards.
Construction
- ■Formed 14-gauge steel.
- ■Continuously welded seams.
- ■Larger sizes include door and body stiffeners.
- ■Welded brackets provide for enclosure mounting.
- ■Formed lip on door and enclosure exclude flowing liquids and contaminants.
- ■Cutouts and holes are provided to suit the handle, operating mechanism and door closing mechanism.
- ■Continuously hinged doors may be removed by pulling the hinge pin.
- ■Latch pivots and cover interlock brackets are welded to the door.
- ■Cover latch bars for door handles are provided.
- ■Collar studs are provided for mounting inner panels.
- ■A removable 12 gauge inner panel is included.
- ■Seamless poured-in place gasket.
- ■A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
- ■A literature pocket is provided.
Finish
- ■Cover and enclosure are finished in ANSI61 gray powder coat finish inside and out.
- ■Inner panel finished in white powder coat finish.
- ■Disconnects, operating mechanisms and door hardware are not provided with the enclosure, and must be ordered separately from the manufacturer. Enclosures with an "H" dimension under 40" require 2 point door closing hardware. Enclosures with an "H" dimension 40" or more require 3 point door closing hardware.
- ■Enclosures with an "H" dimension under 40" require 2 point door closing hardware.
- ■Enclosures with an "H" dimension 40" or more require 3 point door closing hardware.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W |
|---|---|---|---|---|---|
| 1447SA8 | 20.00 | 21.38 | 8.00 | 17.00 | 17.00 |
| 1447SB8 | 24.00 | 21.38 | 8.00 | 21.00 | 17.00 |
| 1447SC8 | 24.00 | 25.38 | 8.00 | 21.00 | 21.00 |
| 1447SD8 | 30.00 | 21.38 | 8.00 | 27.00 | 17.00 |
| 1447SE8 | 30.00 | 25.38 | 8.00 | 27.00 | 21.00 |
| 1447SF8 | 36.00 | 25.38 | 8.00 | 33.00 | 21.00 |
| 1447SG8 | 36.00 | 31.38 | 8.00 | 33.00 | 27.00 |
| 1447SH8 | 42.00 | 31.38 | 8.00 | 39.00 | 27.00 |
| 1447SJ8 | 42.00 | 37.38 | 8.00 | 39.00 | 33.00 |
| 1447SK8 | 48.00 | 37.38 | 8.00 | 45.00 | 33.00 |
| 1447SL8 | 60.00 | 37.38 | 8.00 | 57.00 | 33.00 |
| 1447SA10 | 20.00 | 21.38 | 10.00 | 17.00 | 17.00 |
| 1447SB10 | 24.00 | 21.38 | 10.00 | 21.00 | 17.00 |
| 1447SC10 | 24.00 | 25.38 | 10.00 | 21.00 | 21.00 |
| 1447SD10 | 30.00 | 21.38 | 10.00 | 27.00 | 17.00 |
| 1447SE10 | 30.00 | 25.38 | 10.00 | 27.00 | 21.00 |
| 1447SF10 | 36.00 | 25.38 | 10.00 | 33.00 | 21.00 |
| 1447SG10 | 36.00 | 31.38 | 10.00 | 33.00 | 27.00 |
| 1447SH10 | 42.00 | 31.38 | 10.00 | 39.00 | 27.00 |
| 1447SJ10 | 42.00 | 37.38 | 10.00 | 39.00 | 33.00 |
| 1447SK10 | 48.00 | 37.38 | 10.00 | 45.00 | 33.00 |
| 1447SL10 | 60.00 | 37.38 | 10.00 | 57.00 | 33.00 |
| 1447SE12 | 30.00 | 25.38 | 12.00 | 27.00 | 21.00 |
| 1447SG12 | 36.00 | 31.38 | 12.00 | 33.00 | 27.00 |
| 1447SH12 | 42.00 | 31.38 | 12.00 | 39.00 | 27.00 |
| 1447SJ12 | 42.00 | 37.38 | 12.00 | 39.00 | 33.00 |
| 1447SK12 | 48.00 | 37.38 | 12.00 | 45.00 | 33.00 |
| 1447SL12 | 60.00 | 37.38 | 12.00 | 57.00 | 33.00 |
| 1447S46L12 | 60.00 | 37.38 | 12.00 | 57.00 | 34.50 |
| 1447SG16 | 36.00 | 31.38 | 16.00 | 33.00 | 27.00 |
| 1447SK16 | 48.00 | 37.38 | 16.00 | 45.00 | 33.00 |
| 1447SL16 | 60.00 | 37.38 | 16.00 | 57.00 | 33.00 |
