Disc W/Han 20X22X8
- Optional Inner Pan EP2020
$537.65Backorder
Buy now

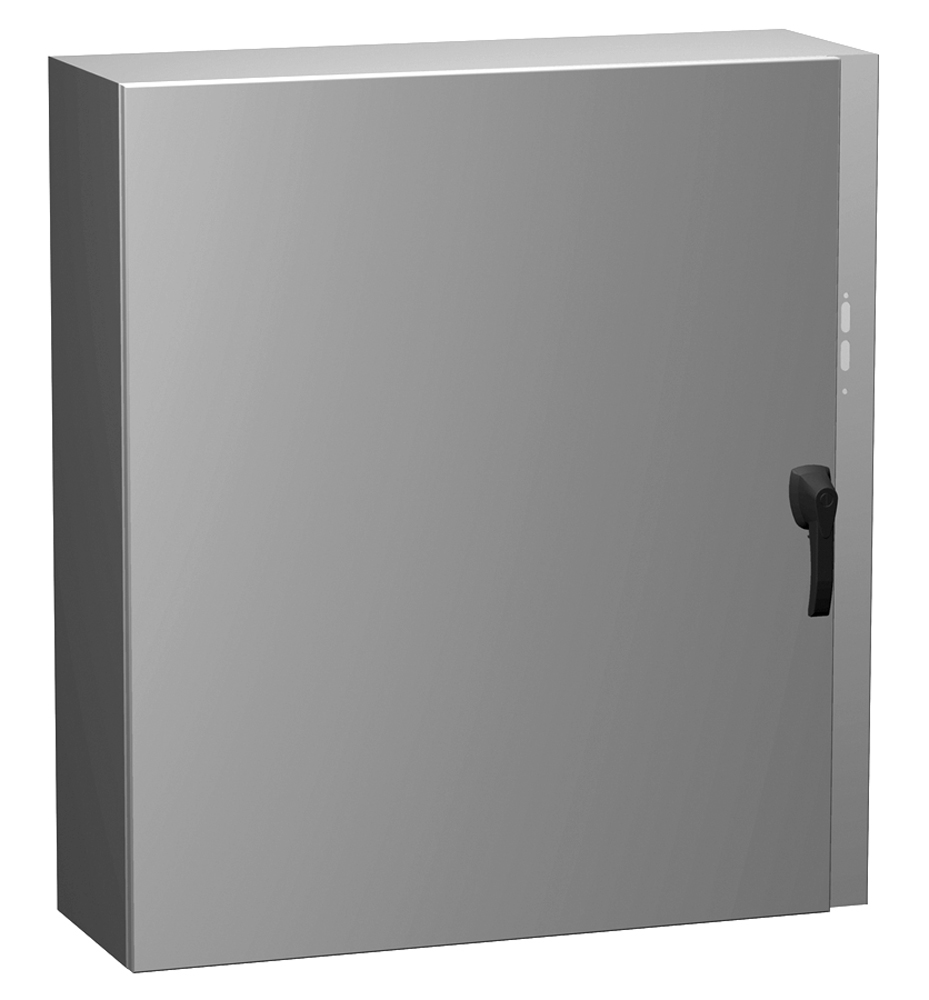

Type 4 Mild Steel Wallmount Disconnect Enclosure · Eclipse Series
Brand: Hammond Manufacturing · 10 part numbers
Hinge Door with Handle (Flange w/ multi-vendor cutout)
- ■ABB Controls flange mounted variable depth operating mechanisms for disconnect switches and circuit breakers. Cable version for circuit breakers also available.
- ■Allen Bradley 1494V and 1494U variable depth flange mounted disconnect switches and circuit breaker mechanisms.
- ■Cutler Hammer C361 variable depth flange mounted disconnect switches and C371 circuit breaker operators. Also Flex-Shaft™ handle mechanisms for circuit breakers. Use Cutler Hammer NEMA 4X rated operating handles to maintain NEMA 4X integrity.
- ■Siemens I-T-E Max-Flex™ flange mounted variable depth handles for disconnect switch and circuit breakers. Use handle for NEMA 4 rating.
- ■General Electric Type STDA flange handles and variable depth operating mechanisms for disconnect switches and circuit breakers. Also SpectraFlex™ cable operators for circuit breakers.
- ■Square D Class 9422 disconnect switches with flange mounted variable depth operating mechanisms or cable mechanisms and Class 9422 flange mounted variable depth operating mechanism or cable mechanisms for circuit breakers. SN4SS enclosures will not accept Square D Class 9422 bracket-mounted disconnect devices, 9422TG1 or TG2 devices.
from $537.65
10 of 10 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your Eclipse Series part number
Filter 10 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
10 of 10 part numbers · 10 priced online
Disc W/Han 24X22X8
- Optional Inner Pan EP2420
$569.07In stock
Buy nowDisc W/Han 24X26X8
- Optional Inner Pan EP2424
$601.18In stock
Buy nowDisc W/Han 30X26X8
- Optional Inner Pan EP3024
$654.01In stock
Buy nowDisc W/Han 36X26X8
- Optional Inner Pan EP3624
$708.84In stock
Buy nowDisc W/Han 36X32X8
- Optional Inner Pan EP3630
$777.05In stock
Buy nowDisc W/Han 42X32X12
- Optional Inner Pan EP4230
$918.15In stock
Buy nowDisc W/Han 42X38X12
- Optional Inner Pan EP4236
$1,003.74In stock
Buy nowDisc W/Han 48X38X12
- Optional Inner Pan EP4836
$1,084.00In stock
Buy nowDisc W/Han 60X38X12
- Optional Inner Pan EP6036
$1,237.80Backorder
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|---|
| EN4DSC20228GY | 20.00 | 22.00 | 8.00 | EP2020 | 18.17 | 18.17 | $537.65Backorder | Buy now |
| EN4DSC24228GY | 24.00 | 22.00 | 8.00 | EP2420 | 22.17 | 18.17 | $569.07In stock | Buy now |
| EN4DSC24268GY | 24.00 | 26.00 | 8.00 | EP2424 | 22.17 | 22.17 | $601.18In stock | Buy now |
| EN4DSC30268GY | 30.00 | 26.00 | 8.00 | EP3024 | 28.17 | 22.17 | $654.01In stock | Buy now |
| EN4DSC36268GY | 36.00 | 26.00 | 8.00 | EP3624 | 34.17 | 22.17 | $708.84In stock | Buy now |
| EN4DSC36328GY | 36.00 | 32.00 | 8.00 | EP3630 | 34.17 | 28.17 | $777.05In stock | Buy now |
| EN4DSC423212GY | 42.00 | 32.00 | 12.00 | EP4230 | 40.17 | 28.17 | $918.15In stock | Buy now |
| EN4DSC423812GY | 42.00 | 38.00 | 12.00 | EP4236 | 40.17 | 34.17 | $1,003.74In stock | Buy now |
| EN4DSC483812GY | 48.00 | 38.00 | 12.00 | EP4836 | 46.17 | 34.17 | $1,084.00In stock | Buy now |
| EN4DSC603812GY | 60.00 | 38.00 | 12.00 | EP6036 | 58.17 | 34.17 | $1,237.80Backorder | Buy now |
Application
- ■ABB Controls flange mounted variable depth operating mechanisms for disconnect switches and circuit breakers. Cable version for circuit breakers also available.
- ■Allen Bradley 1494V and 1494U variable depth flange mounted disconnect switches and circuit breaker mechanisms.
- ■Cutler Hammer C361 variable depth flange mounted disconnect switches and C371 circuit breaker operators. Also Flex-Shaft™ handle mechanisms for circuit breakers. Use Cutler Hammer NEMA 4X rated operating handles to maintain NEMA 4X integrity.
- ■Siemens I-T-E Max-Flex™ flange mounted variable depth handles for disconnect switch and circuit breakers. Use handle for NEMA 4 rating.
- ■General Electric Type STDA flange handles and variable depth operating mechanisms for disconnect switches and circuit breakers. Also SpectraFlex™ cable operators for circuit breakers.
- ■Square D Class 9422 disconnect switches with flange mounted variable depth operating mechanisms or cable mechanisms and Class 9422 flange mounted variable depth operating mechanism or cable mechanisms for circuit breakers. SN4SS enclosures will not accept Square D Class 9422 bracket-mounted disconnect devices, 9422TG1 or TG2 devices.
- ■Refer to the Type 4 Wallmount Selection Guide .
Standards
- ■UL 508A Type 3R, 4
- ■CSA Type 3R, 4
- ■Complies with NEMA Type 3R, 4, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4, 12 and 13
- ■IEC 60529, IP66
- ■Appropriate components are required to maintain these standards.
Construction
- ■Formed 14 gauge doors with 16 or 14 (36x32" and larger) gauge steel.
- ■Continuously welded seams.
- ■Larger sizes include door stiffeners.
- ■Formed lip on door and enclosure exclude flowing liquids and contaminants.
- ■Cutouts and holes are provided to suit the flange handle operating mechanism.
- ■Doors may be easily removed for modifications and are interchangeable.
- ■Door is secured with easily operated 2 or 3-point handle.
- ■Cover interlock bracket is included on the door.
- ■Collar studs are provided for mounting inner panels.
- ■Removable inner panel is sold separately.
- ■Seamless poured-in place gasket.
- ■A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
- ■Includes hardware kit with panel mounting nuts and sealing washers for wall mounting holes.
- ■Disconnects and operating mechanisms are not provided with the enclosure, and must be ordered separately from the manufacturer.
Finish
- ■Cover and enclosure are finished in recoatable smooth ANSI 61 gray powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Optional Inner Panel · Part No. | Optional Inner Panel · H | Optional Inner Panel · W |
|---|---|---|---|---|---|---|
| EN4DSC20228GY | 20.00 | 22.00 | 8.00 | EP2020 | 18.17 | 18.17 |
| EN4DSC24228GY | 24.00 | 22.00 | 8.00 | EP2420 | 22.17 | 18.17 |
| EN4DSC24268GY | 24.00 | 26.00 | 8.00 | EP2424 | 22.17 | 22.17 |
| EN4DSC30268GY | 30.00 | 26.00 | 8.00 | EP3024 | 28.17 | 22.17 |
| EN4DSC36268GY | 36.00 | 26.00 | 8.00 | EP3624 | 34.17 | 22.17 |
| EN4DSC36328GY | 36.00 | 32.00 | 8.00 | EP3630 | 34.17 | 28.17 |
| EN4DSC423212GY | 42.00 | 32.00 | 12.00 | EP4230 | 40.17 | 28.17 |
| EN4DSC423812GY | 42.00 | 38.00 | 12.00 | EP4236 | 40.17 | 34.17 |
| EN4DSC483812GY | 48.00 | 38.00 | 12.00 | EP4836 | 46.17 | 34.17 |
| EN4DSC603812GY | 60.00 | 38.00 | 12.00 | EP6036 | 58.17 | 34.17 |
