N4X Disconnect Enclosure
$1,323.08Backorder
Buy now
Type 4X Stainless Steel Wallmount Disconnect Enclosure · 1447S N4 SS Series
Brand: Hammond Manufacturing · 9 part numbers
Continuous Hinge Door with Clamps (Flange w/ multi-vendor cutout)
- ■ABB Controls flange mounted variable depth operating mechanisms for disconnect switches and circuit breakers. Cable version for circuit breakers also available.
- ■Allen Bradley 1494V and 1494U variable depth flange mounted disconnect switches and circuit breaker mechanisms.
- ■Cutler Hammer C361 variable depth flange mounted disconnect switches and C371 circuit breaker operators. Also Flex-Shaft™ handle mechanisms for circuit breakers. Use Cutler Hammer NEMA 4X rated operating handles to maintain NEMA 4X integrity.
- ■Siemens I-T-E Max-Flex™ flange mounted variable depth handles for disconnect switch and circuit breakers. Use handle for NEMA 4 rating.
- ■General Electric Type STDA flange handles and variable depth operating mechanisms for disconnect switches and circuit breakers. Also SpectraFlex™ cable operators for circuit breakers.
- ■Square D Class 9422 disconnect switches with flange mounted variable depth operating mechanisms or cable mechanisms and Class 9422 flange mounted variable depth operating mechanism or cable mechanisms for circuit breakers. SN4SS enclosures will not accept Square D Class 9422 bracket-mounted disconnect devices, 9422TG1 or TG2 devices.
from $1,323.08
9 of 9 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1447S N4 SS Series part number
Filter 9 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
9 of 9 part numbers · 9 priced online
N4X Disconnect Enclosure
$1,456.36In stock
Buy now
N4X Disconnec Enclosure
$1,655.26In stock
Buy now
N4X Disconnect Enclosure
$1,857.93In stock
Buy now
N4X Disconnect Enclosure
$2,146.09In stock
Buy now
N4X Disconnect Enclosure
$2,668.09In stock
Buy now
N4X Disconnect Enclosure
$3,005.17Backorder
Buy now
N4X Disconnect Enclosure
$3,307.29In stock
Buy now
N4X Disconnect Enclosure
$3,910.48In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|

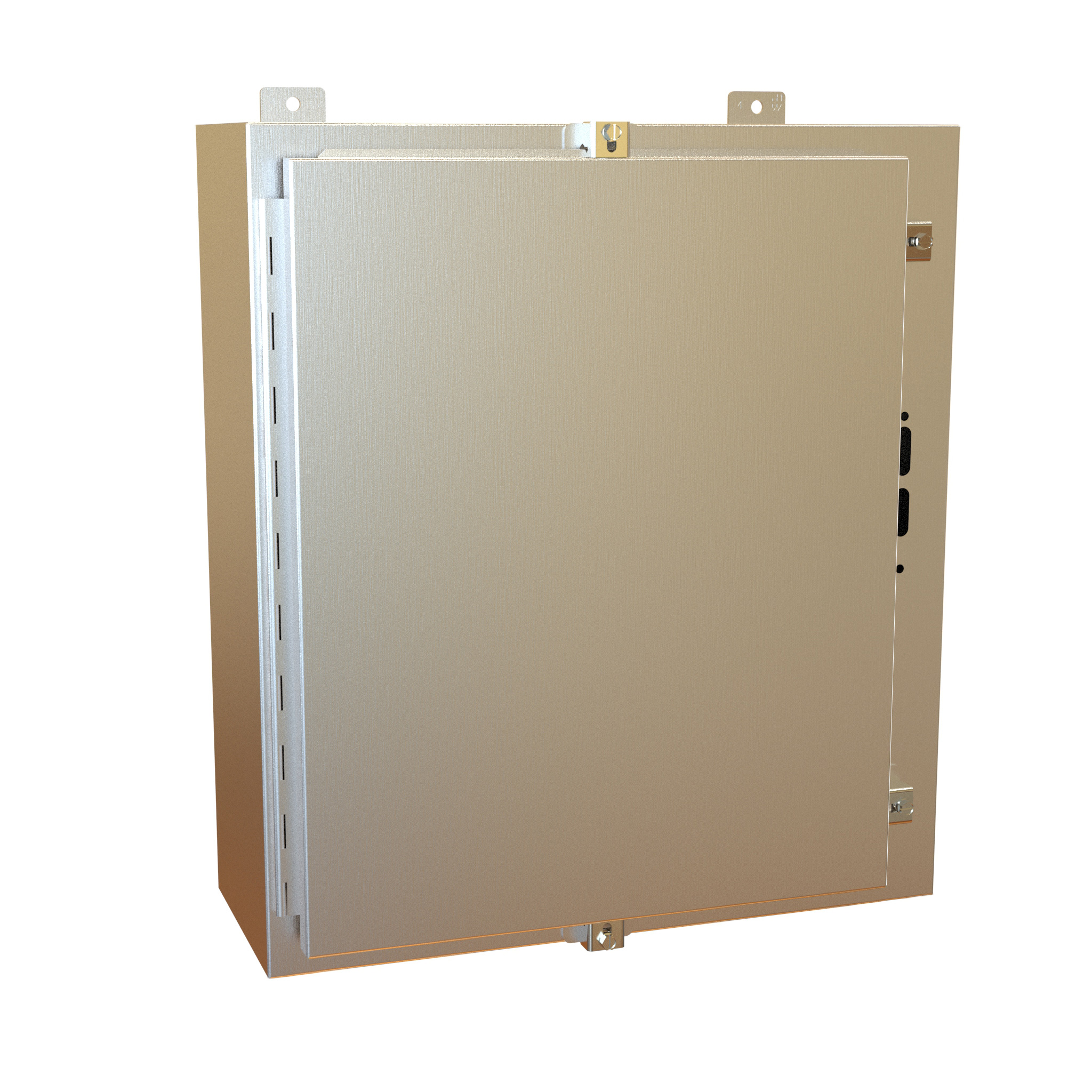

| 1447SN4SSB8 | 24.00 | 21.38 | 8.00 | 21.00 | 17.00 | $1,323.08Backorder | Buy now |

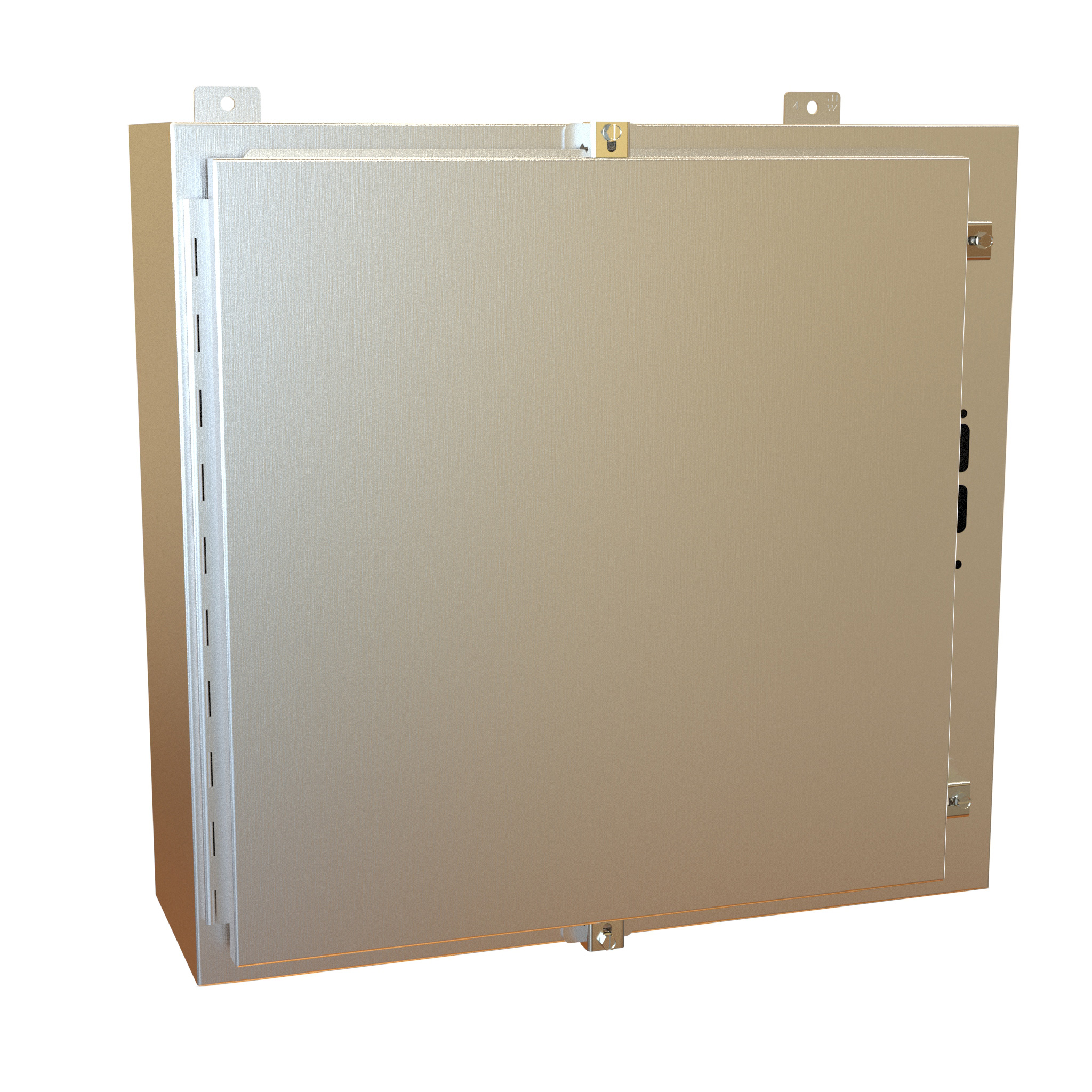

| 1447SN4SSC8 | 24.00 | 25.38 | 8.00 | 21.00 | 21.00 | $1,456.36In stock | Buy now |

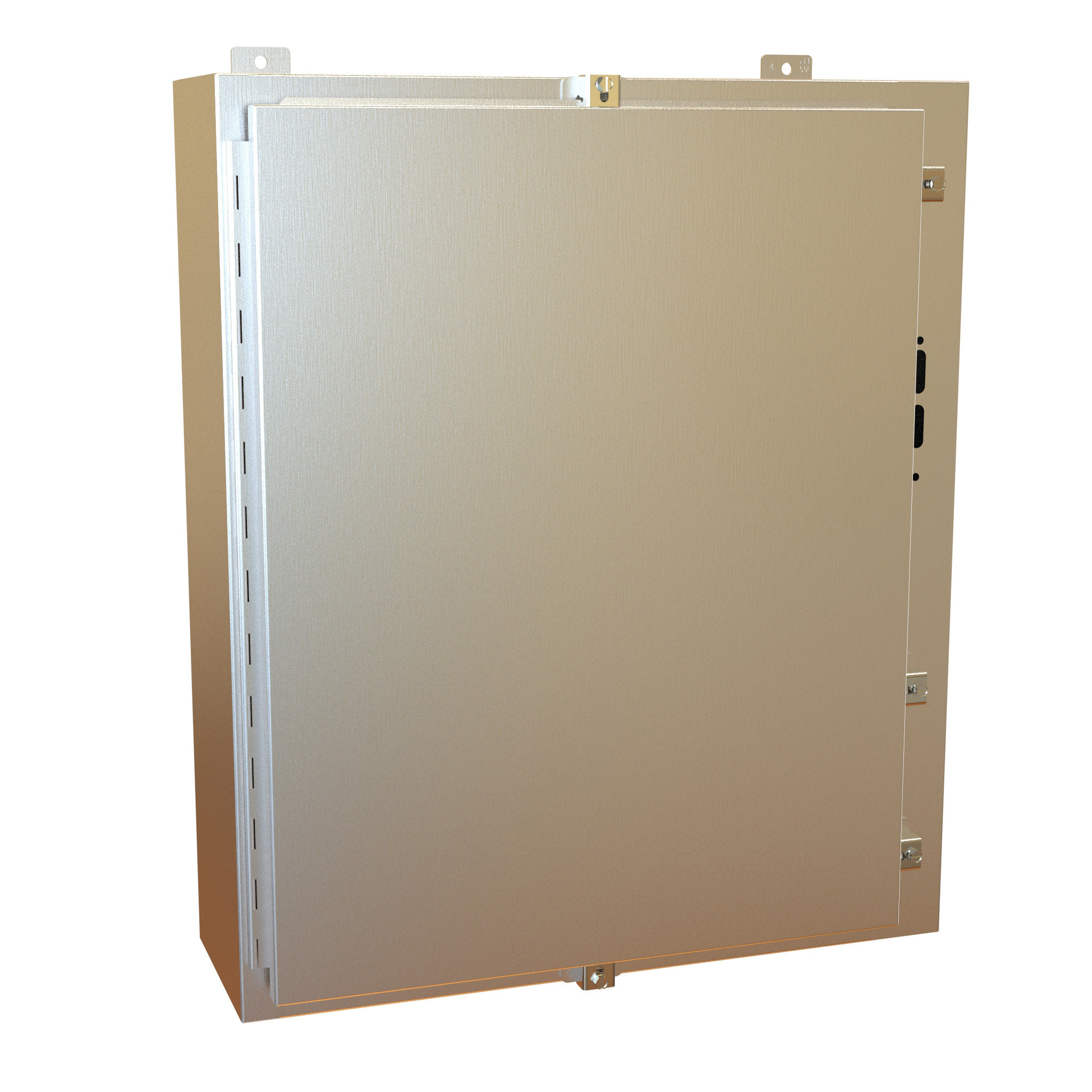

| 1447SN4SSE8 | 30.00 | 25.38 | 8.00 | 27.00 | 21.00 | $1,655.26In stock | Buy now |

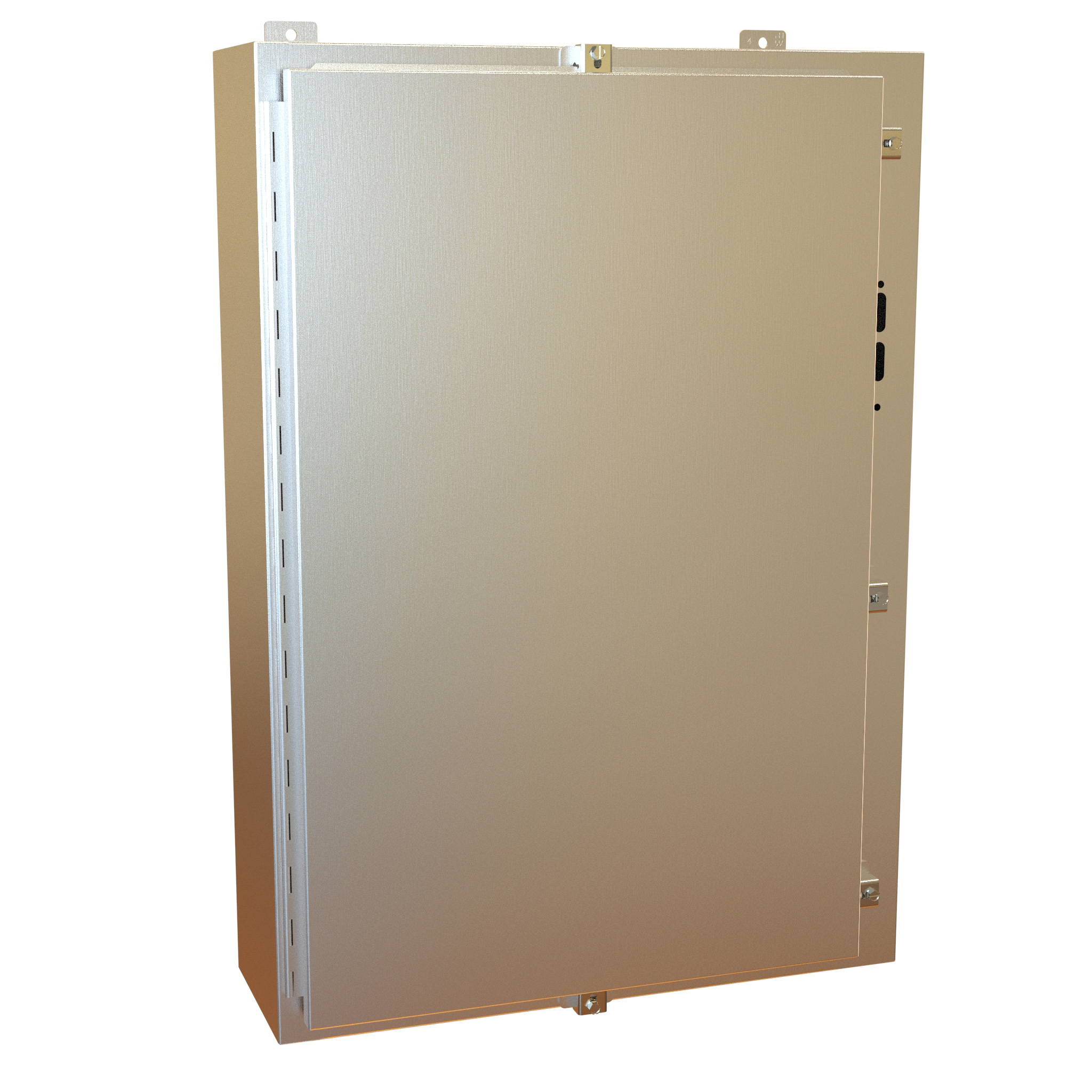

| 1447SN4SSF8 | 36.00 | 25.38 | 8.00 | 33.00 | 21.00 | $1,857.93In stock | Buy now |

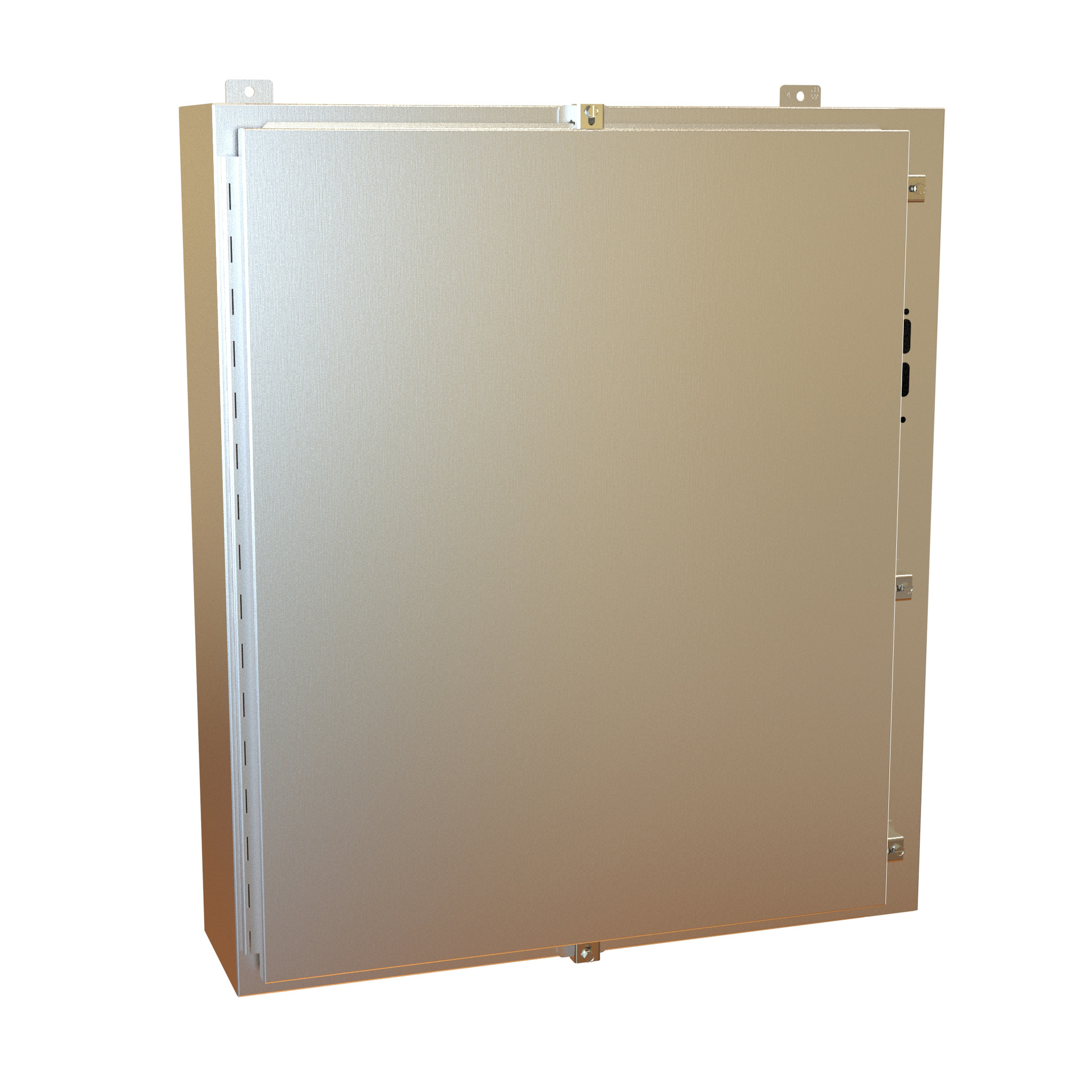

| 1447SN4SSG8 | 36.00 | 31.38 | 8.00 | 33.00 | 27.00 | $2,146.09In stock | Buy now |

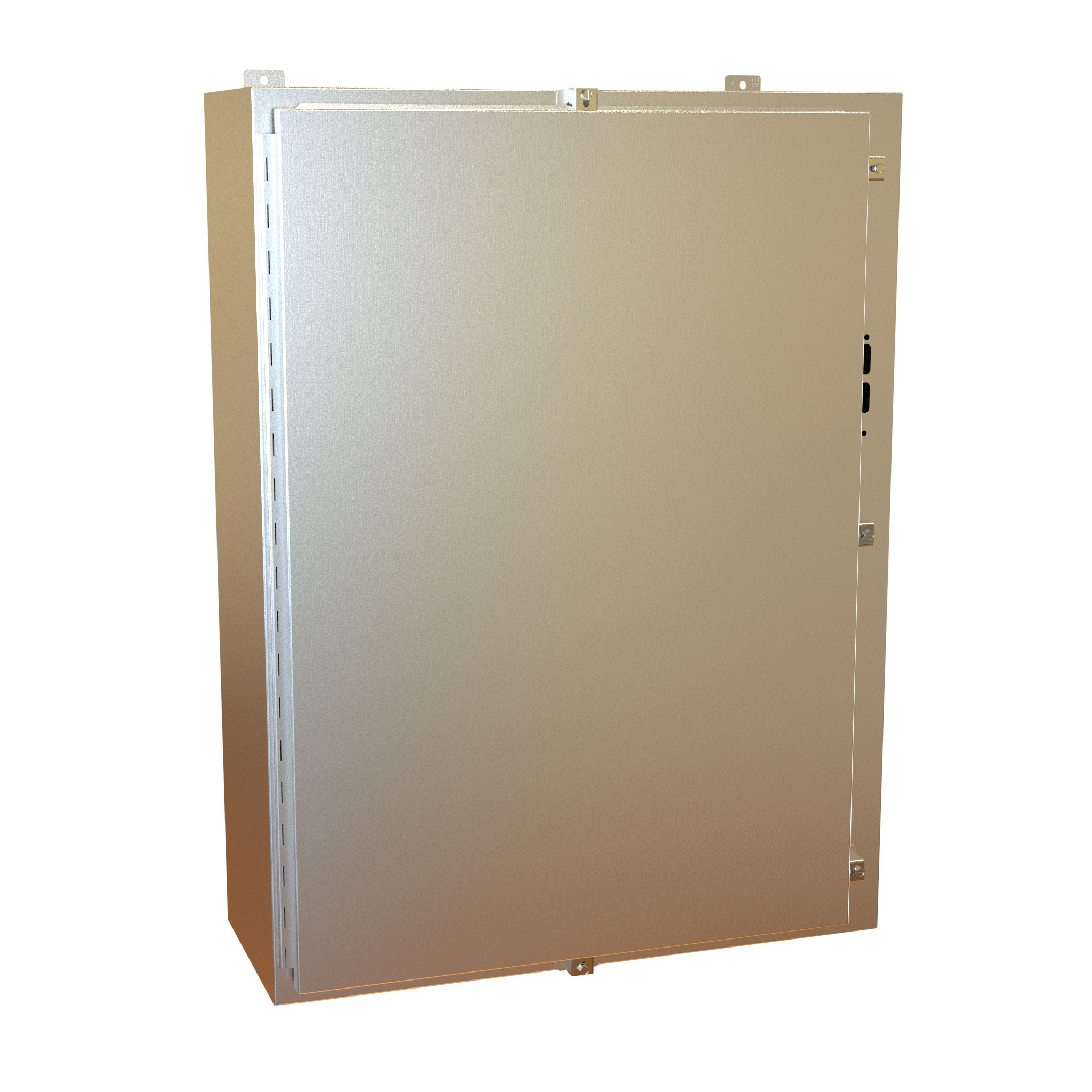

| 1447SN4SSH12 | 42.00 | 31.38 | 12.00 | 39.00 | 27.00 | $2,668.09In stock | Buy now |

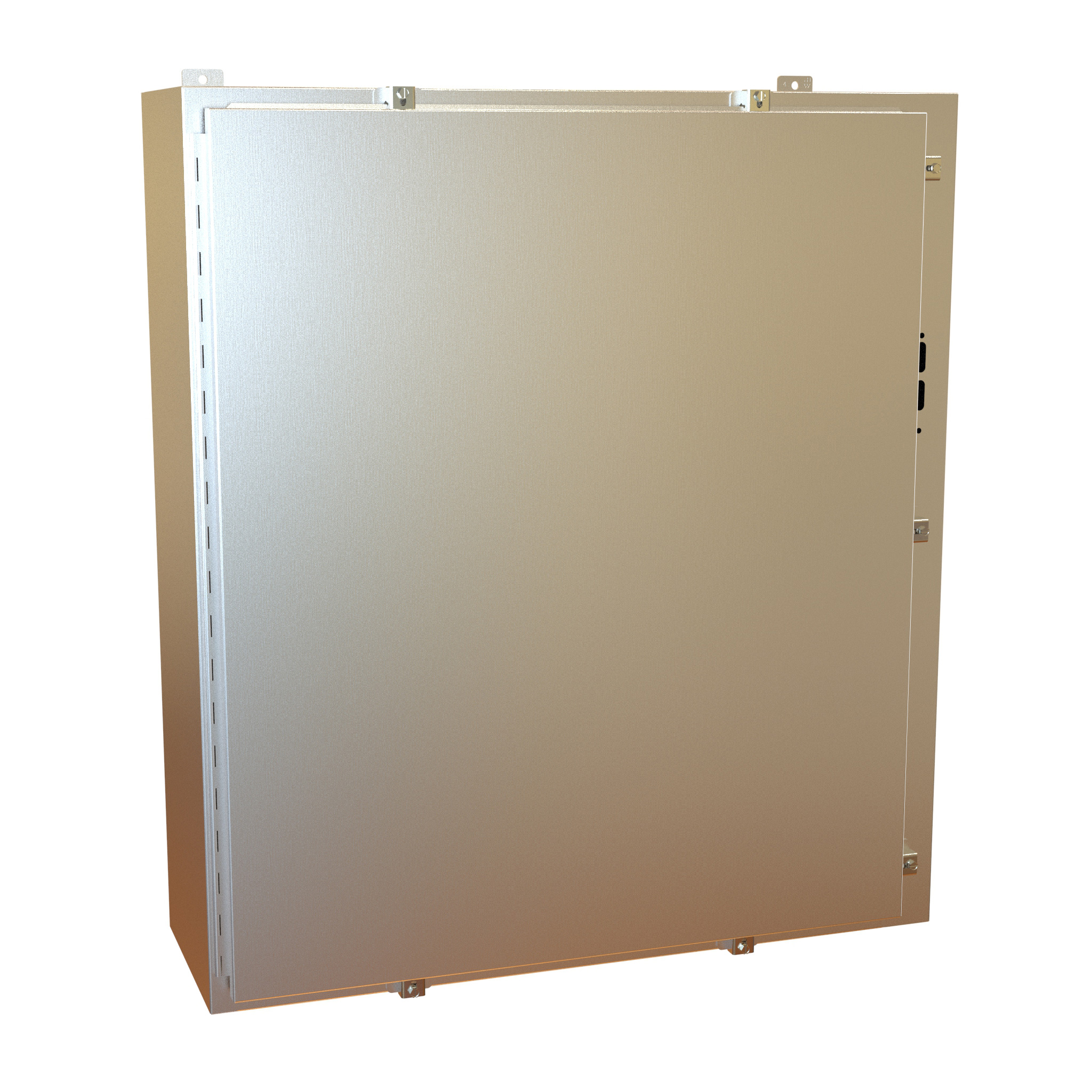

| 1447SN4SSJ12 | 42.00 | 37.38 | 12.00 | 39.00 | 33.00 | $3,005.17Backorder | Buy now |

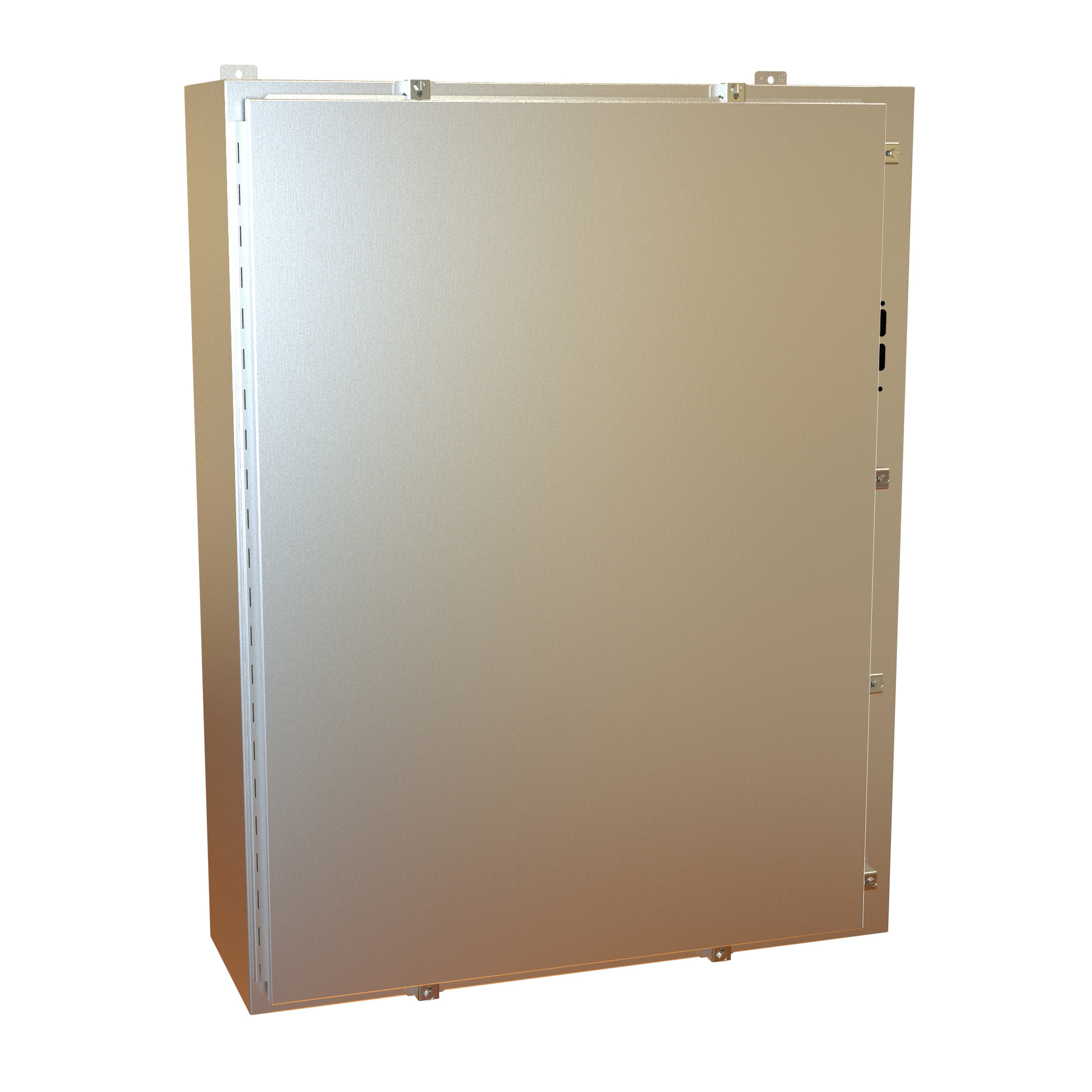

| 1447SN4SSK12 | 48.00 | 37.38 | 12.00 | 45.00 | 33.00 | $3,307.29In stock | Buy now |

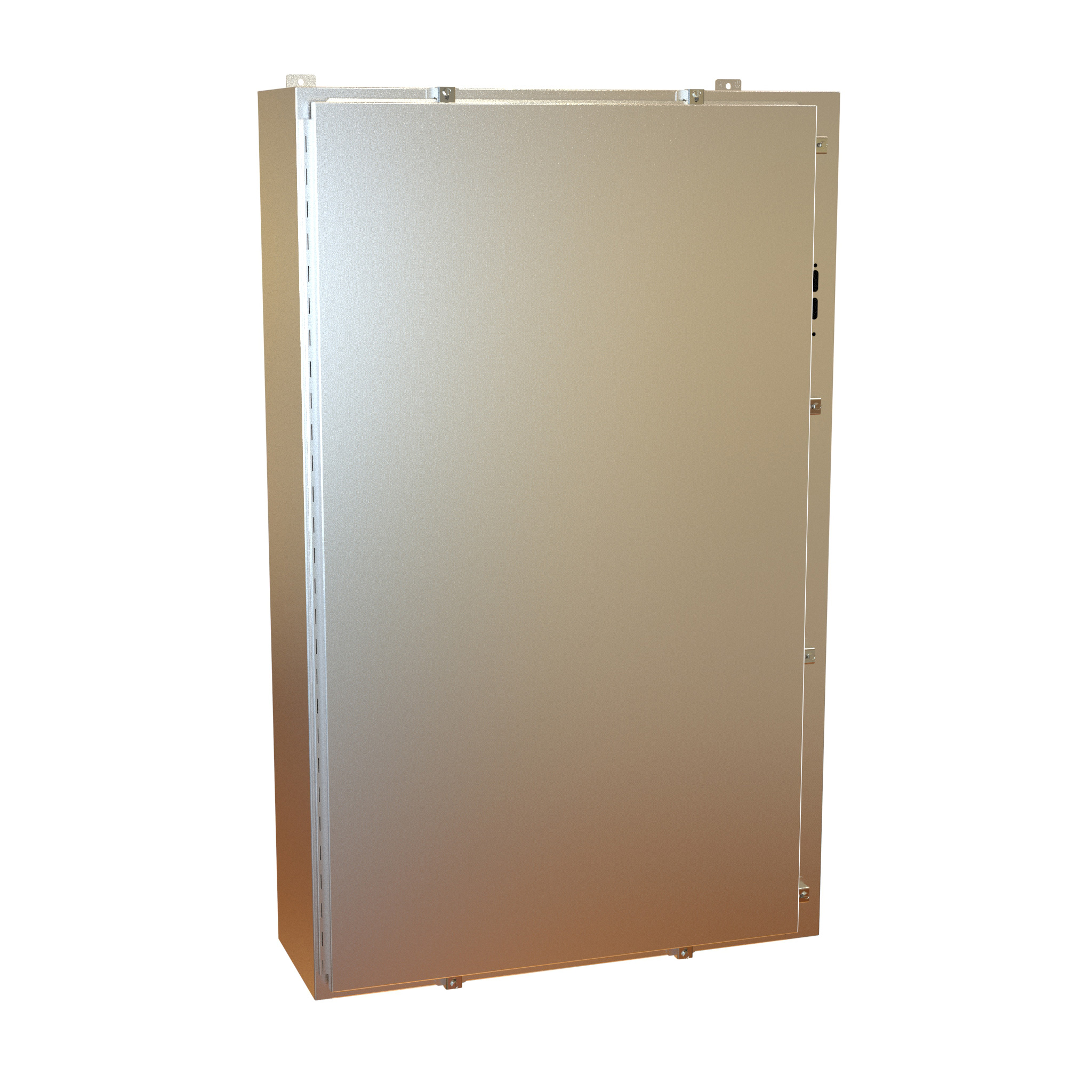

| 1447SN4SSL12 | 60.00 | 37.38 | 12.00 | 57.00 | 33.00 | $3,910.48In stock | Buy now |
Application
- ■ABB Controls flange mounted variable depth operating mechanisms for disconnect switches and circuit breakers. Cable version for circuit breakers also available.
- ■Allen Bradley 1494V and 1494U variable depth flange mounted disconnect switches and circuit breaker mechanisms.
- ■Cutler Hammer C361 variable depth flange mounted disconnect switches and C371 circuit breaker operators. Also Flex-Shaft™ handle mechanisms for circuit breakers. Use Cutler Hammer NEMA 4X rated operating handles to maintain NEMA 4X integrity.
- ■Siemens I-T-E Max-Flex™ flange mounted variable depth handles for disconnect switch and circuit breakers. Use handle for NEMA 4 rating.
- ■General Electric Type STDA flange handles and variable depth operating mechanisms for disconnect switches and circuit breakers. Also SpectraFlex™ cable operators for circuit breakers.
- ■Square D Class 9422 disconnect switches with flange mounted variable depth operating mechanisms or cable mechanisms and Class 9422 flange mounted variable depth operating mechanism or cable mechanisms for circuit breakers. SN4SS enclosures will not accept Square D Class 9422 bracket-mounted disconnect devices, 9422TG1 or TG2 devices.
- ■Refer to the Type 4 Wallmount Selection Guide .
Standards
- ■UL 508A Type 3R, 4 and 4X
- ■CSA Type 3R, 4 and 4X
- ■Complies with NEMA Type 3R, 4, 4X, 12 and 13 IEC 60529, IP66
- ■NEMA Type 3R, 4, 4X, 12 and 13
- ■IEC 60529, IP66
- ■Appropriate components are required to maintain these standards.
Construction
- ■Formed 14 gauge type 304 stainless steel.
- ■Continuously welded seams.
- ■Larger sizes include door and body stiffeners.
- ■Formed lip on door and enclosure exclude flowing liquids and contaminants.
- ■Cutouts and holes are provided to suit the flange handle operating mechanism.
- ■Continuously hinged doors may be removed by pulling the stainless steel hinge pin.
- ■Door is secured with easily operated stainless steel clamps.
- ■Cover interlock bracket is welded to the door.
- ■Collar studs are provided for mounting inner panels.
- ■A removable 12 gauge inner panel is included.
- ■Seamless poured-in place gasket.
- ■A bonding stud is provided on the door and a grounding stud is provided in the enclosure.
- ■A literature pocket is provided for the inside of the door.
Finish
- ■Disconnects and operating mechanisms are not provided with the enclosure, and must be ordered separately from the manufacturer.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W |
|---|---|---|---|---|---|
| 1447SN4SSB8 | 24.00 | 21.38 | 8.00 | 21.00 | 17.00 |
| 1447SN4SSC8 | 24.00 | 25.38 | 8.00 | 21.00 | 21.00 |
| 1447SN4SSE8 | 30.00 | 25.38 | 8.00 | 27.00 | 21.00 |
| 1447SN4SSF8 | 36.00 | 25.38 | 8.00 | 33.00 | 21.00 |
| 1447SN4SSG8 | 36.00 | 31.38 | 8.00 | 33.00 | 27.00 |
| 1447SN4SSH12 | 42.00 | 31.38 | 12.00 | 39.00 | 27.00 |
| 1447SN4SSJ12 | 42.00 | 37.38 | 12.00 | 39.00 | 33.00 |
| 1447SN4SSK12 | 48.00 | 37.38 | 12.00 | 45.00 | 33.00 |
| 1447SN4SSL12 | 60.00 | 37.38 | 12.00 | 57.00 | 33.00 |
