NEMA 1 Enclosure
$153.92In stock
Buy now

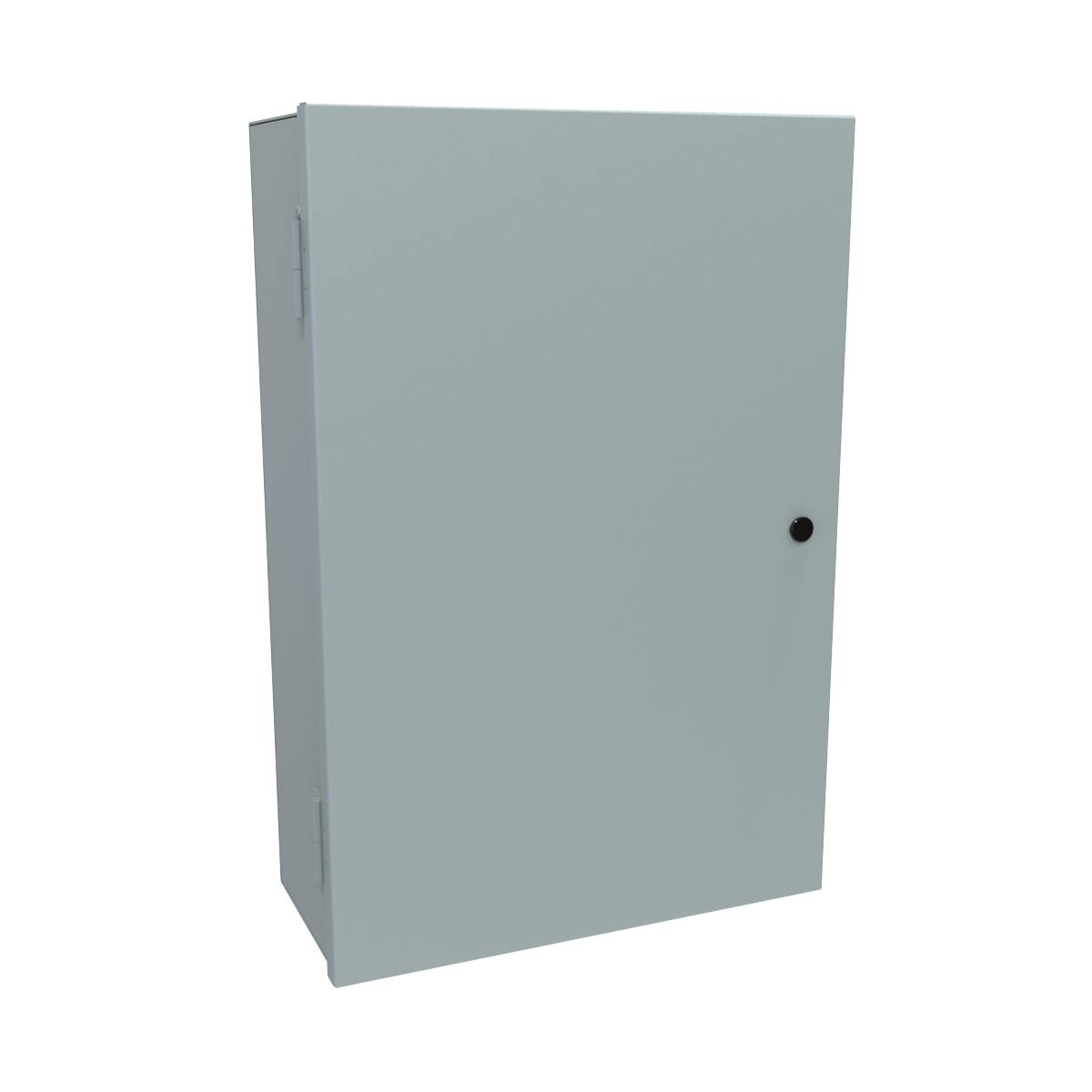

Type 1 Mild Steel Wallmount Enclosure · N1A Series
Brand: Hammond Manufacturing · 31 part numbers
Hinge Door with Quarter Turn
- ■Designed for indoor use to house controls, instruments and components not requiring oil-tight or dust-tight protection.
- ■UL 50 Type 1
- ■CSA Type 1
- ■Complies with NEMA Type 1 IEC 60529, IP20
- ■NEMA Type 1
- ■IEC 60529, IP20
from $153.92
31 of 31 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your N1A Series part number
Filter 31 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
31 of 31 part numbers · 31 priced online
NEMA 1 Enclosure
$165.86Backorder
Buy nowNEMA 1 Enclosure
$174.09In stock
Buy nowNEMA 1 Enclosure
$193.25In stock
Buy nowNEMA 1 Enclosure
$193.25In stock
Buy nowNEMA 1 Enclosure
$209.94In stock
Buy nowNEMA 1 Enclosure
$218.12In stock
Buy nowNEMA 1 Enclosure
$236.02Backorder
Buy nowNEMA 1 Enclosure
$261.58In stock
Buy nowNEMA 1 Enclosure
$213.76In stock
Buy nowNEMA 1 Enclosure
$280.46In stock
Buy nowNEMA 1 Enclosure
$241.09Backorder
Buy nowNEMA 1 Enclosure
$260.78In stock
Buy nowNEMA 1 Enclosure
$334.21Backorder
Buy nowNEMA 1 Enclosure
$269.79In stock
Buy nowNEMA 1 Enclosure
$291.85Backorder
Buy nowNEMA 1 Enclosure
$276.91In stock
Buy nowNEMA 1 Enclosure
$313.81In stock
Buy nowNEMA 1 Enclosure
$385.41In stock
Buy nowNEMA 1 Enclosure
$313.21In stock
Buy nowNEMA 1 Enclosure
$337.68Backorder
Buy nowNEMA 1 Enclosure
$388.98Backorder
Buy nowNEMA 1 Enclosure
$352.58Backorder
Buy nowNEMA 1 Enclosure
$379.43In stock
Buy nowNEMA 1 Enclosure
$501.74In stock
Buy nowNEMA 1 Enclosure
$414.04Backorder
Buy nowNEMA 1 Enclosure
$442.67Backorder
Buy nowNEMA 1 Enclosure
$422.33In stock
Buy nowNEMA 1 Enclosure
$788.71In stock
Buy nowNEMA 1 Enclosure
$899.07In stock
Buy nowNEMA 1 Enclosure
$952.77Backorder
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|
| N1A16127 | 16.00 | 12.00 | 7.00 | 13.00 | 10.50 | $153.92In stock | Buy now |
| N1A16167 | 16.00 | 16.00 | 7.00 | 13.00 | 14.50 | $174.09In stock | Buy now |
| N1A16207 | 16.00 | 20.00 | 7.00 | 13.00 | 18.50 | $193.25In stock | Buy now |
| N1A20167 | 20.00 | 16.00 | 7.00 | 17.00 | 14.50 | $193.25In stock | Buy now |
| N1A20207 | 20.00 | 20.00 | 7.00 | 17.00 | 18.50 | $218.12In stock | Buy now |
| N1A24167 | 24.00 | 16.00 | 7.00 | 21.00 | 14.50 | $213.76In stock | Buy now |
| N1A24207 | 24.00 | 20.00 | 7.00 | 21.00 | 18.50 | $241.09Backorder | Buy now |
| N1A24247 | 24.00 | 24.00 | 7.00 | 21.00 | 22.50 | $269.79In stock | Buy now |
| N1A30207 | 30.00 | 20.00 | 7.00 | 26.00 | 18.50 | $276.91In stock | Buy now |
| N1A30247 | 30.00 | 24.00 | 7.00 | 26.00 | 22.50 | $313.21In stock | Buy now |
| N1A36247 | 36.00 | 24.00 | 7.00 | 32.00 | 22.50 | $352.58Backorder | Buy now |
| N1A36307 | 36.00 | 30.00 | 7.00 | 32.00 | 28.50 | $414.04Backorder | Buy now |
| N1A16129 | 16.00 | 12.00 | 9.00 | 13.00 | 10.50 | $165.86Backorder | Buy now |
| N1A20169 | 20.00 | 16.00 | 9.00 | 17.00 | 14.50 | $209.94In stock | Buy now |
| N1A20209 | 20.00 | 20.00 | 9.00 | 17.00 | 18.50 | $236.02Backorder | Buy now |
| N1A20249 | 20.00 | 24.00 | 9.00 | 17.00 | 22.50 | $261.58In stock | Buy now |
| N1A24209 | 24.00 | 20.00 | 9.00 | 21.00 | 18.50 | $260.78In stock | Buy now |
| N1A24249 | 24.00 | 24.00 | 9.00 | 21.00 | 22.50 | $291.85Backorder | Buy now |
| N1A30209 | 30.00 | 20.00 | 9.00 | 26.00 | 18.50 | $313.81In stock | Buy now |
| N1A30249 | 30.00 | 24.00 | 9.00 | 26.00 | 22.50 | $337.68Backorder | Buy now |
| N1A30309 | 30.00 | 30.00 | 9.00 | 26.00 | 28.50 | $388.98Backorder | Buy now |
| N1A36249 | 36.00 | 24.00 | 9.00 | 32.00 | 22.50 | $379.43In stock | Buy now |
| N1A36309 | 36.00 | 30.00 | 9.00 | 32.00 | 28.50 | $442.67Backorder | Buy now |
| N1A42249 | 42.00 | 24.00 | 9.00 | 38.00 | 22.50 | $422.33In stock | Buy now |
| N1A242012 | 24.00 | 20.00 | 12.00 | 21.00 | 18.50 | $280.46In stock | Buy now |
| N1A242412 | 24.00 | 24.00 | 12.00 | 21.00 | 22.50 | $334.21Backorder | Buy now |
| N1A302412 | 30.00 | 24.00 | 12.00 | 26.00 | 22.50 | $385.41In stock | Buy now |
| N1A363012 | 36.00 | 30.00 | 12.00 | 32.00 | 28.50 | $501.74In stock | Buy now |
| N1A423012 | 42.00 | 30.00 | 12.00 | 38.00 | 28.50 | $788.71In stock | Buy now |
| N1A423612 | 42.00 | 36.00 | 12.00 | 38.00 | 34.50 | $899.07In stock | Buy now |
| N1A483612 | 48.00 | 36.00 | 12.00 | 44.00 | 34.50 | $952.77Backorder | Buy now |
Application
- ■Designed for indoor use to house controls, instruments and components not requiring oil-tight or dust-tight protection.
Standards
- ■UL 50 Type 1
- ■CSA Type 1
- ■Complies with NEMA Type 1 IEC 60529, IP20
- ■NEMA Type 1
- ■IEC 60529, IP20
Construction
- ■Enclosure is formed and spot welded from 12 or 14 gauge steel.
- ■Removable 12 or 14 gauge inner panel is mounted in the rear of the enclosure on collar studs.
- ■Removable door is mounted on slip hinges on sizes up to and including 36" high. Doors greater than 36" high feature a continuous hinge.
- ■Door is fastened with a slotted quarter turn latch; doors 30” and higher are provided with two latches.
- ■A bonding stud is provided on the door and a grounding stud is provided in the box.
- ■Mounting holes are provided in the rear of the enclosure.
- ■NEW - Optional mounting foot kit ( Part # N1AMFK ) - set of 4 feet provides wall mounting alternative
- ■Piano hinge on 12 gauge units.
Finish
- ■Enclosure and door are finished in ANSI 61 gray powder coating.
- ■Inner panel is finished in white powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W |
|---|---|---|---|---|---|
| N1A16127 | 16.00 | 12.00 | 7.00 | 13.00 | 10.50 |
| N1A16167 | 16.00 | 16.00 | 7.00 | 13.00 | 14.50 |
| N1A16207 | 16.00 | 20.00 | 7.00 | 13.00 | 18.50 |
| N1A20167 | 20.00 | 16.00 | 7.00 | 17.00 | 14.50 |
| N1A20207 | 20.00 | 20.00 | 7.00 | 17.00 | 18.50 |
| N1A24167 | 24.00 | 16.00 | 7.00 | 21.00 | 14.50 |
| N1A24207 | 24.00 | 20.00 | 7.00 | 21.00 | 18.50 |
| N1A24247 | 24.00 | 24.00 | 7.00 | 21.00 | 22.50 |
| N1A30207 | 30.00 | 20.00 | 7.00 | 26.00 | 18.50 |
| N1A30247 | 30.00 | 24.00 | 7.00 | 26.00 | 22.50 |
| N1A36247 | 36.00 | 24.00 | 7.00 | 32.00 | 22.50 |
| N1A36307 | 36.00 | 30.00 | 7.00 | 32.00 | 28.50 |
| N1A16129 | 16.00 | 12.00 | 9.00 | 13.00 | 10.50 |
| N1A20169 | 20.00 | 16.00 | 9.00 | 17.00 | 14.50 |
| N1A20209 | 20.00 | 20.00 | 9.00 | 17.00 | 18.50 |
| N1A20249 | 20.00 | 24.00 | 9.00 | 17.00 | 22.50 |
| N1A24209 | 24.00 | 20.00 | 9.00 | 21.00 | 18.50 |
| N1A24249 | 24.00 | 24.00 | 9.00 | 21.00 | 22.50 |
| N1A30209 | 30.00 | 20.00 | 9.00 | 26.00 | 18.50 |
| N1A30249 | 30.00 | 24.00 | 9.00 | 26.00 | 22.50 |
| N1A30309 | 30.00 | 30.00 | 9.00 | 26.00 | 28.50 |
| N1A36249 | 36.00 | 24.00 | 9.00 | 32.00 | 22.50 |
| N1A36309 | 36.00 | 30.00 | 9.00 | 32.00 | 28.50 |
| N1A42249 | 42.00 | 24.00 | 9.00 | 38.00 | 22.50 |
| N1A242012 | 24.00 | 20.00 | 12.00 | 21.00 | 18.50 |
| N1A242412 | 24.00 | 24.00 | 12.00 | 21.00 | 22.50 |
| N1A302412 | 30.00 | 24.00 | 12.00 | 26.00 | 22.50 |
| N1A363012 | 36.00 | 30.00 | 12.00 | 32.00 | 28.50 |
| N1A423012 ¹ | 42.00 | 30.00 | 12.00 | 38.00 | 28.50 |
| N1A423612 ¹ | 42.00 | 36.00 | 12.00 | 38.00 | 34.50 |
| N1A483612 ¹ | 48.00 | 36.00 | 12.00 | 44.00 | 34.50 |
