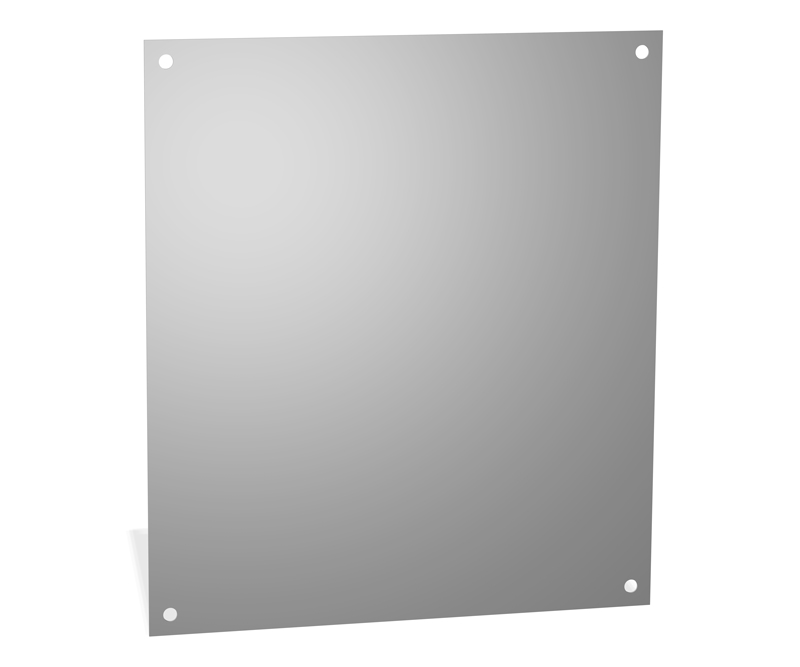

N1A - Panel
$12.53In stock
Buy now
Inner Panels · AP Series
Brand: Hammond Manufacturing · 18 part numbers
N1A Series Enclosures
- ■14 gauge steel finished in white.
- ■Panels and mounting hardware are included with NIA Series enclosures.
from $12.53
18 of 18 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your AP Series part number
Filter 18 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
18 of 18 part numbers · 18 priced online
N1A - Panel
$15.99In stock
Buy nowN1A - Panel
$19.64In stock
Buy nowN1A - Panel
$19.64In stock
Buy nowN1A - Panel
$26.61In stock
Buy nowN1A - Panel
$29.87In stock
Buy nowN1A - Panel
$24.04In stock
Buy nowN1A - Panel
$29.89In stock
Buy nowN1A - Panel
$56.20In stock
Buy nowN1A - Panel
$59.16In stock
Buy nowN1A - Panel
$75.77In stock
Buy nowN1A Inner Panel 26X28.5
$75.75In stock
Buy nowN1A - Panel
$76.97In stock
Buy nowN1A Inner Panels 32X28.5
$112.17In stock
Buy nowN1A - Panel
$98.56In stock
Buy nowN1A - Panel
$106.56In stock
Buy nowN1A - Panel
$119.20In stock
Buy nowN1A - Panel
$133.99In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Panel · L | Panel · W | For Use with Enclosure · H | For Use with Enclosure · W | Price | Order |
|---|---|---|---|---|---|---|
| AP1612 | 13.00 | 10.50 | 16.00 | 12.00 | $12.53In stock | Buy now |
| AP1616 | 13.00 | 14.50 | 16.00 | 16.00 | $15.99In stock | Buy now |
| AP1620 | 13.00 | 18.50 | 16.00 | 20.00 | $19.64In stock | Buy now |
| AP2016 | 17.00 | 14.50 | 20.00 | 16.00 | $19.64In stock | Buy now |
| AP2020 | 17.00 | 18.50 | 20.00 | 20.00 | $26.61In stock | Buy now |
| AP2024 | 17.00 | 22.50 | 20.00 | 24.00 | $29.87In stock | Buy now |
| AP2416 | 21.00 | 14.50 | 24.00 | 16.00 | $24.04In stock | Buy now |
| AP2420 | 21.00 | 18.50 | 24.00 | 20.00 | $29.89In stock | Buy now |
| AP2424 | 21.00 | 22.50 | 24.00 | 24.00 | $56.20In stock | Buy now |
| AP3020 | 26.00 | 18.50 | 30.00 | 20.00 | $59.16In stock | Buy now |
| AP3024 | 26.00 | 22.50 | 30.00 | 24.00 | $75.77In stock | Buy now |
| AP3030 | 26.00 | 28.50 | 30.00 | 30.00 | $75.75In stock | Buy now |
| AP3624 | 32.00 | 22.50 | 36.00 | 24.00 | $76.97In stock | Buy now |
| AP3630 | 32.00 | 28.50 | 36.00 | 30.00 | $112.17In stock | Buy now |
| AP4224 | 38.00 | 22.50 | 42.00 | 24.00 | $98.56In stock | Buy now |
| AP4230 | 38.00 | 28.50 | 45.00 | 30.00 | $106.56In stock | Buy now |
| AP4236 | 38.00 | 34.50 | 42.00 | 36.00 | $119.20In stock | Buy now |
| AP4836 | 44.00 | 34.50 | 48.00 | 36.00 | $133.99In stock | Buy now |
Features
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
- ■14 gauge steel finished in white.
- ■Panels and mounting hardware are included with NIA Series enclosures.
Documents
Additional information
Part Details
| Part No. | Panel · L | Panel · W | For Use with Enclosure · H | For Use with Enclosure · W |
|---|---|---|---|---|
| AP1612 | 13.00 | 10.50 | 16.00 | 12.00 |
| AP1616 | 13.00 | 14.50 | 16.00 | 16.00 |
| AP1620 | 13.00 | 18.50 | 16.00 | 20.00 |
| AP2016 | 17.00 | 14.50 | 20.00 | 16.00 |
| AP2020 | 17.00 | 18.50 | 20.00 | 20.00 |
| AP2024 | 17.00 | 22.50 | 20.00 | 24.00 |
| AP2416 | 21.00 | 14.50 | 24.00 | 16.00 |
| AP2420 | 21.00 | 18.50 | 24.00 | 20.00 |
| AP2424 | 21.00 | 22.50 | 24.00 | 24.00 |
| AP3020 | 26.00 | 18.50 | 30.00 | 20.00 |
| AP3024 | 26.00 | 22.50 | 30.00 | 24.00 |
| AP3030 | 26.00 | 28.50 | 30.00 | 30.00 |
| AP3624 | 32.00 | 22.50 | 36.00 | 24.00 |
| AP3630 | 32.00 | 28.50 | 36.00 | 30.00 |
| AP4224 | 38.00 | 22.50 | 42.00 | 24.00 |
| AP4230 | 38.00 | 28.50 | 45.00 | 30.00 |
| AP4236 | 38.00 | 34.50 | 42.00 | 36.00 |
| AP4836 | 44.00 | 34.50 | 48.00 | 36.00 |
