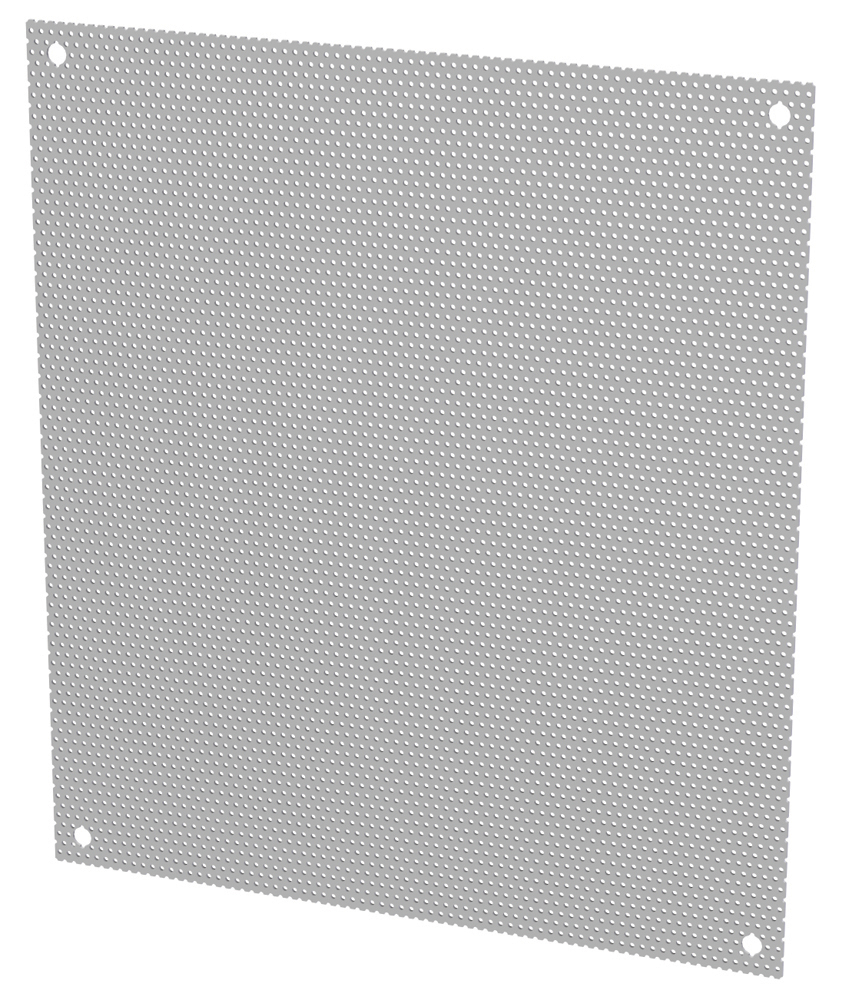

N1A Perforated Inner Panel 13X10.5
$13.49In stock
Buy now
Perforated Inner Panels · APPP Series
Brand: Hammond Manufacturing · 15 part numbers
N1A Series Enclosures
- ■For use with N1A series enclosures
- ■Made from 16 ga steel
- ■Accepts self tapping screws eliminating timely measurement, marking and drilling of component mounting holes
- ■1/8" dia holes on 1/4" staggered centers
- ■ANSI 61 gray powder finish
from $13.49
15 of 15 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your APPP Series part number
Filter 15 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
15 of 15 part numbers · 15 priced online
N1A Perforated Inner Panel 13X14.5
$17.42In stock
Buy nowN1A Perforated Inner Panel 13X18.5
$21.33In stock
Buy nowN1A Perforated Inner Panel 17X14.5
$21.33In stock
Buy nowN1A Perforated Inner Panel 17X18.5
$28.97In stock
Buy nowN1A Perforated Inner Panel 17X22.5
$32.69In stock
Buy nowN1A Perforated Inner Panel 21X14.5
$26.31In stock
Buy nowN1A Perforated Inner Panel 21X18.5
$32.69In stock
Buy nowN1A Perforated Inner Panel 21X22.5
$61.39In stock
Buy nowN1A Perforated Inner Panel 26X18.5
$71.41In stock
Buy nowN1A Perforated Inner Panel 26X22.5
$81.55In stock
Buy nowN1A Perforated Inner Panel 26X28.5
$99.00In stock
Buy nowN1A Perforated Inner Panel 32X22.5
$83.94In stock
Buy nowN1A Perforated Inner Panel 32X28.5
$121.18Backorder
Buy nowPerforated Inner Panel 38X34.5
$141.81In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Panel · L | Panel · W | For Use with Enclosure · H | For Use with Enclosure · W | # Folds | Price | Order |
|---|---|---|---|---|---|---|---|
| AP1612PP | 13.00 | 10.50 | 16.00 | 12.00 | 0 | $13.49In stock | Buy now |
| AP1616PP | 13.00 | 14.50 | 16.00 | 16.00 | 0 | $17.42In stock | Buy now |
| AP1620PP | 13.00 | 18.50 | 16.00 | 20.00 | 0 | $21.33In stock | Buy now |
| AP2016PP | 17.00 | 14.50 | 20.00 | 16.00 | 0 | $21.33In stock | Buy now |
| AP2020PP | 17.00 | 18.50 | 20.00 | 20.00 | 0 | $28.97In stock | Buy now |
| AP2024PP | 17.00 | 22.50 | 20.00 | 24.00 | 0 | $32.69In stock | Buy now |
| AP2416PP | 21.00 | 14.50 | 24.00 | 16.00 | 0 | $26.31In stock | Buy now |
| AP2420PP | 21.00 | 18.50 | 24.00 | 20.00 | 0 | $32.69In stock | Buy now |
| AP2424PP | 21.00 | 22.50 | 24.00 | 24.00 | 4 | $61.39In stock | Buy now |
| AP3020PP | 26.00 | 18.50 | 30.00 | 20.00 | 4 | $71.41In stock | Buy now |
| AP3024PP | 26.00 | 22.50 | 30.00 | 24.00 | 4 | $81.55In stock | Buy now |
| AP3030PP | 26.00 | 28.50 | 30.00 | 30.00 | 4 | $99.00In stock | Buy now |
| AP3624PP | 32.00 | 22.50 | 36.00 | 24.00 | 4 | $83.94In stock | Buy now |
| AP3630PP | 32.00 | 28.50 | 36.00 | 30.00 | 4 | $121.18Backorder | Buy now |
| AP4224PP | 38.00 | 22.50 | 42.00 | 24.00 | 4 | $141.81In stock | Buy now |
Features
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
- ■For use with N1A series enclosures
- ■Made from 16 ga steel
- ■Accepts self tapping screws eliminating timely measurement, marking and drilling of component mounting holes
- ■1/8" dia holes on 1/4" staggered centers
- ■ANSI 61 gray powder finish
Documents
Additional information
Part Details
| Part No. | Panel · L | Panel · W | For Use with Enclosure · H | For Use with Enclosure · W | # Folds |
|---|---|---|---|---|---|
| AP1612PP | 13.00 | 10.50 | 16.00 | 12.00 | 0 |
| AP1616PP | 13.00 | 14.50 | 16.00 | 16.00 | 0 |
| AP1620PP | 13.00 | 18.50 | 16.00 | 20.00 | 0 |
| AP2016PP | 17.00 | 14.50 | 20.00 | 16.00 | 0 |
| AP2020PP | 17.00 | 18.50 | 20.00 | 20.00 | 0 |
| AP2024PP | 17.00 | 22.50 | 20.00 | 24.00 | 0 |
| AP2416PP | 21.00 | 14.50 | 24.00 | 16.00 | 0 |
| AP2420PP | 21.00 | 18.50 | 24.00 | 20.00 | 0 |
| AP2424PP | 21.00 | 22.50 | 24.00 | 24.00 | 4 |
| AP3020PP | 26.00 | 18.50 | 30.00 | 20.00 | 4 |
| AP3024PP | 26.00 | 22.50 | 30.00 | 24.00 | 4 |
| AP3030PP | 26.00 | 28.50 | 30.00 | 30.00 | 4 |
| AP3624PP | 32.00 | 22.50 | 36.00 | 24.00 | 4 |
| AP3630PP | 32.00 | 28.50 | 36.00 | 30.00 | 4 |
| AP4224PP | 38.00 | 22.50 | 42.00 | 24.00 | 4 |
