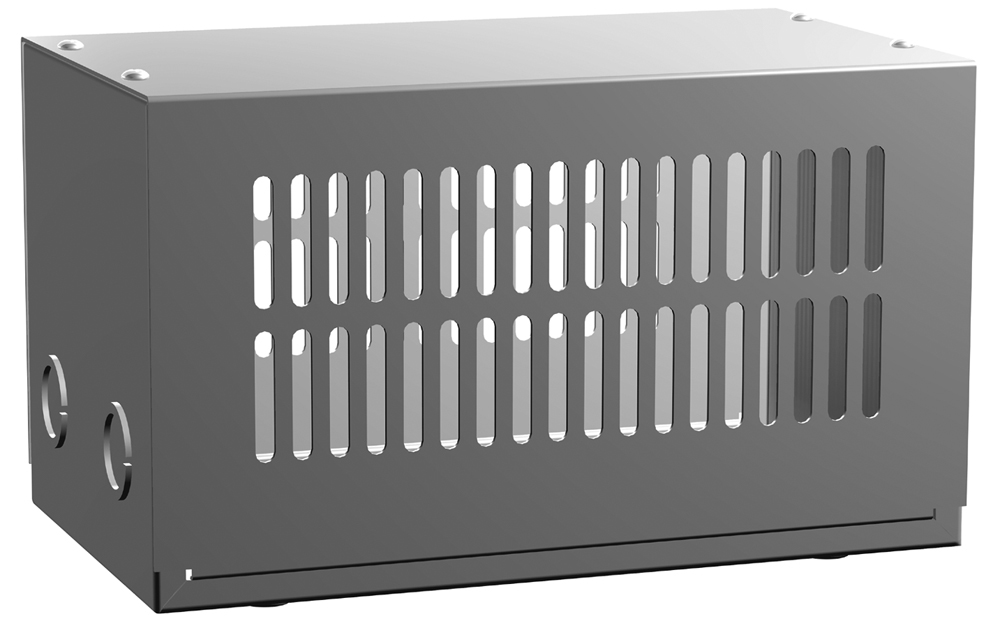

Ventilated Enclosure 6X4X4
$39.40In stock
Buy now
Type 1 Mild Steel Component Case · 1416 Series
Brand: Hammond Manufacturing · 8 part numbers
Ventilated Cover with Screws
- ■Designed to provide mechanical protection for components requiring ventilation.
- ■Suitable for use where heat dissipation is required.
- ■Complies with NEMA Type 1
- ■NEMA Type 1
- ■Base is formed from 16 gauge steel with two 0.5”/0.75” conduit knockouts located in each end.
- ■Four .125” high raised dimples with mounting holes are provided on the base.
from $39.40
8 of 8 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1416 Series part number
Filter 8 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
8 of 8 part numbers · 8 priced online
Ventilated Enclosure 10X4X4
$42.48In stock
Buy nowVentilated Enclosure 10X6X6
$51.19In stock
Buy nowVentilated Enclosure 11X7X7
$64.55In stock
Buy nowVentilated Enclosure 12X8X8
$75.59In stock
Buy nowVentilated Enclosure 15X10X8
$88.30In stock
Buy nowVentilated Enclosure 20X10X8
$104.82In stock
Buy nowVentilated Enclosure 20X10X10
$119.14In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D | Price | Order |
|---|---|---|---|---|---|
| 1416E | 6.00 | 4.00 | 4.00 | $39.40In stock | Buy now |
| 1416G | 10.00 | 4.00 | 4.00 | $42.48In stock | Buy now |
| 1416I | 10.00 | 6.00 | 6.00 | $51.19In stock | Buy now |
| 1416K | 11.00 | 7.00 | 7.00 | $64.55In stock | Buy now |
| 1416M | 12.00 | 8.00 | 8.00 | $75.59In stock | Buy now |
| 1416O | 15.00 | 10.00 | 8.00 | $88.30In stock | Buy now |
| 1416Q | 20.00 | 10.00 | 8.00 | $104.82In stock | Buy now |
| 1416T | 20.00 | 10.00 | 10.00 | $119.14In stock | Buy now |
Application
- ■Designed to provide mechanical protection for components requiring ventilation.
- ■Suitable for use where heat dissipation is required.
Standards
- ■Complies with NEMA Type 1
- ■NEMA Type 1
Construction
- ■Base is formed from 16 gauge steel with two 0.5”/0.75” conduit knockouts located in each end.
- ■Four .125” high raised dimples with mounting holes are provided on the base.
- ■Cover is formed from 18 gauge steel with 0.235” x 1.5” ventilating slots (0.199” x 1.12” on E & G only).
- ■Screw holes and offsets in the cover allow easy assembly.
Finish
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
- ■Base and cover are finished in ANSI 61 gray powder coating.
Documents
Additional information
Part Details
| Part No. | Enclosure · H | Enclosure · W | Enclosure · D |
|---|---|---|---|
| 1416E | 6.00 | 4.00 | 4.00 |
| 1416G | 10.00 | 4.00 | 4.00 |
| 1416I | 10.00 | 6.00 | 6.00 |
| 1416K | 11.00 | 7.00 | 7.00 |
| 1416M | 12.00 | 8.00 | 8.00 |
| 1416O | 15.00 | 10.00 | 8.00 |
| 1416Q | 20.00 | 10.00 | 8.00 |
| 1416T | 20.00 | 10.00 | 10.00 |
