Heater 15W Ac/Dc 110-250 V
- Watts¹ 15W
- Max. Current² 1.1A
$69.99In stock
Buy now

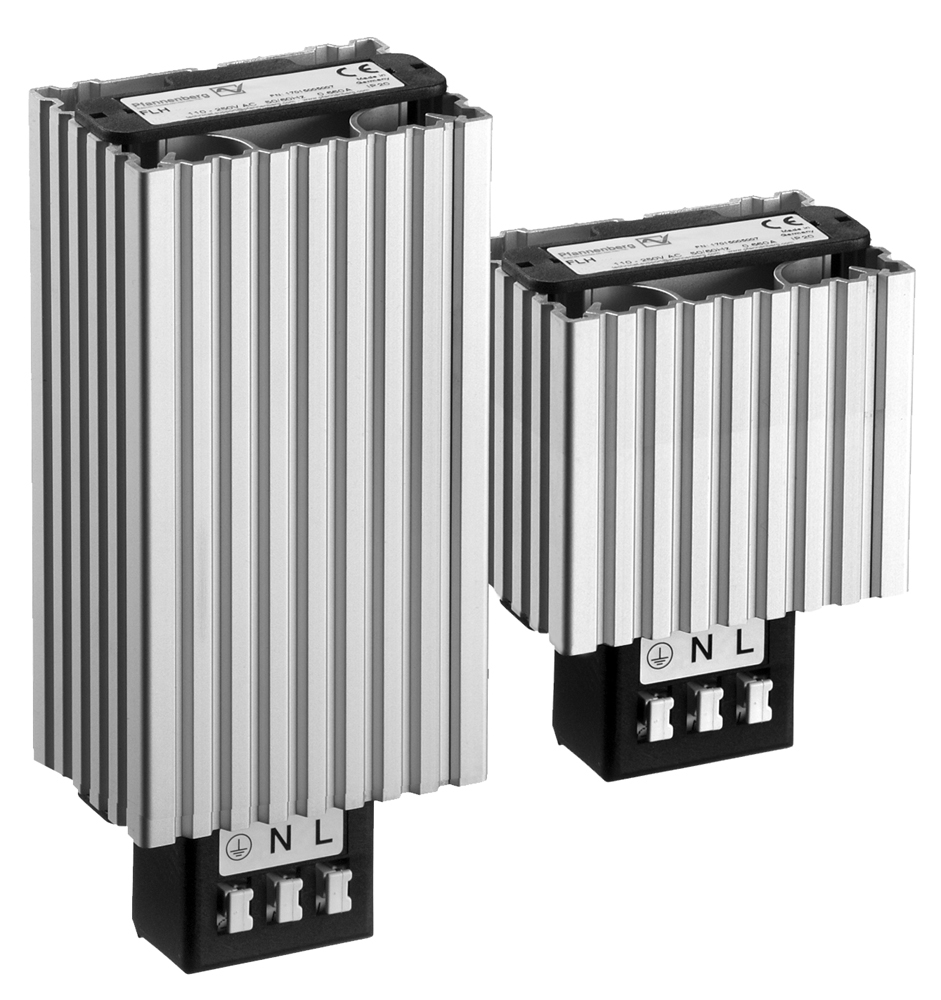

15-150 W Heater · SHG Series
Brand: Hammond Manufacturing · 7 part numbers
- ■Designed to provide enclosed electronic, pneumatic, hydraulic and mechanical equipment with protection from low temperatures, condensation and corrosion.
- ■The PTC (Positive Temperature Coefficient) heater unit maintains a stable temperature environment within enclosures, allowing critical components to perform with consistent reliability for longer periods.
- ■Push connectors for quick and easy wiring
- ■Used in combination with Normally Closed Thermostat or Humidistat
from $69.99
7 of 7 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your SHG Series part number
Filter 7 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
7 of 7 part numbers · 7 priced online
Heater 30W Ac/Dc 110-250 V
- Watts¹ 30W
- Max. Current² 1.2A
$74.12In stock
Buy nowHeater 45W Ac/Dc 110-250 V
- Watts¹ 45W
- Max. Current² 1.8A
$90.42In stock
Buy nowHeater 60W Ac/Dc 110-250 V
- Watts¹ 60W
- Max. Current² 2.5A
$103.85In stock
Buy nowHeater 75W Ac/Dc 110-250 V
- Watts¹ 75W
- Max. Current² 4.5A
$125.38In stock
Buy nowHeater 100W Ac/Dc 110-250 V
- Watts¹ 100W
- Max. Current² 5.0A
$137.02In stock
Buy nowHeater 150W Ac/Dc 110-250 V
- Watts¹ 150W
- Max. Current² 7.5A
$207.69In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Watts¹ | Max. Current² | L | Price | Order |
|---|---|---|---|---|---|
| SHG14000 | 15W | 1.1A | 2.60 | $69.99In stock | Buy now |
| SHG14001 | 30W | 1.2A | 2.60 | $74.12In stock | Buy now |
| SHG14003 | 45W | 1.8A | 2.60 | $90.42In stock | Buy now |
| SHG14005 | 60W | 2.5A | 5.50 | $103.85In stock | Buy now |
| SHG14006 | 75W | 4.5A | 5.50 | $125.38In stock | Buy now |
| SHG14007 | 100W | 5.0A | 5.50 | $137.02In stock | Buy now |
| SHG14008 | 150W | 7.5A | 8.70 | $207.69In stock | Buy now |
| col1 | col2 | Price | Order |
|---|---|---|---|
| Operating Voltage: | AC 110- - 250 V | Quote | Quote |
| Heating Element: | PTC resistor, self regulating surface temperature | Quote | Quote |
| Heating Body: | Anodized extruded aluminum | Quote | Quote |
| Connection: | Push-type terminals for stranded and solid wire 3 x AWG 20 AWG 16 (0.5 - 1.5 mm2 | Quote | Quote |
| Mounting: | Easily installed by clip mounting on 35 mm DIN rails (included) | Quote | Quote |
| Protection Class: | I, test voltage 1600 V | Quote | Quote |
| Protection: | IP20 | Quote | Quote |
| Approval: | UL Recognized Component, cUL Recognized Component, CE | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
Features
- ■Designed to provide enclosed electronic, pneumatic, hydraulic and mechanical equipment with protection from low temperatures, condensation and corrosion.
- ■The PTC (Positive Temperature Coefficient) heater unit maintains a stable temperature environment within enclosures, allowing critical components to perform with consistent reliability for longer periods.
- ■Push connectors for quick and easy wiring
- ■Used in combination with Normally Closed Thermostat or Humidistat
Documents
Additional information
Part Details
| Part No. | Watts¹ | Max. Current² | L |
|---|---|---|---|
| SHG14000 | 15W | 1.1A | 2.60 |
| SHG14001 | 30W | 1.2A | 2.60 |
| SHG14003 | 45W | 1.8A | 2.60 |
| SHG14005 | 60W | 2.5A | 5.50 |
| SHG14006 | 75W | 4.5A | 5.50 |
| SHG14007 | 100W | 5.0A | 5.50 |
| SHG14008 | 150W | 7.5A | 8.70 |
Part Details
| col1 | col2 |
|---|---|
| Operating Voltage: | AC 110- - 250 V |
| Heating Element: | PTC resistor, self regulating surface temperature |
| Heating Body: | Anodized extruded aluminum |
| Connection: | Push-type terminals for stranded and solid wire 3 x AWG 20 AWG 16 (0.5 - 1.5 mm2 |
| Mounting: | Easily installed by clip mounting on 35 mm DIN rails (included) |
| Protection Class: | I, test voltage 1600 V |
| Protection: | IP20 |
| Approval: | UL Recognized Component, cUL Recognized Component, CE |
