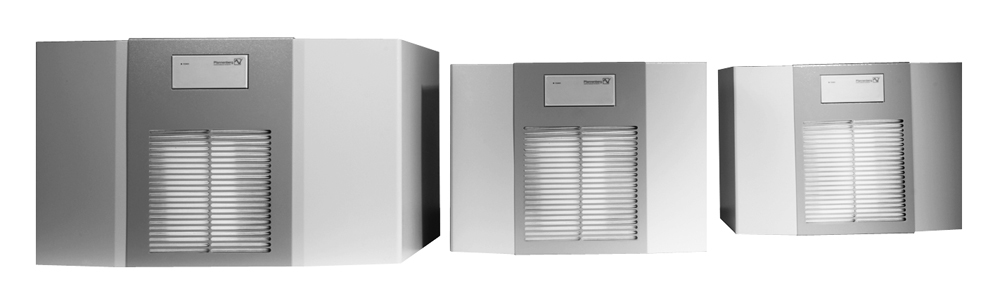

7000-14000 BTU/H Indoor Air Conditioner · DTT Series

Brand: Hammond Manufacturing · 2 part numbers

Type 12, Top Mounting

■Designed for top mounting where space limitations do not allow side mounting on the enclosure surface.
■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
■Excellent security level due to patented condensate management system, which prevents condensate from penetrating the enclosure.
■High reliability and long maintenance intervals
■Maintains NEMA 12 rating
■IP 54

from $6,075.92

2 of 2 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents

Configure & price

Find your DTT Series part number

Filter 2 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

2 of 2 part numbers · 2 priced online

DTT6601B460LG

Air Condit 10700BTU 460V Lg

$6,075.92In stock

Buy now

DTT6801B460LG

Air Condit 14000BTU 460V Lg

$7,531.18Backorder

Buy now

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.	Overall Dimensions · A	Overall Dimensions · B	Overall Dimensions · C	Cut Out Dimensions · W	Cut Out Dimensions · D	Price	Order
DTT6601B460LG	19.09	31.30	22.64	27.24	15.43	$6,075.92In stock	Buy now
DTT6801B460LG	19.09	31.30	22.60	27.24	15.43	$7,531.18Backorder	Buy now

col1	DTT6601B460LG	DTT6801B460LG	Price	Order
Cooling Capacity BTU/h (Watts) +95/+95F +35/+35C	11,000 BTU/h (3200 Watts)	14500 BTU/h (4250 Watts)	Quote	Quote
Adjustable Control Range Factory setting + 95F / +35 C	+77… +113F +25…+45C	+77… +113F +25…+45C	Quote	Quote
Rated Voltage +/- 10%	400/460	400/460	Quote	Quote
Frequency Hz	50/60 Hz	50/60 Hz	Quote	Quote
Power Consumption (W)	1700/2100	1601/1989	Quote	Quote
Running Amps (A)	3.16 / 4.5	4.6 / 4.5	Quote	Quote
Starting Current (A)	8.9 / 9.9	17.1 / 19.5	Quote	Quote
Electrical Connection	Terminal Block with Plug	Terminal Block with Plug	Quote	Quote
Min/Max Ambient Temp	+59...+131 F / +15...+55 C	+59...+131 F / +15...+55 C	Quote	Quote
Control Range	+77..+113 F / +25 ..+45 C Factory setting +95/+35	+77..+113 F / +25 ..+45 C Factory setting +95/+35	Quote	Quote
Finish (LG)	Galvanized Sheet Steel Color RAL 7035 Powder Finish	Galvanized Sheet Steel Color RAL 7035 Powder Finish	Quote	Quote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Description

■Designed for top mounting where space limitations do not allow side mounting on the enclosure surface.
■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
■Excellent security level due to patented condensate management system, which prevents condensate from penetrating the enclosure.
■High reliability and long maintenance intervals

Standards

■Maintains NEMA 12 rating
■IP 54
■UR, cUR and CE

Features

■R134a refrigerant.
■Thermostat control accessible from inside enclosure.
■Hot gas bypass valve prevents evaporator freeze up while minimizing heavy inrush currents on large BTU/H units.
■Built in condensate evaporator.
■Continuous air circulation from high capacity fans.
■EMI/RFI suppression meets CE.
■Self-diagnostics on startup.
■Fault indication via LED light.
■Provision for door contact allowing power down when enclosure door is opened.
■Gasket, mounting kit and template for enclosure cutout and drilling are included.
■Condensate drain hose and clamp provided.
■Mounting via tool-less sash fasteners
