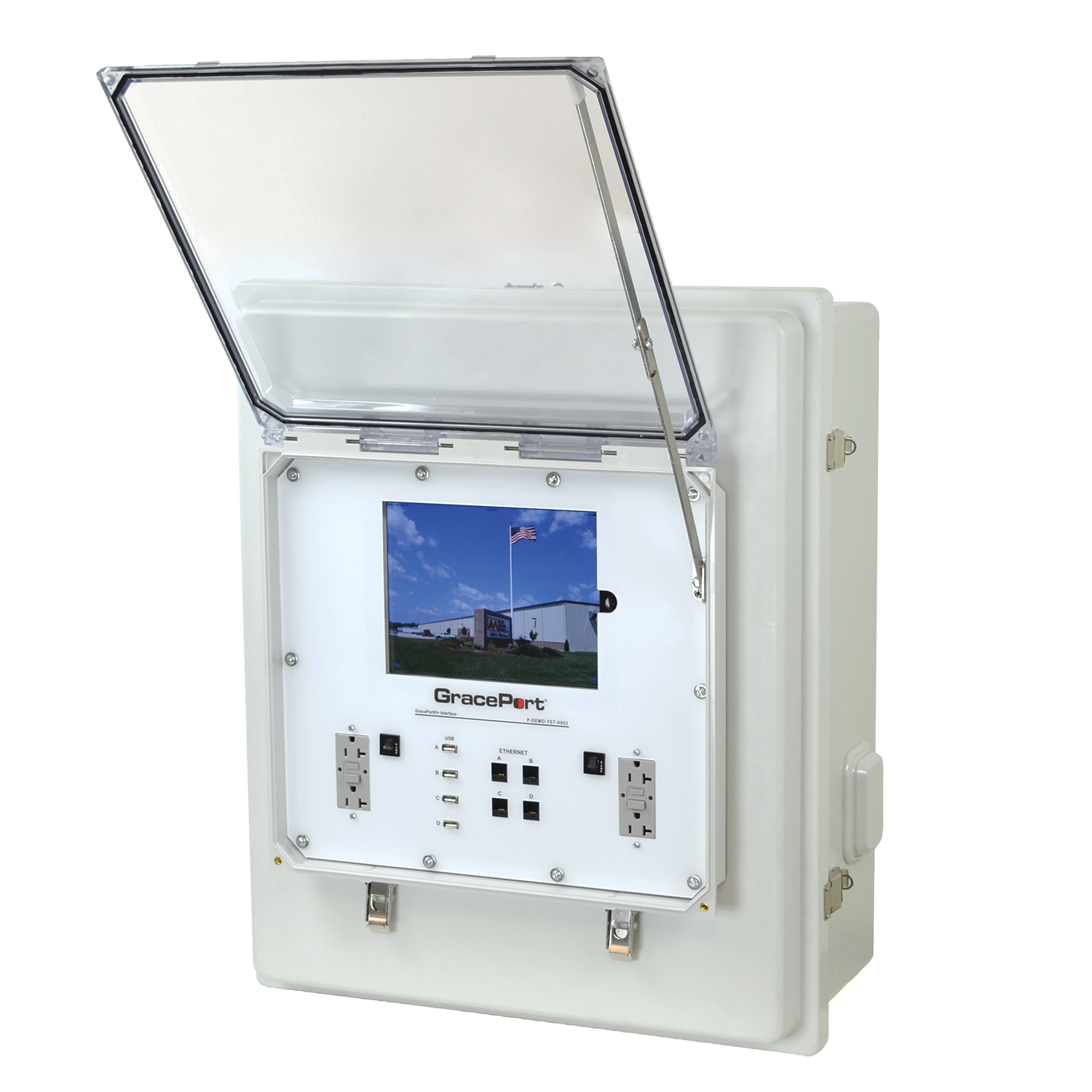

Polycarbonate HMI Hinged Cover Kits · PJHMI Series

Brand: Hammond Manufacturing · 56 part numbers

■Provides protection for instruments or electronics requiring routine attention or detail.
■Available in light gray solid opaque or polycarbonate thermoplastic clear covers.
■Cover Latching Options - hinged screw cover, tamper proof screw cover, and snap latch with pad lock feature.
■Listed UL component for use with enclosures rated Types 1, 3, 3R, 4, 4X, 12 or 13.
■CSA listed Type 1, 3, 3R, 4, 4X, 12 or 13.
■316 stainless steel hinge pin.

from $33.32

54 of 56 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents

Configure & price

Find your PJHMI Series part number

Filter 51 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

51 of 51 part numbers · 49 priced online

PJHMI108CCH

Pchmi Cover Clear W/Hinge

Closure Style Screw Cover

$83.99In stock

Buy now

PJHMI108CCHTP

Pchmi Cover Clear W/Tamperprf

Closure Style Tamperproof Screw Cover

$86.92In stock

Buy now

PJHMI108CCL

Pchmi Cover Clear w/ Latch

Closure Style Snap Latch Cover

$94.23In stock

Buy now

PJHMI108H

Pchmi Cover W/Hinge

Closure Style Screw Cover

$80.37In stock

Buy now

PJHMI108HTP

Pchmi Cover W/Tamperprf

Closure Style Tamperproof Screw Cover

$83.30Backorder

Buy now

PJHMI108L

Pchmi Cover W/Latch

Closure Style Snap Latch Cover

$90.57In stock

Buy now

PJHMI1210CCH

Pchmi Cover Clear W/Hinge

Closure Style Screw Cover

$110.24In stock

Buy now

PJHMI1210CCHTP

Pchmi Cover Clear W/Tamperproo

Closure Style Tamperproof Screw Cover

$114.29In stock

Buy now

PJHMI1210CCL

Pchmi Cover Clear w/ Latch

Closure Style Snap Latch Cover

$122.40In stock

Buy now

PJHMI1210H

Pchmi Cover With Hinge

Closure Style Screw Cover

$101.10Backorder

Buy now

PJHMI1210HTP

Pchmi Cover Hinge & Tamperproo

Closure Style Tamperproof Screw Cover

$105.24In stock

Buy now

PJHMI1210L

Pchmi Cover Snap Latch

Closure Style Snap Latch Cover

$112.22In stock

Buy now

PJHMI1412CCH

Pchmi Cover Clear W/Hinge

Closure Style Screw Cover

$121.29In stock

Buy now

PJHMI1412CCHTP

Pchmi Cover Clear W/Tamperproo

Closure Style Tamperproof Screw Cover

$125.33In stock

Buy now

PJHMI1412CCL

Pchmi Cover Clear W/Latch

Closure Style Snap Latch Cover

$135.03In stock

Buy now

PJHMI1412H

Pchmi Cover W/Hinge

Closure Style Screw Cover

$111.28In stock

Buy now

PJHMI1412HTP

Pchmi Cover Hinge W/Tamperproo

Closure Style Tamperproof Screw Cover

$115.32Backorder

Buy now

PJHMI1412L

Pchmi Cover Snap Latch

Closure Style Snap Latch Cover

$123.51Backorder

Buy now

PJHMI1614CCH

Pchmi Cover Clear W/Hinge

Closure Style Screw Cover

$132.92In stock

Buy now

PJHMI1614CCHTP

Pchmi Cover Clear W/Tamperprf

Closure Style Tamperproof Screw Cover

$137.34In stock

Buy now

PJHMI1614CCL

Pchmi Cover Clear W/Latch

Closure Style Snap Latch Cover

$143.89In stock

Buy now

PJHMI1614H

Pchmi Cover W/Hinge

Closure Style Screw Cover

$130.06Backorder

Buy now

PJHMI1614HTP

Pchmi Cover W/Tamperproof

Closure Style Tamperproof Screw Cover

$133.68Backorder

Buy now

PJHMI1614L

Pchmi Cover W/Latch

Closure Style Snap Latch Cover

$140.27In stock

Buy now

PJHMI2016CCH

Screw Cover

Closure Style Screw Cover

QuoteRequest a quote

PJHMI2016CCHTP

Tamperproof Screw Cover

Closure Style Tamperproof Screw Cover

$192.75In stock

Buy now

PJHMI2016CCL

Snap Latch Cover

Closure Style Snap Latch Cover

$204.03In stock

Buy now

PJHMI2016H

Screw Cover

Closure Style Screw Cover

$183.02Backorder

Buy now

PJHMI2016HTP

Tamperproof Screw Cover

Closure Style Tamperproof Screw Cover

$192.75Backorder

Buy now

PJHMI2016L

Snap Latch Cover

Closure Style Snap Latch Cover

$199.98In stock

Buy now

PJHMI66CCH

Screw Cover

Closure Style Screw Cover

QuoteRequest a quote

PJHMI66CCHTP

Tamperproof Screw Cover

Closure Style Tamperproof Screw Cover

$71.38Backorder

Buy now

PJHMI66CCL

Snap Latch Cover

Closure Style Snap Latch Cover

$79.45In stock

Buy now

PJHMI66H

Screw Cover

Closure Style Screw Cover

$65.70Backorder

Buy now

PJHMI66HTP

Tamperproof Screw Cover

Closure Style Tamperproof Screw Cover

$69.29Backorder

Buy now

PJHMI66L

Snap Latch Cover

Closure Style Snap Latch Cover

$75.96Backorder

Buy now

PJHMI86CCH

Screw Cover

Closure Style Screw Cover

$71.27Backorder

Buy now

PJHMI86CCHTP

Tamperproof Screw Cover

Closure Style Tamperproof Screw Cover

$74.65In stock

Buy now

PJHMI86CCL

Snap Latch Cover

Closure Style Snap Latch Cover

$82.15In stock

Buy now

PJHMI86H

Screw Cover

Closure Style Screw Cover

$68.73In stock

Buy now

PJHMI86HTP

Tamperproof Screw Cover

Closure Style Tamperproof Screw Cover

$71.98Backorder

Buy now

PJHMI86L

Snap Latch Cover

Closure Style Snap Latch Cover

$78.69Backorder

Buy now

PJHMI88CCH

Screw Cover

Closure Style Screw Cover

$80.37In stock

Buy now

PJHMI88CCHTP

Tamperproof Screw Cover

Closure Style Tamperproof Screw Cover

$83.99In stock

Buy now

PJHMI88CCL

Snap Latch Cover

Closure Style Snap Latch Cover

$91.29In stock

Buy now

PJHMI88H

Screw Cover

Closure Style Screw Cover

$77.15In stock

Buy now

PJHMI88HTP

Tamperproof Screw Cover

Closure Style Tamperproof Screw Cover

$80.37Backorder

Buy now

PJHMI88L

Snap Latch Cover

Closure Style Snap Latch Cover

$87.71In stock

Buy now

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Clear Cover (Part No.)	Opaque Cover (Part No.)	Optional Prop Arm (Part No.)	Closure Style	Frame Size Dimensions · H	Frame Size Dimensions · W	Frame Size Dimensions · D	Viewing Area · H	Viewing Area · W	Price	Order
PJHMI66CCH	PJHMI66H	PJHMIPROP66	Screw Cover	5.93	6.15	2.27	4.47	4.69	$65.70BackorderPJHMI66H	Buy now
PJHMI66CCHTP	PJHMI66HTP	PJHMIPROP66	Tamperproof Screw Cover	5.93	6.15	2.27	4.47	4.69	$71.38BackorderPJHMI66CCHTP	Buy now
PJHMI66CCL	PJHMI66L	PJHMIPROP66	Snap Latch Cover	5.93	6.15	2.27	4.47	4.69	$79.45In stockPJHMI66CCL	Buy now
PJHMI86CCH	PJHMI86H	PJHMIPROP86	Screw Cover	7.93	6.15	2.27	6.47	4.69	$71.27BackorderPJHMI86CCH	Buy now
PJHMI86CCHTP	PJHMI86HTP	PJHMIPROP86	Tamperproof Screw Cover	7.93	6.15	2.27	6.47	4.69	$74.65In stockPJHMI86CCHTP	Buy now
PJHMI86CCL	PJHMI86L	PJHMIPROP86	Snap Latch Cover	7.93	6.15	2.27	6.47	4.69	$82.15In stockPJHMI86CCL	Buy now
PJHMI88CCH	PJHMI88H	PJHMIPROP88	Screw Cover	7.93	8.15	2.27	6.47	6.69	$80.37In stockPJHMI88CCH	Buy now
PJHMI88CCHTP	PJHMI88HTP	PJHMIPROP88	Tamperproof Screw Cover	7.93	8.15	2.27	6.47	6.69	$83.99In stockPJHMI88CCHTP	Buy now
PJHMI88CCL	PJHMI88L	PJHMIPROP88	Snap Latch Cover	7.93	8.15	2.27	6.47	6.69	$91.29In stockPJHMI88CCL	Buy now
PJHMI108CCH	PJHMI108H	PJHMIPROP108	Screw Cover	9.93	8.15	2.27	8.47	6.69	$83.99In stockPJHMI108CCH	Buy now
PJHMI108CCHTP	PJHMI108HTP	PJHMIPROP108	Tamperproof Screw Cover	9.93	8.15	2.27	8.47	6.69	$86.92In stockPJHMI108CCHTP	Buy now
PJHMI108CCL	PJHMI108L	PJHMIPROP108	Snap Latch Cover	9.93	8.15	2.27	8.47	6.69	$94.23In stockPJHMI108CCL	Buy now
PJHMI1210CCH	PJHMI1210H	PJHMIPROP1210	Screw Cover	11.93	10.15	2.27	10.47	8.69	$110.24In stockPJHMI1210CCH	Buy now
PJHMI1210CCHTP	PJHMI1210HTP	PJHMIPROP1210	Tamperproof Screw Cover	11.93	10.15	2.27	10.47	8.69	$114.29In stockPJHMI1210CCHTP	Buy now
PJHMI1210CCL	PJHMI1210L	PJHMIPROP1210	Snap Latch Cover	11.93	10.15	2.27	10.47	8.69	$122.40In stockPJHMI1210CCL	Buy now
PJHMI1412CCH	PJHMI1412H	PJHMIPROP1412	Screw Cover	13.85	12.07	2.20	12.49	10.71	$121.29In stockPJHMI1412CCH	Buy now
PJHMI1412CCHTP	PJHMI1412HTP	PJHMIPROP1412	Tamperproof Screw Cover	13.85	12.07	2.20	12.49	10.71	$125.33In stockPJHMI1412CCHTP	Buy now
PJHMI1412CCL	PJHMI1412L	PJHMIPROP1412	Snap Latch Cover	13.85	12.07	2.20	12.49	10.71	$135.03In stockPJHMI1412CCL	Buy now
PJHMI1614CCH	PJHMI1614H	PJHMIPROP1614	Screw Cover	15.87	14.07	2.20	14.49	12.71	$132.92In stockPJHMI1614CCH	Buy now
PJHMI1614CCHTP	PJHMI1614HTP	PJHMIPROP1614	Tamperproof Screw Cover	15.87	14.07	2.20	14.49	12.71	$137.34In stockPJHMI1614CCHTP	Buy now
PJHMI1614CCL	PJHMI1614L	PJHMIPROP1614	Snap Latch Cover	15.87	14.07	2.20	14.49	12.71	$143.89In stockPJHMI1614CCL	Buy now
PJHMI2016CCH	PJHMI2016H	PJHMIPROP2016	Screw Cover	19.85	16.07	2.27	18.49	14.71	$183.02BackorderPJHMI2016H	Buy now
PJHMI2016CCHTP	PJHMI2016HTP	PJHMIPROP2016	Tamperproof Screw Cover	19.85	16.07	2.27	18.49	14.71	$192.75In stockPJHMI2016CCHTP	Buy now
PJHMI2016CCL	PJHMI2016L	PJHMIPROP2016	Snap Latch Cover	19.85	16.07	2.27	18.49	14.71	$204.03In stockPJHMI2016CCL	Buy now

Features

■Provides protection for instruments or electronics requiring routine attention or detail.
■Available in light gray solid opaque or polycarbonate thermoplastic clear covers.
■Cover Latching Options - hinged screw cover, tamper proof screw cover, and snap latch with pad lock feature.
■Listed UL component for use with enclosures rated Types 1, 3, 3R, 4, 4X, 12 or 13.
■CSA listed Type 1, 3, 3R, 4, 4X, 12 or 13.
■316 stainless steel hinge pin.
■UV stabilized for outdoor use.
■Formed-In-Place (FIP) polyurethane gasket in continuous channel.
■Designed for use with wall thicknesses from 16 gauge through 1/4"
■#10-32 threaded brass inserts with plated steel mounting fasteners.
■Service temperature -31°F (-35°C) to 266°F (130°C)
■Note: Replacement snap latch - use part number PCJLLRSH
