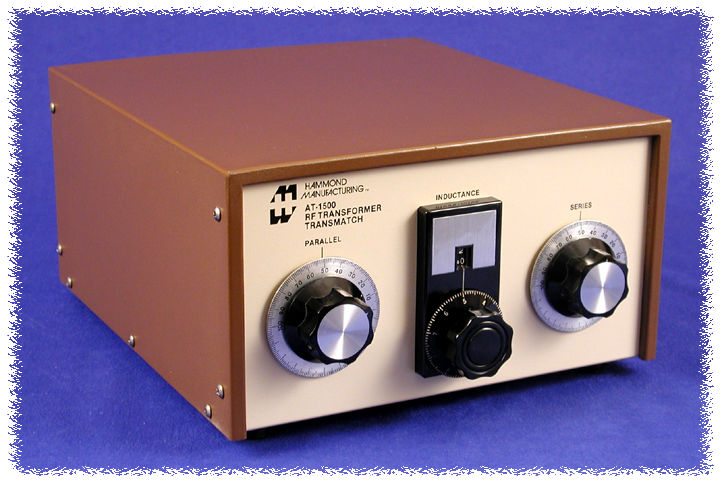

Antenna Transmatch · AT-1500 Series

Brand: Hammond Manufacturing · 1 part number

(Circa 1980 - No longer in production)

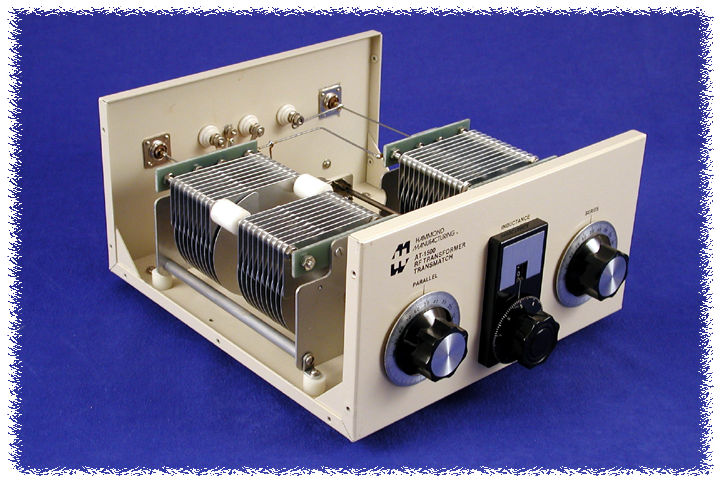

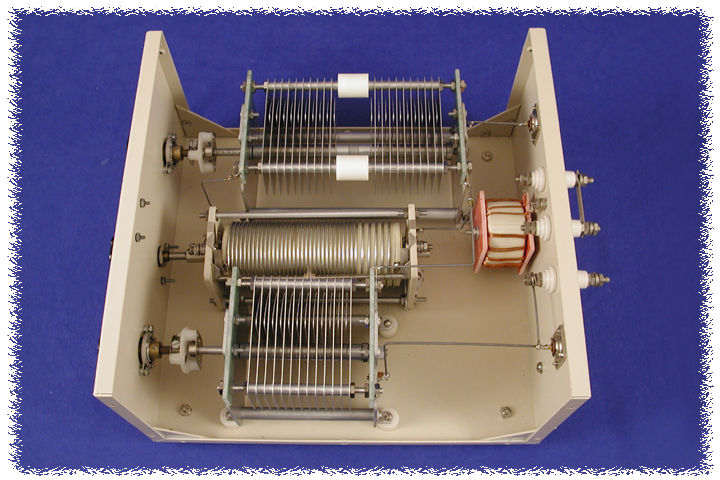

■FREQUENCY COVERAGE 1 to 30 Mhz.Continuously (Variable Roller Inductor)
■1 to 30 Mhz.Continuously (Variable Roller Inductor)
■INPUT IMPEDANCE 50 to 75 Ohms Unbalanced
■50 to 75 Ohms
■Unbalanced
■OUTPUT IMPEDANCE 15 to 500 Ohms Unbalanced (Coaxial) Feed - OR Up to 500 Ohms Balanced Feed (includes high power ferrite balun) - OR 10 to 1,000 Ohms Single Ended Feed

Quoted per order

Choose your part numbers below — we price AT-1500 Series within one business day, with volume tiers.

Select part numbers Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents Additional information

Configure & price

Find your AT-1500 Series part number

Filter 1 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

1 of 1 part numbers

AT-1500

QuoteRequest a quote

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.	Overall Dimensions · Height	Overall Dimensions · Width	Overall Dimensions · Depth	Price	Order
AT-1500	6.00	10.00	12.00	Quote	Quote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Features

■FREQUENCY COVERAGE 1 to 30 Mhz.Continuously (Variable Roller Inductor)
■1 to 30 Mhz.Continuously (Variable Roller Inductor)
■INPUT IMPEDANCE 50 to 75 Ohms Unbalanced
■50 to 75 Ohms
■Unbalanced

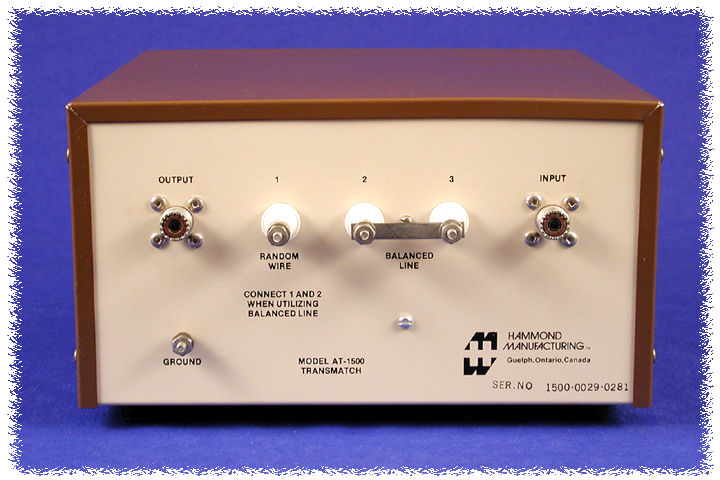

■OUTPUT IMPEDANCE 15 to 500 Ohms Unbalanced (Coaxial) Feed - OR Up to 500 Ohms Balanced Feed (includes high power ferrite balun) - OR 10 to 1,000 Ohms Single Ended Feed
■15 to 500 Ohms Unbalanced (Coaxial) Feed - OR

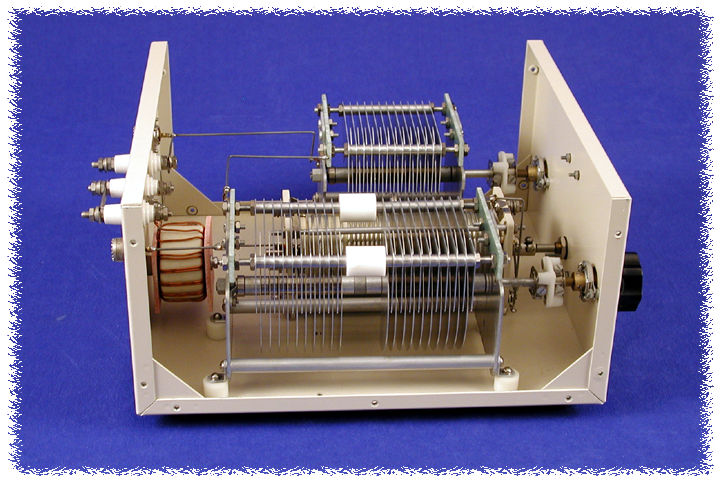

■Up to 500 Ohms Balanced Feed (includes high power ferrite balun) - OR
■10 to 1,000 Ohms Single Ended Feed
■POWER HANDLING 1,500 Watts P.E.P. Continuous
■1,500 Watts P.E.P. Continuous

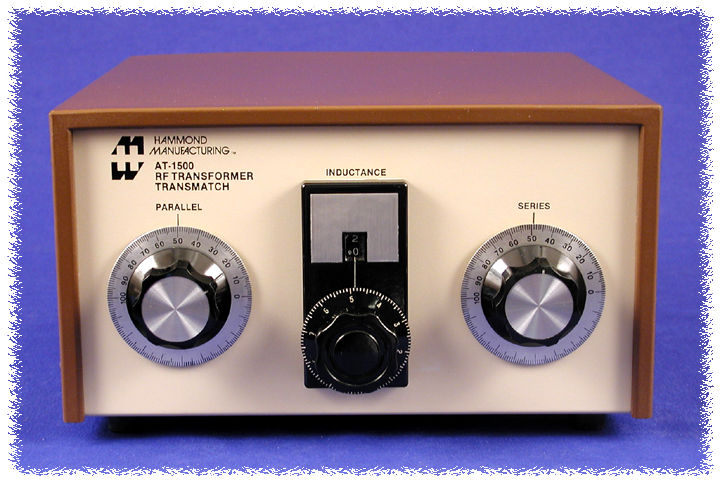

■TUNING Vernier tuning for smooth and accurate settings on all frequencies 0 - 100 dial skirt log for easy resetting
■Vernier tuning for smooth and accurate settings on all frequencies
■0 - 100 dial skirt log for easy resetting
■FINISH Similar color scheme to the Rockwell Collins KWM-380 (Released in Fall 1979) Matched our HL-2000A linear amplifier. Outer Steel Cabinet Painted Textured Baked Enamel - Hammond "Earth" Brown Front Panel Painted Smooth Baked Enamel - Hammond "Cream" Beige
■Similar color scheme to the Rockwell Collins KWM-380 (Released in Fall 1979)
■Matched our HL-2000A linear amplifier.
■Outer Steel Cabinet Painted Textured Baked Enamel - Hammond "Earth" Brown
■Front Panel Painted Smooth Baked Enamel - Hammond "Cream" Beige
■WEIGHT 5 Lbs. or 2.3 Kg.
■5 Lbs. or 2.3 Kg.
