Audio TX 3.4K Ohm 50 Watt Pott
- Audio Watts 0
- Max. D.C. Per Side 318 ma.
- Ohms 3400 ct
- Suggested Tube Typ 6L6GC, 807, 5881, EL34, 6146B, 6550B
$265.35In stock
Buy now
Tube Output (50 - 100 Watts) · 1650P Series
Brand: Hammond Manufacturing · 5 part numbers
Push-Pull HI-FI Potted
- ■Designed for push-pull tube output circuits.
- ■A perfect match to our 300P potted power transformers .
- ■Enclosed in a drawn steel case, the transformer is completely potted in epoxy.
- ■Frequency response 30 Hz. to 30 Khz. at full rated power (+/- 1 db max. ref. 1 Khz) minimum.
- ■Lead connection is via 10 bottom mounted lugs.

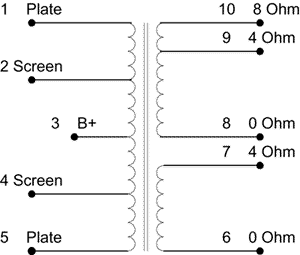

- ■All units include 40% screen taps for Ultra-Linear operation (if desired).
from $265.35
3 of 5 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1650P Series part number
Filter 6 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
6 of 6 part numbers · 3 priced online
Audio TX 3.4K Ohm 50 Watt Pott
- Audio Watts 50
- Max. D.C. Per Side 318 ma.
- Ohms 3400 ct
- Suggested Tube Typ 6L6GC, 807, 5881, EL34, 6146B, 6550B
QuoteRequest a quote
Audio TX 6.6K Ohm 60 Watt Pott
- Audio Watts 60
- Max. D.C. Per Side 200 ma.
- Ohms 6600 ct
- Suggested Tube Typ 6L6GC, 807, 5881, EL34, 6146B, 6550B, KT88
$270.77In stock
Buy nowAudio TX 5K Ohm 100 Watt Pott
- Audio Watts 100
- Max. D.C. Per Side 317 ma.
- Ohms 5000 ct
- Suggested Tube Typ 807, 5881, EL34, 6146B, 6550B, KT88
$306.88In stock
Buy nowAudio TX 5K Ohm 100 Watt Pott
- Audio Watts 100
- Max. D.C. Per Side 317 ma.
- Ohms 5000 ct
- Suggested Tube Typ 807, 5881, EL34, 6146B, 6550B, KT88
QuoteRequest a quote
1650PP
Replaced With 1650PAP
QuoteRequest a quote

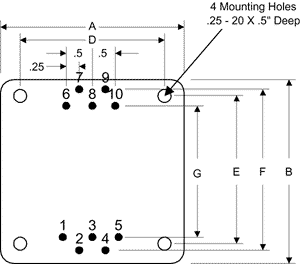

Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Audio · Watts | Primary Impedance · (Ohms) | Max. DC · Per Side | Secondary Impedance · (Ohms) | Dimensions · A | Dimensions · B | Dimensions · C | Dimensions · D | Dimensions · E | Dimensions · F | Dimensions · G | Weight · (lbs.) | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1650KP | 50 | 3400 ct | 318 ma. | 4/8/16 | 3.31 | 3.88 | 4.25 | 2.50 | 3.00 | 3.31 | 2.56 | 9 | Quote | Quote |
| 1650KAP | 50 | 3400 ct | 318 ma. | 4/8/16 | 3.31 | 3.88 | 4.25 | 2.50 | 3.00 | 3.31 | 1/4-20 x 0.5" Deep Inserts | 9 | $265.35In stock | Buy now |
| 1650PAP | 60 | 6600 ct | 200 ma. | 4/8/16 | 3.31 | 3.88 | 4.25 | 2.50 | 3.00 | 1.50 | 1/4-20 x 0.5" Deep Inserts | 10 | $270.77In stock | Buy now |
| 1650RP | 100 | 5000 ct | 317 ma. | 4/8/16 | 4.25 | 5.00 | 4.50 | 3.38 | 4.25 | 4.50 | 3.75 | 13 | Quote | Quote |
| 1650RAP | 100 | 5000 ct | 317 ma. | 4/8/16 | 4.25 | 5.00 | 4.50 | 3.38 | 4.25 | 4.50 | 1/4-20 x 0.5" Deep Inserts | 13 | $306.88In stock | Buy now |
Suggested Tube Types:
| Part No. | Audio · Watts | Primary Impedance · (Ohms) | Suggested Tube Types | Price | Order |
|---|---|---|---|---|---|
| 1650KP | 50 | 3400 ct | 6L6GC, 807, 5881, EL34, 6146B, 6550B | Quote | Quote |
| 1650KAP | 50 | 3400 ct | 6L6GC, 807, 5881, EL34, 6146B, 6550B | $265.35In stock | Buy now |
| 1650PAP | 60 | 6600 ct | 6L6GC, 807, 5881, EL34, 6146B, 6550B, KT88 | $270.77In stock | Buy now |
| 1650RP | 100 | 5000 ct | 807, 5881, EL34, 6146B, 6550B, KT88 | Quote | Quote |
| 1650RAP | 100 | 5000 ct | 807, 5881, EL34, 6146B, 6550B, KT88 | $306.88In stock | Buy now |
Features
- ■Designed for push-pull tube output circuits.
- ■A perfect match to our 300P potted power transformers .
- ■Enclosed in a drawn steel case, the transformer is completely potted in epoxy.
- ■Frequency response 30 Hz. to 30 Khz. at full rated power (+/- 1 db max. ref. 1 Khz) minimum.
- ■Lead connection is via 10 bottom mounted lugs.
- ■All units include 40% screen taps for Ultra-Linear operation (if desired).
- ■Finished in a black powder paint (to match our 300P series power transformers).
- ■Typical applications - Push-Pull: triode, Ultra-Linear pentode, pentode and tetrode connected audio output.
