Radiola Replacement Transformer · 118944 Series

Brand: Hammond Manufacturing · 1 part number

■This is a universal replacement type - it will replace ANY of the 3 audio transformers used (1st audio driver, second audio - phase splitter stage or output transformer), by correctly connecting the 5 lugs. A pin out and connection diagram is included.
■The cases from the old transformer will fit this new unit perfectly.

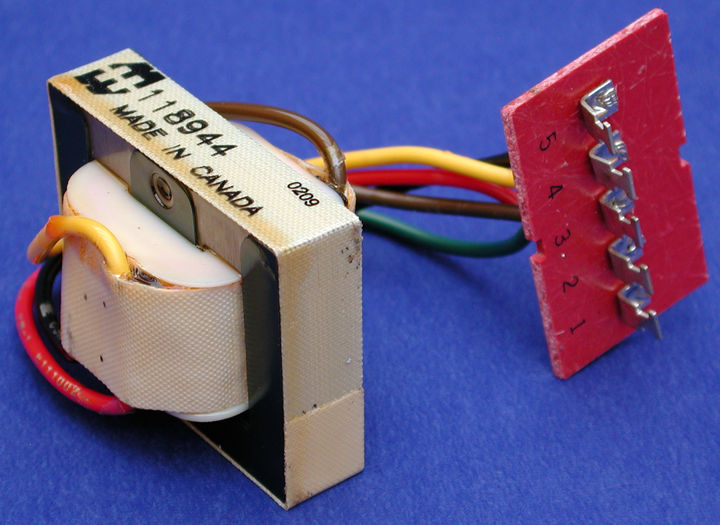

■The terminal board (included as shown above) is a duplicate of the original.
■Primary: 4,000 turns, #41 wire (lugs 4 & 2)
■Secondary: 12,000 turns C.T., #41 wire (lugs 5 & 1, lug 3 is C.T. connection)
■Termination: Solder lugs on a 1 3/4" x 1" terminal board with 4 - 5" connecting leads

from $49.15

1 of 1 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy now Request a quote

Specification sheet (PDF) (224) 955-1644

Part details Features Documents Additional information

Configure & price

Find your 118944 Series part number

Filter 1 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

1 of 1 part numbers · 1 priced online

118944

Interstage TX Radiola 111-A

$49.15In stock

Buy now

Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.	Overall Dimensions · Height	Overall Dimensions · Width	Overall Dimensions · Depth	Lamination Core Size	Lamination Core Size (2)	Weight · (Lbs)	Price	Order
118944	1.88	1.69	1.38	0.62	0.50	0.44	$49.15In stock	Buy now

Features

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: inch . Switch units to: mm

■This is a universal replacement type - it will replace ANY of the 3 audio transformers used (1st audio driver, second audio - phase splitter stage or output transformer), by correctly connecting the 5 lugs. A pin out and connection diagram is included.
■The cases from the old transformer will fit this new unit perfectly.
■The terminal board (included as shown above) is a duplicate of the original.
■Primary: 4,000 turns, #41 wire (lugs 4 & 2)
■Secondary: 12,000 turns C.T., #41 wire (lugs 5 & 1, lug 3 is C.T. connection)
■Termination: Solder lugs on a 1 3/4" x 1" terminal board with 4 - 5" connecting leads
■Mounting: uses existing case.
■Cost: under $50.00 USD!
