Audio TX B-Cast w/ Leads
- Application Isolating, Matching
- mA 0.8
- Ohms *50/200
- Ohms 50/200
$108.25Backorder
Buy now

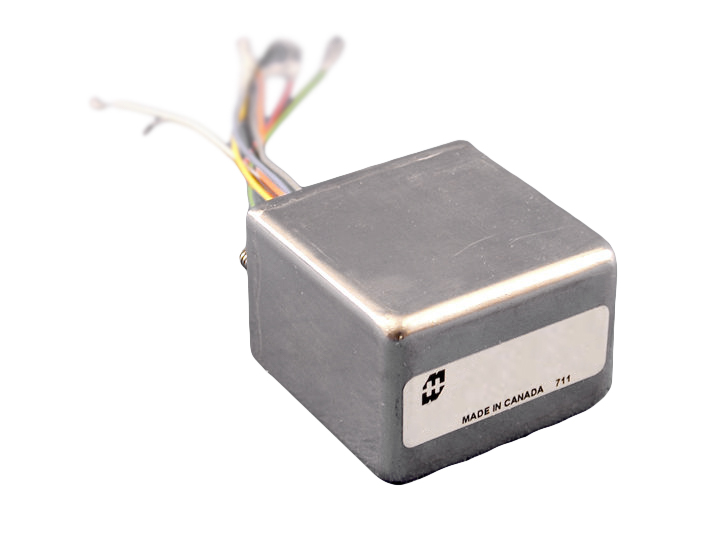

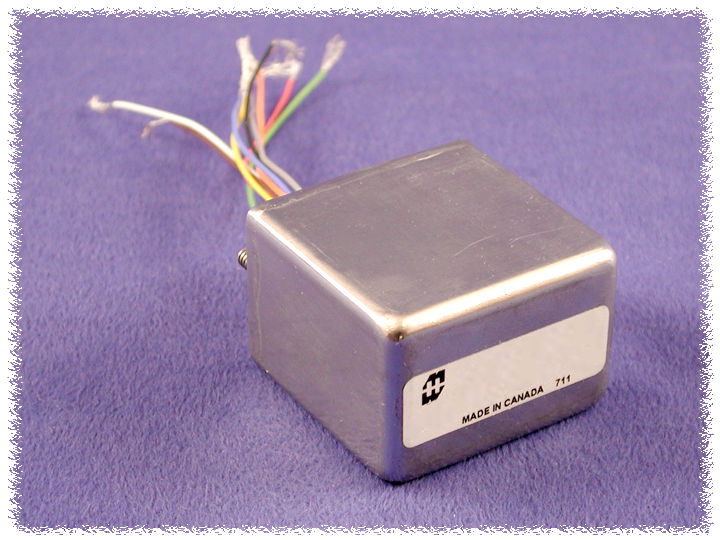

Audio Broadcast Quality · 800A Series
Brand: Hammond Manufacturing · 15 part numbers
- ■Deep-drawn steel case with tin plated finish, with two convenient 6-32 mounting studs with hardware.
- ■Includes wire leads (minimum length of 4").
- ■Frequency response +/- 0.5 db max. from 50 Hz. to 15 Khz.
- ■Insertion loss of apx. 1 db.
- ■Maximum power level +15 dbm. (except 841A, 842A & 844A which are +20 dbm) with specified characteristics, or higher levels with reduced low frequency performance.
- ■Electrostatic shield between pri. & sec.
from $108.25
15 of 15 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 800A Series part number
Filter 15 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
15 of 15 part numbers · 15 priced online
Audio TX B-Cast w/ Leads
- Application Isolating, Matching
- mA 0.8
- Ohms *50/200 (60/240)
- Ohms 125/500 (150/600)
$108.25In stock
Buy nowAudio TX B-Cast w/ Leads
- Application Isolating, Matching, Hybrid
- mA 0.5
- Ohms *125/500 (150/600)
- Ohms 125/500 (150/600)
$108.25Backorder
Buy nowAudio TX B-Cast w/ Leads
- Application Dynamic MIC or Voice Coil to Grid
- mA 1.6
- Ohms *7.5/30
- Ohms 10K/40K
$108.25Backorder
Buy nowAudio TX B-Cast w/ Leads
- Application Dynamic MIC or Voice Coil to Base
- mA 1.6
- Ohms *7.5/30
- Ohms 600/2400
$108.25In stock
Buy nowAudio TX B-Cast w/ Leads
- Application MIC or Mixer to Single or P.P. Grid
- mA 0.6
- Ohms *50/200
- Ohms 10000/40000
$108.25Backorder
Buy nowAudio TX B-Cast w/ Leads
- Application MIC to Mixer to Base
- mA 0.6
- Ohms *50/200
- Ohms 600/2400
$108.25Backorder
Buy nowAudio TX B-Cast w/ Leads
- Application Line or 150 ohm MIC to 1 or 2 Grids
- mA 0.4
- Ohms *125/500 (150/600)
- Ohms 10K/40K (12K/48K)
$108.25In stock
Buy nowAudio TX B-Cast w/ Leads
- Application Line or 150 ohm MIC to Base
- mA 0.4
- Ohms *125/500 (150/600)
- Ohms 600/2400 (720/2880)
$108.25Backorder
Buy nowAudio TX B-Cast w/ Leads
- Application Interstage (ratio 1:2)
- mA 0
- Ohms 5K/20K
- Ohms 20K/80K
$108.25In stock
Buy nowAudio TX B-Cast w/ Leads
- Application Interstage (ratio 1:4)
- mA 0
- Ohms 5K/20K
- Ohms 10K/40K
$108.25Backorder
Buy nowAudio TX B-Cast w/ Leads
- Application Interstage (ratio 1:1)
- mA 0
- Ohms 10K/40K
- Ohms 10K/40K
$108.25Backorder
Buy nowAudio TX B-Cast w/ Leads
- Application ** P.P. Plates to Line
- mA 0
- Ohms 5K/20K
- Ohms 50/200
$108.25Backorder
Buy nowAudio TX B-Cast w/ Leads
- Application ** P.P. Plates to Line
- mA 0
- Ohms 5K/20K (6K/24K)
- Ohms 125/500 (150/600)
$108.25In stock
Buy nowAudio TX B-Cast w/ Leads
- Application ** P.P. Plates to Line
- mA 0
- Ohms 10K/40K (12K/48K)
- Ohms 125/500 (150/600)
$108.25Backorder
Buy nowDimension tables (inches / mm)
| Part No. | Application | Nominal Impedance · (Ohms) · Primary | Nominal Impedance · (Ohms) · Secondary | Max. Primary D.C. · Unbalanced Current · (ma.) | Price | Order |
|---|---|---|---|---|---|---|
| 801A | Isolating, Matching | *50/200 | 50/200 | 0.8 | $108.25Backorder | Buy now |
| 802A | Isolating, Matching | *50/200 (60/240) | 125/500 (150/600) | 0.8 | $108.25In stock | Buy now |
| 804A | Isolating, Matching, Hybrid | *125/500 (150/600) | 125/500 (150/600) | 0.5 | $108.25Backorder | Buy now |
| 806A | Dynamic MIC or Voice Coil to Grid | *7.5/30 | 10K/40K | 1.6 | $108.25Backorder | Buy now |
| 807A | Dynamic MIC or Voice Coil to Base | *7.5/30 | 600/2400 | 1.6 | $108.25In stock | Buy now |
| 808A | MIC or Mixer to Single or P.P. Grid | *50/200 | 10000/40000 | 0.6 | $108.25Backorder | Buy now |
| 809A | MIC to Mixer to Base | *50/200 | 600/2400 | 0.6 | $108.25Backorder | Buy now |
| 812A | Line or 150 ohm MIC to 1 or 2 Grids | *125/500 (150/600) | 10K/40K (12K/48K) | 0.4 | $108.25In stock | Buy now |
| 813A | Line or 150 ohm MIC to Base | *125/500 (150/600) | 600/2400 (720/2880) | 0.4 | $108.25Backorder | Buy now |
| 832A | Interstage (ratio 1:2) | 5K/20K | 20K/80K | 0 | $108.25In stock | Buy now |
| 834A | Interstage (ratio 1:1.4) | 5K/20K | 10K/40K | 0 | $108.25Backorder | Buy now |
| 835A | Interstage (ratio 1:1) | 10K/40K | 10K/40K | 0 | $108.25Backorder | Buy now |
| 841A | ** P.P. Plates to Line | 5K/20K | 50/200 | 0 | $108.25Backorder | Buy now |
| 842A | ** P.P. Plates to Line | 5K/20K (6K/24K) | 125/500 (150/600) | 0 | $108.25In stock | Buy now |
| 844A | ** P.P. Plates to Line | 10K/40K (12K/48K) | 125/500 (150/600) | 0 | $108.25Backorder | Buy now |
Features
- ■Deep-drawn steel case with tin plated finish, with two convenient 6-32 mounting studs with hardware.
- ■Includes wire leads (minimum length of 4").
- ■Frequency response +/- 0.5 db max. from 50 Hz. to 15 Khz.
- ■Insertion loss of apx. 1 db.
- ■Maximum power level +15 dbm. (except 841A, 842A & 844A which are +20 dbm) with specified characteristics, or higher levels with reduced low frequency performance.
- ■Electrostatic shield between pri. & sec.
- ■Humbucking construction
- ■Balanced split windings on pri. & sec. for circuit versatility. Primary may be used as a secondary and vice versa for impedance matching.
- ■Overall dimensions 1.75" (44.5 mm) wide x 1.25" (31.8 mm) deep x 2.56" (65 mm) high max.
- ■Shipping weight 0.5 lb. (0.2 kg)
