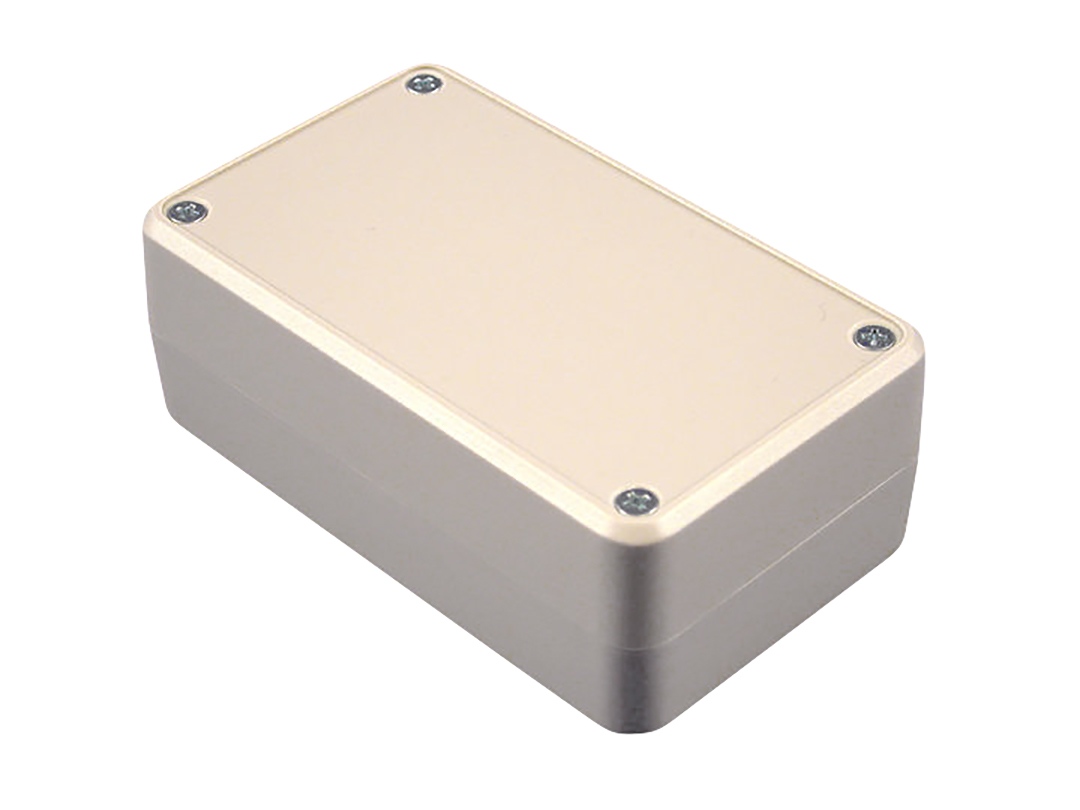

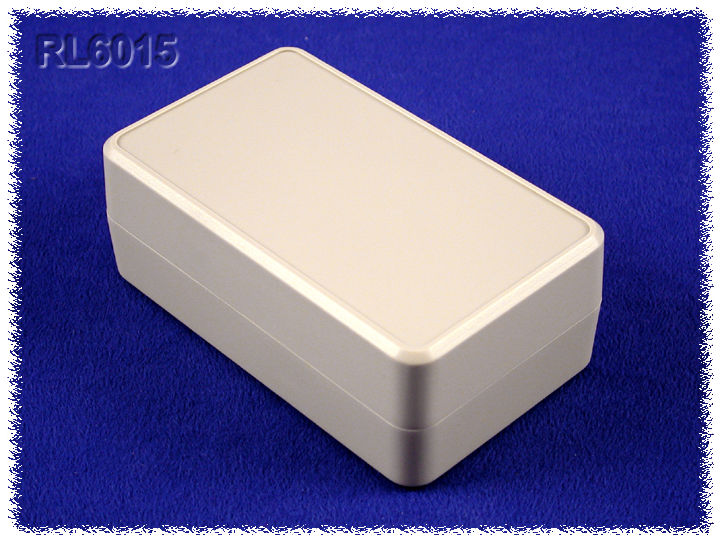

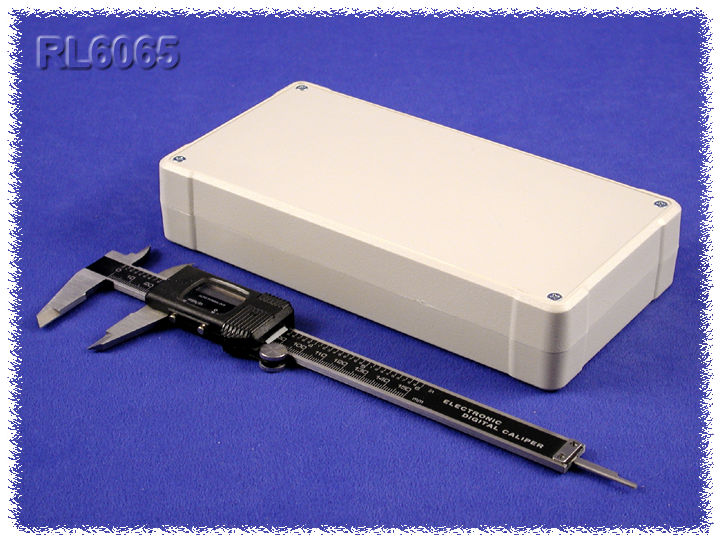

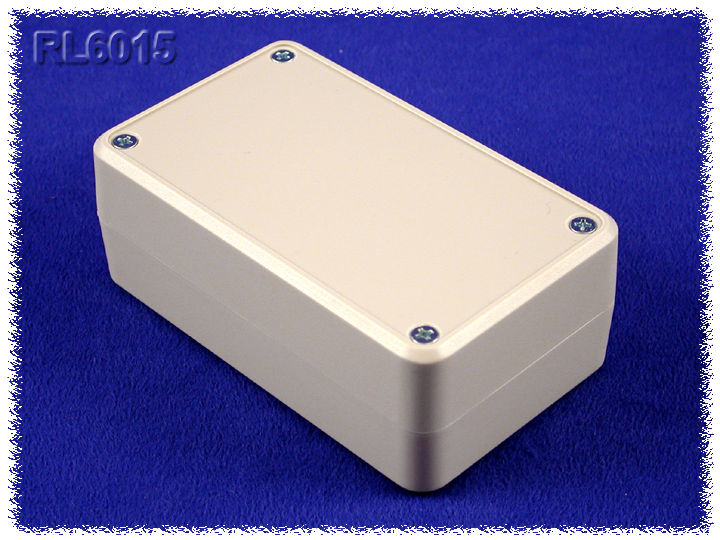

ABS Plastic Project Enclosures · RL Series

Key Features:

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

• ■Designed to house PC boards for handheld use.
• ■Molded in light grey or black general purpose ABS plastic which carries a UL flammability rating of UL94 HB.

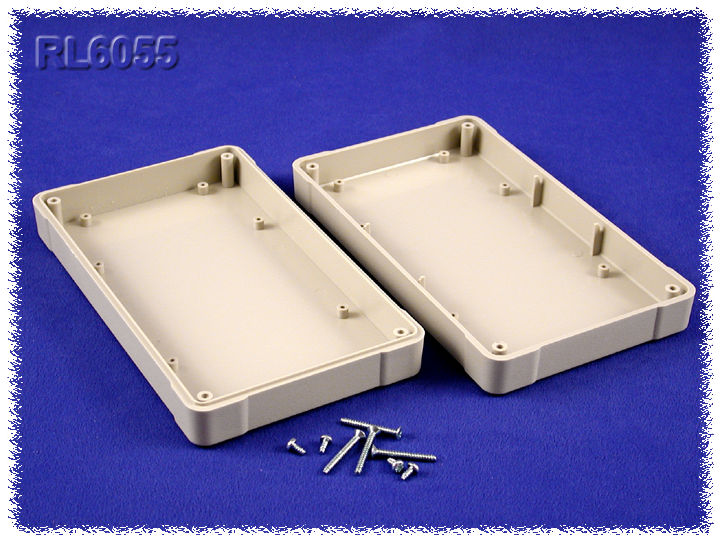

• ■Two-part, snap action clam shell construction. Both halves include a smooth recessed area for membranes, keypads, labels, and more.

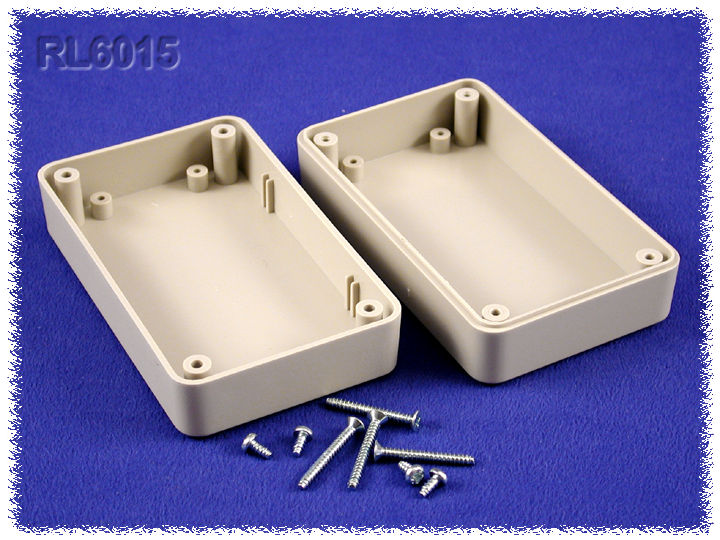

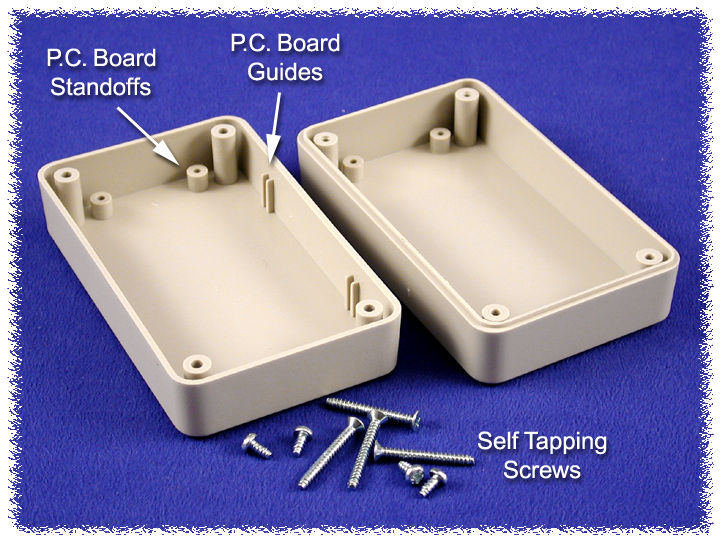

• ■PC board standoffs are molded into both top and bottom half of enclosure.
• ■Designed to meet IP54.
• ■Includes four M3 lid screws and four short M3 PC board screws.
• ■For replacement lid screws (quantity 50) order part number SC617-50 .
• ■For replacement PC board screws (quantity 50) order part number SC622-50 .
• ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
