Sloped Aluminum Consoles 1456 Series

Sloped Aluminum Consoles · 1456 Series

Brand: Hammond Manufacturing · 81 part numbers

  • ■Aluminum cases 0.081” (2 mm) thick aluminum.
  • ■Aluminum top panel sizes to 14” wide are 0.064” thick aluminum. Larger sizes are 0.081” thick.
  • ■Sold pre-assembled with a textured blue case and a choice of a contempra grey (beige) or a black top panel.
  • ■Comes with self adhesive rubber feet and required mounting hardware.
  • ■Some models available with walnut sides - see series 1456CWW
  • ■Replacement screws 1421J6 (#6-32 Philips head sheet metal screws, pack of 6).

from $21.67

81 of 81 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your 1456 Series part number

Filter 81 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

81 of 81 part numbers · 81 priced online

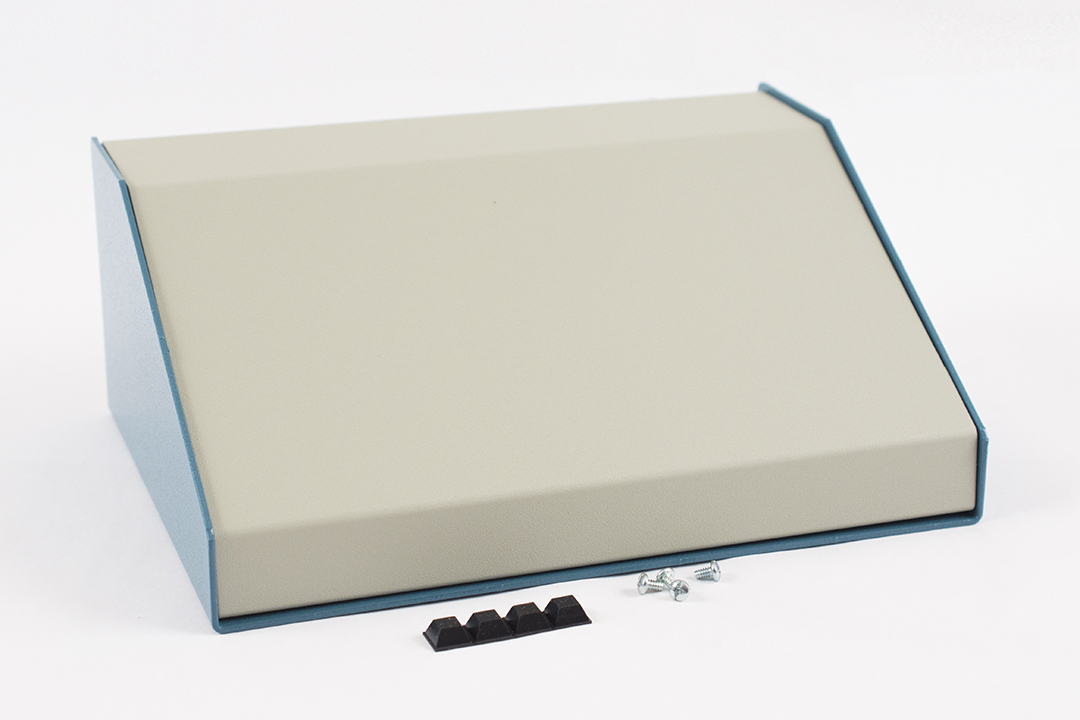

1456KG4WHBU

Use 1456KG4WHBU

  • Color Blue
  • Slope 30 Degrees
$31.66In stock
Buy now
Dimension tables (inches / mm)

Enclosures

Units shown: inch . Switch units to: mm

SlopeBeige Top w/ Blue Case (Part No.)Black Top w/ Blue Case (Part No.)Black Top w/ Black Case (Part No.)WidthDepthRear HeightFront HeightPriceOrder

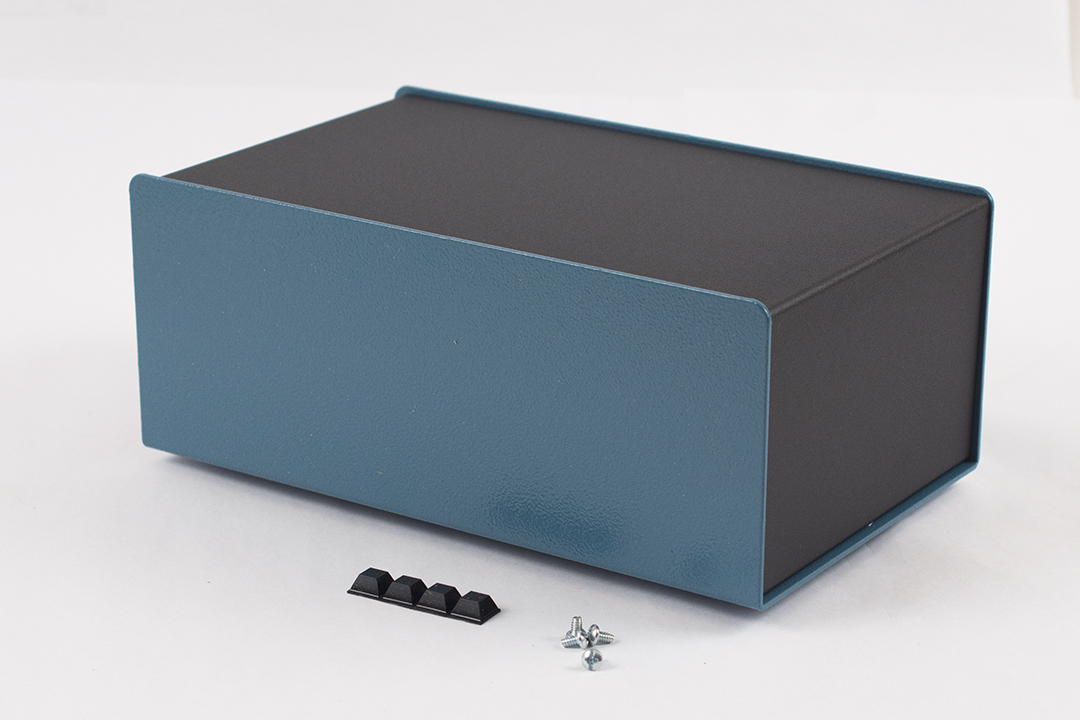

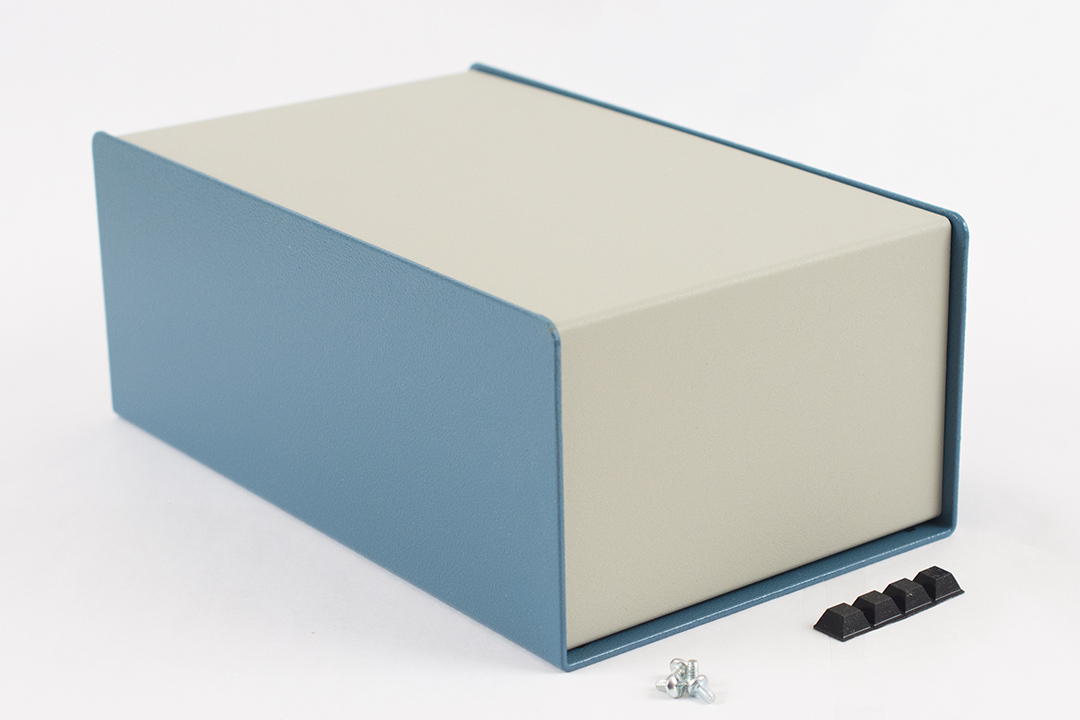

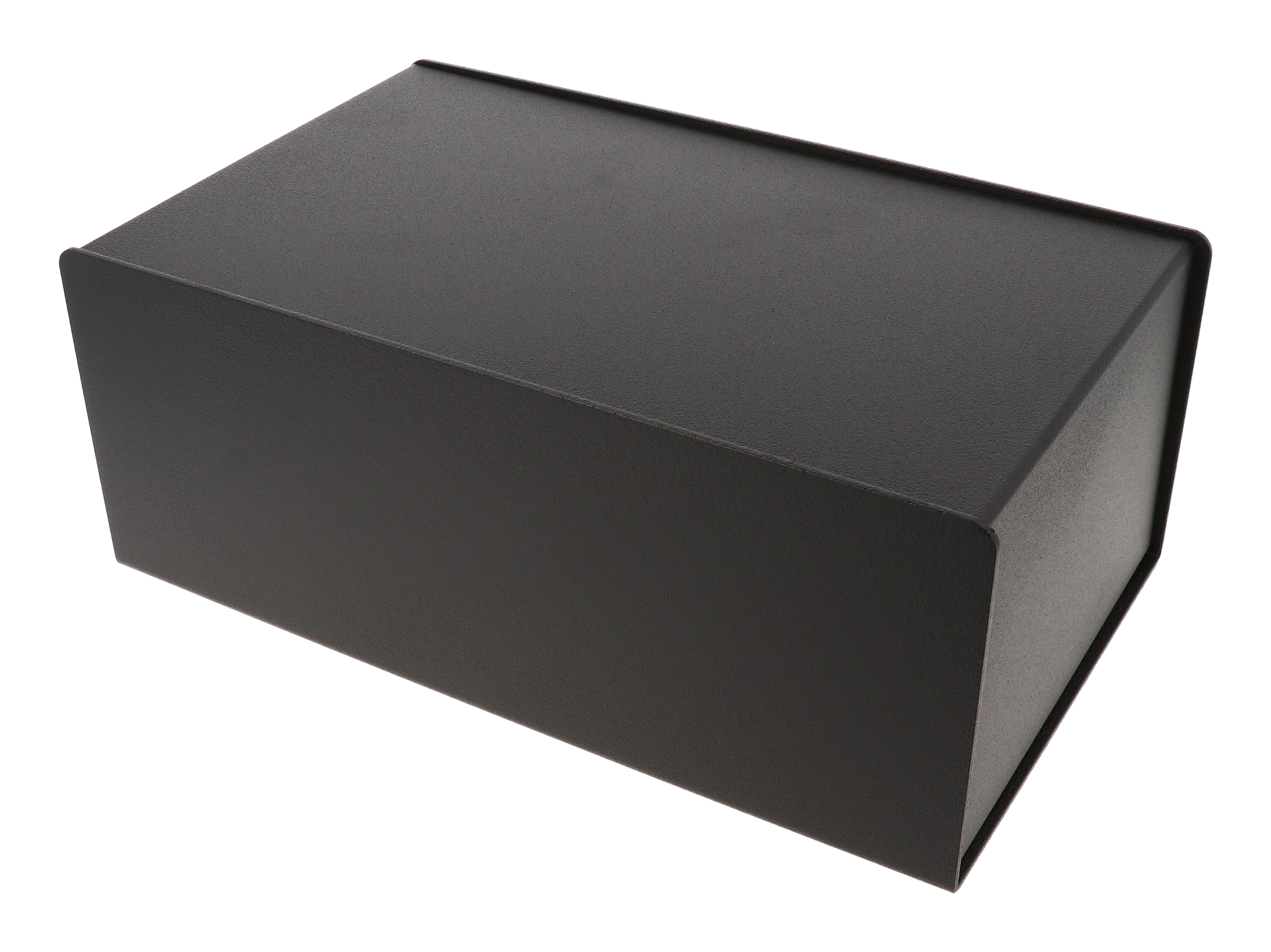

None1456NEK4WHBU1456NEK4BKBU1456NEK4BKBK6.0010.004.004.00$31.66In stock1456NEK4WHBUBuy now

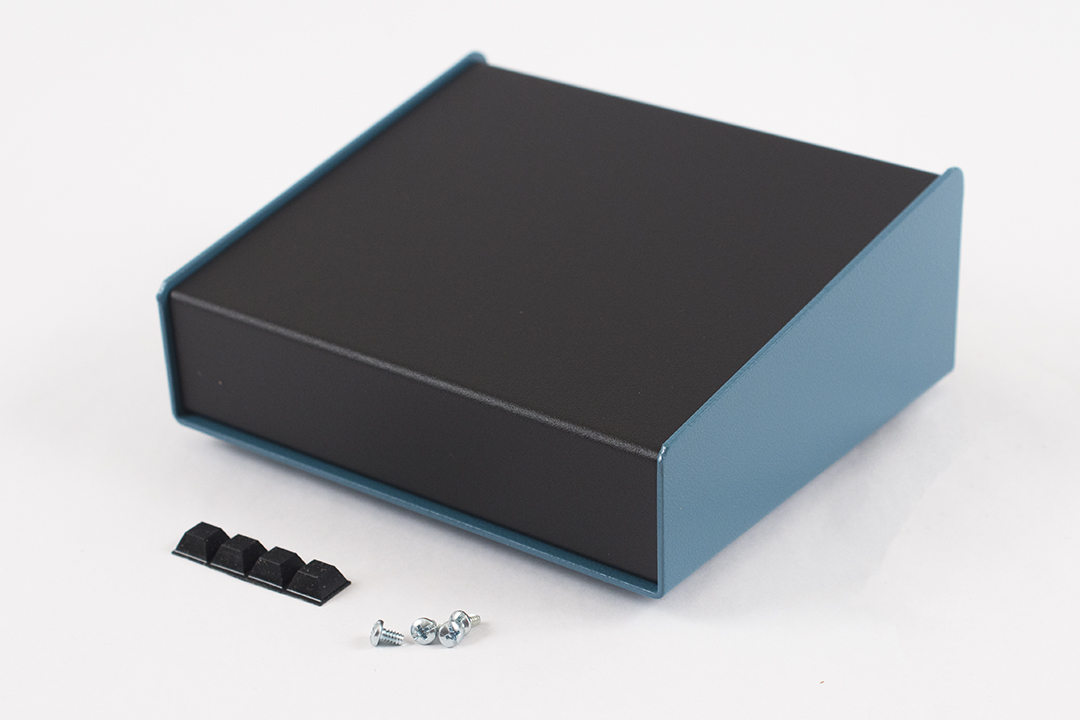

10 Degrees1456FE1WHBU1456FE1BKBU1456FE1BKBK6.505.502.501.50$24.30In stock1456FE1WHBUBuy now

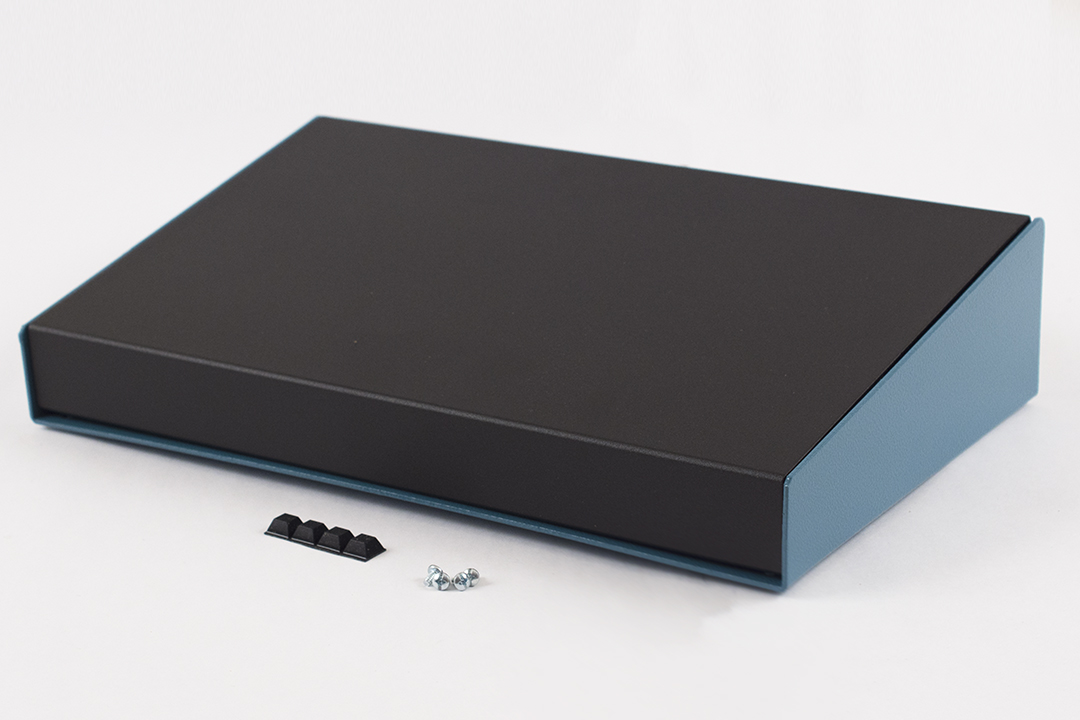

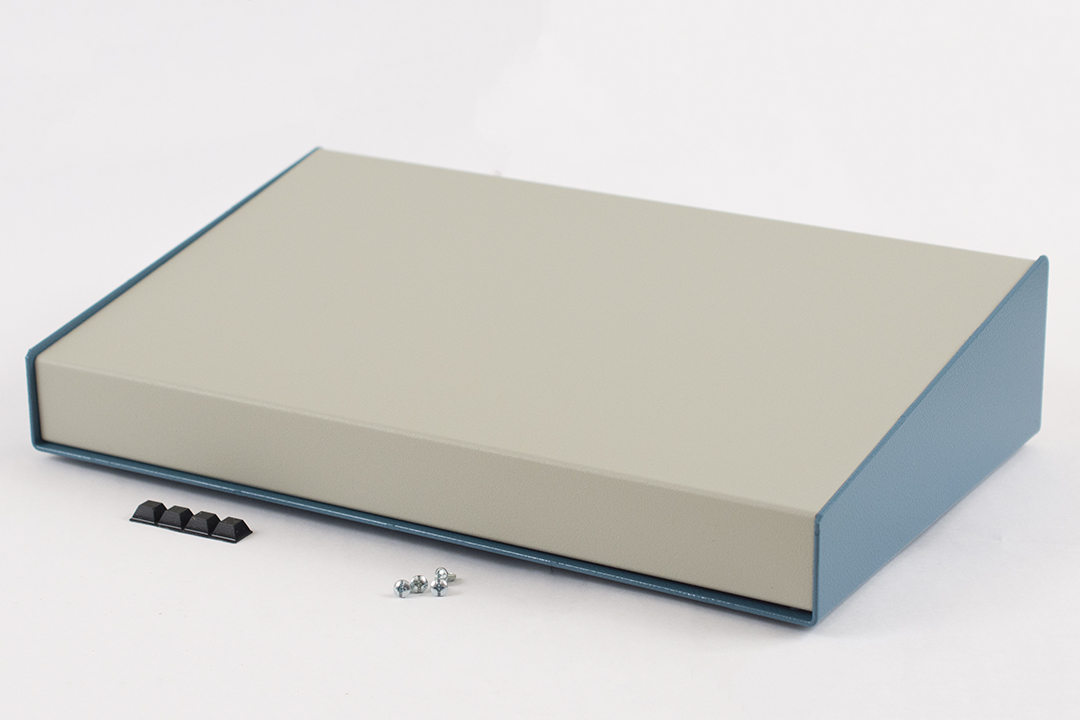

10 Degrees1456PH1WHBU1456PH1BKBU1456PH1BKBK14.008.303.001.50$35.59In stock1456PH1WHBUBuy now
10 Degrees1456RL1WHBU1456RL1BKBU1456RL1BKBK17.0011.303.501.50$42.44In stock1456RL1WHBUBuy now
10 Degrees1456WL1WHBU1456WL1BKBU1456WL1BKBK20.0011.303.501.50$50.14In stock1456WL1WHBUBuy now
15 degrees1456CE2WHBU1456CE2BKBU1456CE2BKBK4.005.502.001.10$21.67In stock1456CE2WHBUBuy now
15 Degrees1456FE2WHBU1456FE2BKBU1456FE2BKBK6.505.502.001.10$24.30In stock1456FE2WHBUBuy now

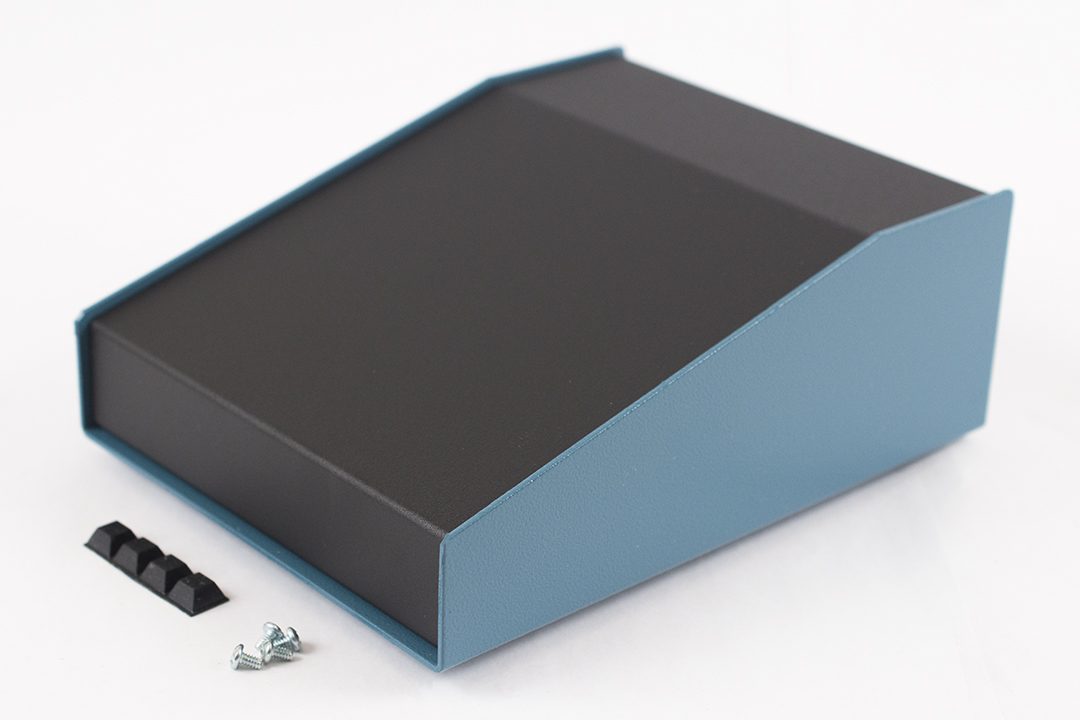

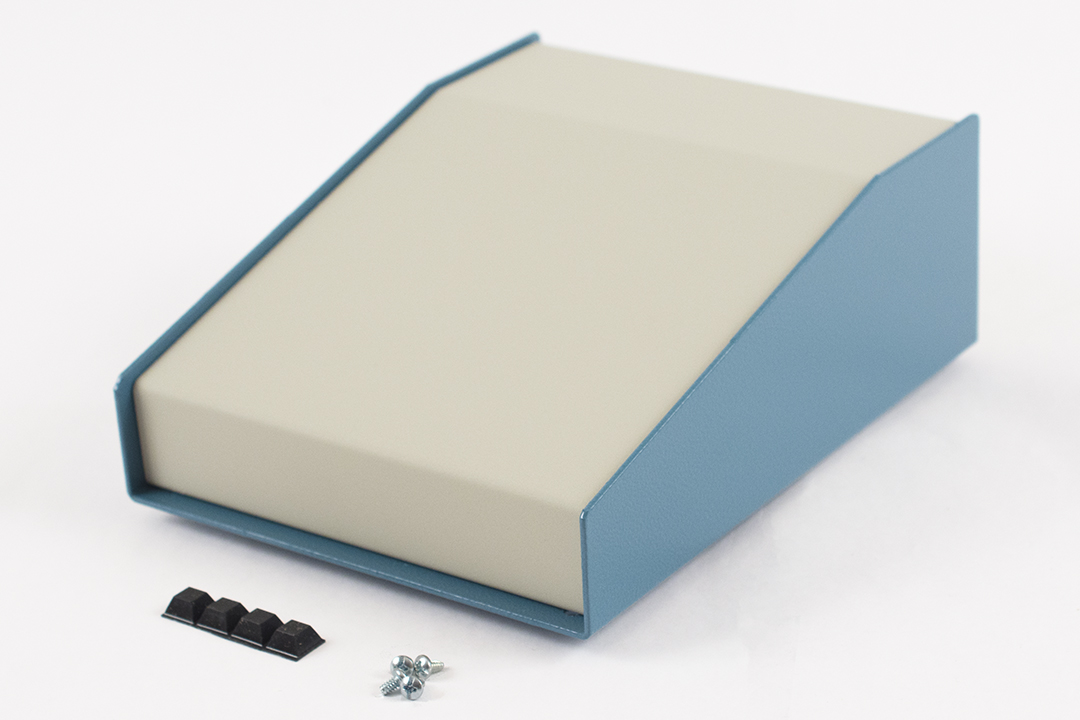

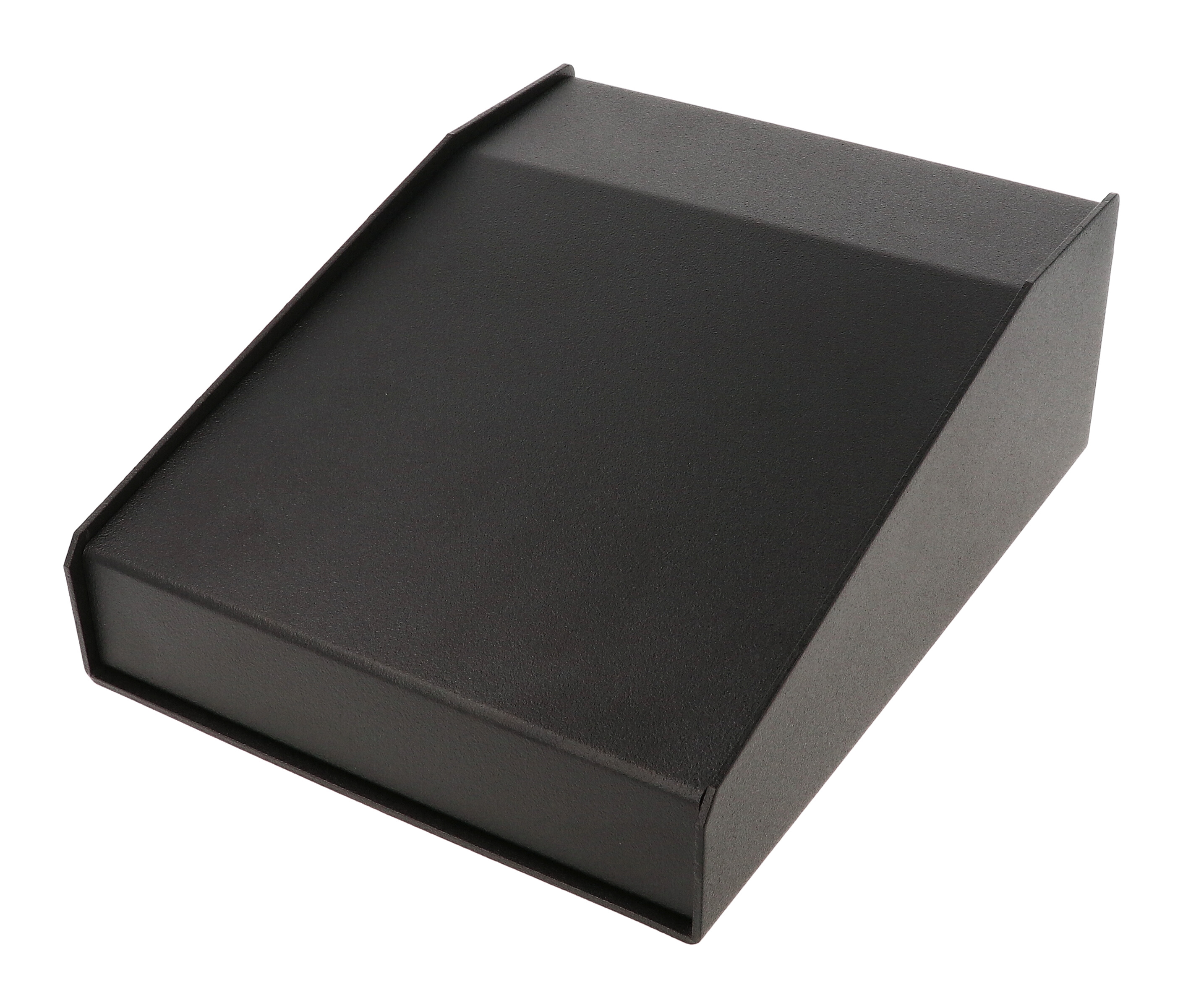

15 Degrees1456FH3WHBU1456FH3BKBU1456FH3BKBK6.508.303.001.30$29.52In stock1456FH3WHBUBuy now

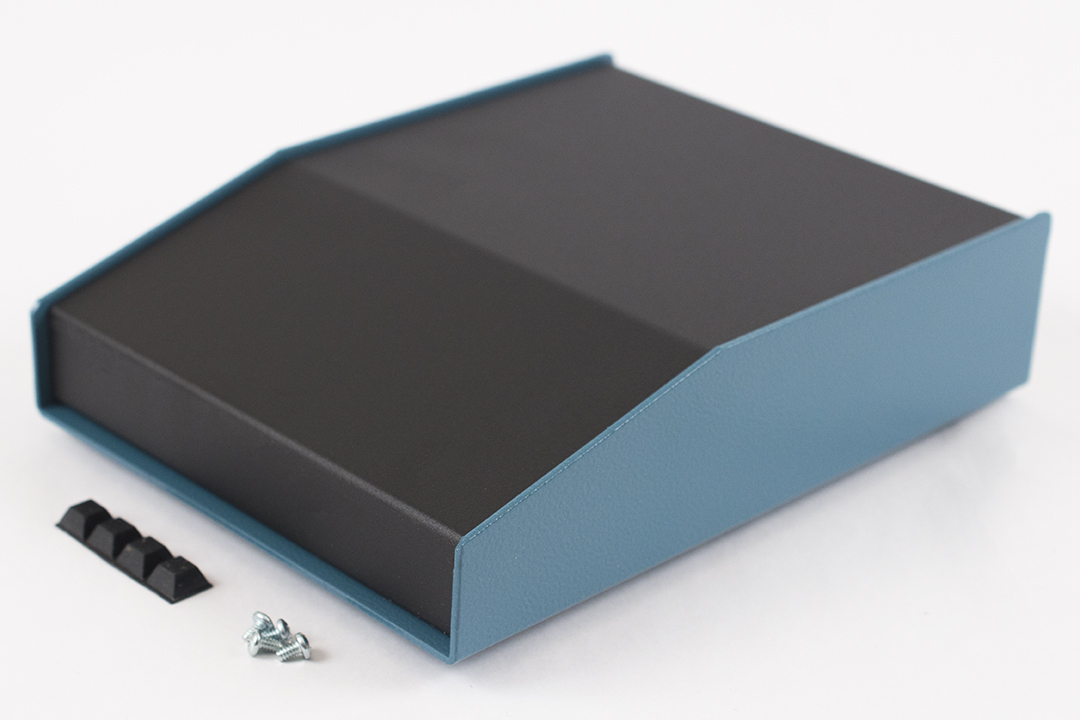

15 Degrees1456FH2WHBU1456FH2BKBU1456FH2BKBK6.508.502.001.10$26.50In stock1456FH2WHBUBuy now

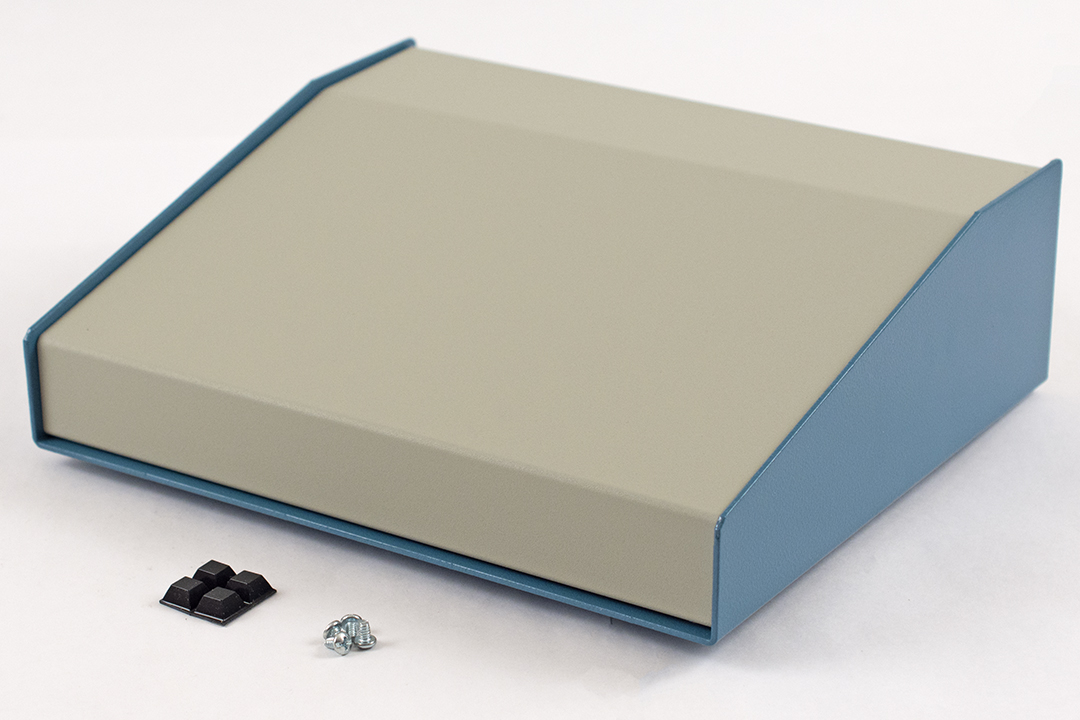

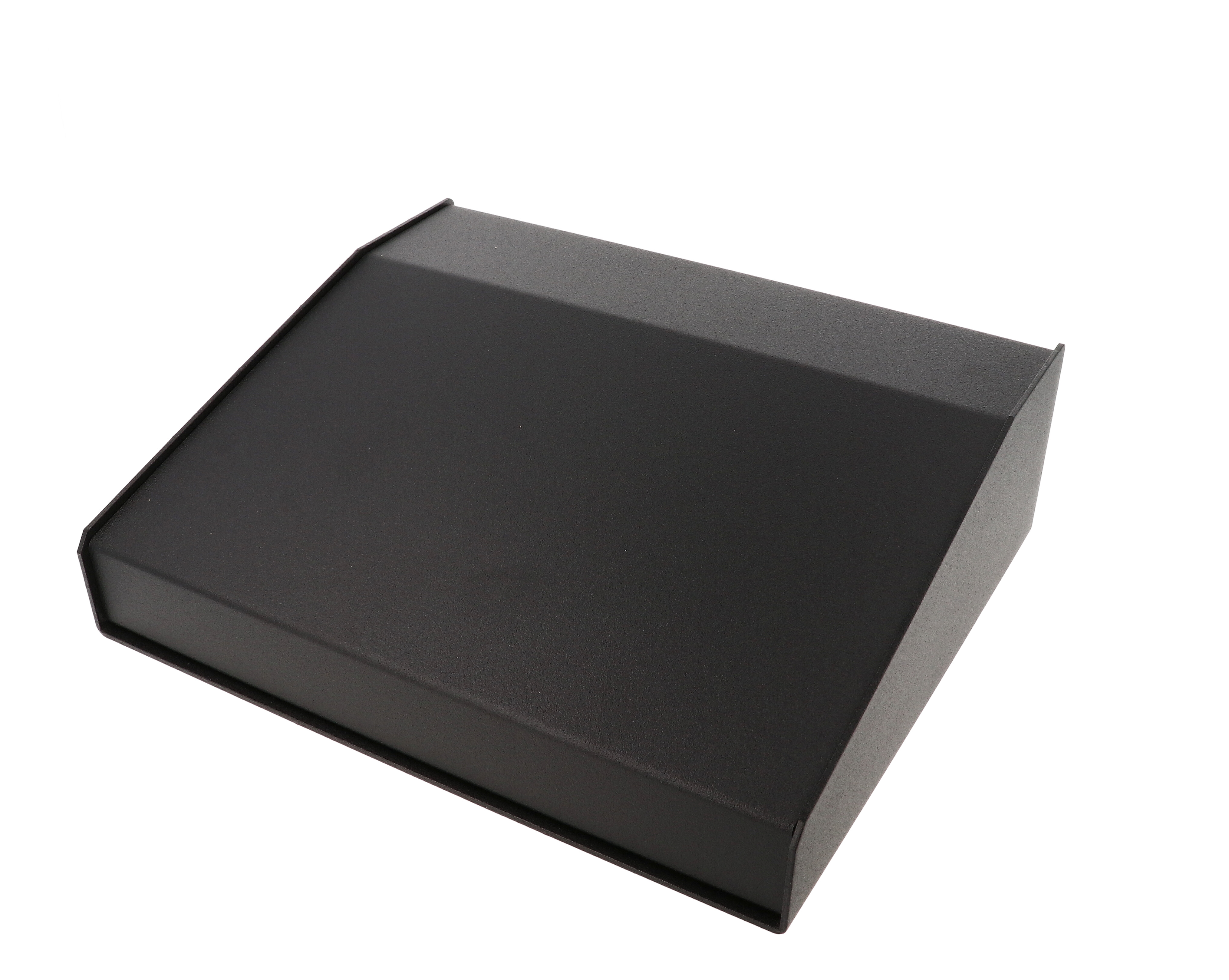

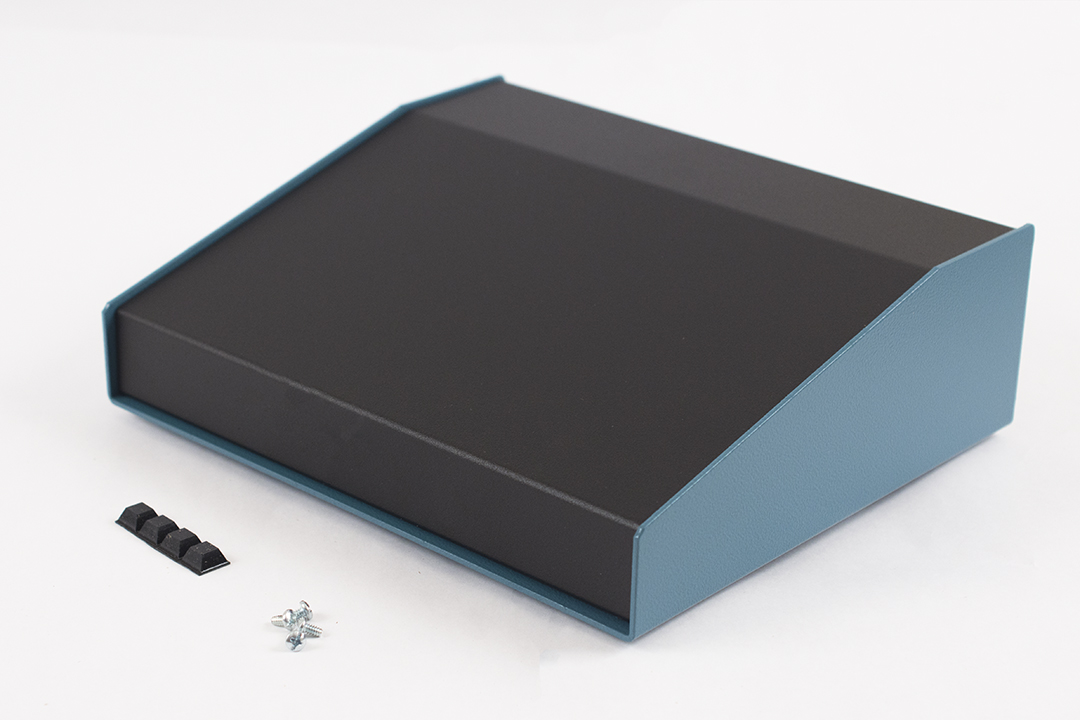

15 Degrees1456KH3WHBU1456KH3BKBU1456KH3BKBK10.008.303.001.30$31.66In stock1456KH3WHBUBuy now

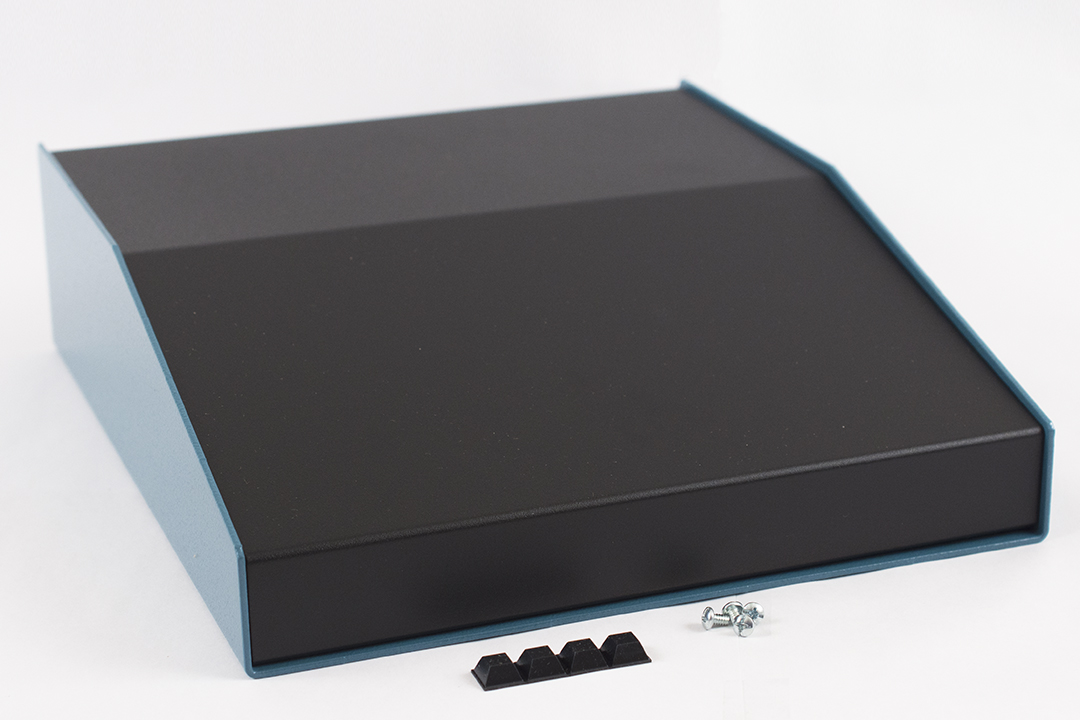

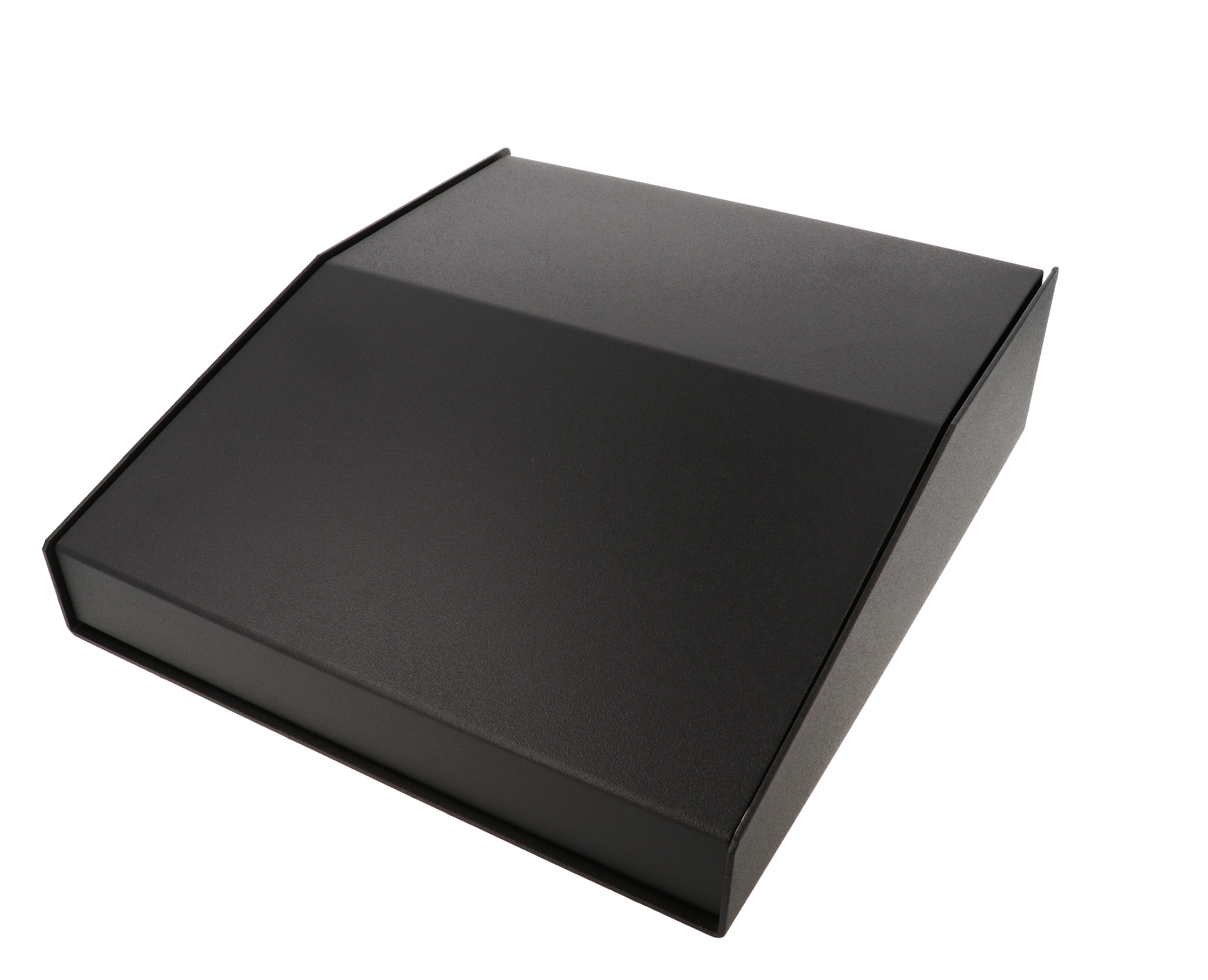

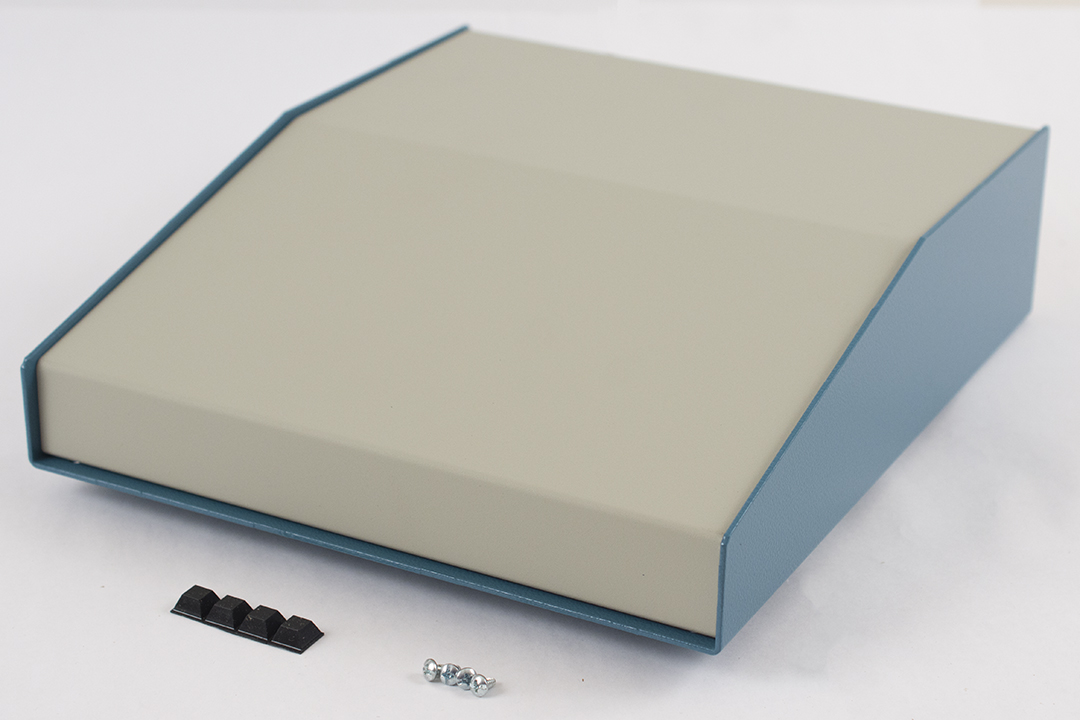

15 Degrees1456KL3WHBU1456KL3BKBU1456KL3BKBK10.0011.303.001.30$34.71In stock1456KL3WHBUBuy now
15 Degrees1456PH3WHBU1456PH3BKBU1456PH3BKBK14.008.303.001.30$35.59In stock1456PH3WHBUBuy now
15 Degrees1456PL3WHBU1456PL3BKBU1456PL3BKBK14.0011.303.001.30$38.24In stock1456PL3WHBUBuy now
15 Degrees1456RH3WHBU1456RH3BKBU1456RH3BKBK17.008.303.001.30$42.44In stock1456RH3WHBUBuy now
15 Degrees1456RL3WHBU1456RL3BKBU1456RL3BKBK17.0011.303.001.30$44.30In stock1456RL3WHBUBuy now
15 Degrees1456WH3WHBU1456WH3BKBU1456WH3BKBK20.008.303.001.30$48.25In stock1456WH3WHBUBuy now
15 Degrees1456WL3WHBU1456WL3BKBU1456WL3BKBK20.0011.303.001.30$50.14In stock1456WL3WHBUBuy now

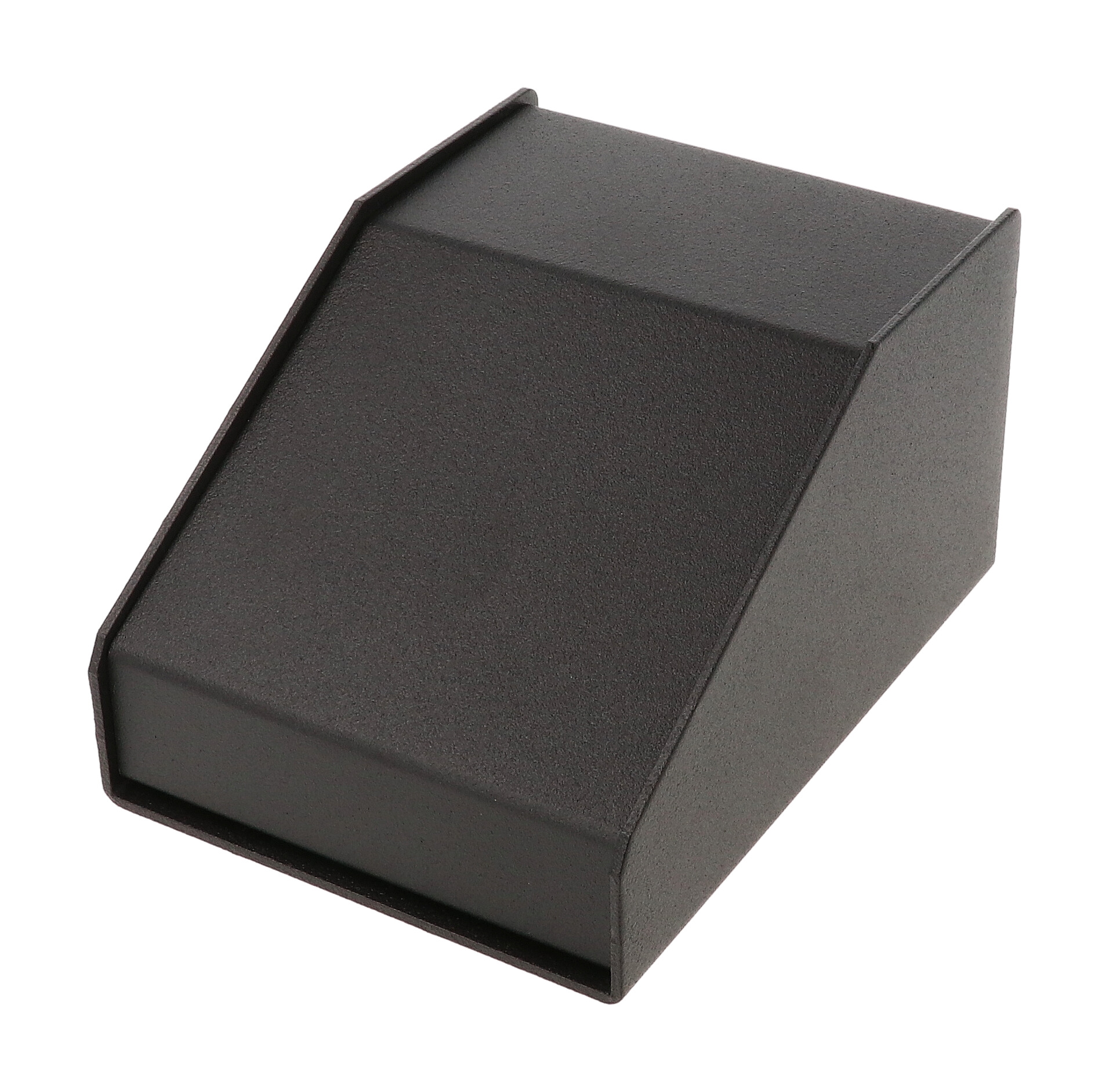

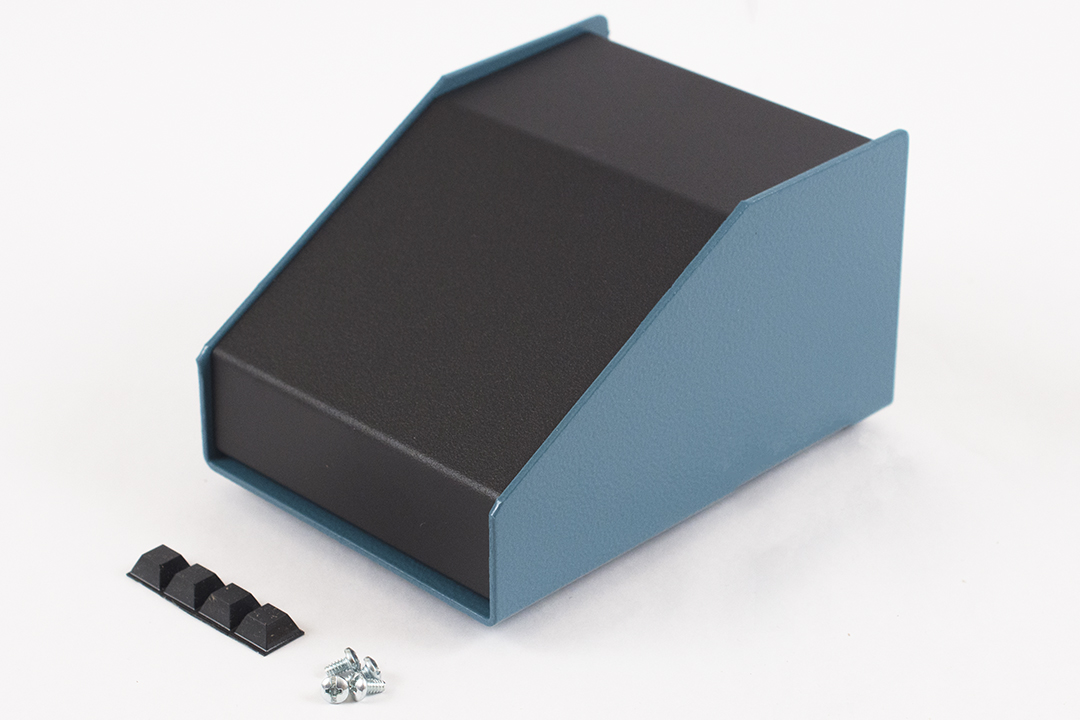

30 Degrees1456CE3WHBU1456CE3BKBU1456CE3BKBK4.005.503.001.10$21.67In stock1456CE3WHBUBuy now

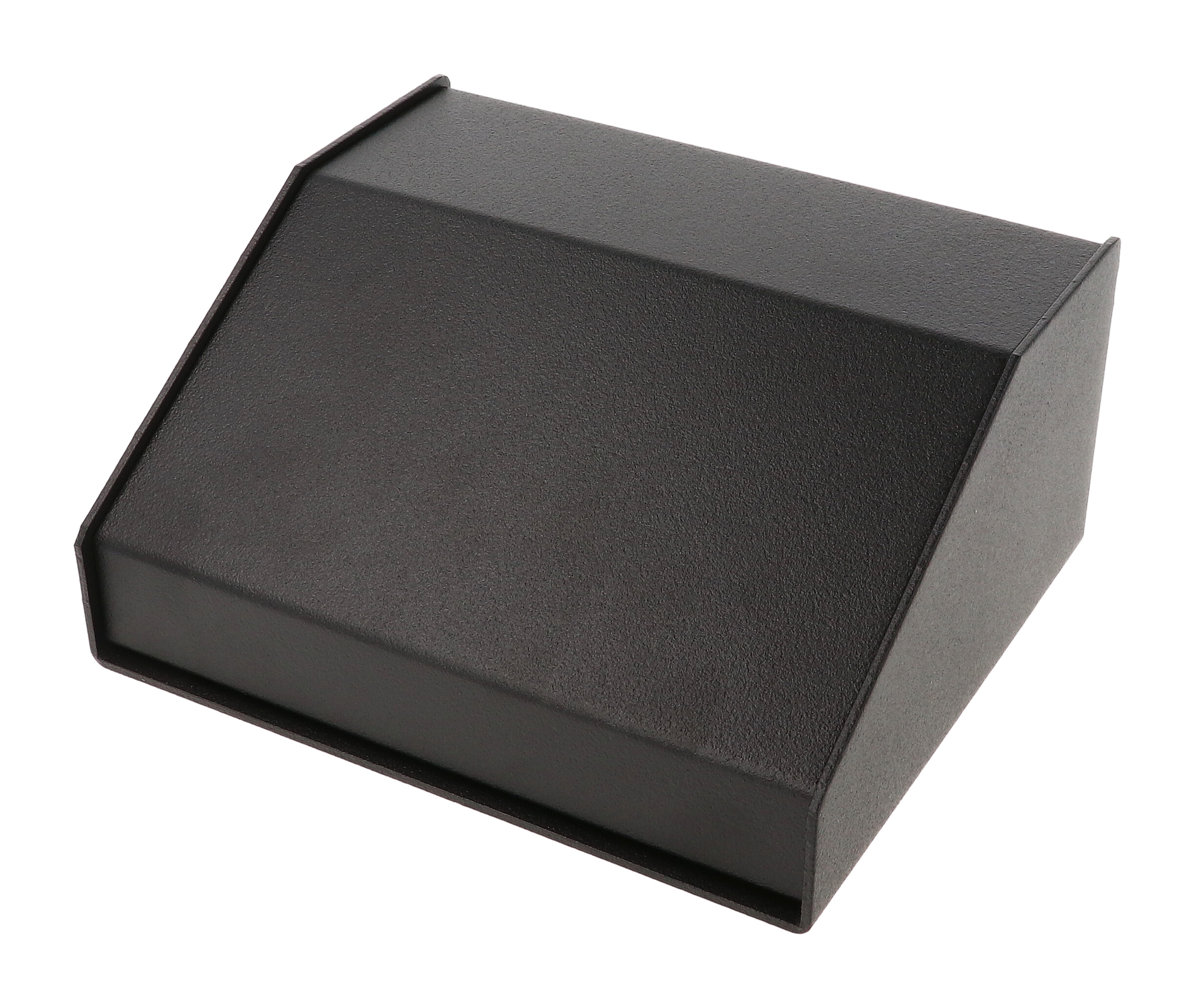

30 Degrees1456FE3WHBU1456FE3BKBU1456FE3BKBK6.505.503.001.10$24.21In stock1456FE3WHBUBuy now

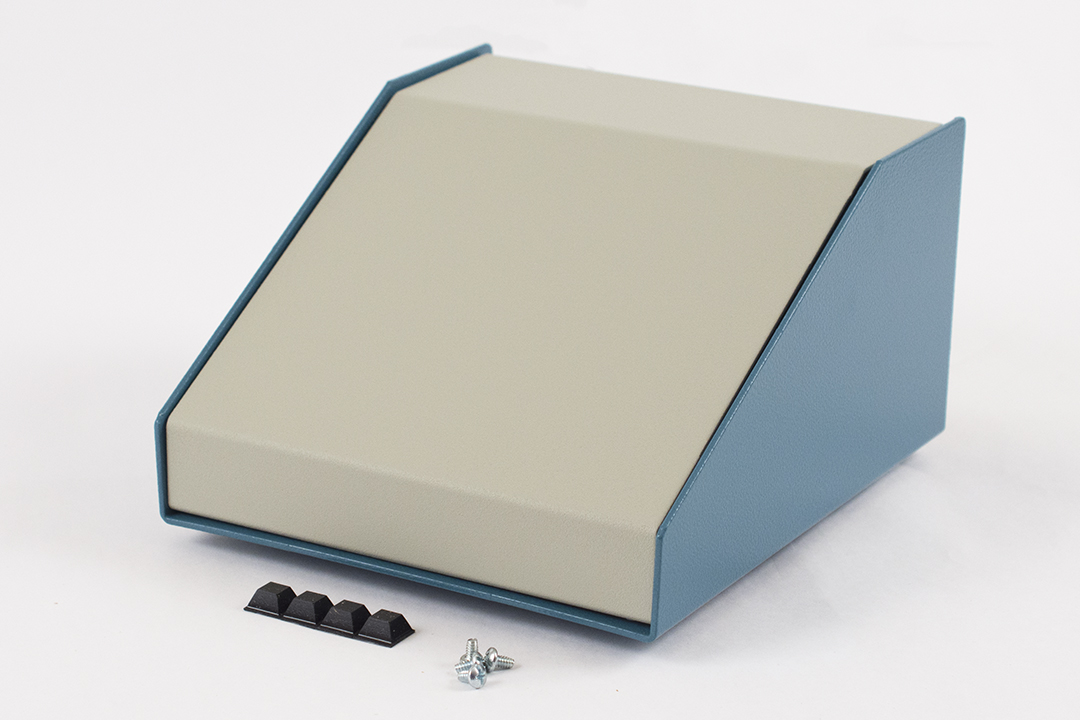

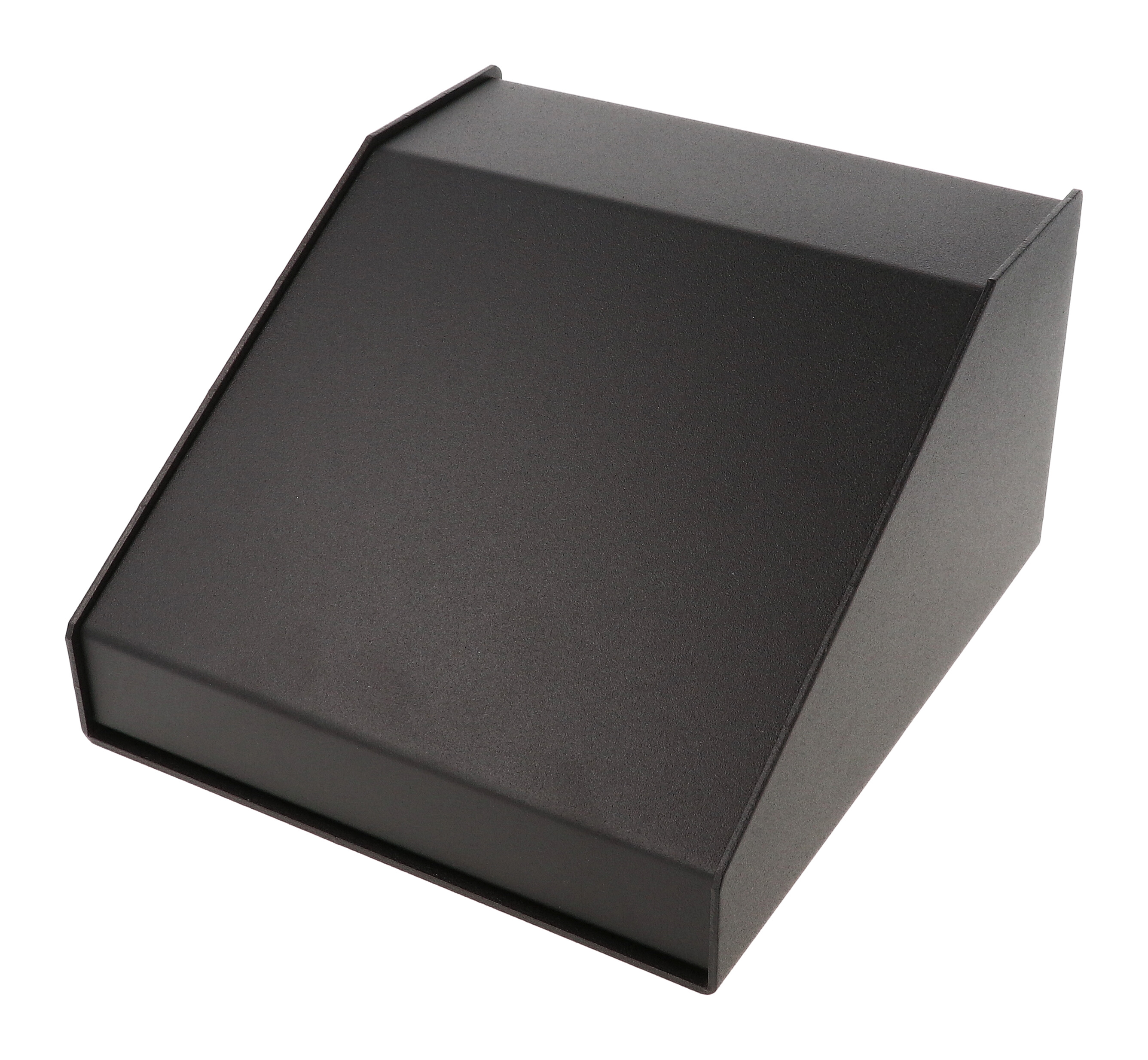

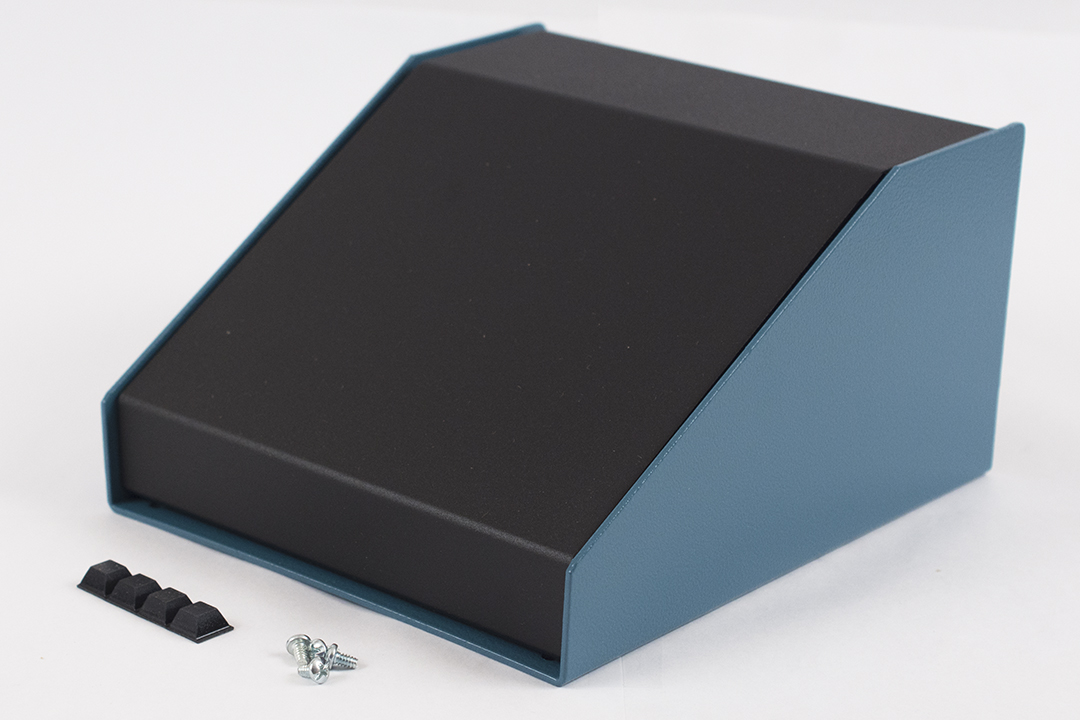

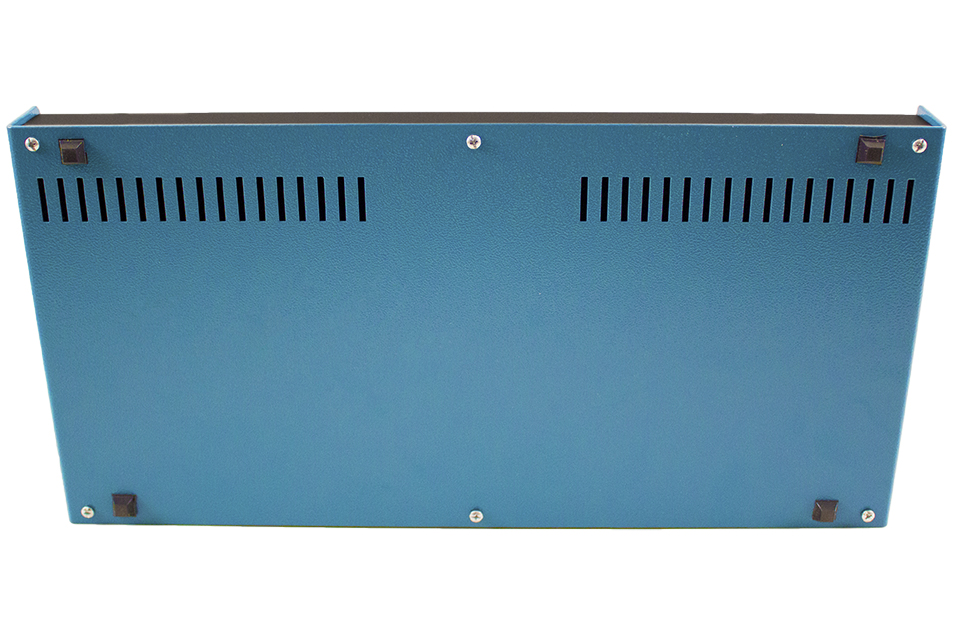

30 Degrees1456FG4WHBU1456FG4BKBU1456FG4BKBK6.507.204.001.10$26.50In stock1456FG4WHBUBuy now

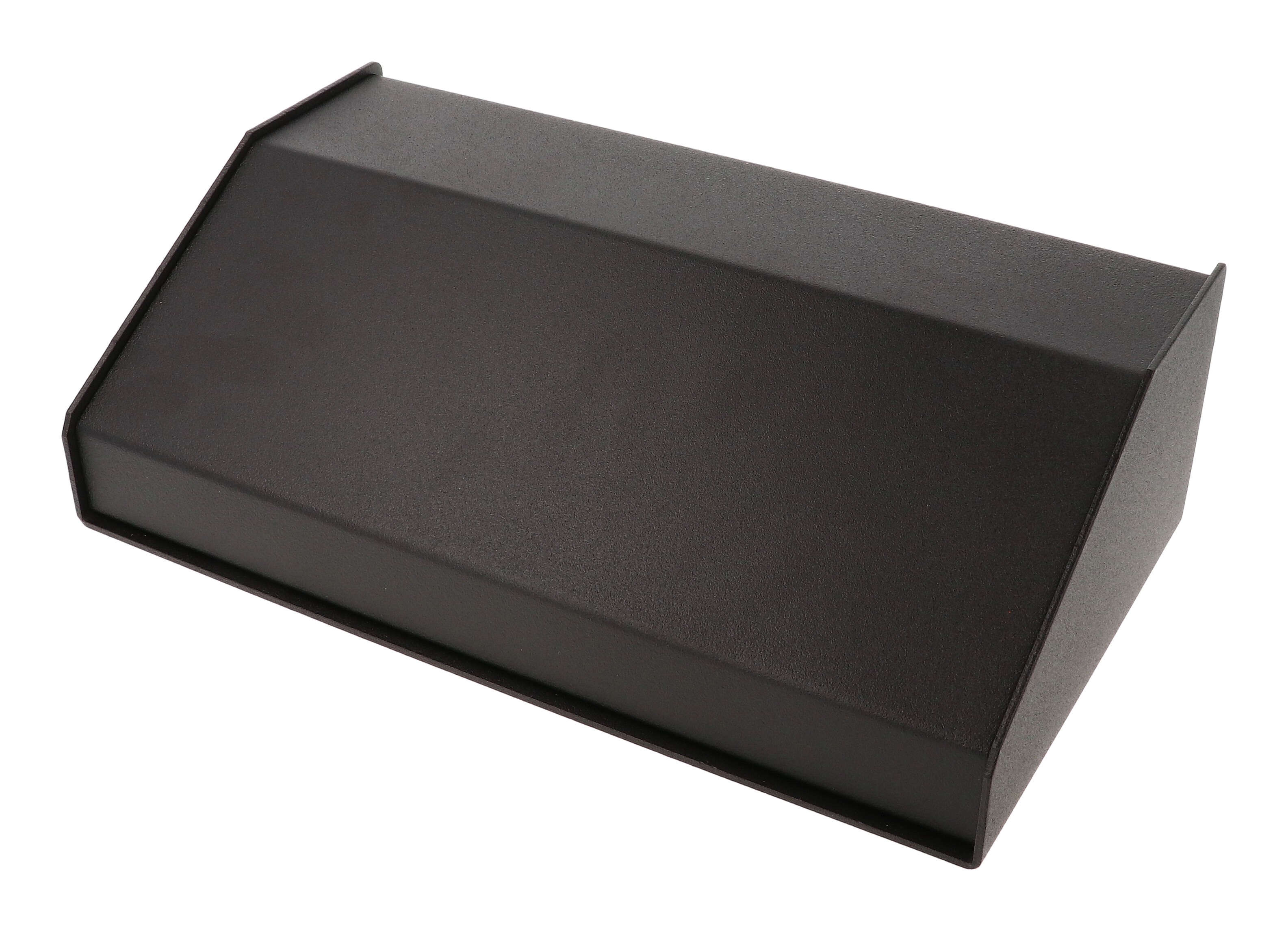

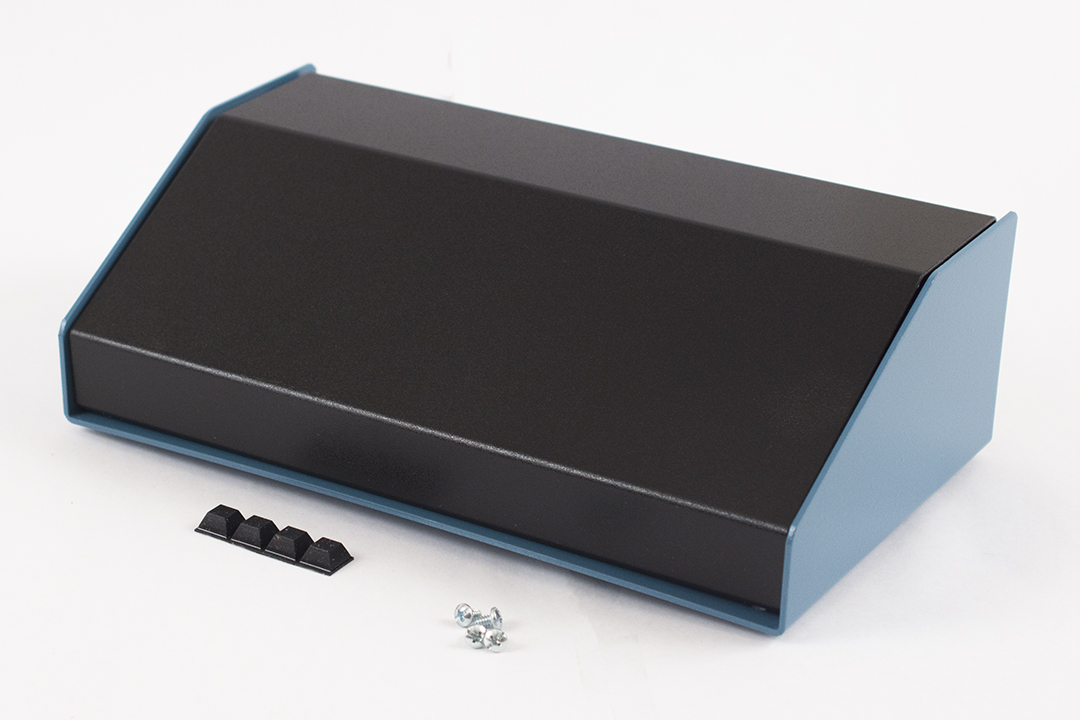

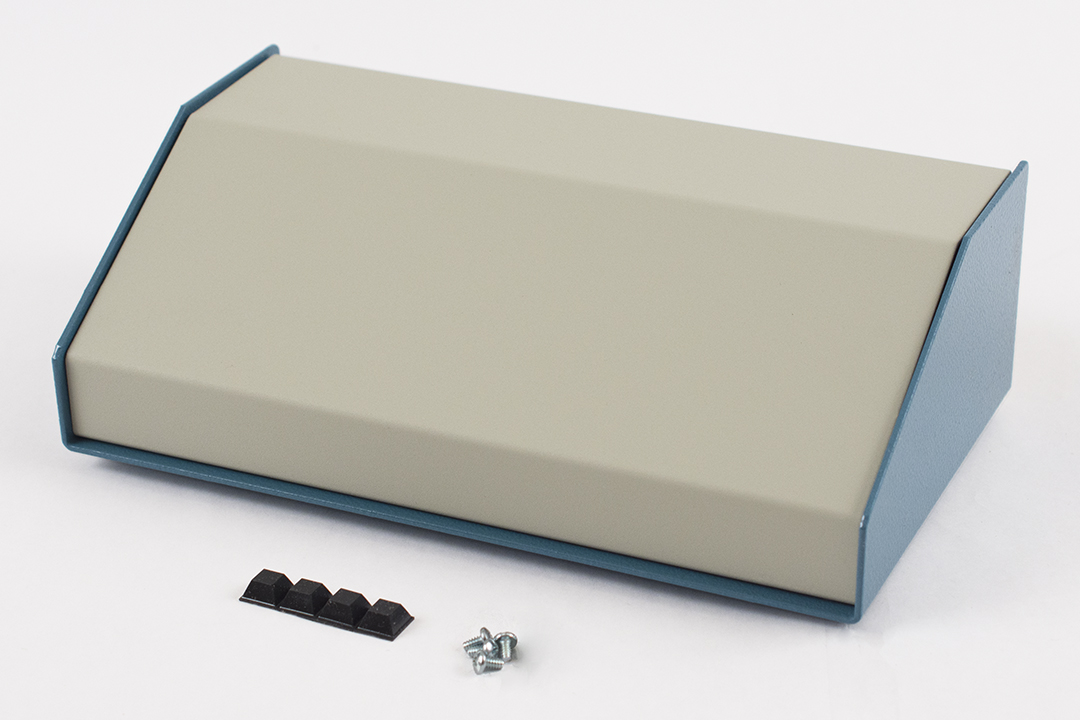

30 Degrees1456KE3WHBU1456KE3BKBU1456KE3BKBK10.005.503.001.10$29.52In stock1456KE3WHBUBuy now

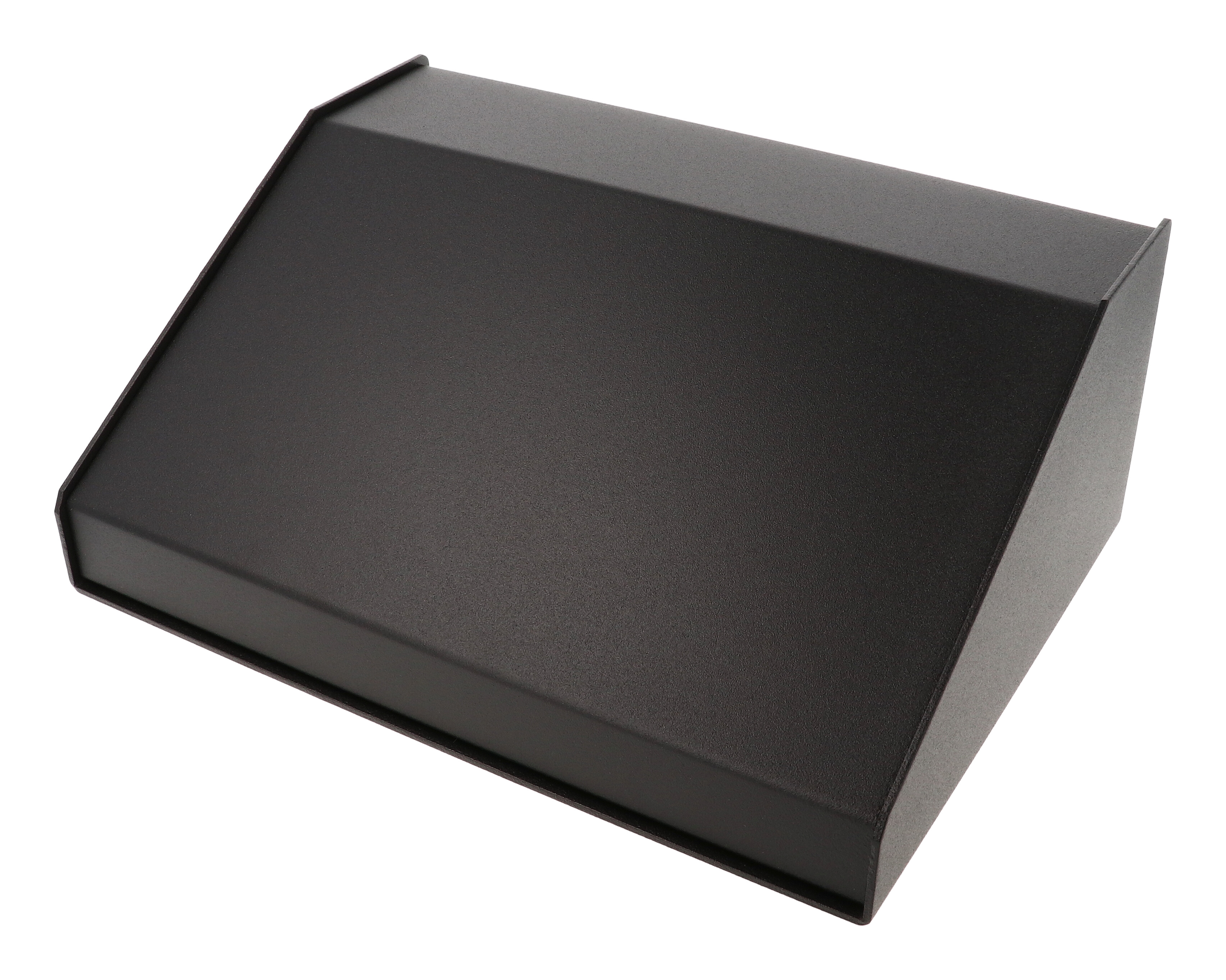

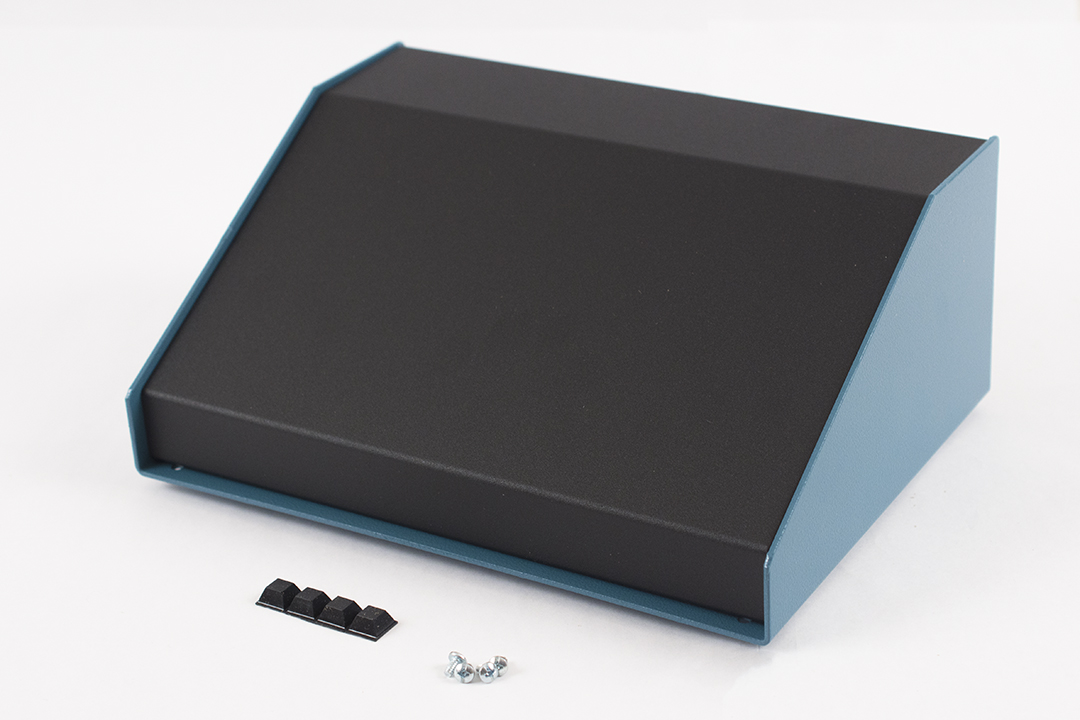

30 Degrees1456KG4WHBU1456KG4BKBU1456KG4BKBK10.007.204.001.10$31.66In stock1456KG4WHBUBuy now

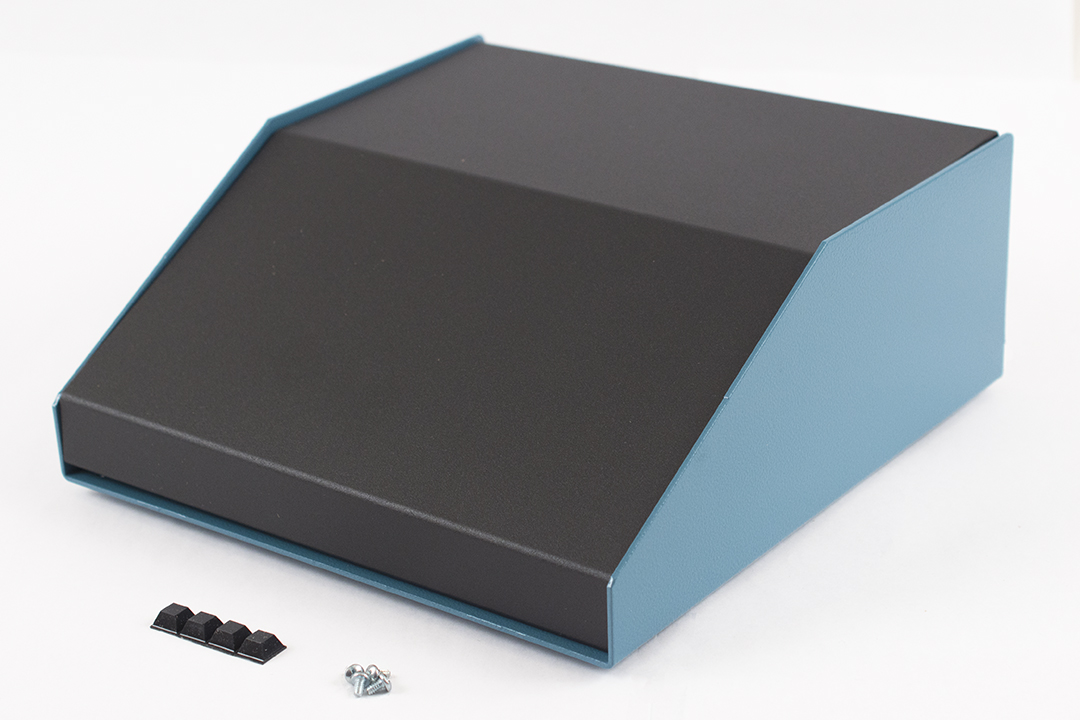

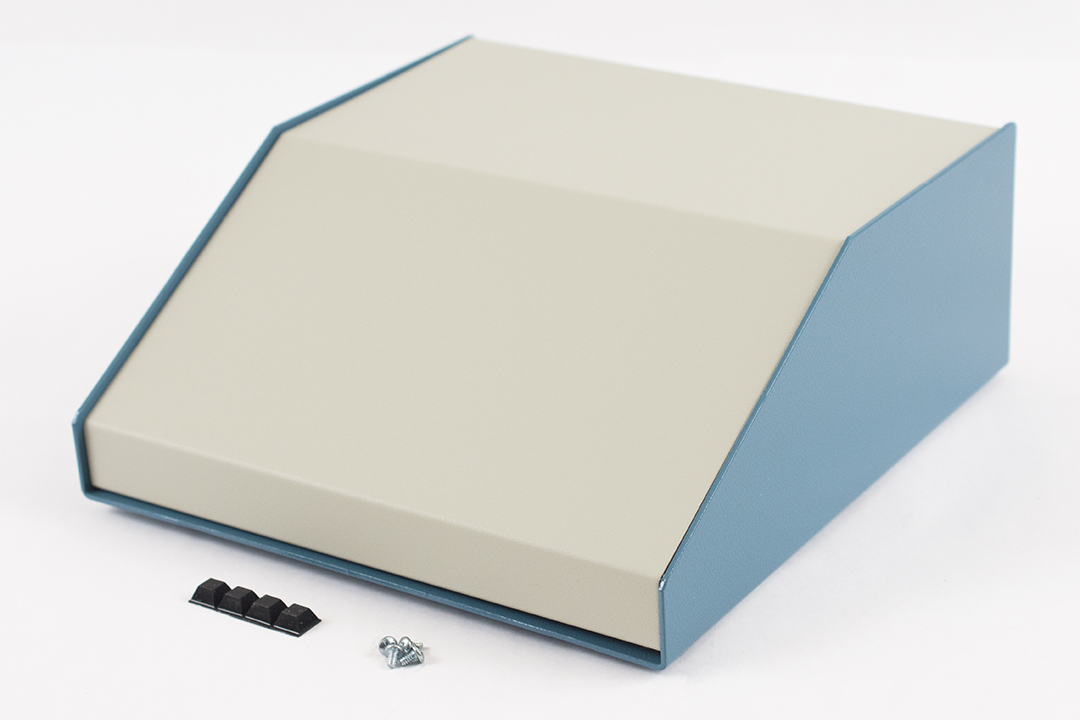

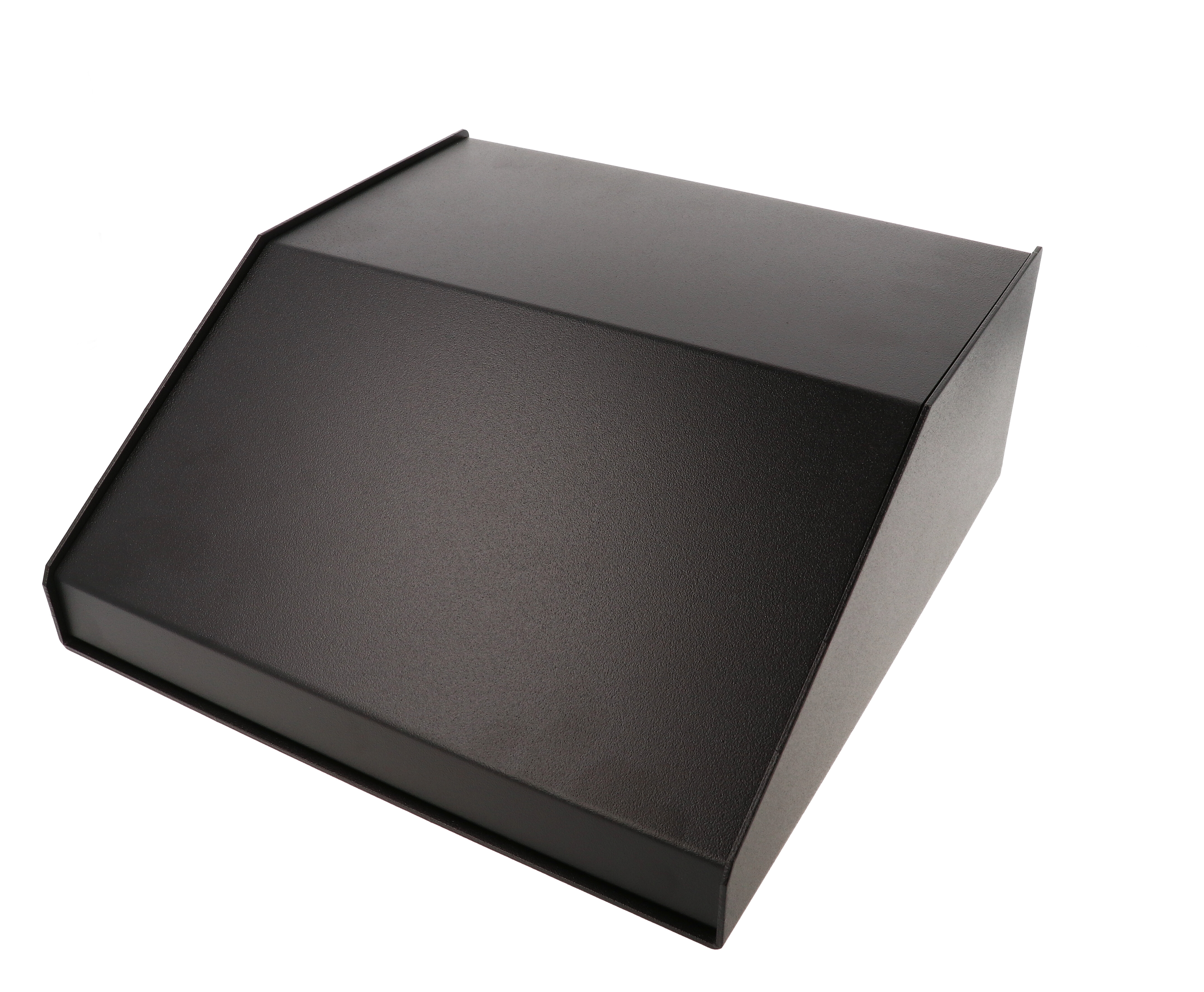

30 Degrees1456KK4WHBU1456KK4BKBU1456KK4BKBK10.0010.204.001.10$34.71In stock1456KK4WHBUBuy now

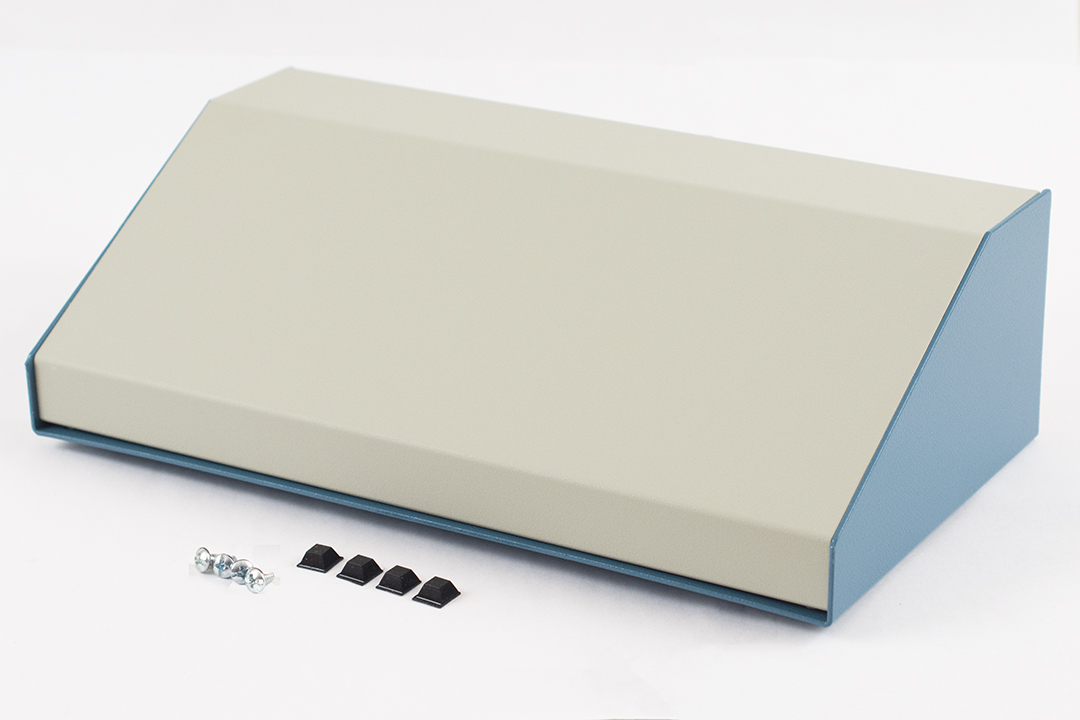

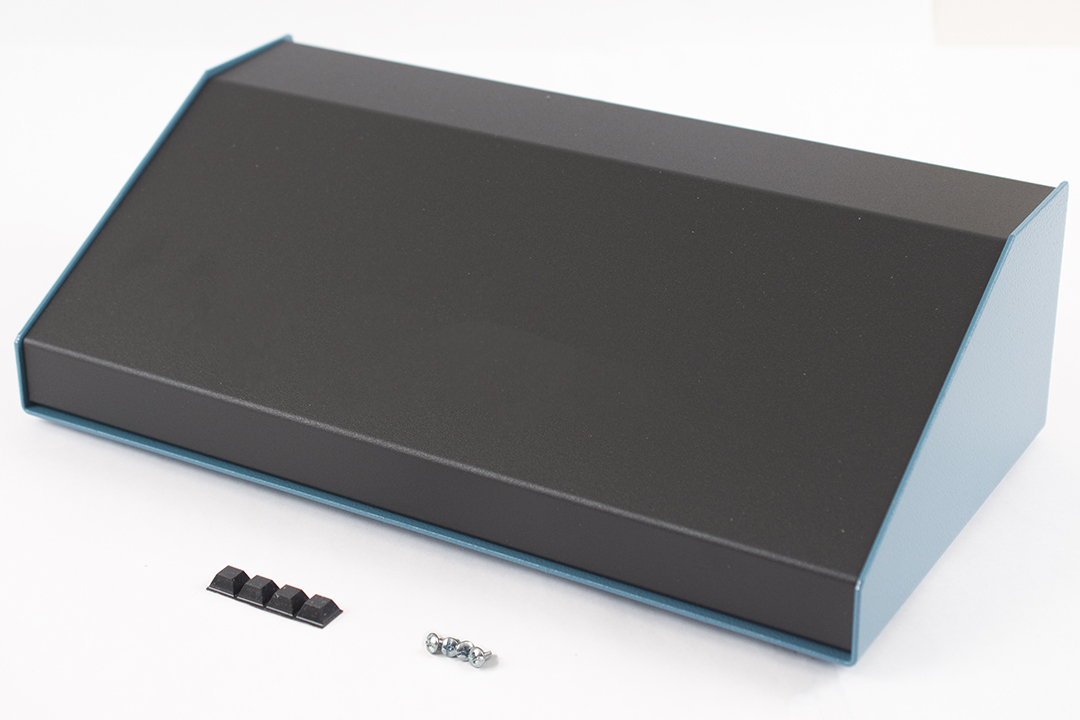

30 Degrees1456PG4WHBU1456PG4BKBU1456PG4BKBK14.007.254.001.10$35.59In stock1456PG4WHBUBuy now
30 Degrees1456PK4WHBU1456PK4BKBU1456PK4BKBK14.0010.204.001.10$38.24Backorder1456PK4WHBUBuy now
30 Degrees1456RK4WHBU1456RK4BKBU1456RK4BKBK17.0010.204.001.10$44.30Backorder1456RK4WHBUBuy now
30 Degrees1456WK4WHBU1456WK4BKBU1456WK4BKBK20.0010.204.001.10$50.14In stock1456WK4WHBUBuy now

Key Features:

  • ■Aluminum cases 0.081” (2 mm) thick aluminum.
  • ■Aluminum top panel sizes to 14” wide are 0.064” thick aluminum. Larger sizes are 0.081” thick.
  • ■Sold pre-assembled with a textured blue case and a choice of a contempra grey (beige) or a black top panel.
  • ■Comes with self adhesive rubber feet and required mounting hardware.
  • ■Some models available with walnut sides - see series 1456CWW
  • ■Replacement screws 1421J6 (#6-32 Philips head sheet metal screws, pack of 6).

Photo Features:

Documents

Specification Sheet
