Hammond 1456WL1BKBU 20 in 10° Sloped Aluminum Console, Black Top/Blue Case

The Hammond 1456WL1BKBU is a sloped aluminum instrument console from the 1456 Series, supplied with a black top panel on a textured blue case. It is built for electronics designers, OEM engineers and integrators who need a desktop housing with an angled front panel for switches, displays, meters and controls.

The 1456WL1 body is the largest-footprint 10-degree console in the series: 20 in (508 mm) wide by 11.3 in (287 mm) deep, with a 1.50 in (38 mm) front height and a 3.50 in (89 mm) rear height. The gentle angle gives a broad top panel with plenty of room for switches, meters and legends.

Both the case and the top panel are made from 12 gauge (0.081 in / 2 mm) aluminum. This version pairs a black top panel with the series' textured blue case, the combination listed as "Black Top / Blue Case" on the drawing. The 1456WL1BKBU is rated IP31, is RoHS and REACH compliant, and ships shrink-wrapped at 5.29 lbs (2.40 kg). Overall dimensions on the manufacturer drawing are 514.60 mm [20.26 in] wide, 294.87 mm [11.61 in] deep and 92.03 mm [3.62 in] high.

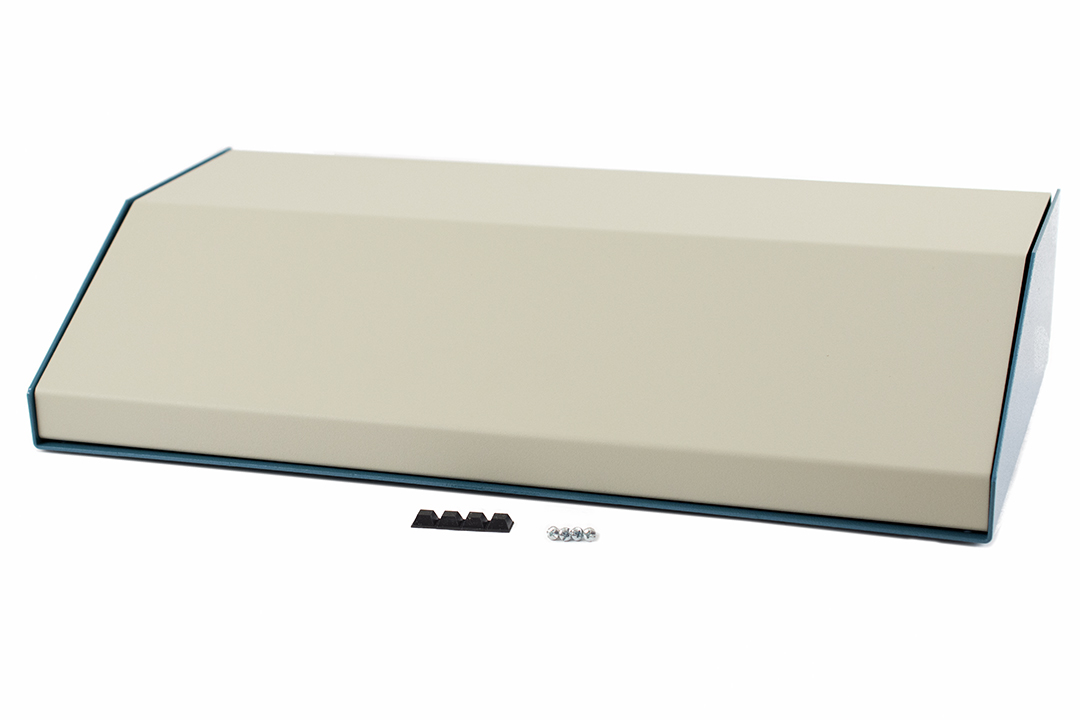

The console is sold pre-assembled: the purchased assembly includes the case, the cover, six cover screws and four self-adhesive rubber feet. The recommended cover-screw torque is 150-175 cN-m (13.3-15.5 lbf-in). Replacement 6-32 x 1/4 in self-tapping cover screws are available as 1421J6 (natural finish, pack of 6) or 1421J6BK (black, pack of 6), and spare 0.5 x 0.5 in self-adhesive rubber feet as 1421T3 (pack of 24).

Enclosures can be factory modified with milling, drilling and printing, and solid models are available in STEP or IGES for layout work. The same 1456WL1 size is also offered as 1456WL1WHBU and 1456WL1BKBK in the other top and case colour combinations.
