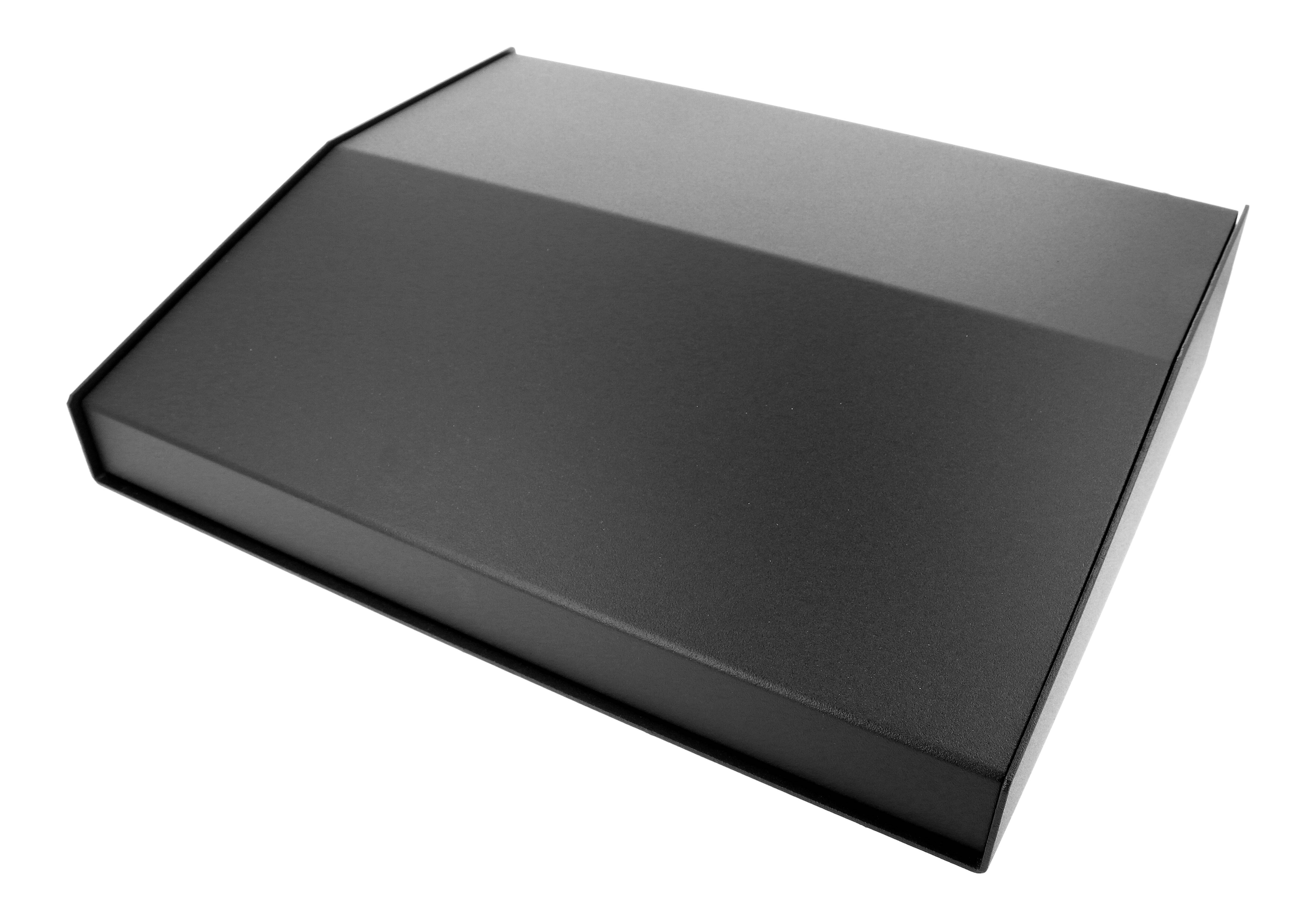

Hammond 1456PL3BKBK 14 x 11.3 in 15° Sloped Console, All-Black
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 15 degree sloped top panel: 1.30 in (33 mm) front height rising to 3.00 in (76 mm) at the rear
- 14.00 in (356 mm) wide x 11.30 in (287 mm) deep console footprint
- 12 Gauge (.081") aluminum case with 14 Gauge aluminum (.064") top panel
- Black top panel with black case, sold pre-assembled
- Includes case, cover, 4 cover screws and 4 rubber feet
- IP31 rating listed for this part
- RoHS and REACH compliant
- Factory modification available (milling, drilling, printing); STEP and IGES models available
The 1456PL3BKBK is the deepest 14-inch-wide 15-degree console in the 1456 Series at 14.00 in (356 mm) wide by 11.30 in (287 mm) deep. It is aimed at builders who need a roomy sloped desktop enclosure for control electronics, with a black top panel on a black case.
The case is 12 Gauge aluminum (.081") with a 14 Gauge aluminum (.064") top panel, delivered pre-assembled. The part page lists an IP31 rating for this all-black version.
The top slopes from 1.30 in (33 mm) at the front to 3.00 in (76 mm) at the rear. The part page gives a nominal size of 11.3 in x 14 in x 3 in (287 mm x 356 mm x 76 mm), while the drawing shows an overall width of 360.22 mm [14.18 in], depth of 292.89 mm [11.53 in] and height of 81.43 mm [3.21 in]. Shipping weight is 3.54 lbs (1.61 kg).
The purchased assembly includes the case, the cover, 4 cover screws and 4 rubber feet, and the series supplies it with self-adhesive rubber feet and the required mounting hardware. Hammond recommends a cover-screw torque of 150-175 cN-m (13.3-15.5 lbf-in). The enclosure can be factory modified (milling, drilling, printing), and solid models are available in STEP or IGES for panel layout work. Other colourways in this size: 1456PL3WHBU and 1456PL3BKBU.
Ideal For
- Sloped instrument and control panel enclosure
- Desktop console for switches, meters and displays
- Bench test equipment housing
- Custom electronics projects needing a metal instrument case
Overview
| Type | Sloped Instrument |
| Slope | 15 Degrees |
| Series | 1456 Series Sloped Aluminum Consoles |
| Case Colour | Black |
| Description | sloped metal console; 15 degree; black top; black case |
| Part Number | 1456PL3BKBK |
| Top Panel Colour | Black |
| Color (Part Page) | Black |
| Short Description | PANEL/CASE |
| Slope Angle (Drawing) | 15.0° |
Dimensions
| Depth | 11.30 in (287 mm) |
| Width | 14.00 in (356 mm) |
| Rear Height | 3.00 in (76 mm) |
| Front Height | 1.30 in (33 mm) |
| Overall Depth (Drawing) | 292.89 mm [11.53 in] |
| Overall Width (Drawing) | 360.22 mm [14.18 in] |
| Nominal Size (L X W X H) | 11.3 in x 14 in x 3 in (287 mm x 356 mm x 76 mm) |
| Overall Height (Drawing) | 81.43 mm [3.21 in] |
Accessories
| Rubber Feet (Pkg 24) | 1421T3 (0.5 x 0.5" self-adhesive) |
| Other Colour Versions | 1456PL3WHBU, 1456PL3BKBU |
| Black Cover Screws (Pkg 6) | 1421J6BK (6-32 x 1/4" self-tapping screws) |
| Natural Finish Cover Screws (Pkg 6) | 1421J6 (6-32 x 1/4" self-tapping screws; #6-32 Philips head sheet metal screws) |
Identifiers
| UPC | 623980560915 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 3.54 lbs (1.61 kg) |
Construction & Finish
| Assembly | Sold pre-assembled |
| Included | Case, cover, 4 cover screws, and 4 rubber feet; self-adhesive rubber feet and required mounting hardware |
| Material | Aluminum |
| CAD Models | Solid models available in STEP or IGES |
| Case Material | 12 Gauge aluminum (.081"), 0.081" (2 mm) thick |
| Top Panel Material | 14 Gauge aluminum (.064") |
| Factory Modification | Can be factory modified (milling, drilling, printing, etc.) |
| Recommended Screw Torque | 150-175 cN-m (13.3-15.5 lbf-in) |
Environmental & Protection
| IP Rating | IP31 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the slope of the 1456PL3BKBK top panel?▾
It is a 15 degree slope (15.0° on the drawing), running from a 1.30 in (33 mm) front height to a 3.00 in (76 mm) rear height.
What are the dimensions?▾
The ordering table gives 14.00 in (356 mm) wide by 11.30 in (287 mm) deep. The part page lists a nominal size of 11.3 in x 14 in x 3 in (287 mm x 356 mm x 76 mm), and the drawing shows overall dimensions of 360.22 mm [14.18 in] wide, 292.89 mm [11.53 in] deep and 81.43 mm [3.21 in] high.
What is it made of?▾
The case is 12 Gauge aluminum (.081") and the top panel is 14 Gauge aluminum (.064"). This version has a black top panel on a black case.
What comes in the box?▾
The purchased assembly includes the case, cover, 4 cover screws and 4 rubber feet. It is sold pre-assembled and shrink wrapped, with a shipping weight of 3.54 lbs (1.61 kg).
Are replacement screws and feet available?▾
Yes. 1421J6 is a pack of 6 natural-finish 6-32 x 1/4" self-tapping cover screws, 1421J6BK is the black version, and 1421T3 is a pack of 24 self-adhesive 0.5 x 0.5" rubber feet.
Does it have an IP rating?▾
The part page lists IP31 for 1456PL3BKBK. It is also RoHS and REACH compliant.
