Hammond 1456CE2WHBU 4x5.5 in 15° Sloped Aluminum Console, Beige/Blue

The 1456CE2WHBU is a 15-degree sloped aluminum console from the 1456 Series with a contempra grey (beige) top panel and a textured blue case. It is one of the two smallest footprints in the series at 4.00 in wide and 5.50 in deep, with a gentle 15-degree slope rising from 1.10 in at the front to 2.00 in at the rear. Its small size suits compact console layouts that need a tilted top panel.

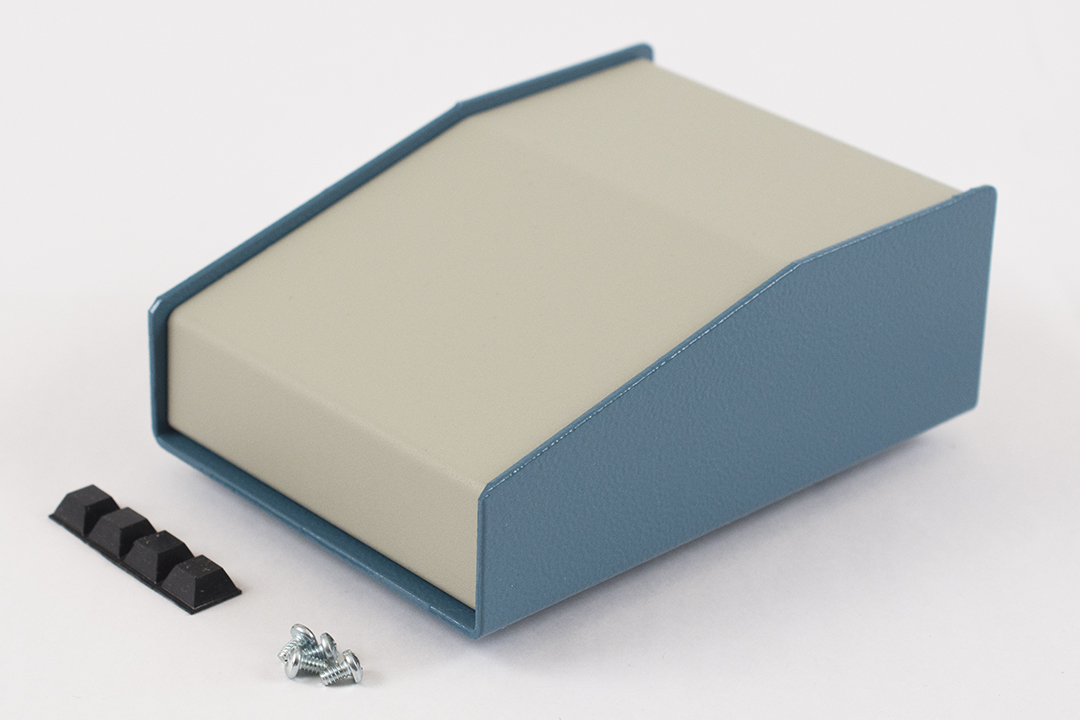

The case is made from 12 gauge aluminum (0.081 in, 2 mm) and the top from 14 gauge aluminum (0.064 in). The unit is sold pre-assembled, and the purchased assembly includes the case, cover, 4 cover screws and 4 rubber feet, so it arrives with the required mounting hardware and self-adhesive rubber feet. The recommended cover screw torque is 150-175 cN-m (13.3-15.5 lbf-in).

Its listed size is 5.5 in x 4 in x 2 in (140 mm x 102 mm x 51 mm): 4.00 in (102 mm) wide, 5.50 in (140 mm) deep, 2.00 in (51 mm) high at the rear and 1.10 in (28 mm) at the front. The listed colour is blue, referring to the case. Shipping weight is 0.64 lbs (0.29 kg), and it ships in shrink wrap.

The same 15-degree CE2 size is also offered as 1456CE2BKBU and 1456CE2BKBK in other top and case colour combinations. Replacement parts include 1421J6 natural finish cover screws, 1421J6BK black cover screws (6-32 x 1/4 in self-tapping, pack of 6) and 1421T3 self-adhesive 0.5 x 0.5 in rubber feet (pack of 24). The console can be factory modified by milling, drilling or printing, solid models are available in STEP or IGES, and the 1456CE2WHBU is RoHS and REACH compliant.
