NEMA 1 Metering Cab. 20X20X10
- Type of Door Single
$261.72In stock
Buy now
Type 1 Mild Steel Metering Cabinets · CMC Series
Brand: Hammond Manufacturing · 6 part numbers
Hinge Door with Quarter Turn
- ■Designed for indoor housing of metering transformers.
- ■CSA Type 1
- ■Complies with NEMA Type 1 IEC 60529, IP20
- ■NEMA Type 1
- ■IEC 60529, IP20
- ■Formed and spot welded from 14 or 16 gauge steel.
from $229.28
6 of 6 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your CMC Series part number
Filter 6 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
6 of 6 part numbers · 6 priced online
NEMA 1 Metering Cab. 27X13X10
- Type of Door Single
$263.33In stock
Buy now
NEMA 1 Metering Cab. 30X20X10
- Type of Door Single
$229.28In stock
Buy now
NEMA 1 Metering Cab. 30X30X10
- Type of Door Double
$298.45In stock
Buy now
NEMA 1 Metering Cab. 36X36X12
- Type of Door Double
$496.69Backorder
Buy now
NEMA 1 Metering Cab. 48X48X12
- Type of Door Double
$802.97Backorder
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Type · of Door | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W | Price | Order |
|---|---|---|---|---|---|---|---|---|
| CMC202010 | Single | 20.00 | 20.00 | 10.00 | 16.00 | 16.00 | $261.72In stock | Buy now |
| CMC271310 | Single | 27.00 | 13.00 | 10.00 | 23.00 | 9.00 | $263.33In stock | Buy now |

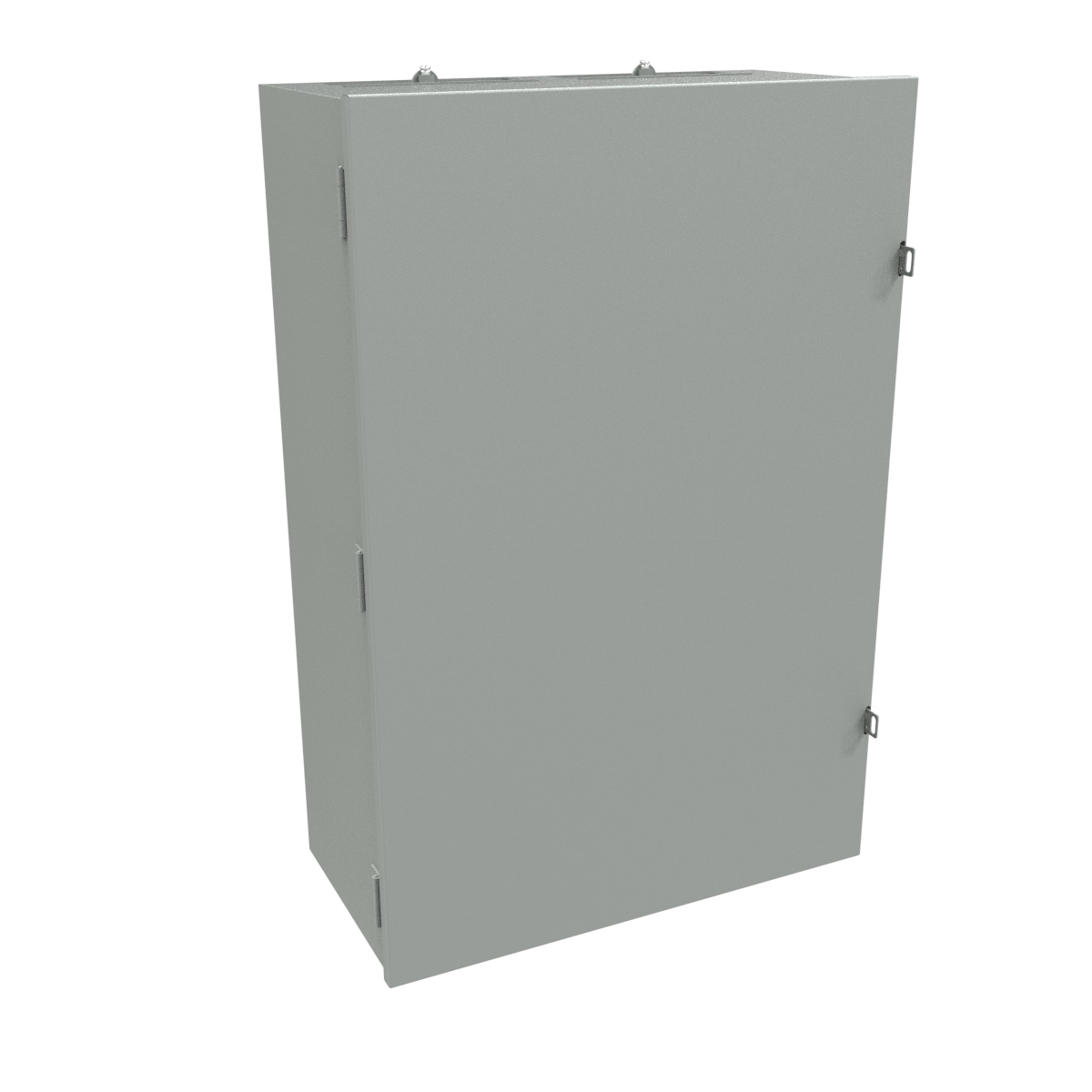

| CMC302010 | Single | 30.00 | 20.00 | 10.00 | 26.00 | 16.00 | $229.28In stock | Buy now |

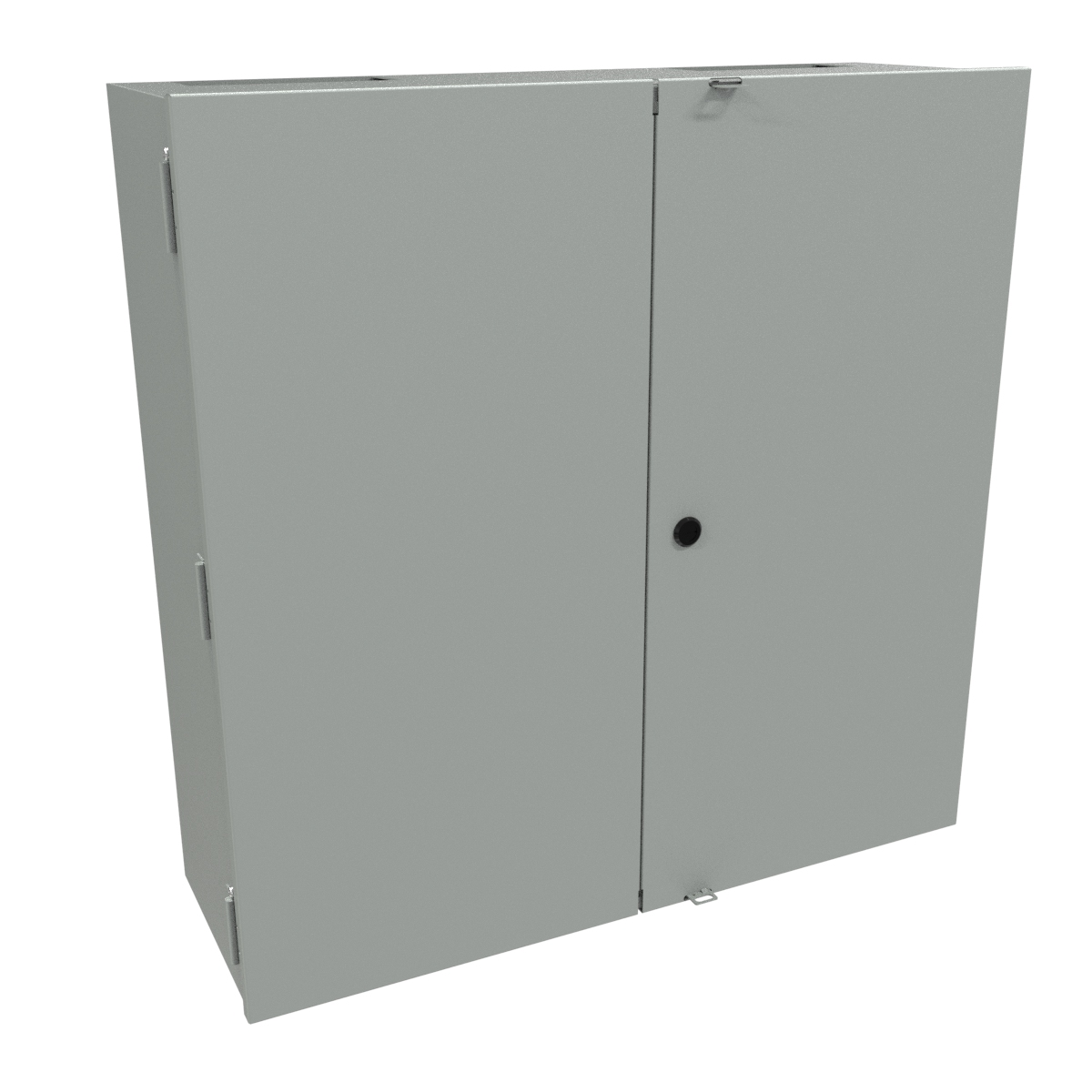

| CMC303010 | Double | 30.00 | 30.00 | 10.00 | 26.00 | 26.00 | $298.45In stock | Buy now |

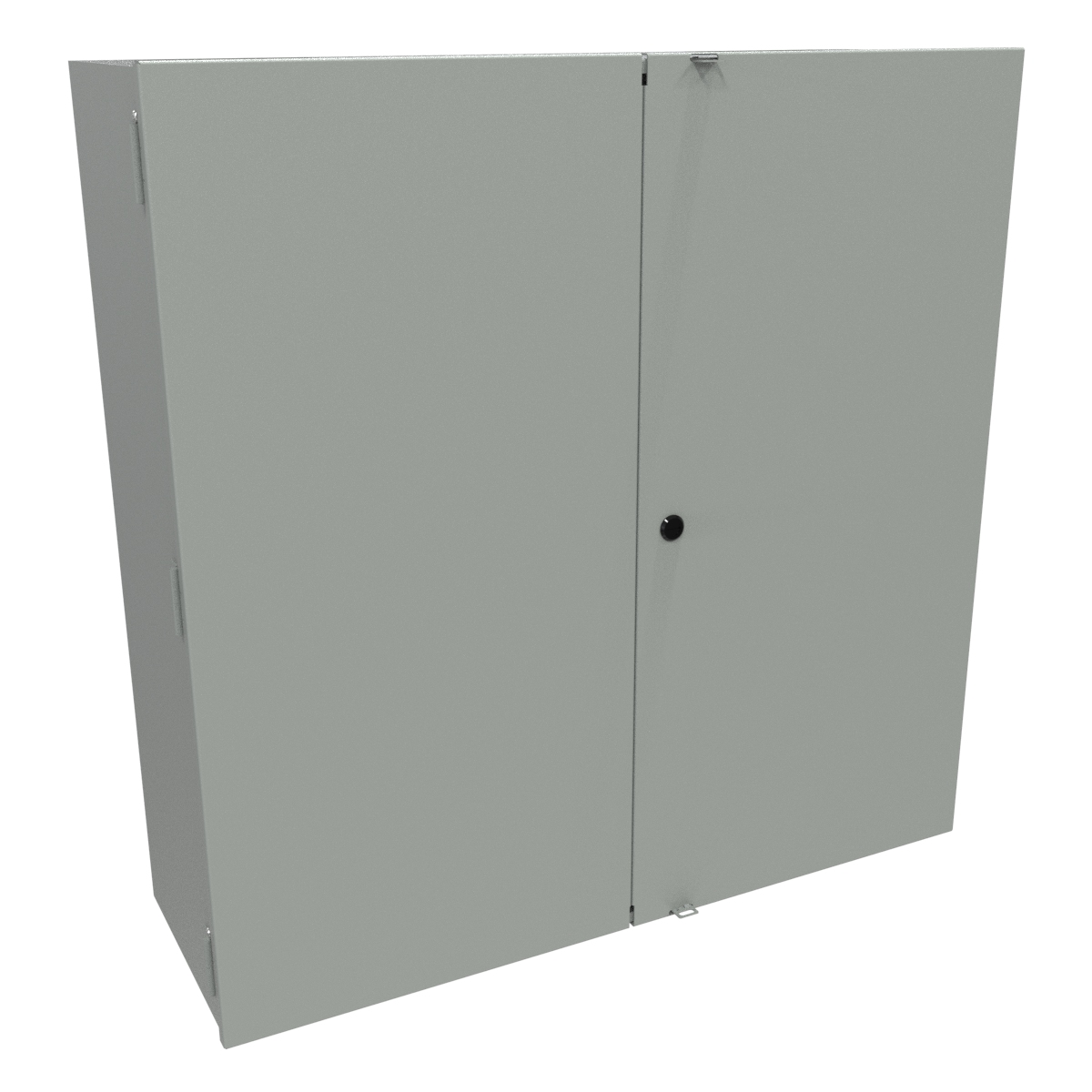

| CMC363612 | Double | 36.00 | 36.00 | 12.00 | 32.00 | 32.00 | $496.69Backorder | Buy now |
| CMC484812 | Double | 48.00 | 48.00 | 12.00 | 44.00 | 44.00 | $802.97Backorder | Buy now |
Application
- ■Designed for indoor housing of metering transformers.
Standards
- ■CSA Type 1
- ■Complies with NEMA Type 1 IEC 60529, IP20
- ■NEMA Type 1
- ■IEC 60529, IP20
Construction
- ■Formed and spot welded from 14 or 16 gauge steel.
- ■Spot welded construction and formed edges.
- ■Removable inner panel.
- ■Single and Double Door versions
- ■Hinged covers - single door with hasp closure, double door with hasp and quarter turn closure.
- ■2 cutouts in top of each cabinet with metering plates included (except 27x13x10")
Finish
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
- ■Enclosure and cover are finished in ANSI 61 gray inside and out.
- ■Inner panel is finished in white powder coating
Documents
Additional information
Part Details
| Part No. | Type · of Door | Enclosure · H | Enclosure · W | Enclosure · D | Inner Panel · H | Inner Panel · W |
|---|---|---|---|---|---|---|
| CMC202010 | Single | 20.00 | 20.00 | 10.00 | 16.00 | 16.00 |
| CMC271310 * | Single | 27.00 | 13.00 | 10.00 | 23.00 | 9.00 |
| CMC302010 | Single | 30.00 | 20.00 | 10.00 | 26.00 | 16.00 |
| CMC303010 | Double | 30.00 | 30.00 | 10.00 | 26.00 | 26.00 |
| CMC363612 | Double | 36.00 | 36.00 | 12.00 | 32.00 | 32.00 |
| CMC484812 | Double | 48.00 | 48.00 | 12.00 | 44.00 | 44.00 |
