Hammond CMC302010 30x20x10 in Single-Door NEMA 1 Metering Cabinet
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 30 x 20 x 10 in (762 x 508 x 254 mm) Type 1 metering cabinet
- Single hinged door with hasp closure
- Removable 26.00 x 16.00 in inner panel in white powder coat
- 2 top cutouts with metering plates included
- Formed and spot welded steel with formed edges
- CSA Type 1; complies with NEMA Type 1 and IEC 60529 IP20
- ANSI 61 gray finish inside and out
- Shipping weight 69 lbs (31.30 kg)

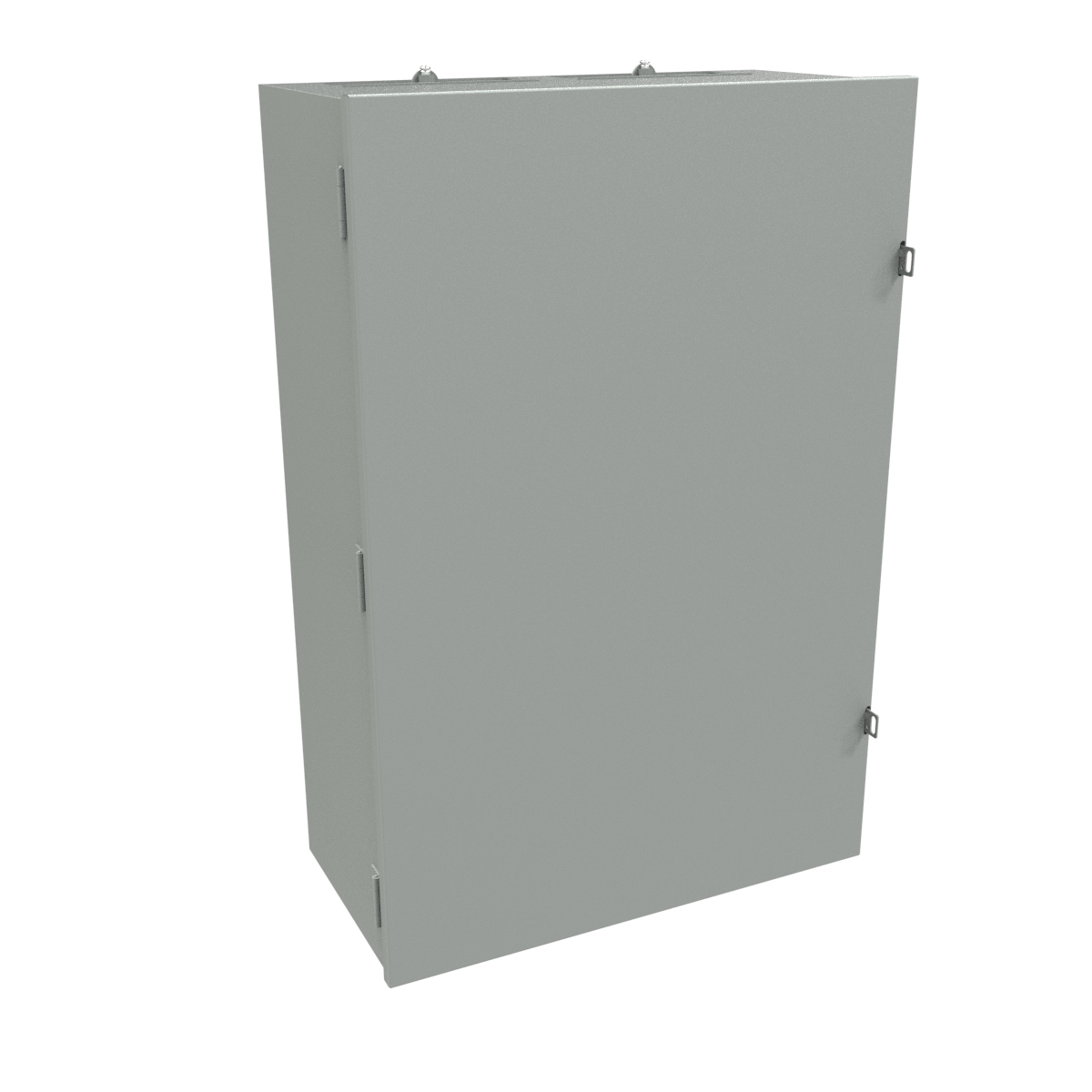

The CMC302010 is a single-door 30 x 20 x 10 inch metering cabinet, the largest single-door size in the CMC range. Part of Hammond's CMC Series of Type 1 mild steel metering cabinets, it is designed for indoor housing of metering transformers and suits electrical contractors and utility-side installers building out indoor service and metering equipment.
The cabinet measures 30 in x 20 in x 10 in (762 mm x 508 mm x 254 mm) H x W x D. The series is formed and spot welded from 14 or 16 gauge steel with formed edges. This model uses a single hinged door with hasp closure; the part drawing shows a door height of 30.35 in and a door width of 20.31 in.
Inside is a removable inner panel measuring 26.00 in (660 mm) H x 16.00 in (406 mm) W, finished in white powder coating, while the enclosure and cover are finished in ANSI 61 gray inside and out. Two cutouts in the top of the cabinet are provided with metering plates included.
The CMC302010 is CSA Type 1 and complies with NEMA Type 1 and IEC 60529 IP20. It is REACH and RoHS compliant, has a shipping weight of 69 lbs (31.30 kg) and ships in a box.
Ideal For
- Indoor housing of metering transformers
- Indoor electrical service metering installations
- Commercial building metering equipment enclosure
Overview
| Style | Hinge Door with Quarter Turn |
| Series | CMC Series - Type 1 Mild Steel Metering Cabinets |
| Application | Indoor housing of metering transformers |
| Type Of Door | Single |
Dimensions
| Enclosure Depth | 10.00 in (254 mm) |
| Enclosure Width | 20.00 in (508 mm) |
| Enclosure Height | 30.00 in (762 mm) |
| Size (H X W X D) | 30 in x 20 in x 10 in (762 mm x 508 mm x 254 mm) |
| Inner Panel Width | 16.00 in (406 mm) |
| Inner Panel Height | 26.00 in (660 mm) |
| Door Size (Drawing) | 30.35 in H x 20.31 in W |
Identifiers
| UPC | 623980261669 |
| UNSPSC | 39121324 |
| Part Number | CMC302010 |
| Long Description | Type 1 Metering Cabinet - 30 x 20 x 10 - Steel/Gray |
| Short Description | NEMA 1 METERING CAB. 30X20X10 |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 69 lbs (31.30 kg) |
Construction & Finish
| Material | Mild steel |
| Inner Panel | Removable |
| Top Cutouts | 2 cutouts in top with metering plates included |
| Construction | Formed and spot welded; formed edges |
| Door Closure | Hasp closure (single door) |
| Enclosure Finish | ANSI 61 gray inside and out (enclosure and cover) |
| Inner Panel Finish | White powder coating |
| Steel Gauge (Series) | 14 or 16 gauge |
Environmental & Protection
| Environment | Indoor |
| Enclosure Type | NEMA Type 1 |
| Ingress Protection | IEC 60529, IP20 |
Compliance & Certifications
| CSA | CSA Type 1 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the CMC302010 used for?▾
It is a Type 1 metering cabinet designed for indoor housing of metering transformers.
What size is the inner panel in the CMC302010?▾
The removable inner panel is 26.00 in (660 mm) high x 16.00 in (406 mm) wide and is finished in white powder coating.
Does it come with metering plates?▾
Yes. The cabinet has 2 cutouts in the top with metering plates included.
How do the doors close?▾
It has a single hinged door with a hasp closure.
What standards does it meet?▾
It is CSA Type 1 and complies with NEMA Type 1 and IEC 60529 IP20. It is also REACH and RoHS compliant.
How much does the CMC302010 weigh?▾
Shipping weight is 69 lbs (31.30 kg); it ships in a box.
