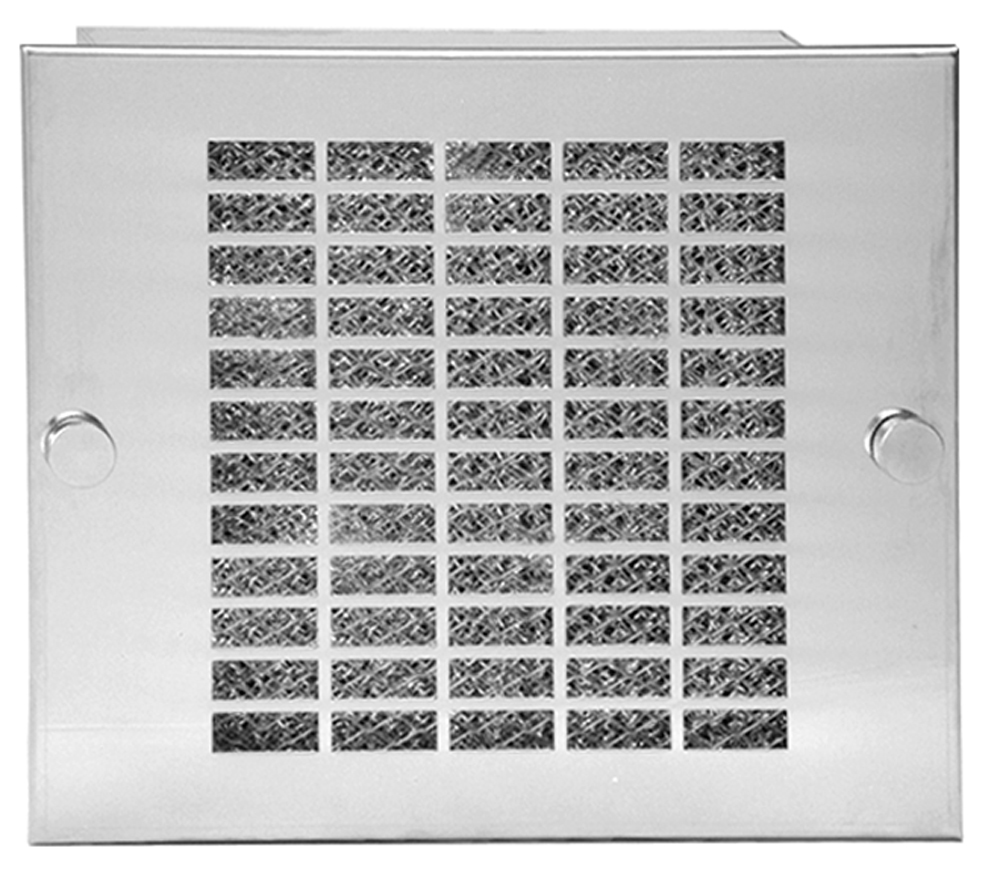

105-550 CFM Filtered Fan Boxes XF Series

105-550 CFM Filtered Fan Boxes · XF Series

Brand: Hammond Manufacturing · 12 part numbers

  • ■In a typical cooling arrangement, the filtered fan box pulls air into the enclosures and the filter grill is used as an air outlet.
  • ■The washable aluminum filter grill and the air filter are easily accessible and can be removed for cleaning.
  • ■The filtered fan boxes are available in either 115 VAC or 230 VAC, 50/60 Hz.
  • ■Filtered passive ventilation can be provided by an exhaust filter for either convection cooling or in combination with a fan in forced air cooling.
  • ■UR/CUR/CE approved fan motors.
  • ■CSA listed on fan only.

from $23.97

12 of 12 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your XF Series part number

Filter 12 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

12 of 12 part numbers · 12 priced online

XF10115

Cooling Fan Pkg 10" 115 Volt

$326.70In stock
Buy now
XF10230

Cooling Fan Pkg 10" 230 Volt

$326.78Backorder
Buy now
XF4115

Cooling Fan Pkg 4" 115 Volt

$137.87In stock
Buy now
XF4230

Cooling Fan Pkg 4" 230 Volt

$146.33In stock
Buy now
XF6115

Cooling Fan Pkg 6" 115 Volt

$233.85In stock
Buy now
XF6230

Cooling Fan Pkg 6" 230 Volt

$245.94Backorder
Buy now
XFF10

Replacement Filter, 3 Pack

$38.15In stock
Buy now
XFF4

Replacement Filter, 3 Pack

$23.97In stock
Buy now
XFF6

Replacement Filter, 3 Pack

$30.48In stock
Buy now
XFG10

Cooling Fan Pkg 10" Grll&Filte

$86.45Backorder
Buy now
XFG4

Cooling Fan Pkg 4"GRLL&FILTER

$61.51In stock
Buy now
XFG6

Cooling Fan Pkg 6" Grll&Filter

$65.15In stock
Buy now
Dimension tables (inches / mm)

Filtered Fan Boxes

Units shown: inch . Switch units to: mm

Part No.Free Flow · Air Delivery · (CFM)VoltsRPM · NominalRunning · AmpsWattsFan Housing · HFan Housing · WFan Housing · DPriceOrder
XF411510511530000.18155.635.632.38$137.87In stockBuy now
XF423010523030000.09155.635.632.38$146.33In stockBuy now
XF611522011533000.29337.137.133.00$233.85In stockBuy now
XF623022023033000.15337.137.133.00$245.94BackorderBuy now
XF1011556011516000.876011.1311.134.56$326.70In stockBuy now
XF1023056023016000.456011.1311.134.56$326.78BackorderBuy now

Exhaust Grill and Filters

Units shown: inch . Switch units to: mm

Part No.HWPriceOrder
XFG46.137.38$61.51In stockBuy now
XFG67.638.88$65.15In stockBuy now
XFG1011.6313.00$86.45BackorderBuy now

Replacement Filters

Part No.Pkg. Qty.PriceOrder
XFF43$23.97In stockBuy now
XFF63$30.48In stockBuy now
XFF103$38.15In stockBuy now

Description

  • ■In a typical cooling arrangement, the filtered fan box pulls air into the enclosures and the filter grill is used as an air outlet.
  • ■The washable aluminum filter grill and the air filter are easily accessible and can be removed for cleaning.
  • ■The filtered fan boxes are available in either 115 VAC or 230 VAC, 50/60 Hz.
  • ■Filtered passive ventilation can be provided by an exhaust filter for either convection cooling or in combination with a fan in forced air cooling.

Standards

  • ■UR/CUR/CE approved fan motors.
  • ■CSA listed on fan only.

Features

  • ■115 VAC or 230 VAC, 50/60 Hz.
  • ■12" lead wires.
  • ■Exceptionally quiet operation.
  • ■Versatile mounting and adaptability.
  • ■Heavy-gauge steel construction.
  • ■Attractive stainless steel grills.
  • ■Shipped with air flow to pressurize. Can be user modified to exhaust.
  • ■Aluminum filter is coated with adhesive baffle surfaces for dust and dirt collection. Can be recoated after cleaning for optimum performance.
  • ■Drilling template included.
  • ■Note : One grill and filter are included with each fan package. Normally, an additional exhaust grill and filter are required for each installation and must be ordered separately.

Documents

Specification Sheet

Additional information

Filtered Fan Boxes

Part No.Free Flow · Air Delivery · (CFM)VoltsRPM · NominalRunning · AmpsWattsFan Housing · HFan Housing · WFan Housing · D
XF411510511530000.18155.635.632.38
XF423010523030000.09155.635.632.38
XF611522011533000.29337.137.133.00
XF623022023033000.15337.137.133.00
XF1011556011516000.876011.1311.134.56
XF1023056023016000.456011.1311.134.56

Exhaust Grill and Filters

Part No.HW
XFG46.137.38
XFG67.638.88
XFG1011.6313.00

Replacement Filters

Part No.Pkg. Qty.
XFF43
XFF63
XFF103
