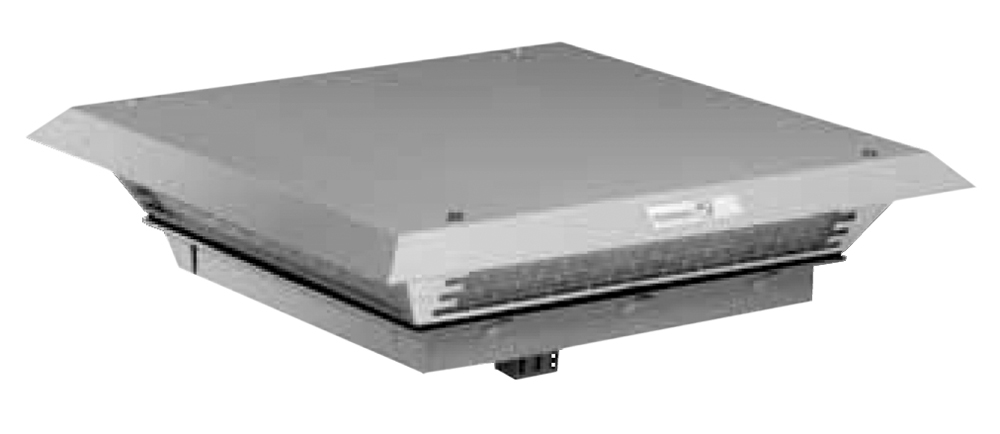

266-485 CFM Top Mount Filterfans PTF GEN4 Series

266-485 CFM Top Mount Filterfans · PTF GEN4 Series

Brand: Hammond Manufacturing · 7 part numbers

Type 12

  • ■Maintains a NEMA 12 seal against enclosure
  • ■UL Recognized to UL 508A, category NITW2/8, UL File #E175229
  • ■Patented “Click & Fit” design provides a hardware-free installation
  • ■Metal Pagoda Cover for rugged environments, easily painted to match machine color
  • ■Fan Motor is CSA Approved

from $79.61

7 of 7 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your PTF GEN4 Series part number

Filter 6 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

6 of 6 part numbers · 6 priced online

PTF60500LG

Top Mount 149CFM T12

  • Voltage 115V
  • Power 24W
$603.38Backorder
Buy now
PTF60700LG

Top Mount 227CFM T12

  • Voltage 115V
  • Power 90W
$747.13Backorder
Buy now
PTF61000LG

Top Mount 304CFM T12

  • Voltage 115V
  • Power 170W
$797.93In stock
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part NumberVoltagePowerHWDInstalled DepthMating Exhaust Filter (Part No.)PriceOrder
PTF60500LG115V24W4.9216.9316.931.97PFA60000LG$603.38BackorderPTF60500LGBuy now
PTF60500LG230230V24W4.9216.9316.931.97PFA60000LG$603.38BackorderPTF60500LG230Buy now
PTF60700LG115V90W5.5118.5018.501.97PFA60000LG$747.13BackorderPTF60700LGBuy now
PTF60700LG230230V80W5.5118.5018.501.97PFA60000LG$747.13BackorderPTF60700LG230Buy now
PTF61000LG115V170W5.5118.5018.501.97PFA60000LG$797.93In stockPTF61000LGBuy now
PTF61000LG230230V150W5.5118.5018.501.97PFA60000LG$797.93BackorderPTF61000LG230Buy now
Airflow dataPTF 60500PTF 60700PTF 61000PTFA 60000PriceOrder
Filter materialNEMA 12 FiltermatNEMA 12 FiltermatNEMA 12 FiltermatNEMA 12 FiltermatQuoteQuote
Unimpeded airflow226 CFM356 CFM485 CFM-QuoteQuote
Capacity free-flow113 W/K177 W/K242 W/K-QuoteQuote
Airflow in combination149 CFM227 CFM304 CFM-QuoteQuote
(Filterfan + Exhaust Filter)(PTF 60500 + PFA 60000)(PTF 60700 + PFA 60000)(PTF 61000 + PFA 60000)-QuoteQuote
Capacity in combination74 W/K113 W/K152 W/K-QuoteQuote
(Filterfan + Exhaust Filter)(PTF 60500 + PFA 60000)(PTF 60700 + PFA 60000)(PTF 61000 + PFA 60000)-QuoteQuote
Max. static pressure (Airflow = 0)71 Pa88 Pa158 Pa-QuoteQuote
Filtration efficiency0.8181%%0.81-QuoteQuote
Filter material gradeG 3 (DIN EN 779)G 3 (DIN EN 779)G 3 (DIN EN 779)-QuoteQuote
Duty cycle111-QuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Technical dataPTF 60500PTF 60700PTF 61000PTFA 60000PriceOrder
Bearing typeball bearingsball bearingsball bearingsn/aQuoteQuote
Fitting positionhorizontalhorizontalhorizontalanyQuoteQuote
Constructionmetal chassis cover powder coaded, snapin plastic housingmetal chassis cover powder coaded, snapin plastic housingmetal chassis cover powder coaded, snapin plastic housingmetal chassis cover powder coaded, snapin plastic housingQuoteQuote
Weight5.5 kg5.8 kg6.0 kg3.1 kgQuoteQuote
Safety protectionin accordance with DIN 31 001in accordance with DIN 31 001in accordance with DIN 31 001in accordance with DIN 31 001QuoteQuote
ColorRAL 7035, Light GreyRAL 7035, Light GreyRAL 7035, Light GreyRAL 7035, Light GreyQuoteQuote
Connectionsterminal stripterminal stripterminal stripn/aQuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Supplementary data:PFTA 60000PriceOrder
Operating temperature-10 C (+14 F) to +55 C (+131 F)QuoteQuote
Storage temperature-20 C (-4 F) to +70 C (+158 F)QuoteQuote
Max. relative humidity0.9QuoteQuote
System of protectionIP 33, IP 54 (EN 60 529), when installed as specifiedQuoteQuote
Accessoriesradiant heater, fan heater, thermostat, see Thermal ManagementQuoteQuote
Tolerance installation cutout291 thickness of material to 2 mm, 292 thickness of material > 2 mm < 3mmQuoteQuote
ApprovalspendingQuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Features

  • ■Maintains a NEMA 12 seal against enclosure
  • ■UL Recognized to UL 508A, category NITW2/8, UL File #E175229
  • ■Patented “Click & Fit” design provides a hardware-free installation
  • ■Metal Pagoda Cover for rugged environments, easily painted to match machine color
  • ■Fan Motor is CSA Approved

Documents

Specification SheetPTF Manual

Additional information

Part Details

Part NumberVoltagePowerHWDInstalled DepthMating Exhaust Filter
PTF60500LG115V24W4.9216.9316.931.97PFA60000LG
PTF60500LG230230V24W4.9216.9316.931.97PFA60000LG
PTF60700LG115V90W5.5118.5018.501.97PFA60000LG
PTF60700LG230230V80W5.5118.5018.501.97PFA60000LG
PTF61000LG115V170W5.5118.5018.501.97PFA60000LG
PTF61000LG230230V150W5.5118.5018.501.97PFA60000LG

Part Details

Airflow dataPTF 60500PTF 60700PTF 61000PTFA 60000
Filter materialNEMA 12 FiltermatNEMA 12 FiltermatNEMA 12 FiltermatNEMA 12 Filtermat
Unimpeded airflow226 CFM356 CFM485 CFM-
Capacity free-flow113 W/K177 W/K242 W/K-
Airflow in combination149 CFM227 CFM304 CFM-
(Filterfan + Exhaust Filter)(PTF 60500 + PFA 60000)(PTF 60700 + PFA 60000)(PTF 61000 + PFA 60000)-
Capacity in combination74 W/K113 W/K152 W/K-
(Filterfan + Exhaust Filter)(PTF 60500 + PFA 60000)(PTF 60700 + PFA 60000)(PTF 61000 + PFA 60000)-
Max. static pressure (Airflow = 0)71 Pa88 Pa158 Pa-
Filtration efficiency0.8181%%0.81-
Filter material gradeG 3 (DIN EN 779)G 3 (DIN EN 779)G 3 (DIN EN 779)-
Duty cycle111-

Part Details

Technical dataPTF 60500PTF 60700PTF 61000PTFA 60000
Bearing typeball bearingsball bearingsball bearingsn/a
Fitting positionhorizontalhorizontalhorizontalany
Constructionmetal chassis cover powder coaded, snapin plastic housingmetal chassis cover powder coaded, snapin plastic housingmetal chassis cover powder coaded, snapin plastic housingmetal chassis cover powder coaded, snapin plastic housing
Weight5.5 kg5.8 kg6.0 kg3.1 kg
Safety protectionin accordance with DIN 31 001in accordance with DIN 31 001in accordance with DIN 31 001in accordance with DIN 31 001
ColorRAL 7035, Light GreyRAL 7035, Light GreyRAL 7035, Light GreyRAL 7035, Light Grey
Connectionsterminal stripterminal stripterminal stripn/a

Part Details

Supplementary data:PFTA 60000
Operating temperature-10 C (+14 F) to +55 C (+131 F)
Storage temperature-20 C (-4 F) to +70 C (+158 F)
Max. relative humidity0.9
System of protectionIP 33, IP 54 (EN 60 529), when installed as specified
Accessoriesradiant heater, fan heater, thermostat, see Thermal Management
Tolerance installation cutout291 thickness of material to 2 mm, 292 thickness of material > 2 mm < 3mm
Approvalspending
