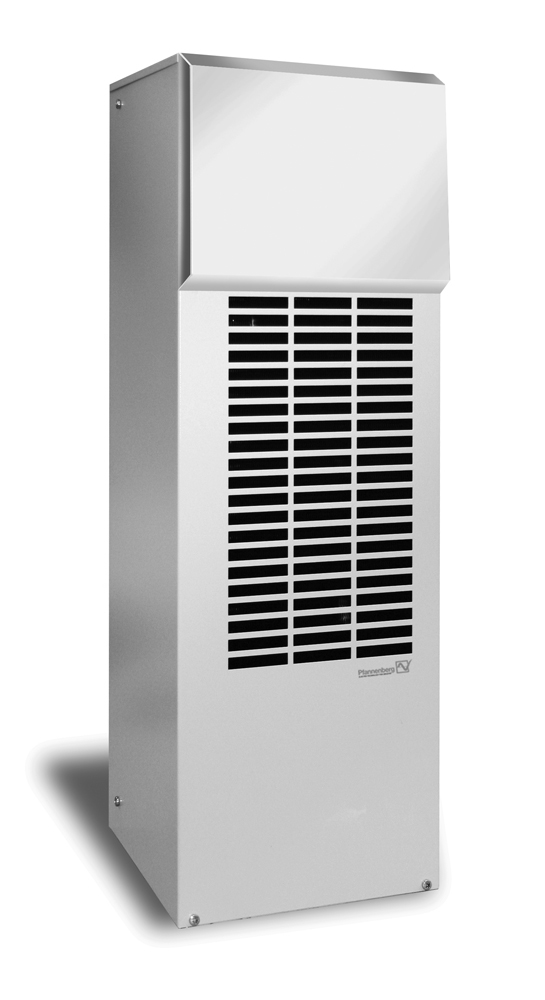

3000-5000 BTU/H Outdoor Slimline Air Conditioner · DTS SL Series
Brand: Hammond Manufacturing · 4 part numbers
Type 3R, 4, 4X, Side Mounting
- ■Narrow design for side mounting on any enclosure surface where hot spot or low capacity cooling is required.
- ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
- ■Complies with NEMA 3R, 4, 4X rating
- ■NEMA 3R, 4, 4X rating
- ■IP 56
- ■UL, cUL and CE
from $4,044.43
4 of 4 part numbers priced · available on backorder · ships by ground · volume pricing on request
Configure & price
Find your DTS SL Series part number
Filter 2 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
2 of 2 part numbers · 2 priced online
Air Condit 3500BTU 230V Lg
- Type Rating 4X
$4,578.30Backorder
Buy nowDimension tables (inches / mm)
| Part Number | Type Rating | Price | Order |
|---|---|---|---|
| DTS3161SLA2N3LG | 3R, 4 | $4,044.43Backorder | Buy now |
| DTS3161SLA4N3LG | 3R, 4 | $4,143.95Backorder | Buy now |
| DTS3181SLA2N4SS | 4X | $4,578.30Backorder | Buy now |
| DTS3181SLA4N4SS | 4X | $4,677.83Backorder | Buy now |
| Electrical Data | DTS3161SLA2N3LG · DTS3181SLA2N4SS | DTS3161SLA4N3LG · DTS3181SLA4N4SS | Price | Order |
|---|---|---|---|---|
| Rated Voltage | 230 V 50/60 Hz | 460 V 50/60 Hz | Quote | Quote |
| Range of Operation | 198-253 V | 360-506 V | Quote | Quote |
| Power Consumption | 890 W | 751 W | Quote | Quote |
| Running Amps | 4.49 A | 2.25 A | Quote | Quote |
| Starting Current | 14.8 A | 14.8 A | Quote | Quote |
| Line Cord | Terminal Block | Terminal Block | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
| Refrigeration Data | 230V | 460V | col4 | Price | Order |
|---|---|---|---|---|---|
| Cooling Capacity BTU/h ( Watts) +95/+95F +35/35C | 5648 BTU/h (1654 Watts) | 5301 BTU/h (1552 Watts) | Quote | Quote | |
| Type of Refrigerant | R134a | R134a | Quote | Quote | |
| Refrigerant Charge | 700g | 900g | Quote | Quote | |
| Adjustable Control Range | + 59…+ 113°F / + 15…+ 45°C | + 59…+ 113°F / + 15…+ 45°C | Quote | Quote | |
| Factory setting +95°F (+35°C) | Factory setting +95°F (+35°C) | Quote | Quote | ||
| Max Ambient Air Temp | +131°F (+55°C) | +131°F (+55°C) | Quote | Quote | |
| Min Ambient Air Temp | +32°F ( +0°C) | +32°F ( +0°C) | Quote | Quote | |
| Air Capacity (unrestricted) | Internal Circulation 350 CFM | Internal Circulation 350 CFM | Quote | Quote | |
| External Circulation 350 CFM | External Circulation 350 CFM | Quote | Quote | ||
| Condensate Discharge | Condensate Evaporator | Condensate Evaporator | Quote | Quote | |
| Filter Mat | Filterless | Filterless | Quote | Quote | |
| Db Noise Level | <70 dB (A) | <70 dB (A) | Quote | Quote | |
| Unit Weight | 108 lbs (49 kg) | 108 lbs (49 kg) | Quote | Quote | |
| Exterior Case | Galvanized Sheet Steel | Galvanized Sheet Steel | Quote | Quote | |
| Finish LG | RAL7035 light Gray | RAL7035 light Gray | Quote | Quote | |
| Finish GY | ANSI 61 Gray | ANSI 61 Gray | Quote | Quote | |
| Finish SS | 304 Stainless Steel # 4 brush | 304 Stainless Steel # 4 brush | Quote | Quote | |
| Nema Rating | Enclosures IP 54/Nema 3R, 4, 4X | Enclosures IP 54/Nema 3R, 4, 4X | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
Description
- ■Narrow design for side mounting on any enclosure surface where hot spot or low capacity cooling is required.
- ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
Standards
- ■Complies with NEMA 3R, 4, 4X rating
- ■NEMA 3R, 4, 4X rating
- ■IP 56
- ■UL, cUL and CE
Features
- ■R134a refrigerant.
- ■Thermostat control accessible from inside enclosure.
- ■Expansion valve increases efficiency with improved evaporator heat transfer and less frequent compressor operation.
- ■Built in condensor/evaporator
- ■Continuous air circulation from high capacity fans.
- ■EMI/RFI suppression meets CE.
- ■Self-diagnostics on startup.
- ■Fault indication via LED light.
- ■Door contact for power down when enclosure door is opened.
- ■Gasket, mounting kit and template for cutout and drilling are included.
- ■Condensate drain hose and clamp
