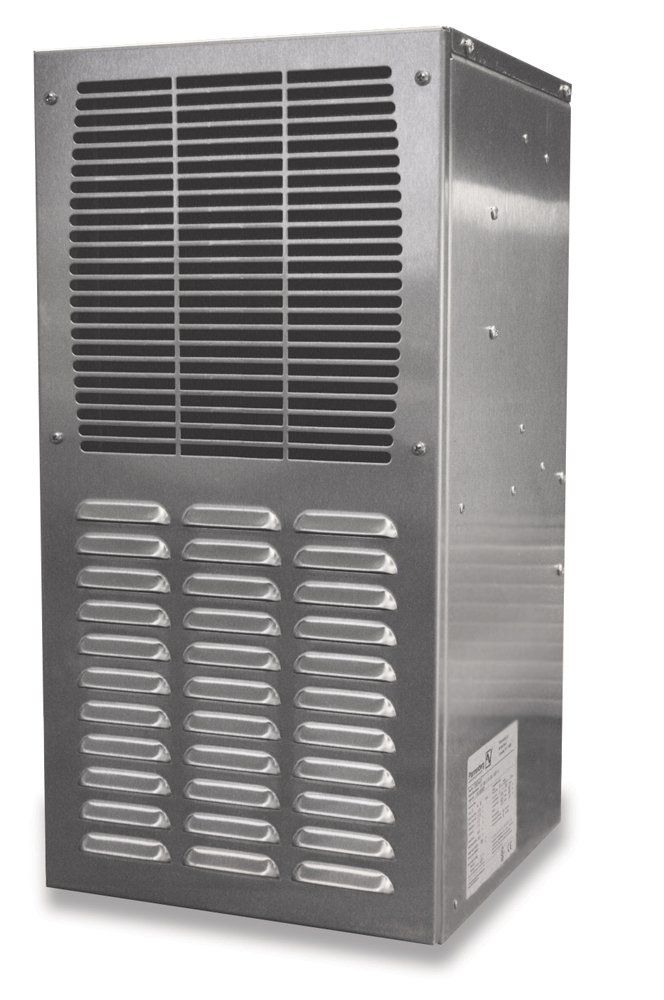

2000-3000 BTU/H Outdoor Air Conditioner DTS Series

2000-3000 BTU/H Outdoor Air Conditioner · DTS Series

Brand: Hammond Manufacturing · 6 part numbers

Type 3R, 4, 4X, Side Mounting

  • ■Compact design for side mounting on any enclosure surface where spot cooling or low capacity cooling is required.
  • ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
  • ■Ideal for outdoor or very wet conditions.
  • ■UL, cUL, and CE
  • ■Complies with IP56 NEMA 3R, 4, 4X
  • ■IP56

from $2,940.61

4 of 6 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your DTS Series part number

Filter 6 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

6 of 6 part numbers · 4 priced online

Dimension tables (inches / mm)
Part No.PriceOrder
DTS3061A115N3LGQuoteQuote
DTS3061A230N3LG$2,940.61BackorderBuy now
DTS3061A460N3LG$3,193.93BackorderBuy now
DTS3081A115N4SSQuoteQuote
DTS3081A230N4SS$3,076.37In stockBuy now
DTS3081A460N4SS$3,175.84BackorderBuy now
Electrical DataDTS3061A115N3LG · DTS3081A115N4SSDTS3061A230N3LG · DTS3081A230N4SSDTS3061A460N3LG · DTS3081A460N4SSPriceOrder
Rated Voltage115 V 60 Hz230 V 50/60 Hz460 V 50/60 HzQuoteQuote
Range of Operation103-127 V198-253 V360 - 506 VQuoteQuote
Power Consumption760 W760 W760 WQuoteQuote
Running Amps3.12 A1.52 A0.76 AQuoteQuote
Starting Current28 A18 A18 AQuoteQuote
Line CordTerminal BlockTerminal BlockTerminal BlockQuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Refrigeration DataDTS3061A115N3LG · DTS3081A115N4SSDTS3061A230N3LG · DTS3081A230N4SSDTS3061A460N3LG · DTS3081A460N4SSPriceOrder
Cooling Capacity BTU/h (Watts) +95/+95F +35/+35C2382 BTU/h (698 W)2382 BTU/h (698 W)2382 BTU/h (698 W)QuoteQuote
Type of RefrigerantR134aR134aR134aQuoteQuote
Regrigerant Charge400 g400 g400gQuoteQuote
Adjustable Control Range+50F..104F / +10C..+40C Factory setting +95F/+35C+50F..104F / +10C..+40C Factory setting +95F/+35C+50F..104F / +10C..+40C Factory setting +95F/+35CQuoteQuote
Max. Ambient Air Temp.+131°F (+55°C)+131°F (+55°C)+131°F (+55°C)QuoteQuote
Min. Ambient Air Temp.+32°F (0°C)+32°F (0°C)+32°F (0°C)QuoteQuote
Air Capacity (unrestricted)Internal Circulation 191 CFMInternal Circulation 191 CFMInternal Circulation 191 CFMQuoteQuote
External Circulation 88 CFMExternal Circulation 88 CFMExternal Circulation 88 CFMQuoteQuote
Condensation DischargeCondensate DrainCondensate DrainCondensate DrainQuoteQuote
Filter MatFilterlessFilterlessFilterlessQuoteQuote
Db Noise Level<64 dB (A)<64 dB (A)<64 dB (A)QuoteQuote
Unit Weight61.7 lbs (28 kg)/ 66.2 lbs (30 kg)61.7 lbs (28 kg)/ 66.2 lbs (30 kg)61.7 lbs (28 kg)/ 66.2 lbs (30 kg)QuoteQuote
Exterior Case LGGalvanized sheet metalGalvanized sheet metalQuoteQuote
Finish LGRAL7035 light GrayRAL7035 light GrayRAL7035 light GrayQuoteQuote
Finish GYANSI 61 GrayANSI 61 GrayANSI 61 GrayQuoteQuote
Finish SS304 Stainless Steel #4 Brush304 Stainless Steel #4 Brush304 Stainless Steel #4 BrushQuoteQuote
NEMA Rating3R, 43R, 43R, 4, 4XQuoteQuote

These part numbers are quoted per order — send us the quantities and we'll price them within one business day.

Description

  • ■Compact design for side mounting on any enclosure surface where spot cooling or low capacity cooling is required.
  • ■Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air.
  • ■Ideal for outdoor or very wet conditions.

Standards

  • ■UL, cUL, and CE
  • ■Complies with IP56 NEMA 3R, 4, 4X
  • ■IP56
  • ■NEMA 3R, 4, 4X

Features

  • ■Stainless steel body.
  • ■R134a refrigerant.
  • ■Thermostat control.
  • ■Expansion valve permits increased efficiency through improved evaporator heat transfer and less frequent compressor operation.
  • ■Continuous air circulation from high capacity fans.
  • ■EMI/RFI suppression meets CE standard.
  • ■Gasket, mounting kit, and template for cutout and drilling are included.
  • ■Direct condensate discharge, drain hose and clamp 1/2" barb connection.

Documents

Specification SheetManualDrilling Template
