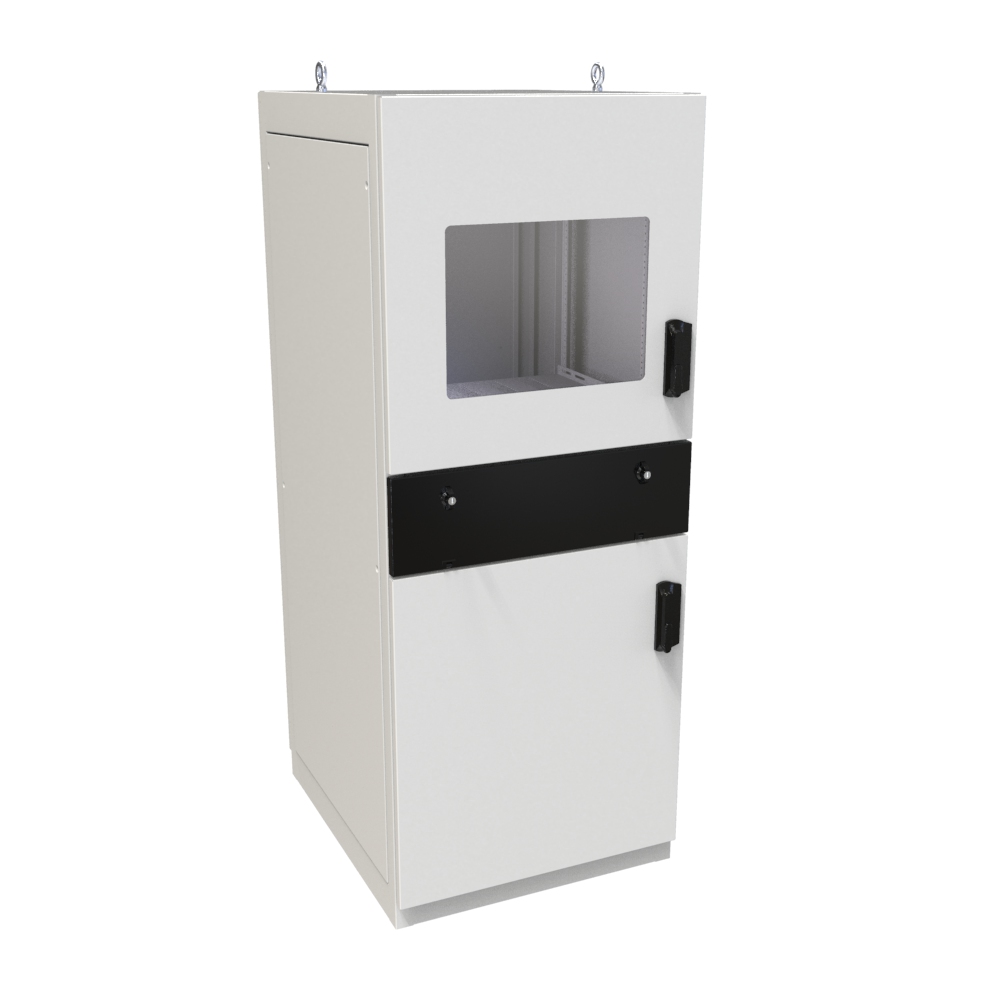

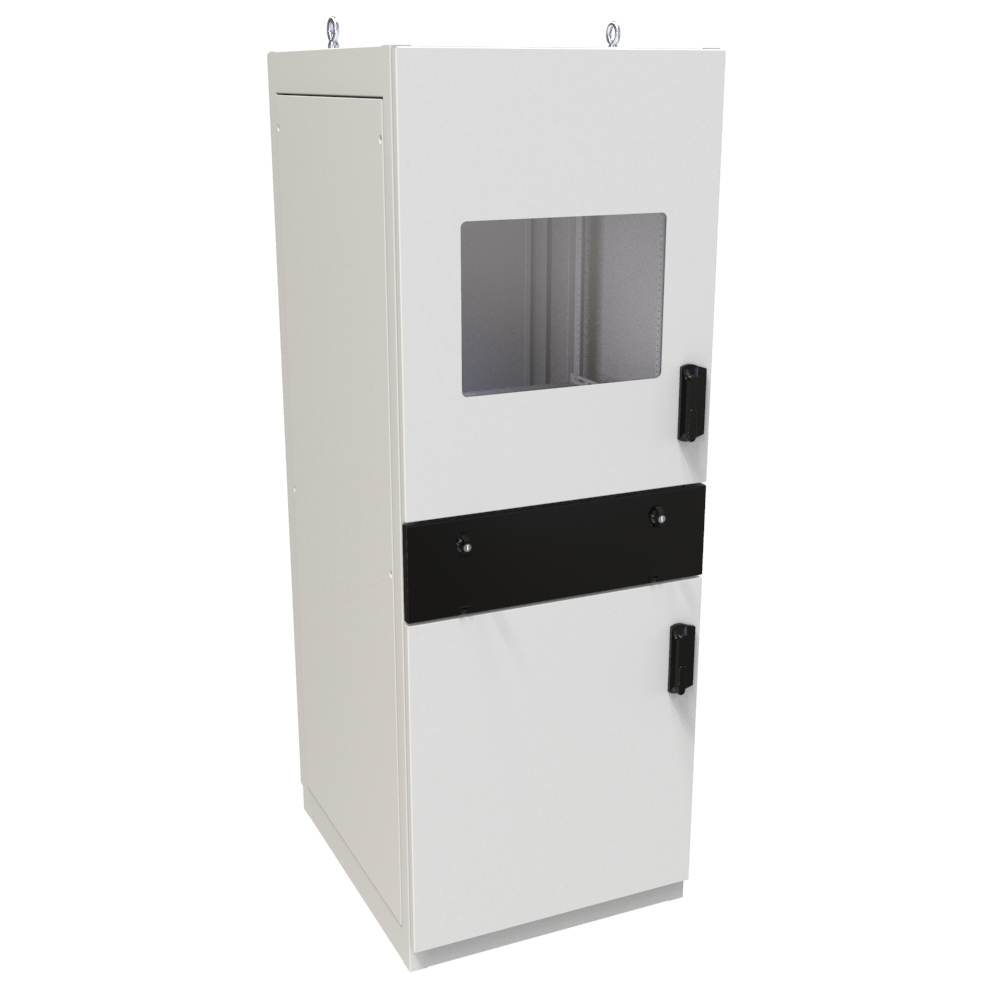

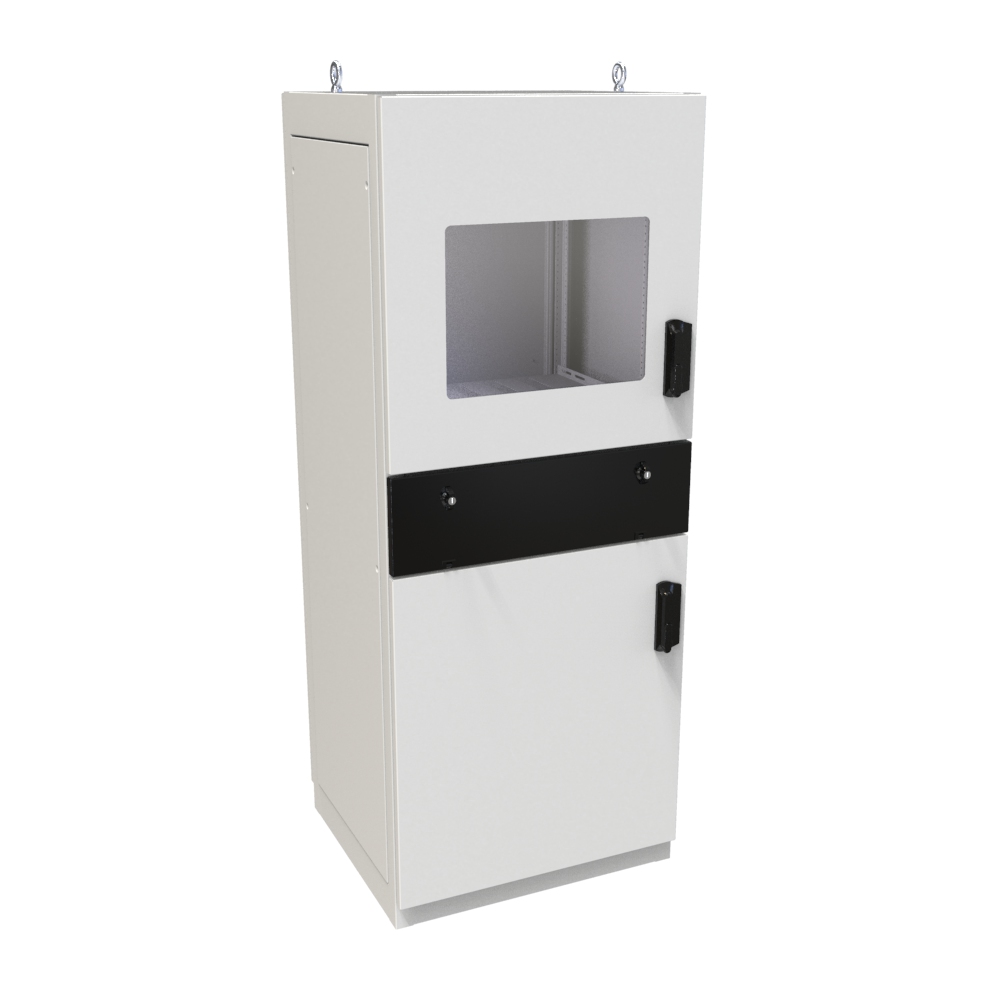

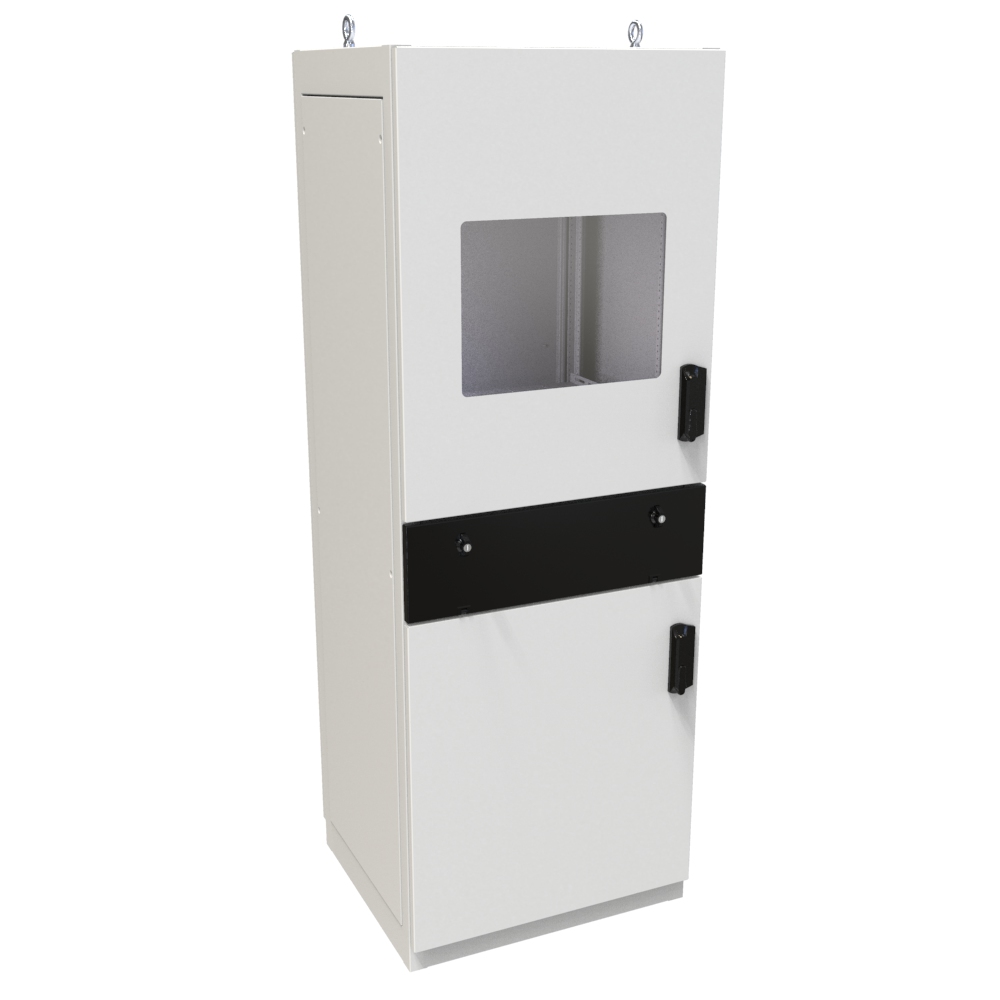

Industrial Computer Workstation Cabinet Modular NEMA 12 (1500 lb Capacity) · IPC Series

Key Features and Benefits

• ■14-gauge welded steel construction (1500 lb capacity ) supports industrial computer and control equipment.
• ■Modular freestanding design allows multiple enclosures to be joined for scalable workstation configurations.
• ■NEMA Type 12 sealed construction protects against dust, dirt, and dripping liquids in industrial environments.

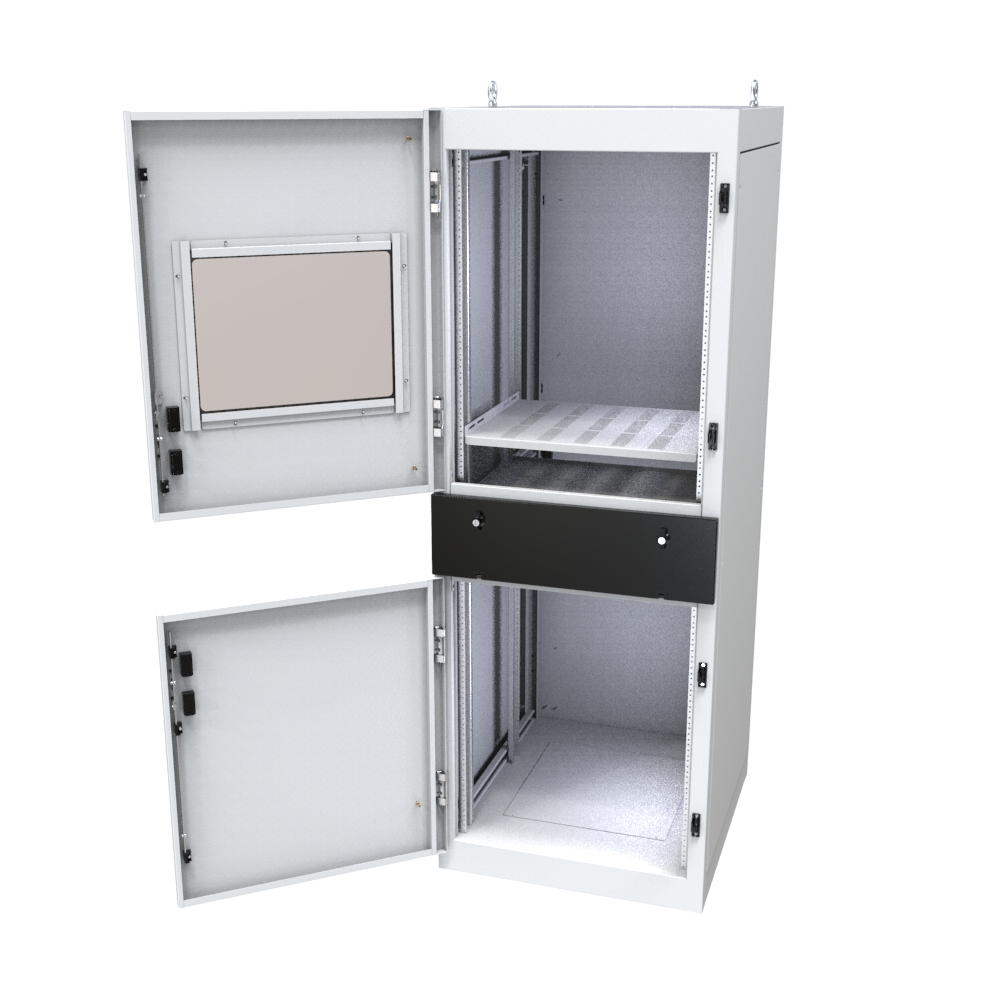

• ■Integrated workstation design includes monitor viewing area, sealed keyboard compartment with pull-out keyboard tray (behind black cover)
• ■Three (3) sets of EIA-310 compliant 10-32 threaded combination mounting rails (12-gauge steel) support standard rack equipment. Includes a starter pack of 10-32 mounting hardware ( SCREW1032-25 ).
• ■Solid front, rear, and side panels with key-locking handles provide secure access control.
• ■Gasketed doors and panels maintain environmental sealing and equipment protection.
• ■Grounding and bonding studs on frame, doors, and panels support proper electrical grounding.
• ■Provision for lifting eyebolts supports safe handling and installation.
• ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
• ■Light gray powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports indoor air quality and environmental compliance.

Compliance and Certifications

The IPC Series modular industrial computer workstation cabinet is designed to protect computing and control equipment in harsh environments. Its NEMA Type 12 sealed construction safeguards sensitive electronics from dust, debris, and liquid exposure while maintaining accessibility for operation and maintenance.

The modular design allows multiple enclosures to be joined for larger systems or multi-function workstations. Integrated features such as a monitor viewing area, keyboard compartment, and internal mounting rails provide a complete solution for factory floor and industrial control applications.

• ■UL 508A Type 12.
• ■CSA Type 12.
• ■NEMA Type 12.
• ■IEC 60529 IP54.
• ■RoHS compliant.
• ■GREENGUARD compliant.
• ■TAA-compliant.
• ■Manufactured in North America within an ISO 9001 certified facility.

When Another Product May Be a Better Choice

• ■When you need a sealed rack cabinet for IT or network equipment in harsh environments, consider our HDME Series.
• ■When you need a wall-mounted industrial enclosure for space-constrained installations, consider our NWC Series.
