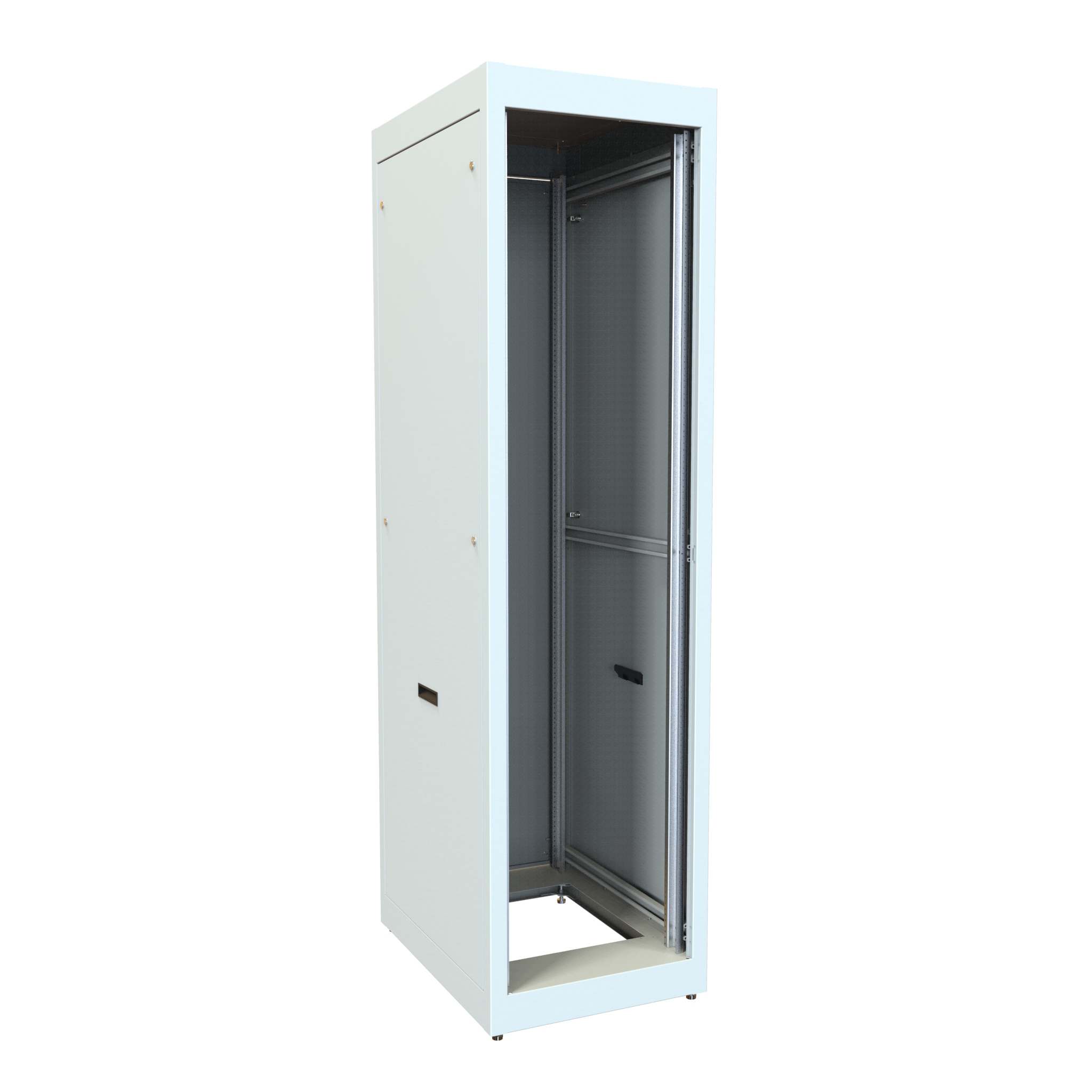

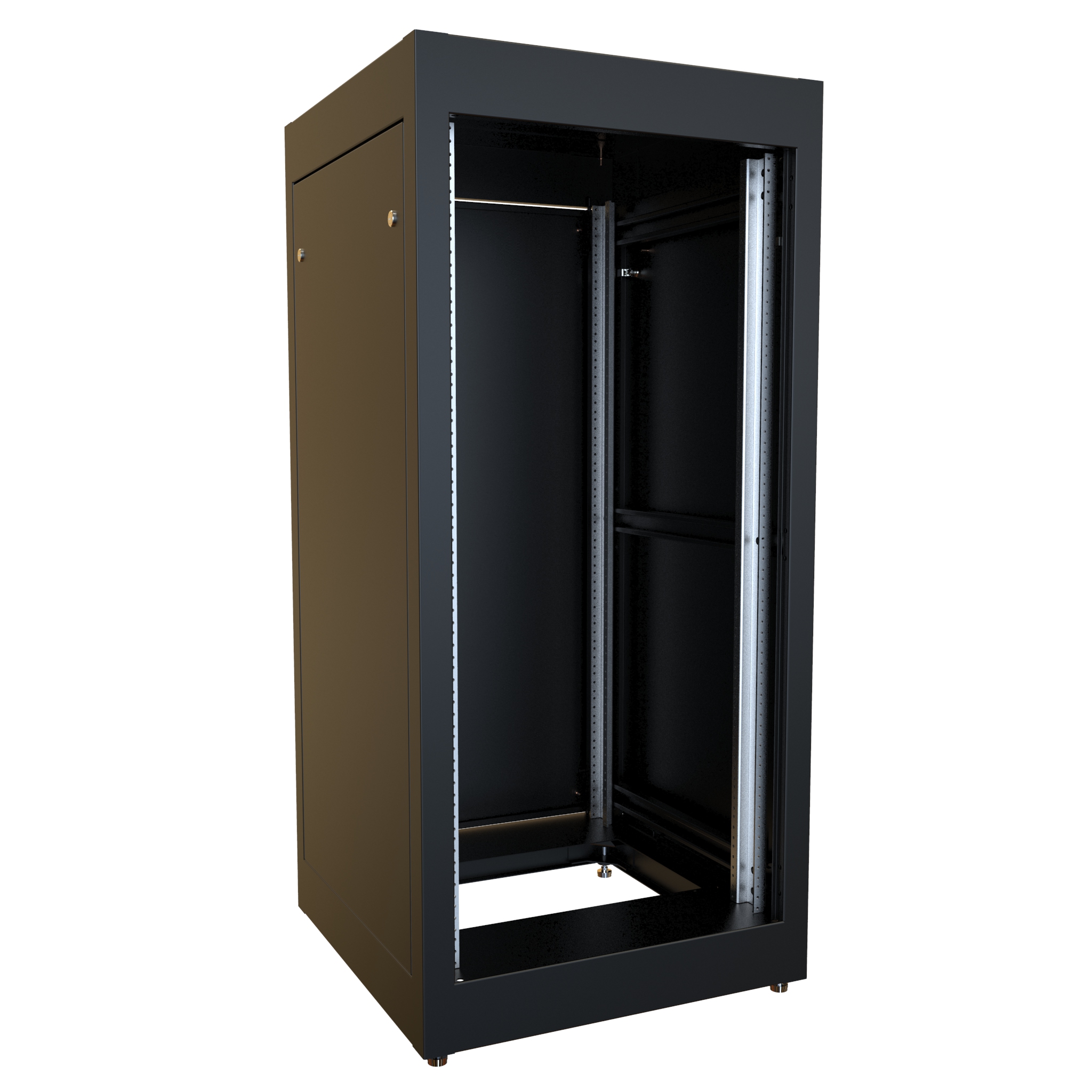

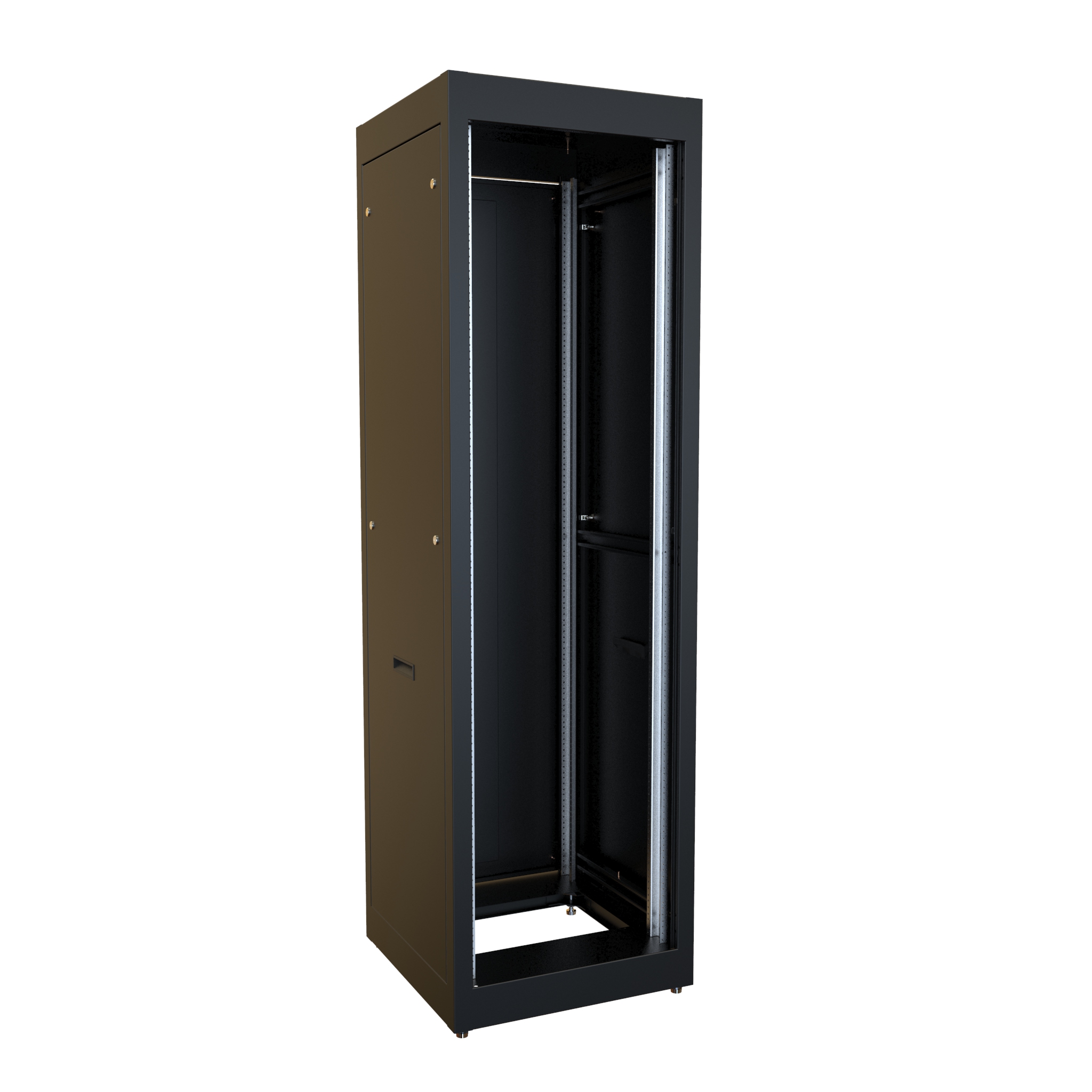

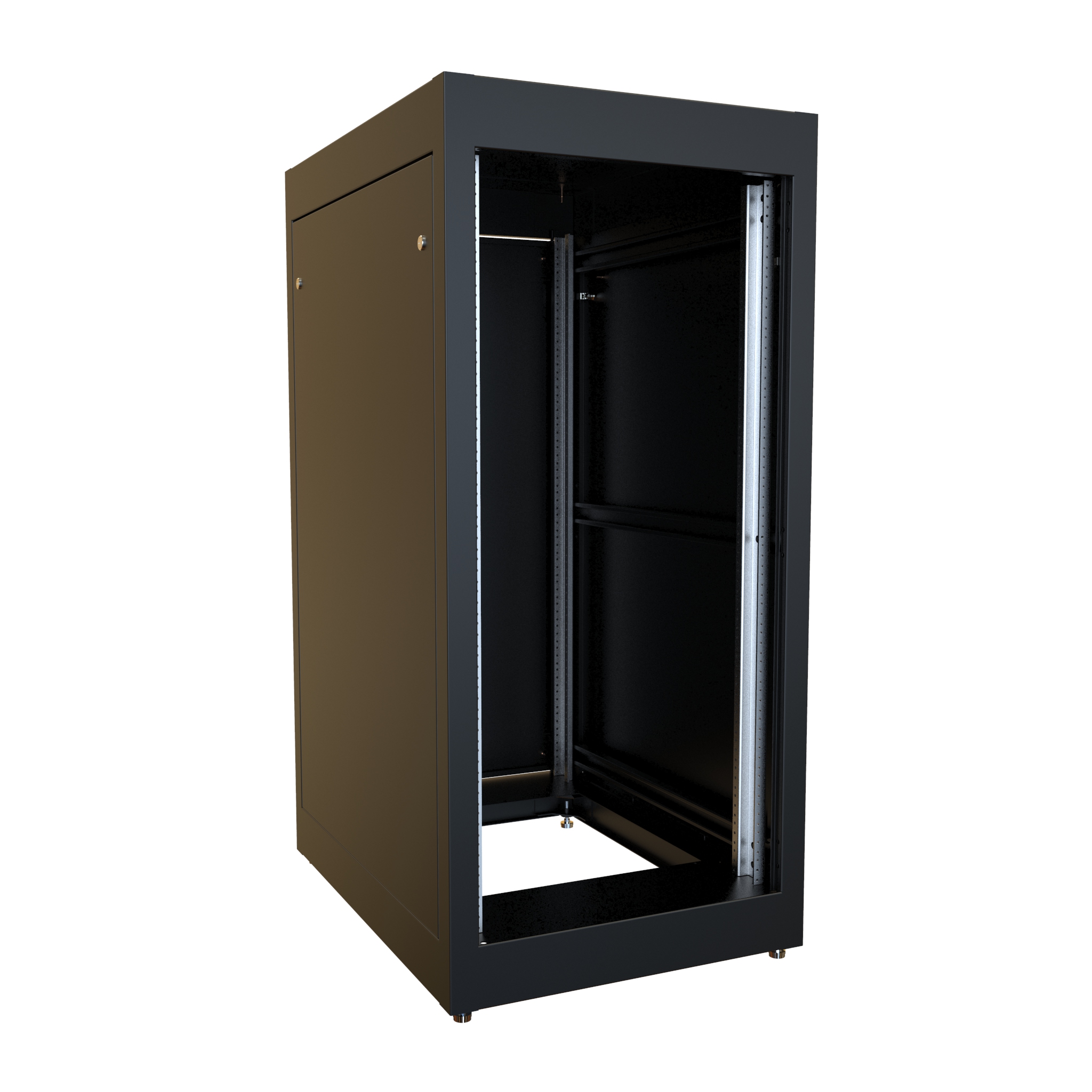

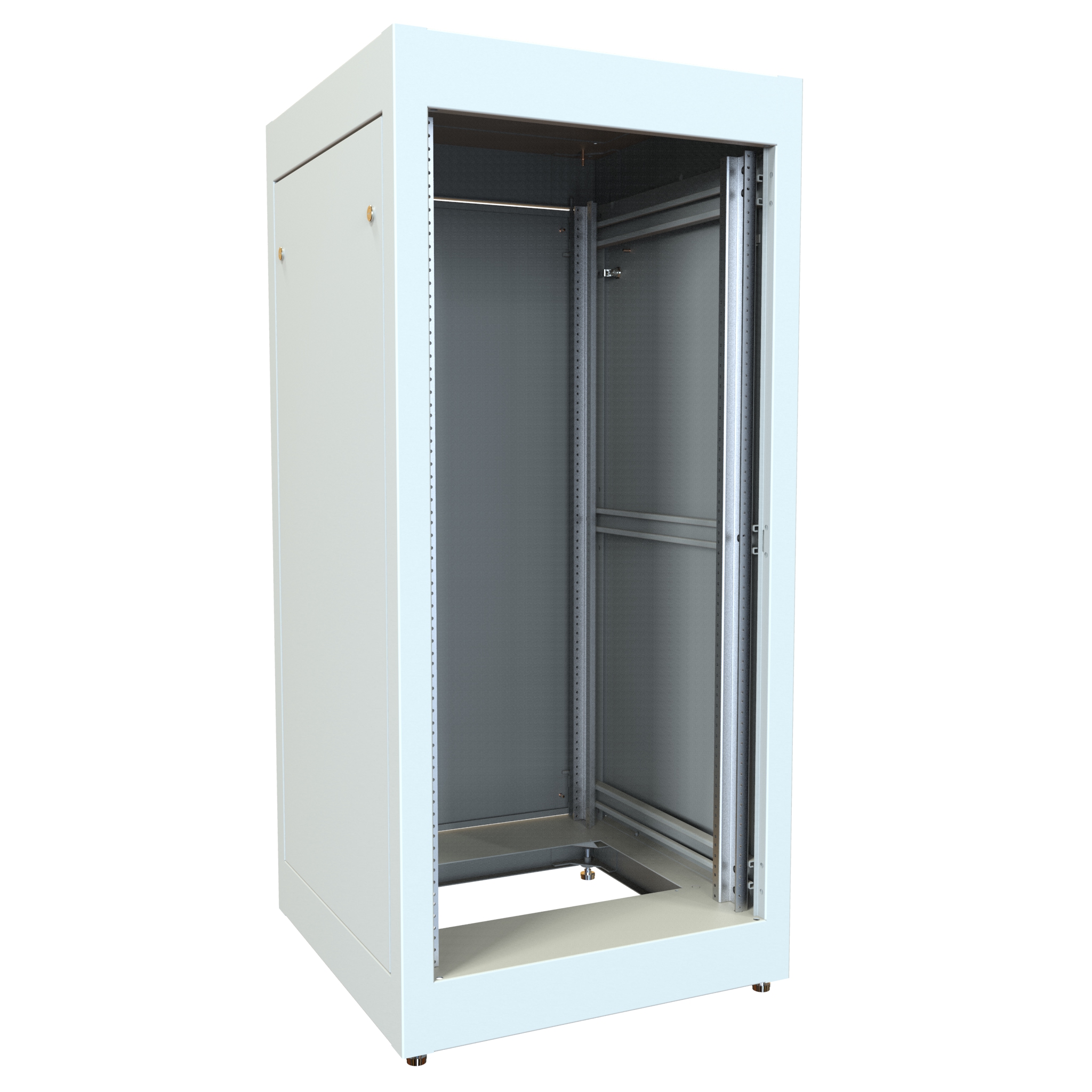

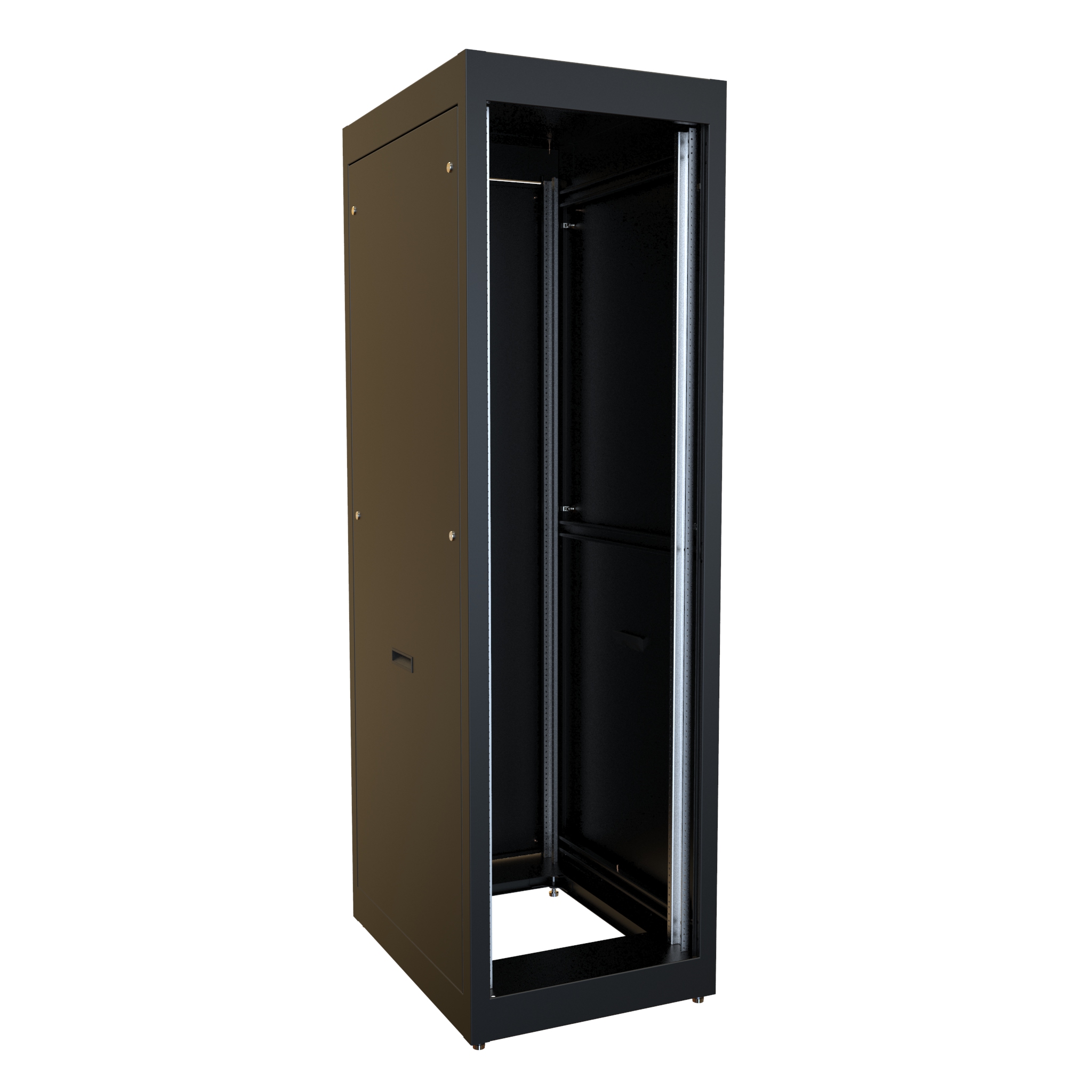

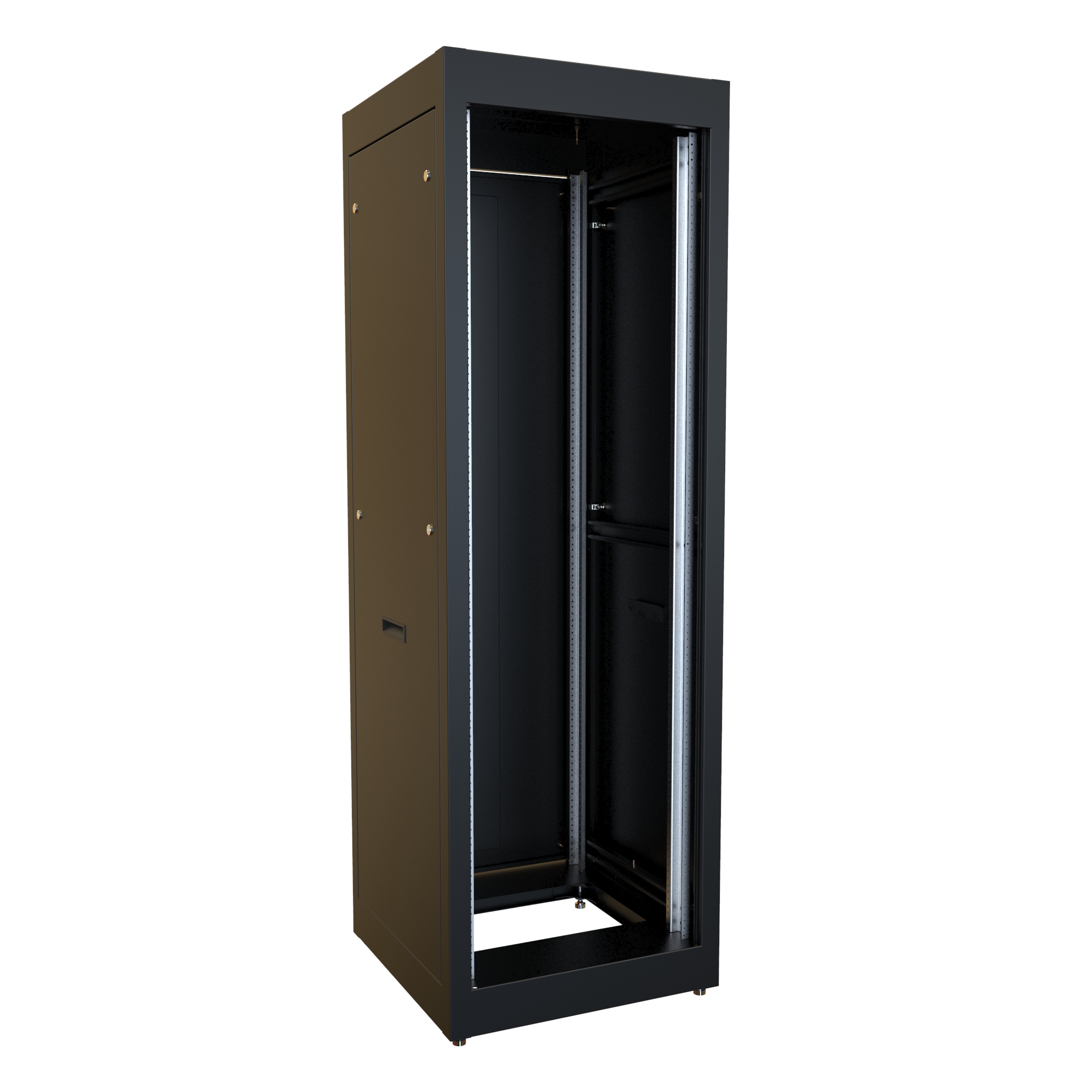

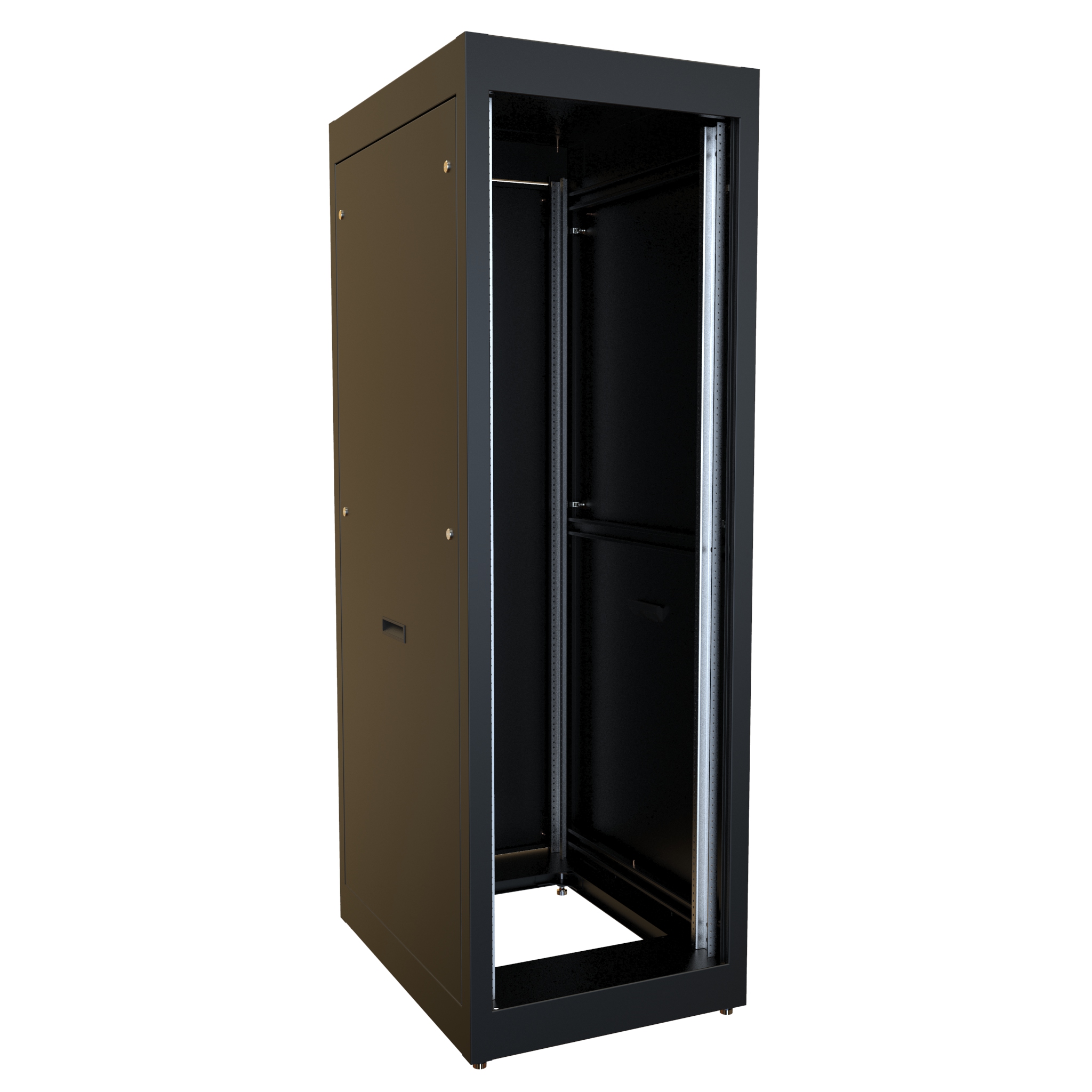

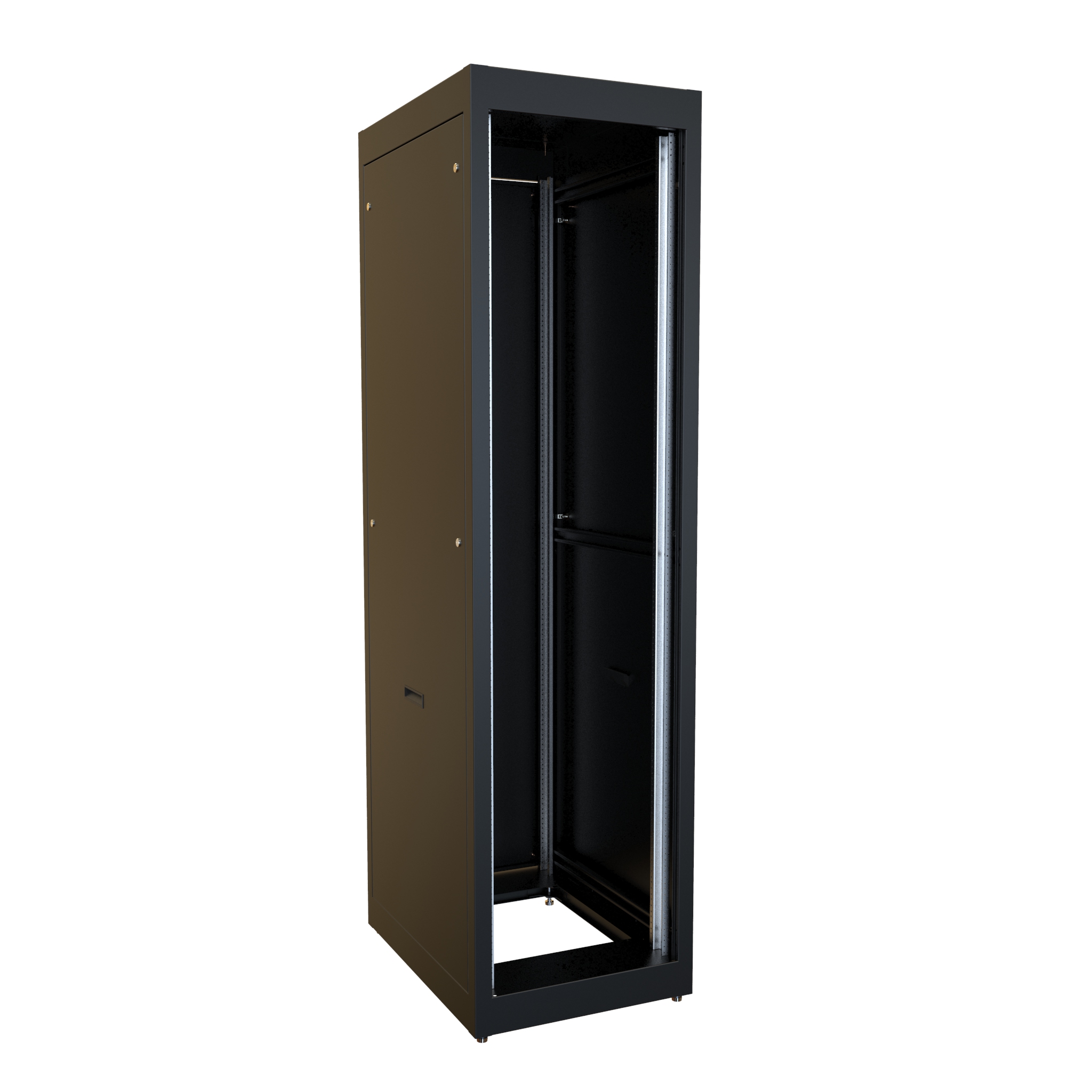

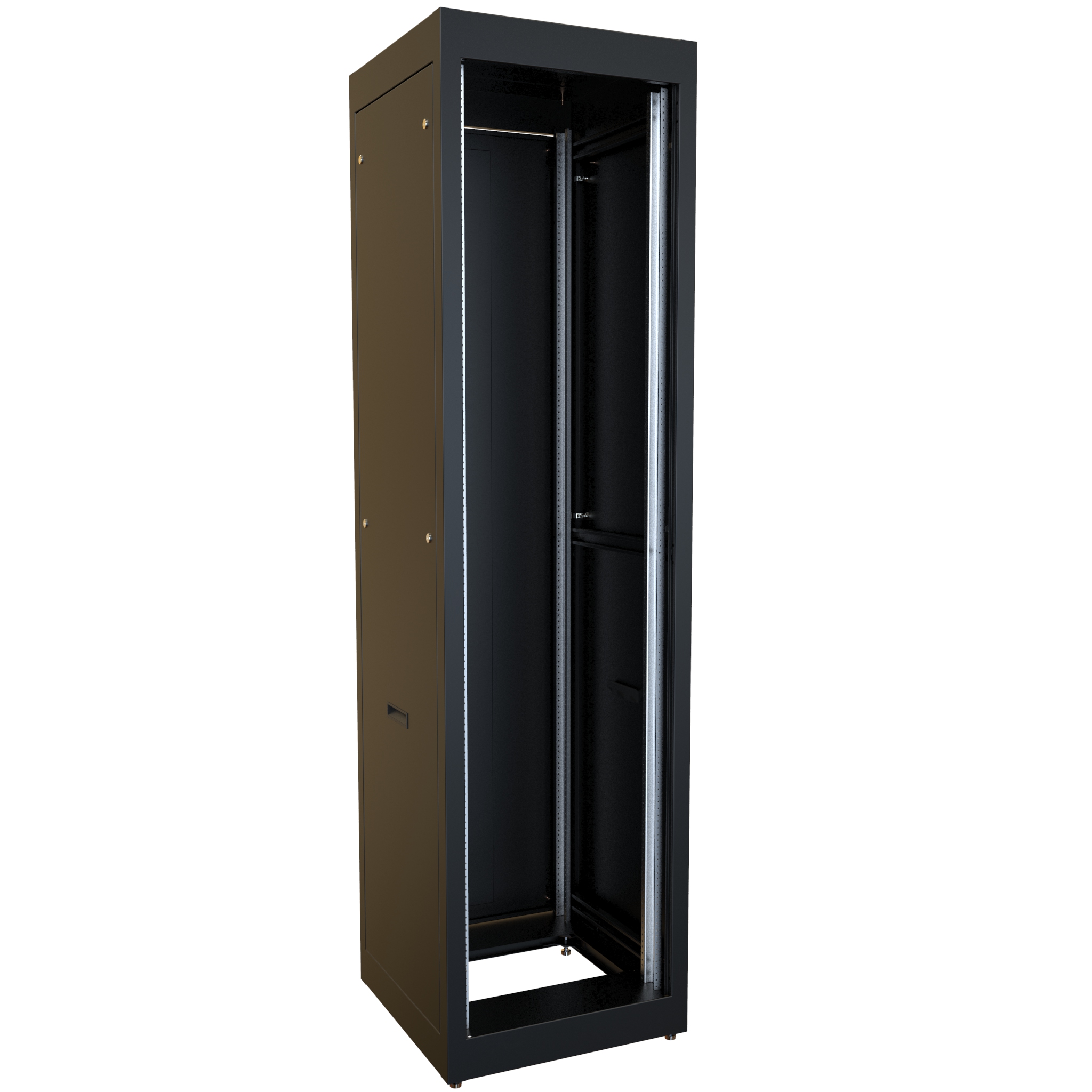

Rack Cabinet, Welded Steel (1500 lb) · C2RR Series

Key Features and Benefits

• ■14-gauge welded steel frame with 12-gauge reinforced corner brackets and 16-gauge doors and panels (1500 lb capacity ) provides durable support for equipment installations.
• ■Ships fully assembled welded cabinet supports fast deployment with no on-site assembly required.
• ■Two (2) sets of infinitely adjustable EIA-310 compliant 10-32 threaded combination mounting rails (12-gauge steel) support standard rack equipment. Includes a starter pack of 10-32 mounting hardware ( SCREW1032-25 ).
• ■C-channel strut design provides cabinet strength and flexibility for rail positioning and equipment mounting.
• ■Flush-mounted solid door with quarter-turn lock supports secure equipment access and a clean exterior profile.
• ■Removable solid side panels with quarter-turn latches support easy access for installation and maintenance.
• ■Interchangeable top panel supports cable entry, ventilation, or fan integration depending on configuration.
• ■Open bottom design for cable entry supports routing from below in lab, industrial, or structured environments.
• ■Grounding studs on frame, doors, and panels support bonding and safe installation.
• ■Factory-installed nylon leveling feet with mounting provisions for optional casters support stable placement on uneven surfaces while allowing flexibility for fixed or mobile installations.
• ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
• ■Textured powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports indoor air quality and environmental compliance.

Included Components

The C2RR Series rack cabinet provides a durable, welded solution for general-purpose equipment installations. With a 1500 lb load capacity and fully assembled design, it supports fast deployment and long-term reliability.

Featuring adjustable 10-32 threaded mounting rails, solid panels, and flexible cable entry options, the C2RR is ideal for AV, lab, telecom, and industrial environments requiring a strong and straightforward cabinet solution.

• ■C2RR Series Specific Components Include: One (1) solid locking door (Can be used as either front or rear door) One (1) solid top panel
• ■One (1) solid locking door (Can be used as either front or rear door)
• ■One (1) solid top panel

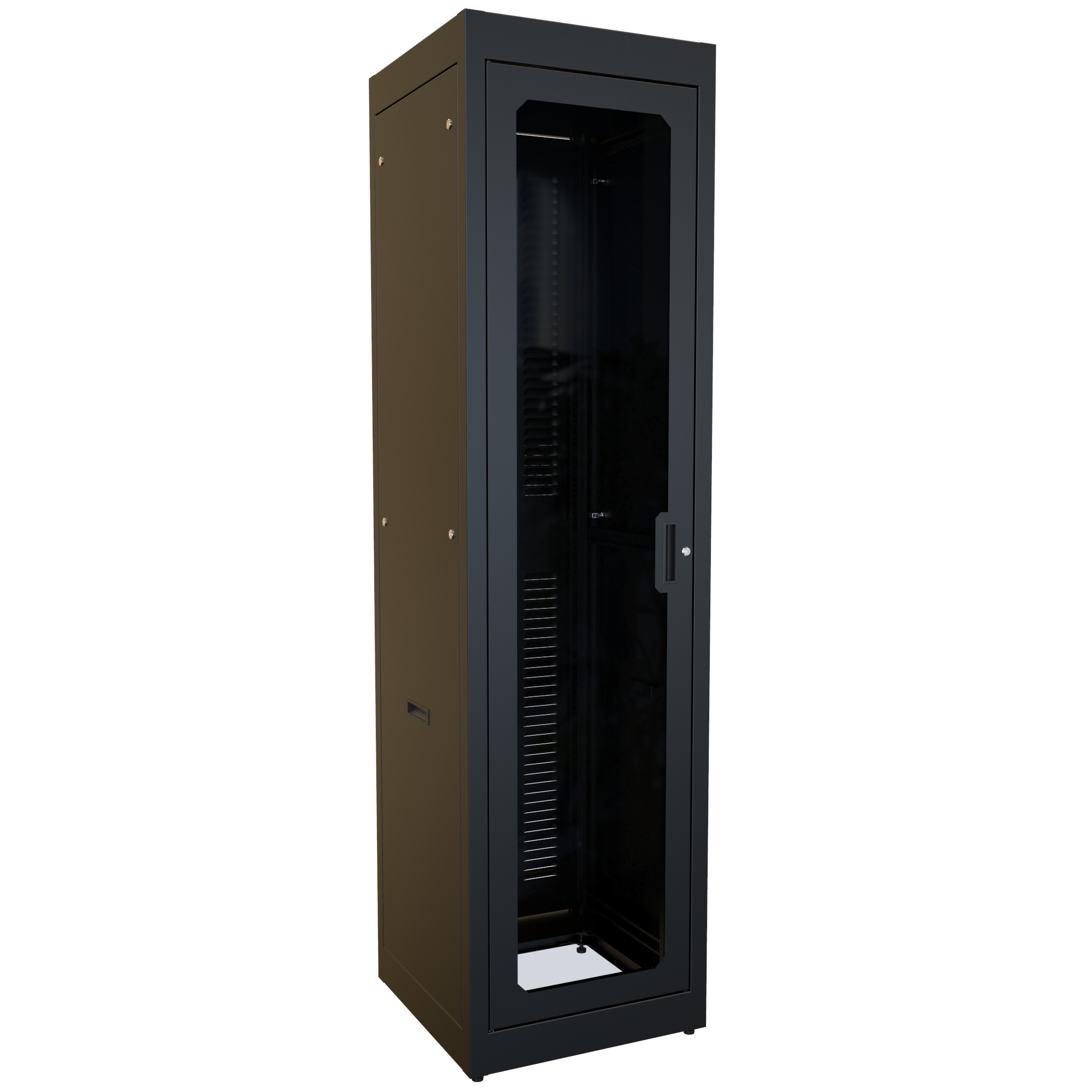

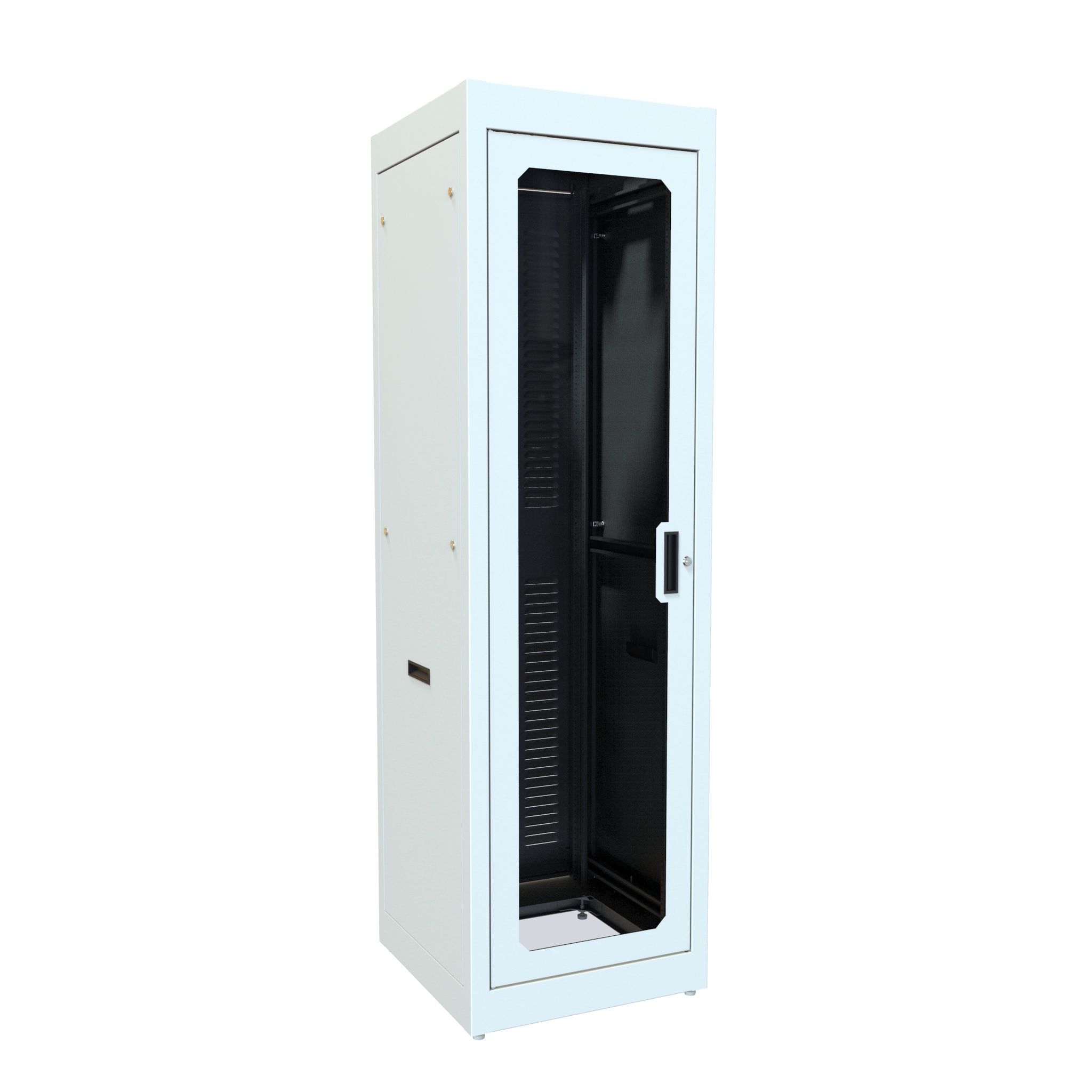

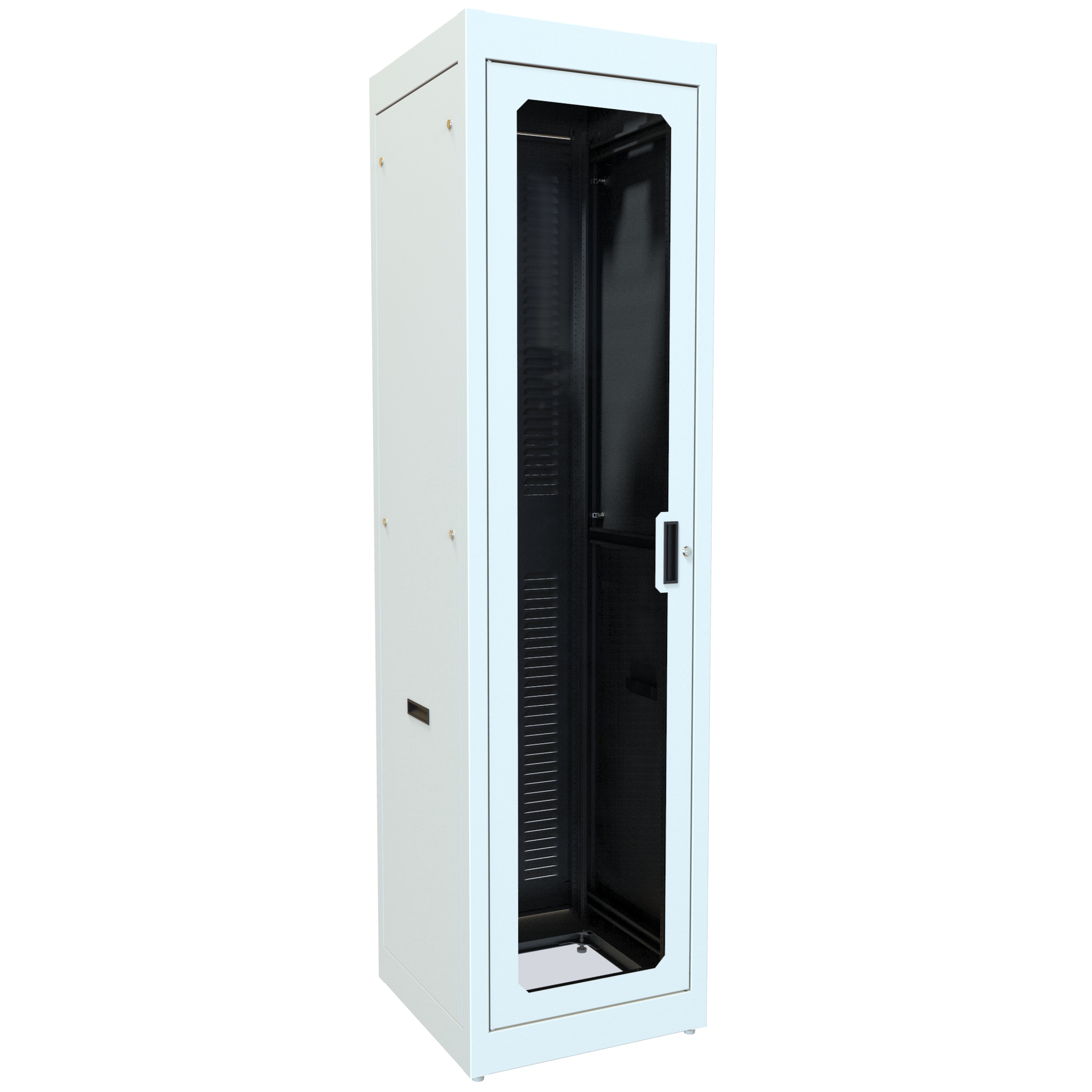

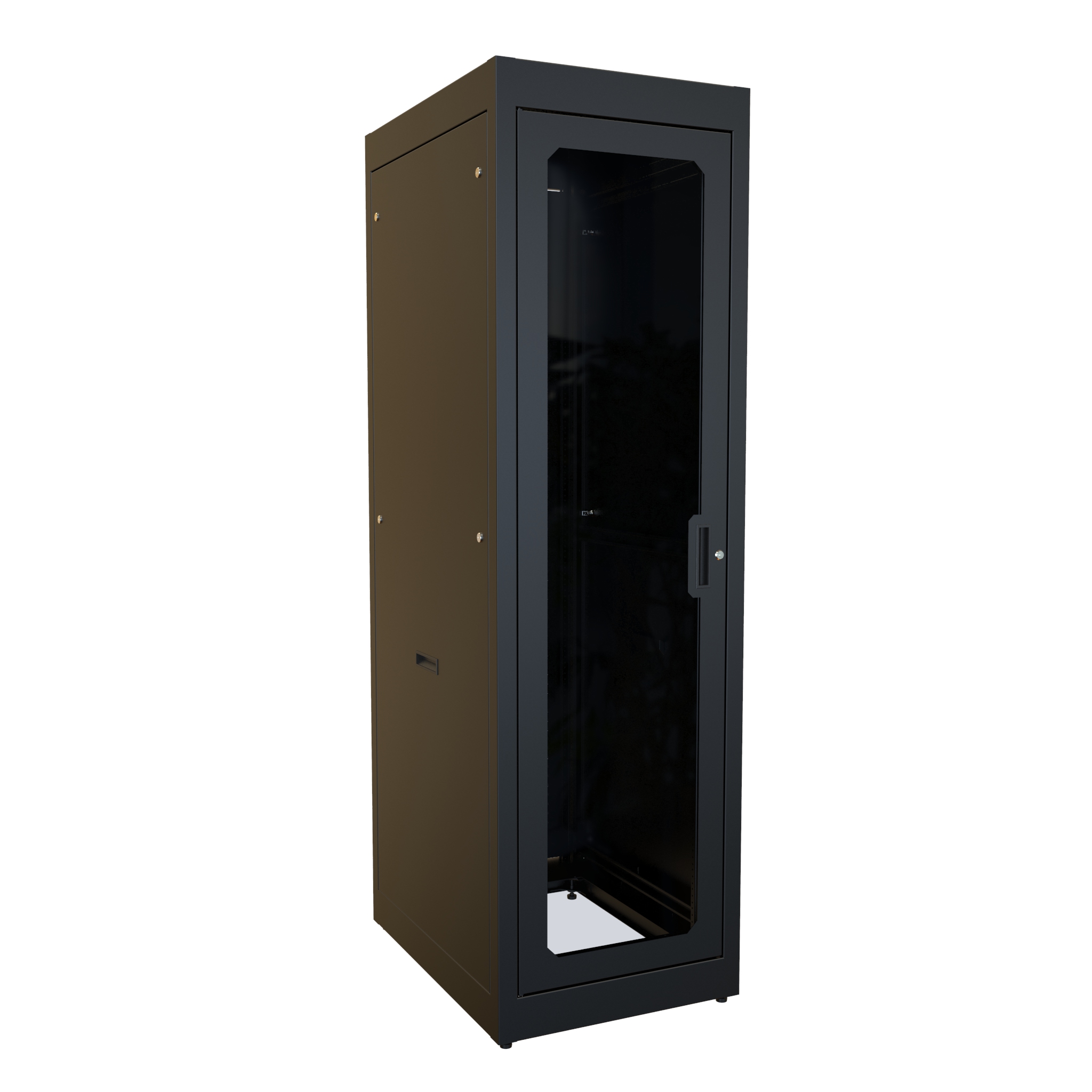

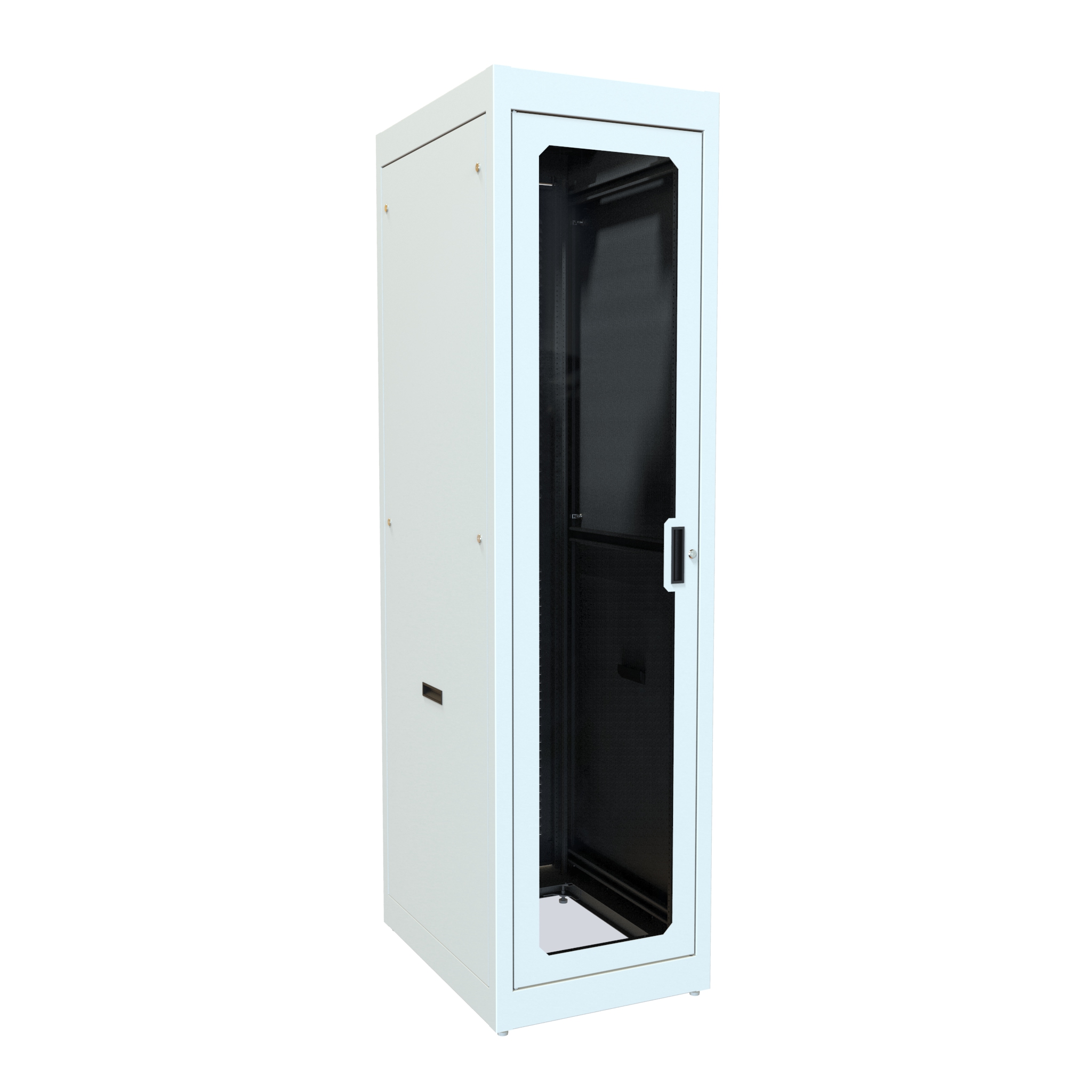

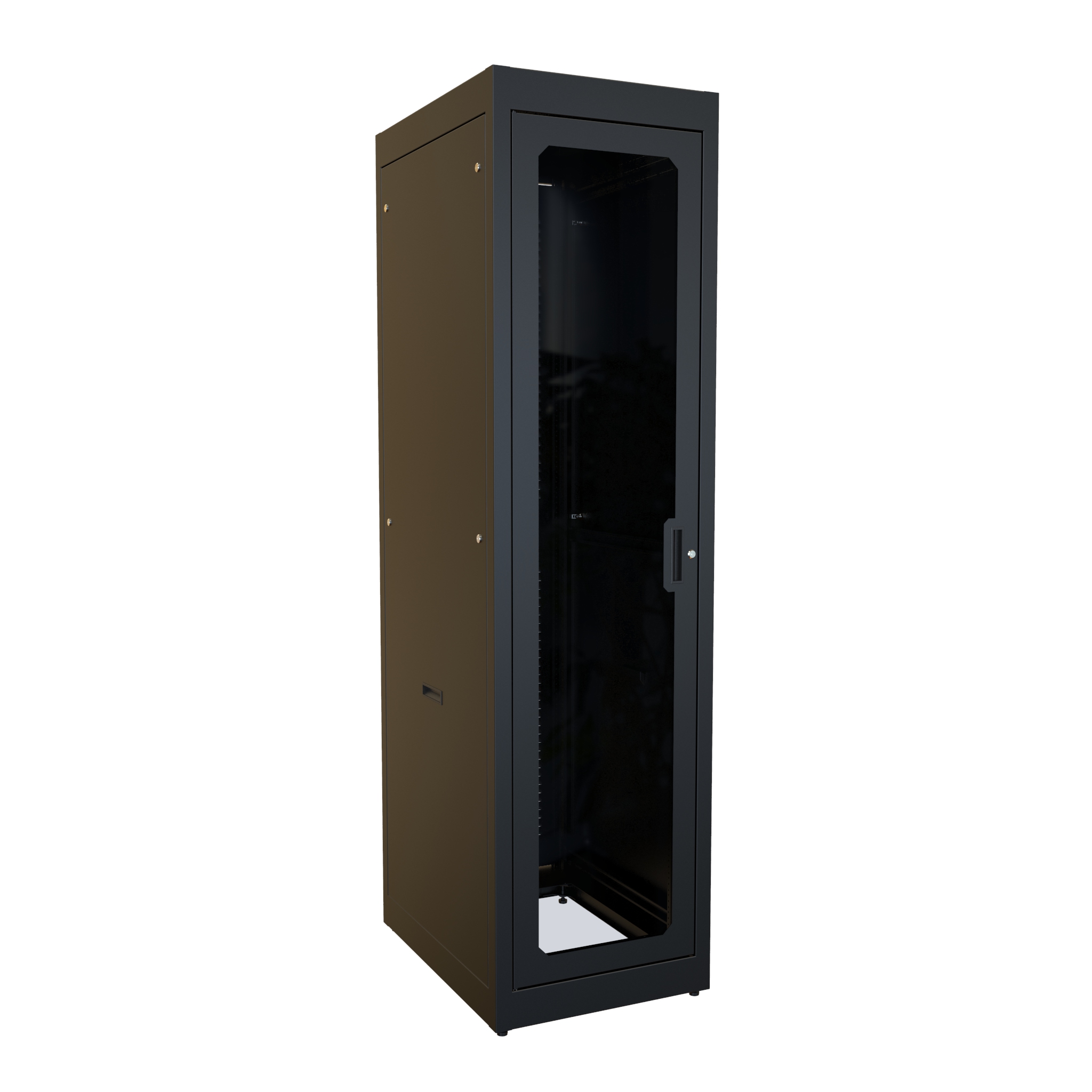

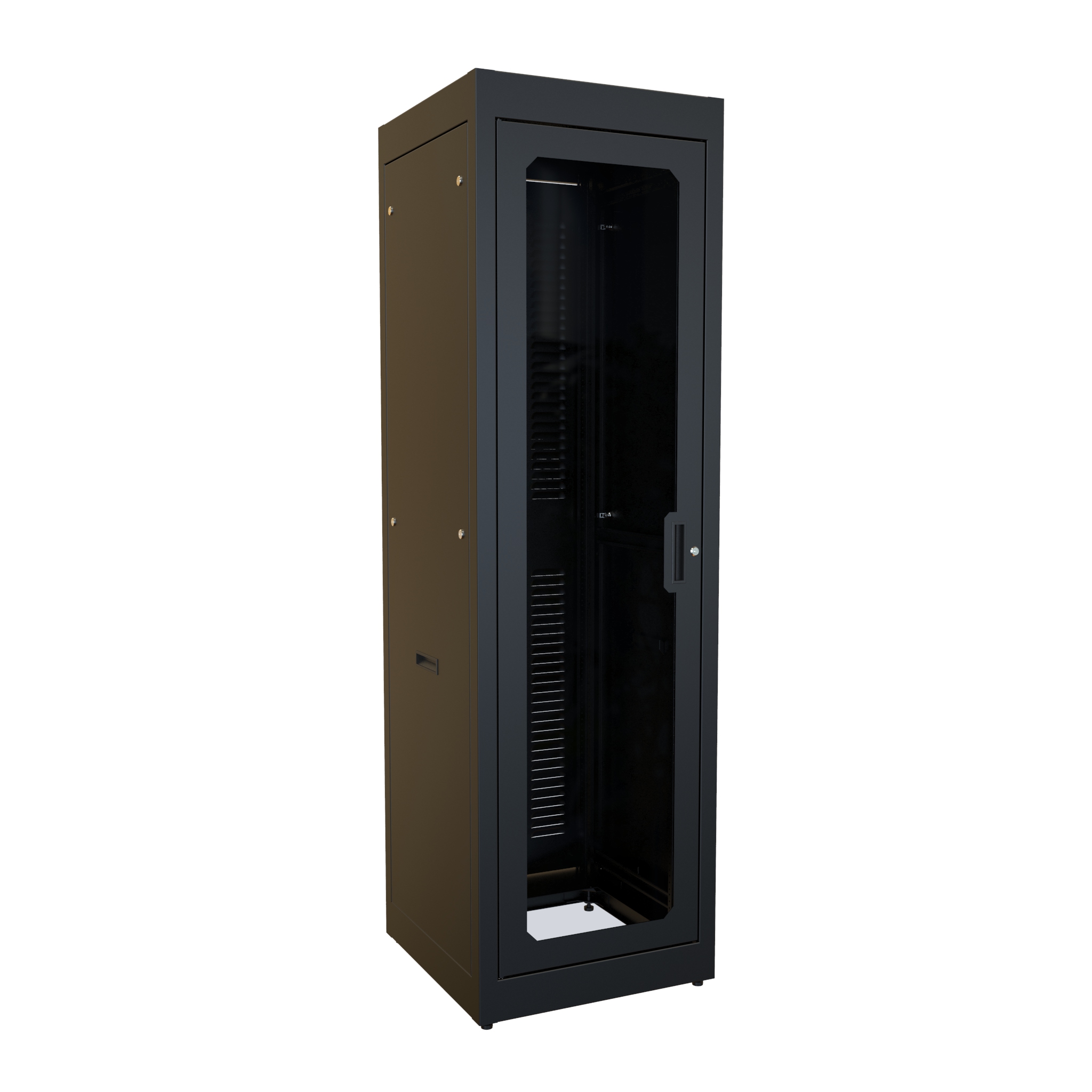

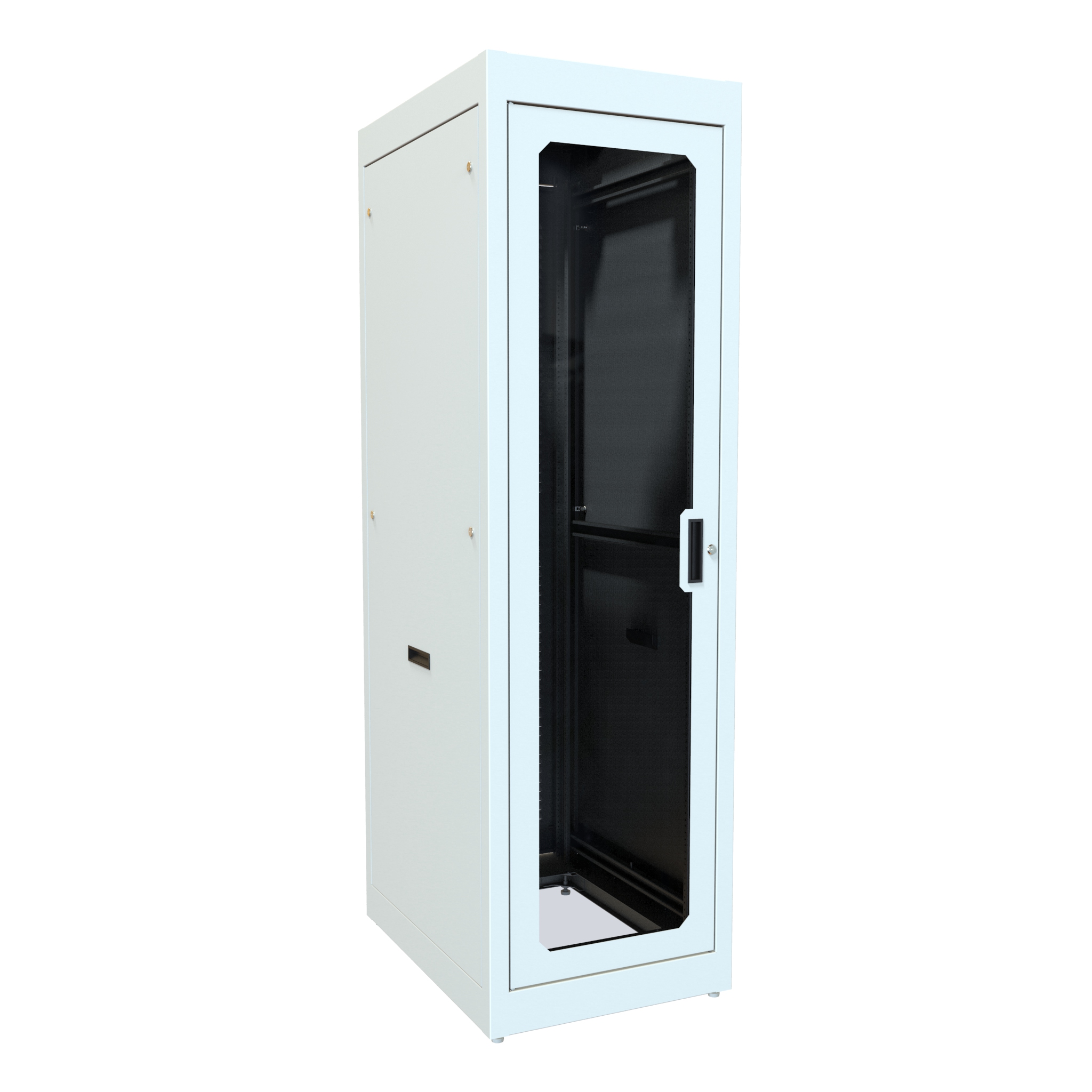

• ■C2RR "D" Series Specific Components include: One (1) locking front window door One (1) locking rear louvered door One (1) vented top panel with four (4) 3.5" (89 mm) diameter cable access holes with covers.
• ■One (1) locking front window door
• ■One (1) locking rear louvered door
• ■One (1) vented top panel with four (4) 3.5" (89 mm) diameter cable access holes with covers.
• ■When you need a modular cabinet system with flexible configuration, consider our RCK Series.
• ■When you need a cabinet designed for server and sliding rail compatibility, consider our C4RR-A or H1 Series.
• ■When you need a knock-down cabinet with combination mounting rails for flexible equipment support, consider our REFK Series.
