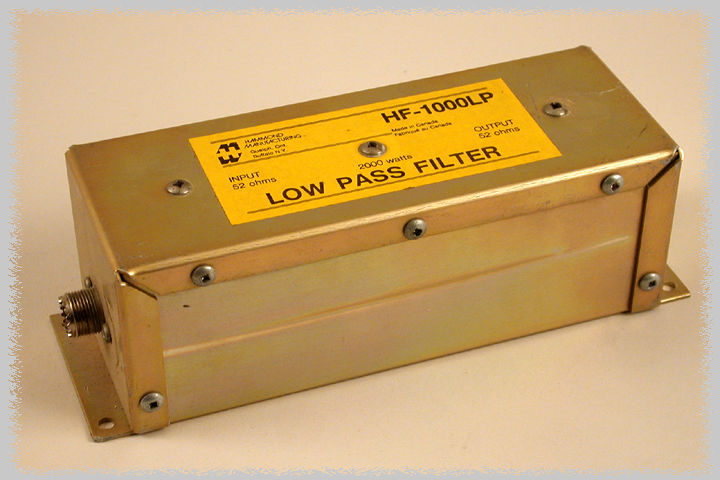

Low Pass Filter · HF-1000LP Series
Brand: Hammond Manufacturing · 1 part number
(Circa 1980 - No longer in production)
- ■USABLE PASSBAND FREQUENCY RANGE 1.8 to 30 Mhz.
- ■1.8 to 30 Mhz.
- ■INPUT IMPEDANCE 50 Ohms (PL-259 female connector)
- ■50 Ohms (PL-259 female connector)
- ■OUTPUT IMPEDANCE 50 Ohms (PL-259 female connector)
- ■50 Ohms (PL-259 female connector)
Quoted per order
Choose your part numbers below — we price HF-1000LP Series within one business day, with volume tiers.
Configure & price
Find your HF-1000LP Series part number
Filter 1 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
1 of 1 part numbers
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Bottom Mounting Flange · Height | Bottom Mounting Flange · Width | Bottom Mounting Flange · Depth | Mounting Holes (center to center) · Dim1 | Mounting Holes (center to center) · Dim2 | Price | Order |
|---|---|---|---|---|---|---|---|
| HF-1000LP | 2.75 | 2.69 | 8.62 | 8..188 | 2.12 | Quote | Quote |
These part numbers are quoted per order — send us the quantities and we'll price them within one business day.
Features
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
- ■USABLE PASSBAND FREQUENCY RANGE 1.8 to 30 Mhz.
- ■1.8 to 30 Mhz.
- ■INPUT IMPEDANCE 50 Ohms (PL-259 female connector)
- ■50 Ohms (PL-259 female connector)
- ■OUTPUT IMPEDANCE 50 Ohms (PL-259 female connector)
- ■50 Ohms (PL-259 female connector)
- ■POWER HANDLING 2,000 Watts P.E.P. Continuous
- ■2,000 Watts P.E.P. Continuous
- ■WEIGHT 1 Lb. 5 oz. or 0.6 Kg.
- ■1 Lb. 5 oz. or 0.6 Kg.
Documents
Additional information
Part Details
| Part No. | Bottom Mounting Flange · Height | Bottom Mounting Flange · Width | Bottom Mounting Flange · Depth | Mounting Holes (center to center) · Dim1 | Mounting Holes (center to center) · Dim2 |
|---|---|---|---|---|---|
| HF-1000LP | 2.75 | 2.69 | 8.62 | 8..188 | 2.12 |
