Choke
- Connection Screw Terminals
- A 25
- kHz 504
$107.26In stock
Buy now
High Frequency Reactors · 197 Series
Brand: Hammond Manufacturing · 20 part numbers
- ■Perfect for high frequency filtering applications.
- ■High self-resonant frequency values
- ■Operating Frequency: 60Hz - 10kHz
- ■Some models feature universal channel mount packaging with flexible insulated leads (6" min.).
- ■Some models feature rugged construction with aluminum base and stainless steel band along with open-style terminals for maximum versatility.
- ■Consult datasheets for further design details.
from $25.20
20 of 20 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 197 Series part number
Filter 20 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
20 of 20 part numbers · 20 priced online
Choke
- Connection Wire leads, 6 inch min.
- A 15
- kHz 739.5
- Inductance 0.24
$26.00In stock
Buy now
Choke
- Connection Screw Terminals
- A 20
- kHz 1185.3
- Inductance 0.25
$58.58In stock
Buy now
Choke
- Connection Wire leads, 6 inch min.
- A 20
- kHz 1246.4
- Inductance 0.12
$25.87In stock
Buy now
Choke
- Connection Screw Terminals
- A 25
- kHz 1452
- Inductance 0.15
$58.41In stock
Buy now
Choke
- Connection Wire leads, 6 inch min.
- A 25
- kHz 272.3
- Inductance 0.075
$25.81In stock
Buy now
Choke
- Connection Wire leads, 6 inch min.
- A 10
- kHz 471.6
- Inductance 0.5
$26.18In stock
Buy now
Choke
- Connection Screw Terminals
- A 15
- kHz 812.3
- Inductance 0.5
$58.52In stock
Buy now
Choke
- Connection Screw Terminals
- A 20
- kHz 333
- Inductance 0.8
$110.63In stock
Buy now
Choke
- Connection Screw Terminals
- A 10
- kHz 514.2
- Inductance 1
$57.88In stock
Buy now
Choke
- Connection Screw Terminals
- A 15
- kHz 289.05
- Inductance 1.35
$107.42In stock
Buy now
Choke
- Connection Screw Terminals
- A 25
- kHz 272.3
- Inductance 1.4
$200.84In stock
Buy now
Choke
- Connection Wire leads, 6 inch min.
- A 5
- kHz 314.9
- Inductance 1.25
$25.20In stock
Buy now
Choke
- Connection Screw Terminals
- A 20
- kHz 218
- Inductance 2
$202.18In stock
Buy now
Choke
- Connection Screw Terminals
- A 10
- kHz 129.55
- Inductance 3.5
$106.83In stock
Buy now
Choke
- Connection Screw Terminals
- A 15
- kHz 152.9
- Inductance 3.5
$201.89In stock
Buy now
Choke
- Connection Screw Terminals
- A 5
- kHz 250.5
- Inductance 4
$59.80In stock
Buy now
Choke
- Connection Screw Terminals
- A 10
- kHz 123.3
- Inductance 7.5
$202.35Backorder
Buy now
Choke
- Connection Screw Terminals
- A 5
- kHz 74.35
- Inductance 14
$109.21In stock
Buy now
Choke
- Connection Screw Terminals
- A 5
- kHz 72.4
- Inductance 25
$206.15In stock
Buy nowDimension tables (inches / mm)
| Part No. | Inductance · (mH) | DC Current · (A) | Self-Resonant · Frequency (kHz) | DC Resistance · (mOhm) | Dimensions · A | Dimensions · B | Dimensions · C | Mounting Hole Pattern | Mounting Hole Pattern (2) | Mounting Hole Pattern (3) | Weight · (lbs.) | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

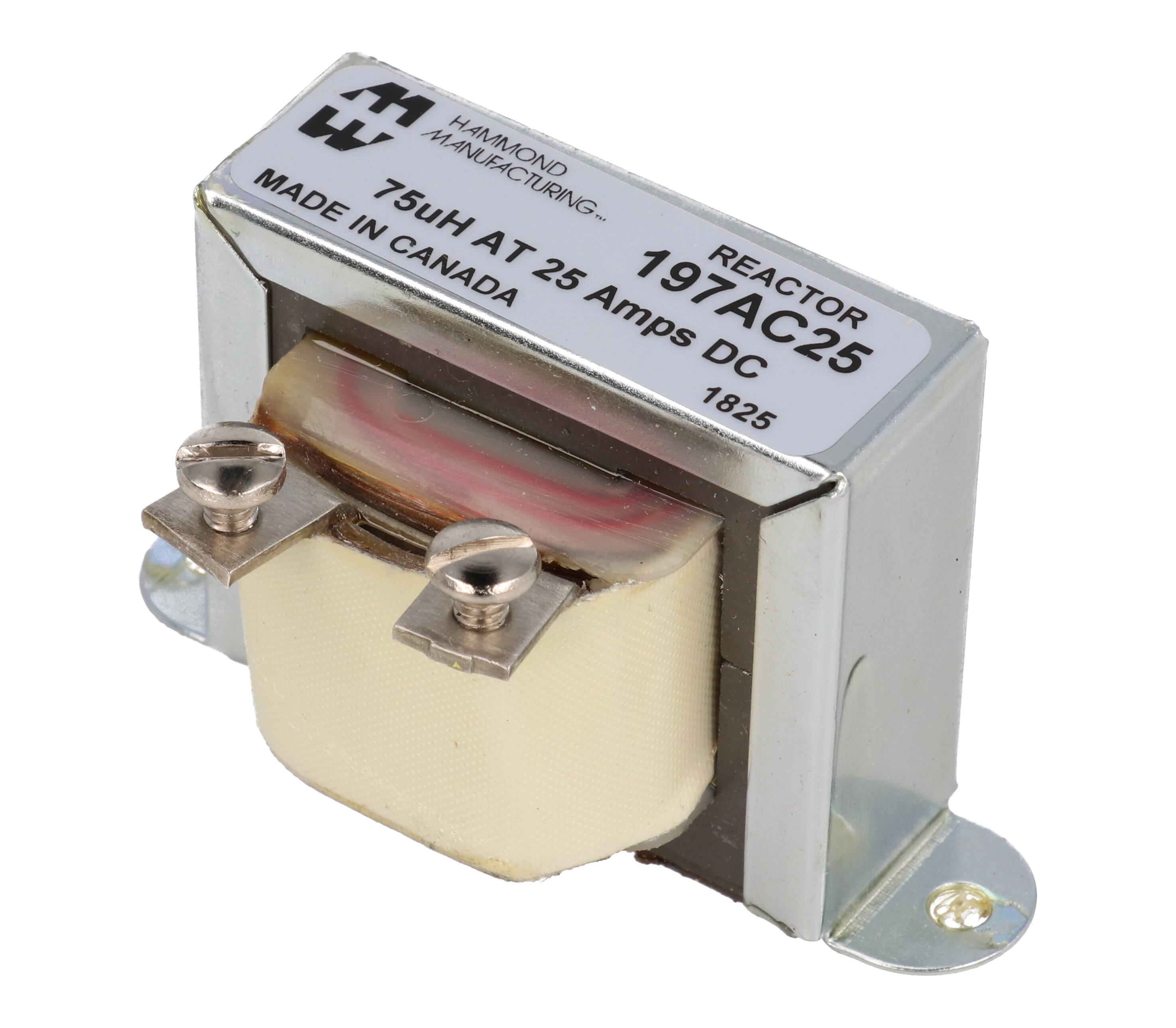

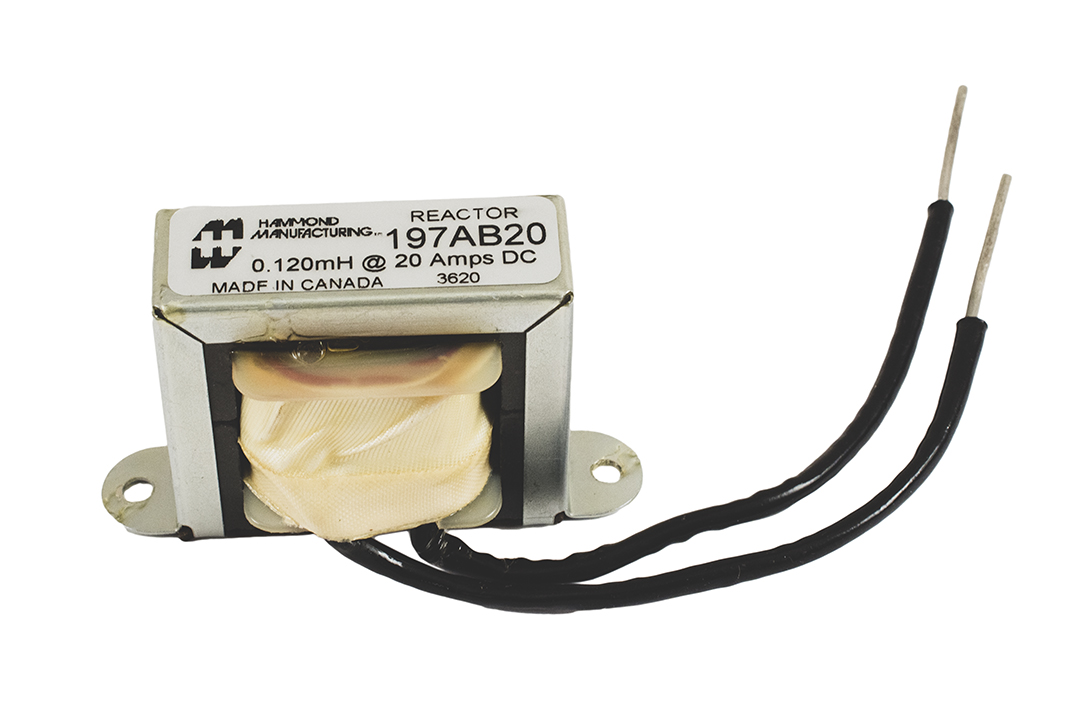

| 197AC25 | 0.075 | 25 | 272.3 | 18 | 2.00 | 3.25 | 1.60 | 2.81 | x | 0.875 | $25.81In stock | Buy now | |
| 197AB20 | 0.12 | 20 | 1246.4 | 25 | 2.00 | 3.25 | 1.65 | 2.81 | x | 0.875 | $25.87In stock | Buy now | |

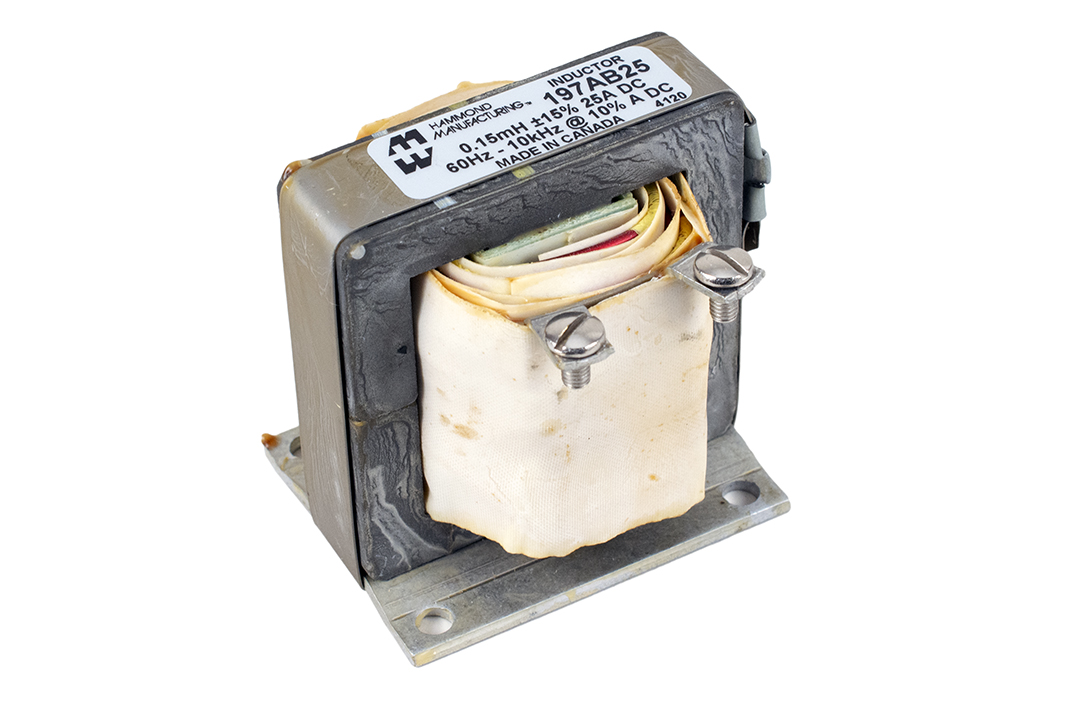

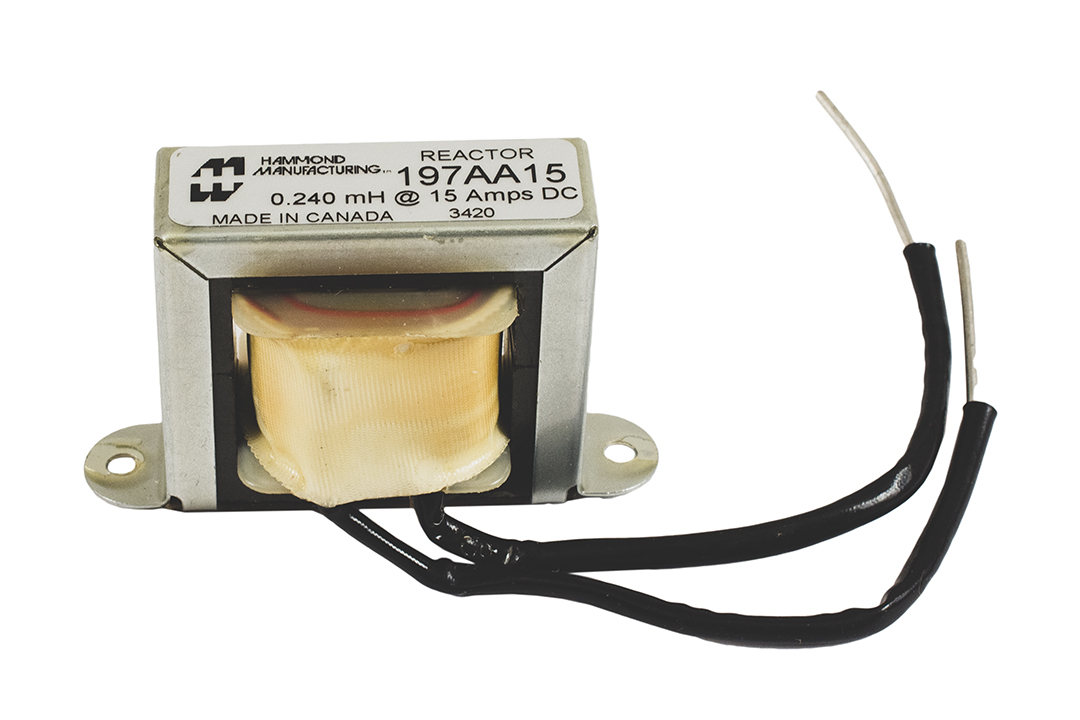

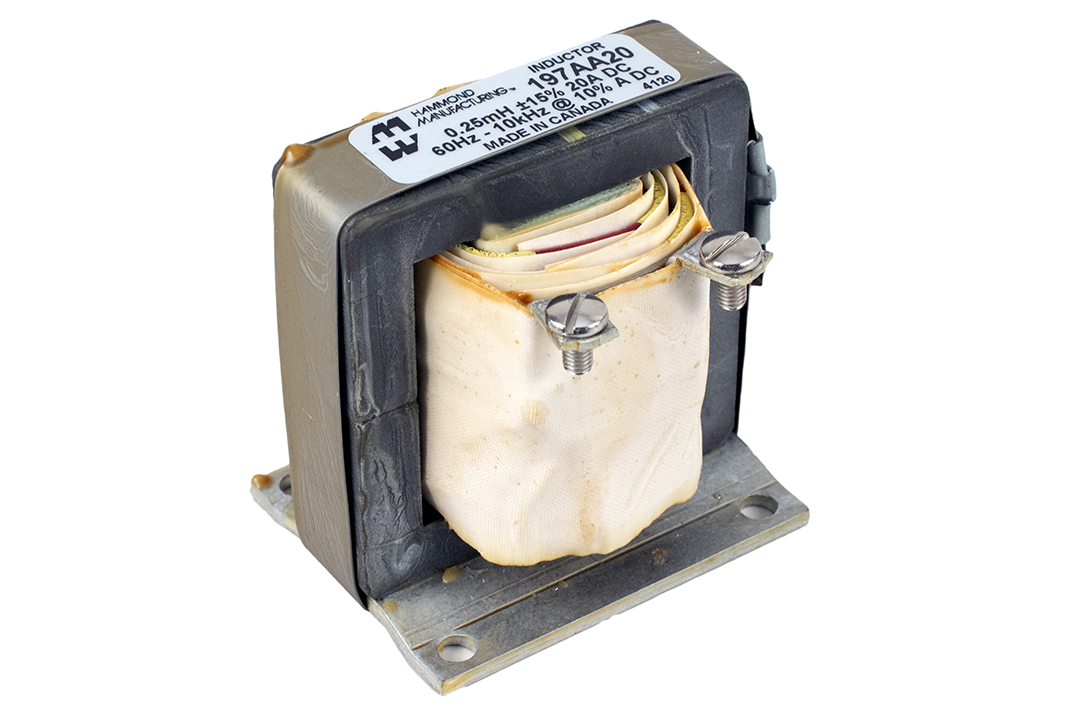

| 197AB25 | 0.15 | 25 | 1452.0 | 10 | 3.31 | 3.40 | 2.50 | 2.50 | x | 2.00 | 2.5 | $58.41In stock | Buy now |
| 197AA15 | 0.24 | 15 | 739.5 | 38 | 2.00 | 3.25 | 1.60 | 2.81 | x | 0.875 | $26.00In stock | Buy now | |
| 197AA20 | 0.25 | 20 | 1185.3 | 14 | 3.31 | 3.05 | 2.50 | 2.50 | x | 2.00 | 2.5 | $58.58In stock | Buy now |

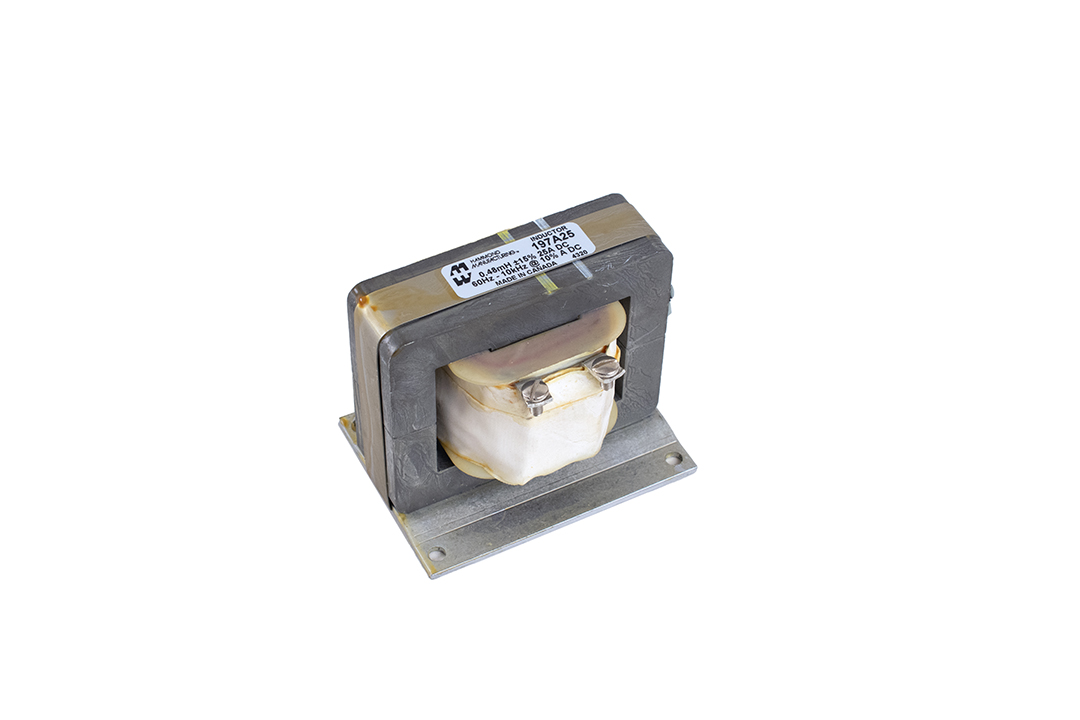

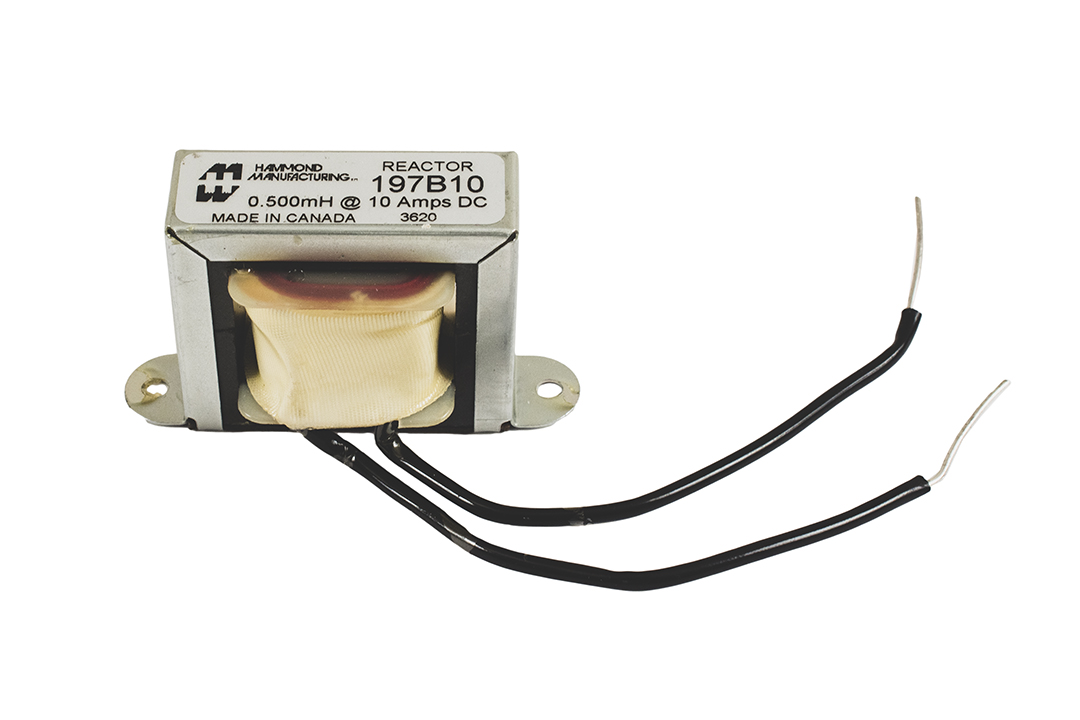

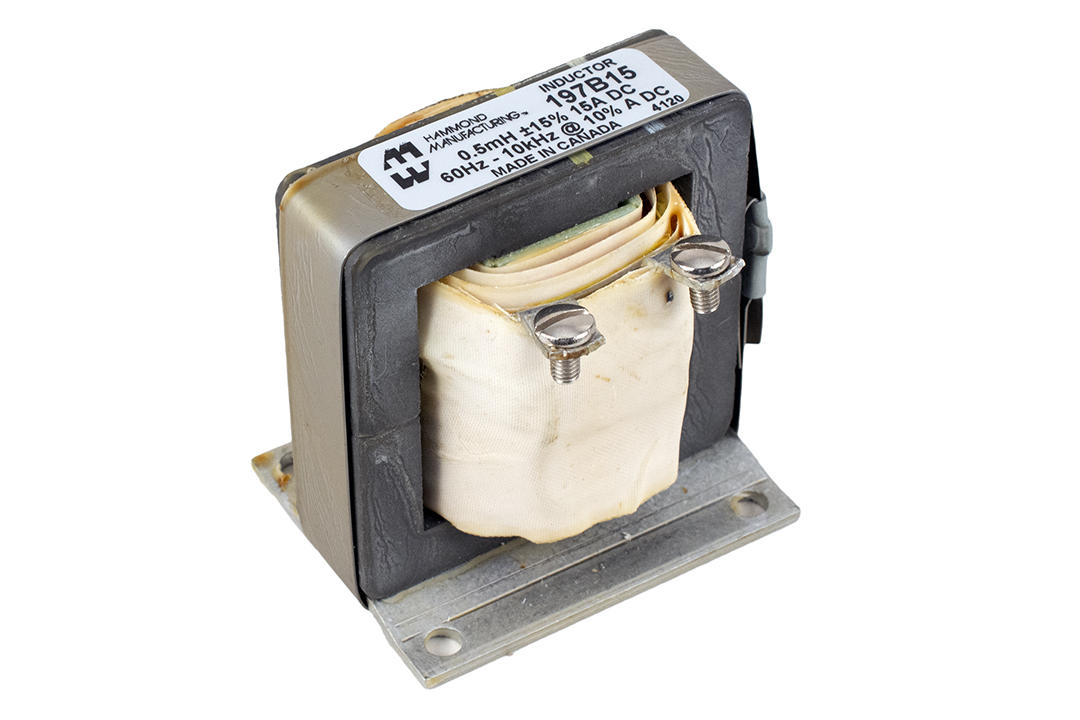

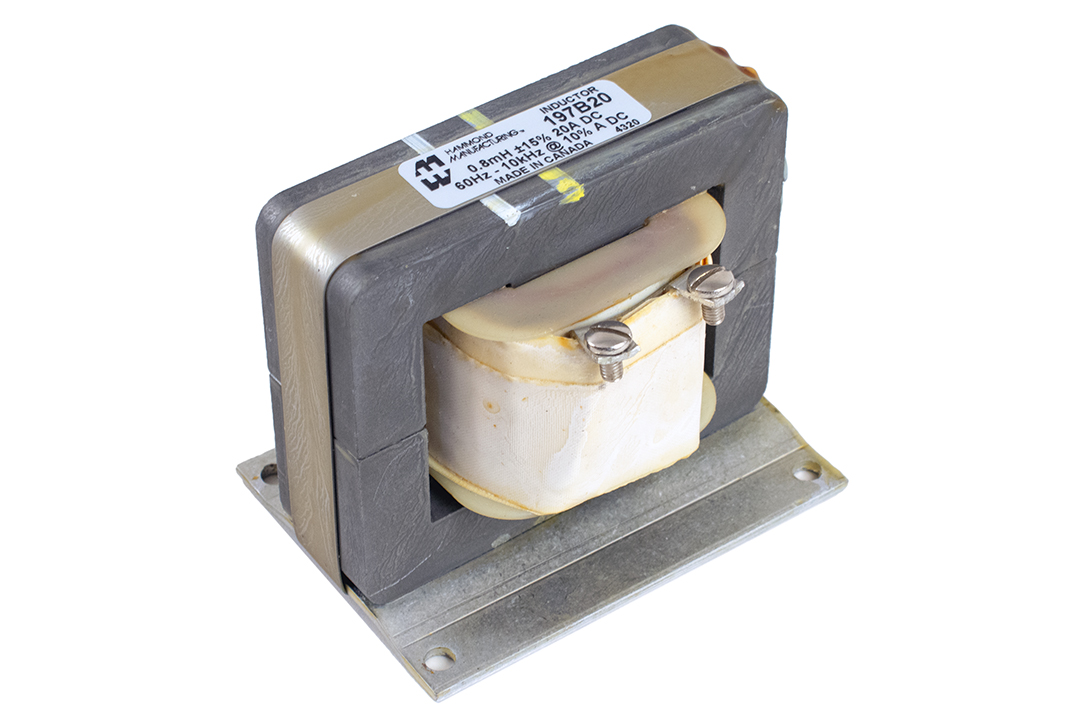

| 197A25 | 0.48 | 25 | 504 | 11 | 4.50 | 3.95 | 3.12 | 4.00 | x | 2.75 | 6 | $107.26In stock | Buy now |
| 197B10 | 0.5 | 10 | 471.6 | 67 | 2.00 | 3.25 | 1.60 | 2.81 | x | 0.875 | $26.18In stock | Buy now | |
| 197B15 | 0.5 | 15 | 812.3 | 39 | 3.31 | 3.40 | 2.50 | 2.50 | x | 2.00 | 2.5 | $58.52In stock | Buy now |
| 197B20 | 0.8 | 20 | 333.0 | 23 | 3.86 | 4.50 | 3.37 | 4.00 | x | 2.75 | 6 | $110.63In stock | Buy now |

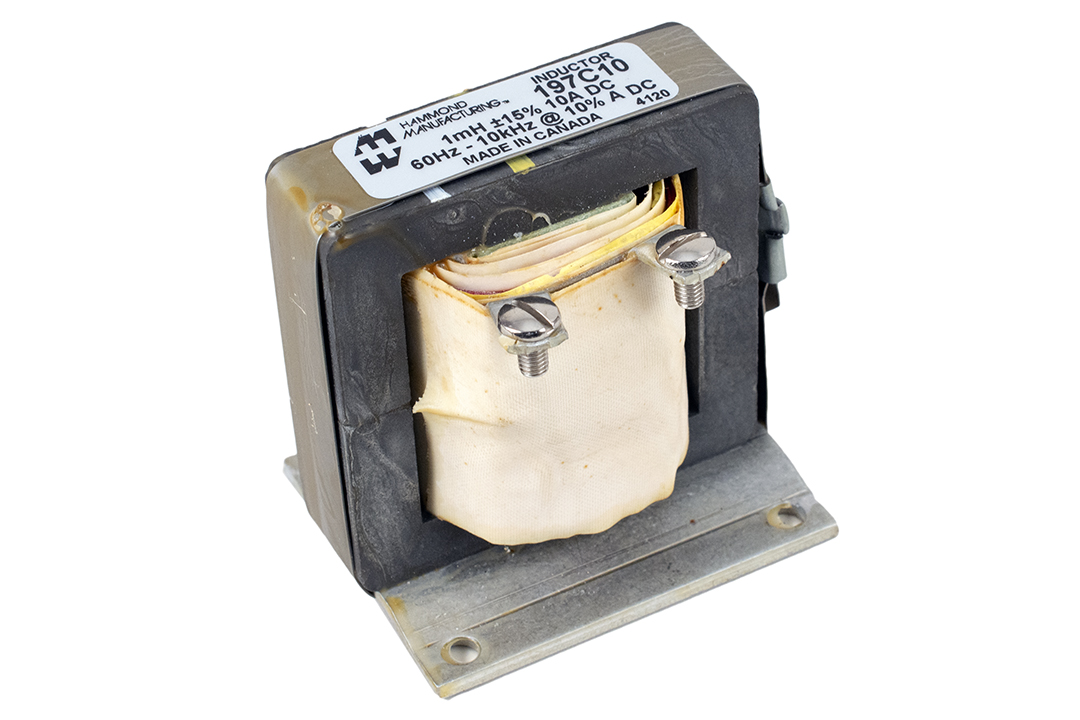

| 197C10 | 1 | 10 | 514.2 | 75 | 3.31 | 3.40 | 2.50 | 2.50 | x | 2.00 | 2.5 | $57.88In stock | Buy now |

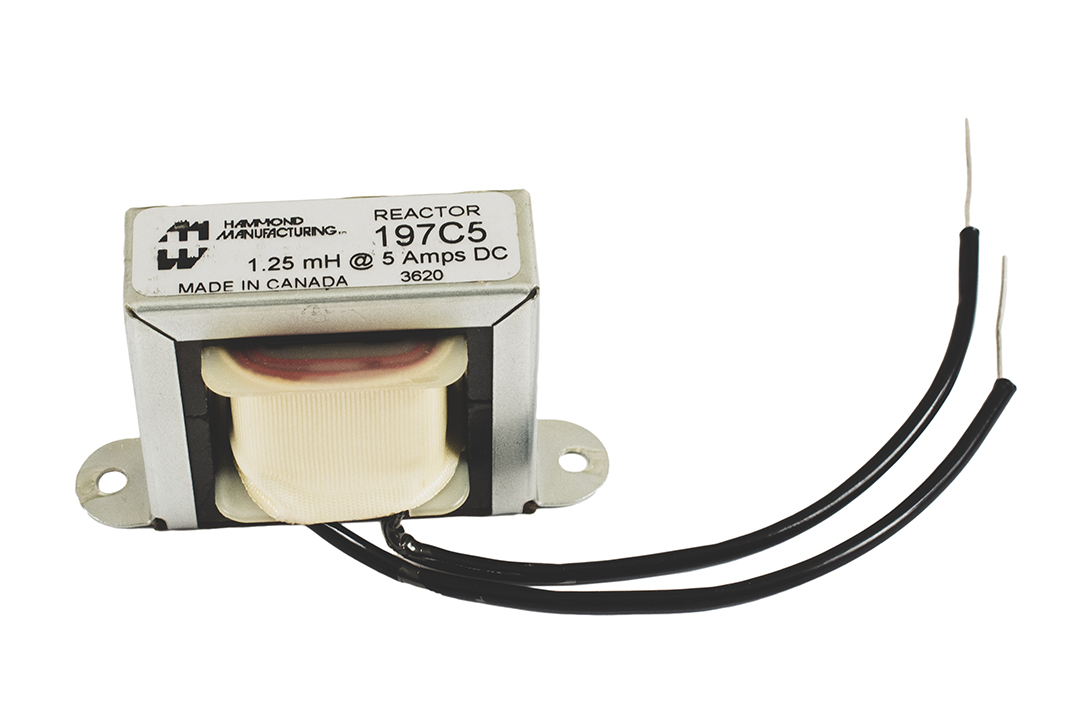

| 197C5 | 1.25 | 5 | 314.9 | 126 | 2.00 | 3.25 | 1.60 | 2.81 | x | 0.875 | $25.20In stock | Buy now | |

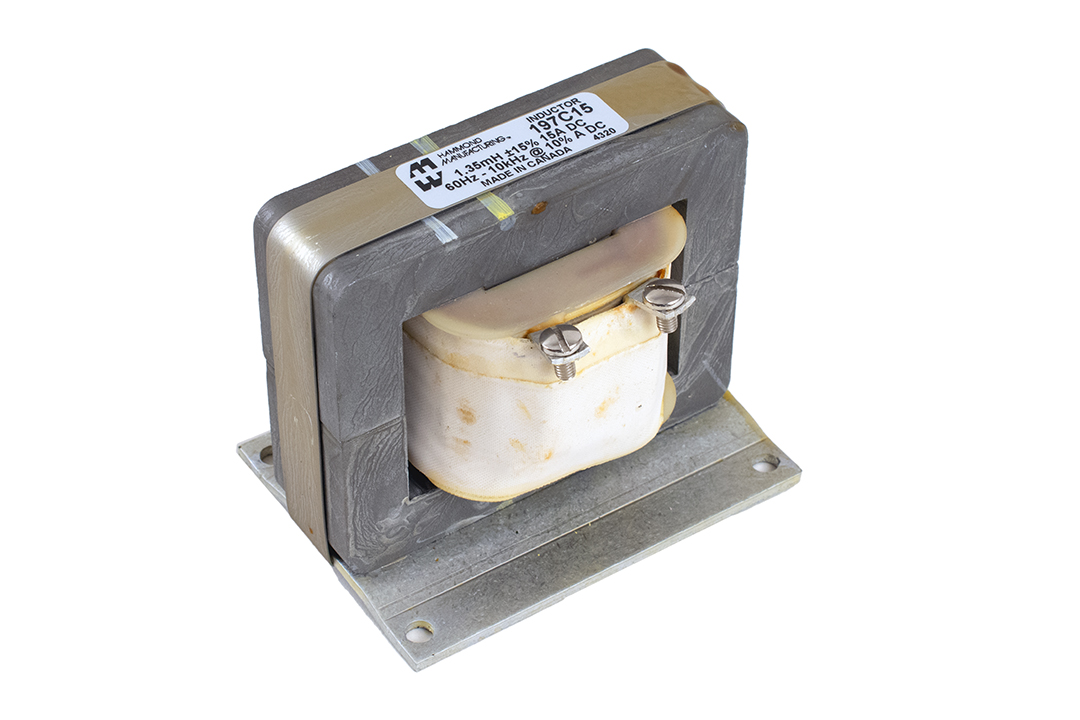

| 197C15 | 1.35 | 15 | 289.05 | 29 | 3.86 | 4.50 | 3.37 | 4.00 | x | 2.75 | 6 | $107.42In stock | Buy now |

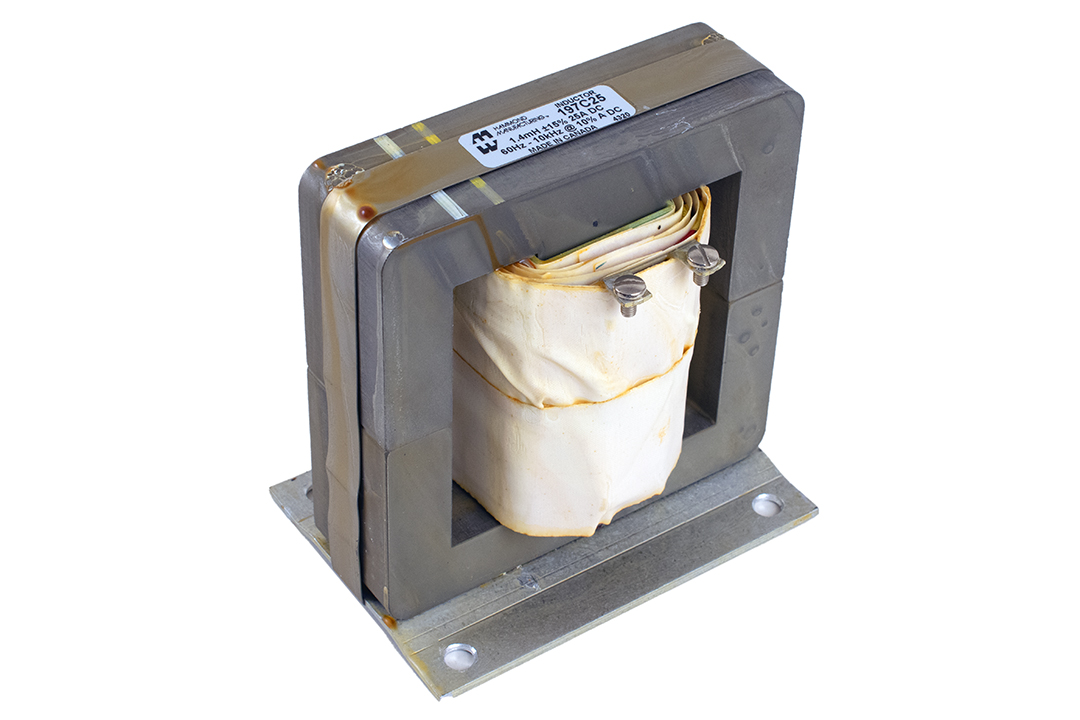

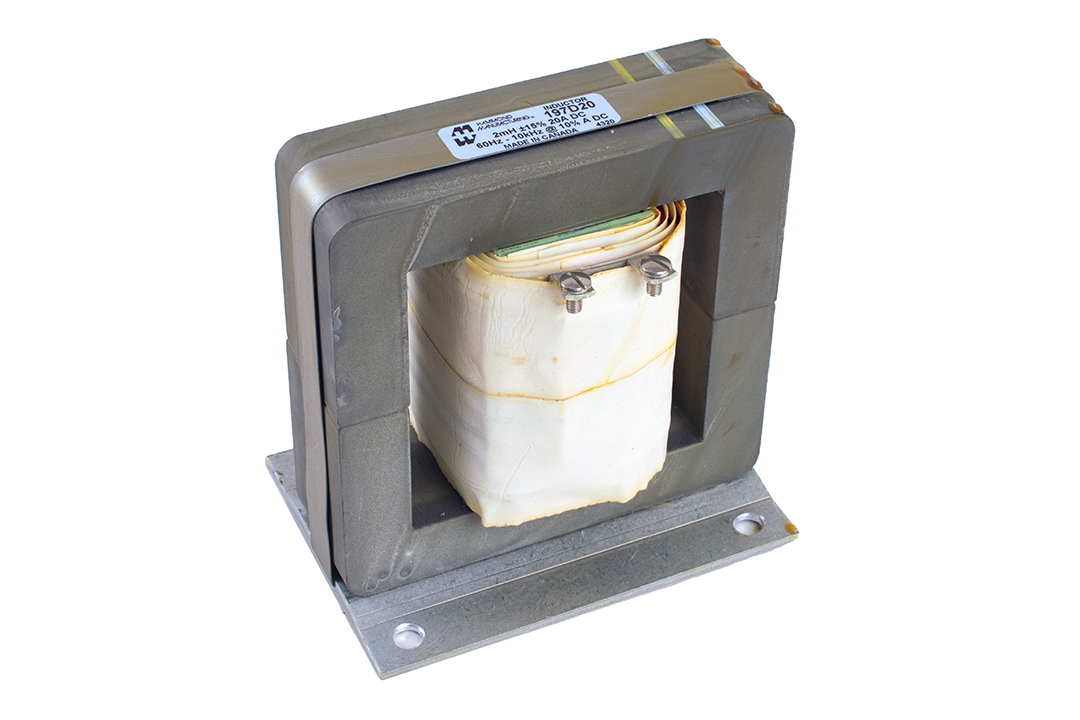

| 197C25 | 1.4 | 25 | 272.3 | 30 | 6.40 | 6.10 | 4.38 | 5.00 | x | 3.50 | 16 | $200.84In stock | Buy now |
| 197D20 | 2 | 20 | 218.0 | 49 | 6.40 | 6.10 | 4.38 | 5.00 | x | 3.50 | 16 | $202.18In stock | Buy now |

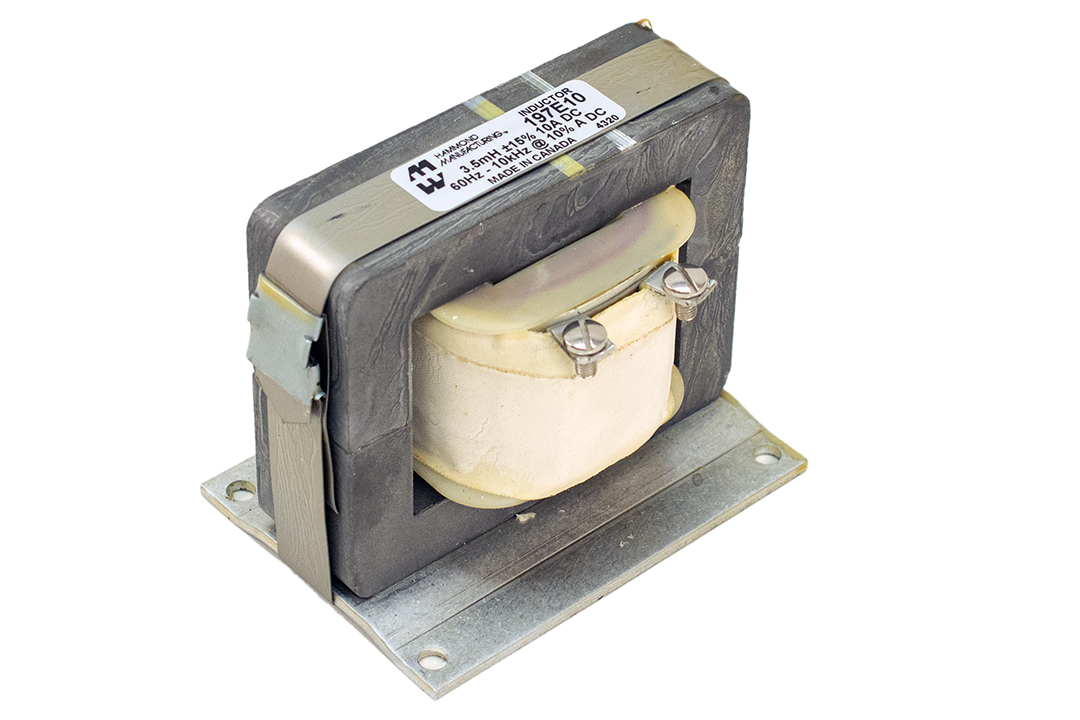

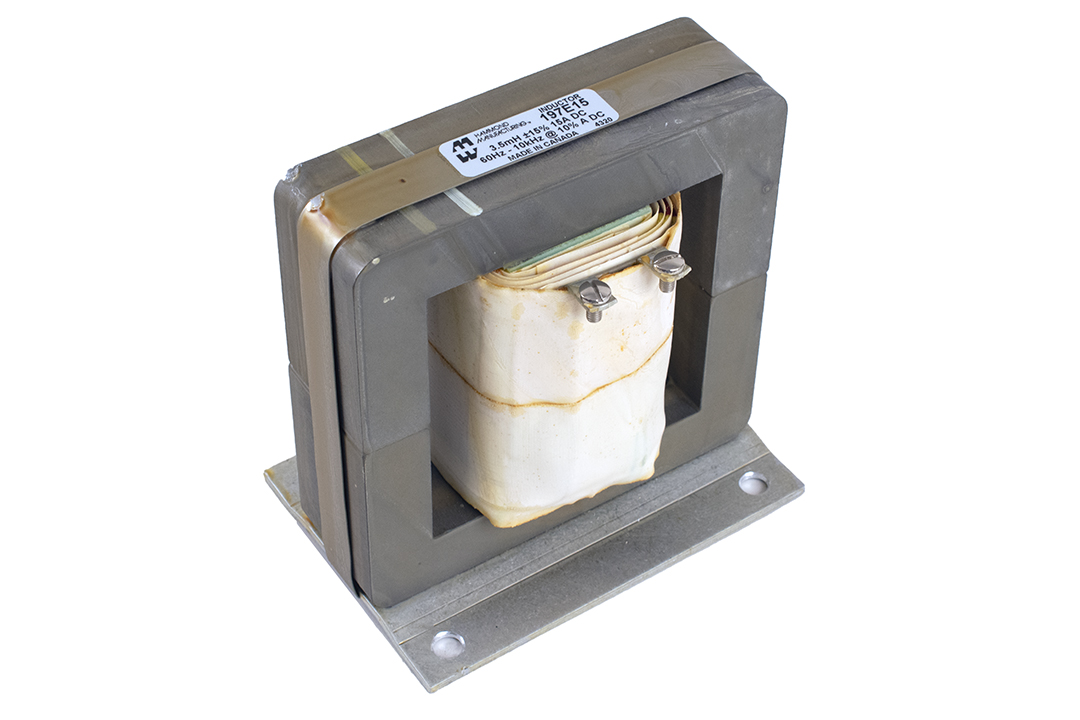

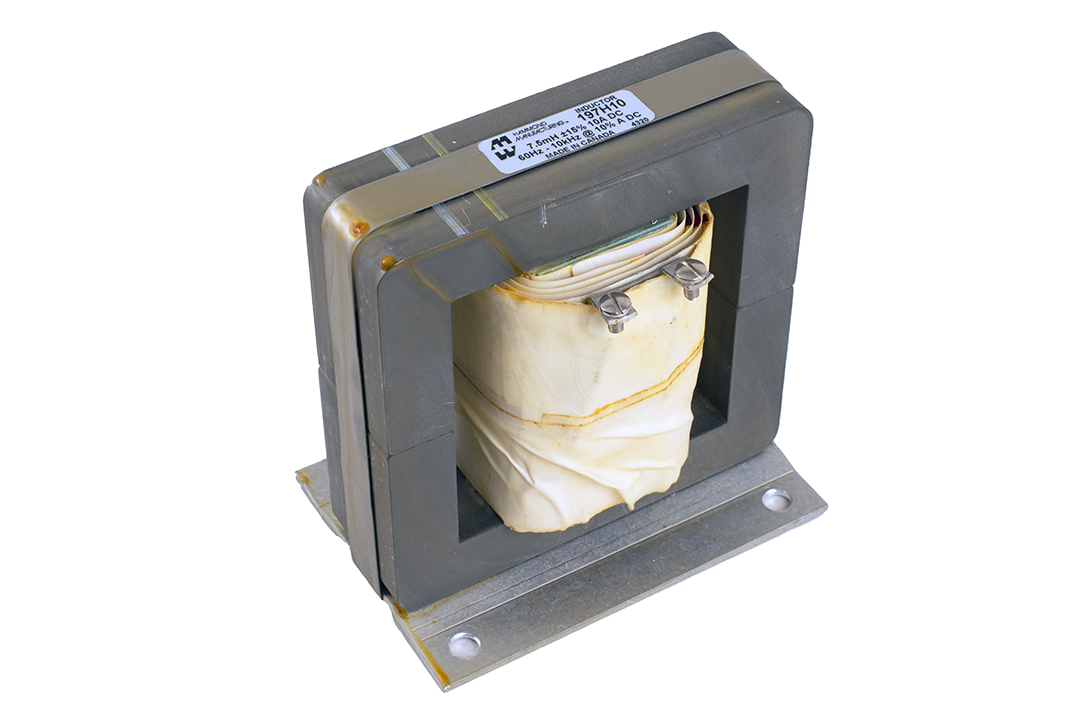

| 197E10 | 3.5 | 10 | 129.55 | 96 | 3.86 | 4.50 | 3.37 | 4.00 | x | 2.75 | 6 | $106.83In stock | Buy now |
| 197E15 | 3.5 | 15 | 152.9 | 80 | 6.40 | 6.10 | 4.38 | 5.00 | x | 3.50 | 16 | $201.89In stock | Buy now |
| 197E5 | 4 | 5 | 250.5 | 232 | 3.31 | 3.40 | 2.50 | 2.50 | x | 2.00 | 2.5 | $59.80In stock | Buy now |
| 197H10 | 7.5 | 10 | 123.3 | 143 | 6.40 | 6.10 | 4.38 | 5.00 | x | 3.50 | 16 | $202.35Backorder | Buy now |

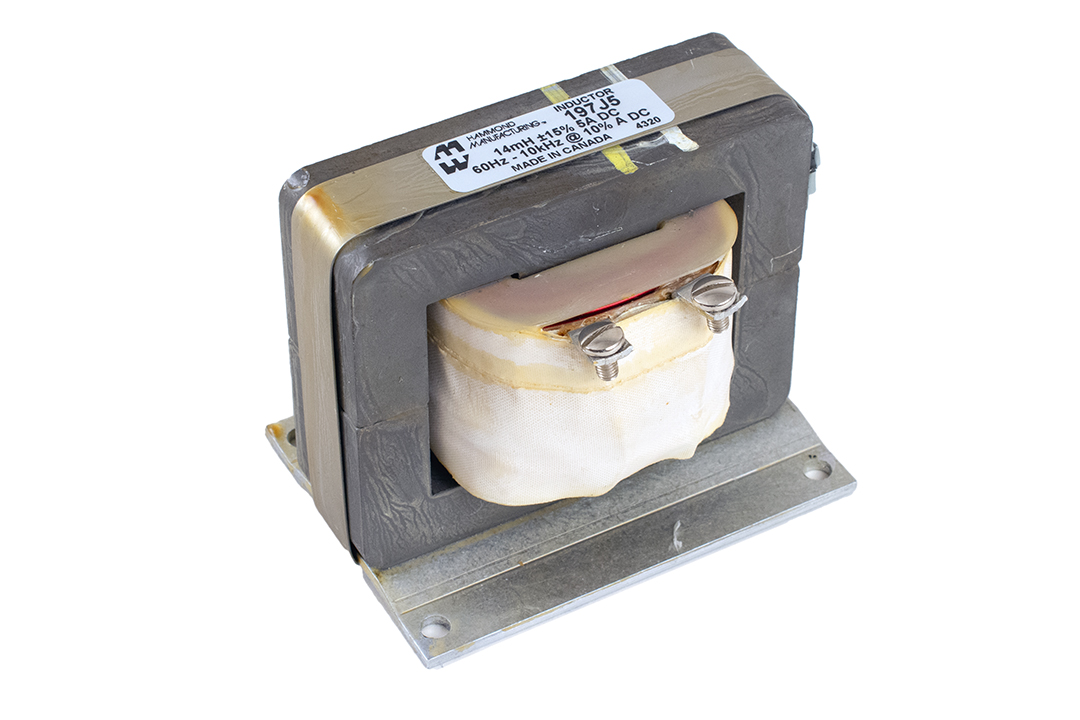

| 197J5 | 14 | 5 | 74.35 | 293 | 3.86 | 4.50 | 3.37 | 4.00 | x | 2.75 | 6 | $109.21In stock | Buy now |

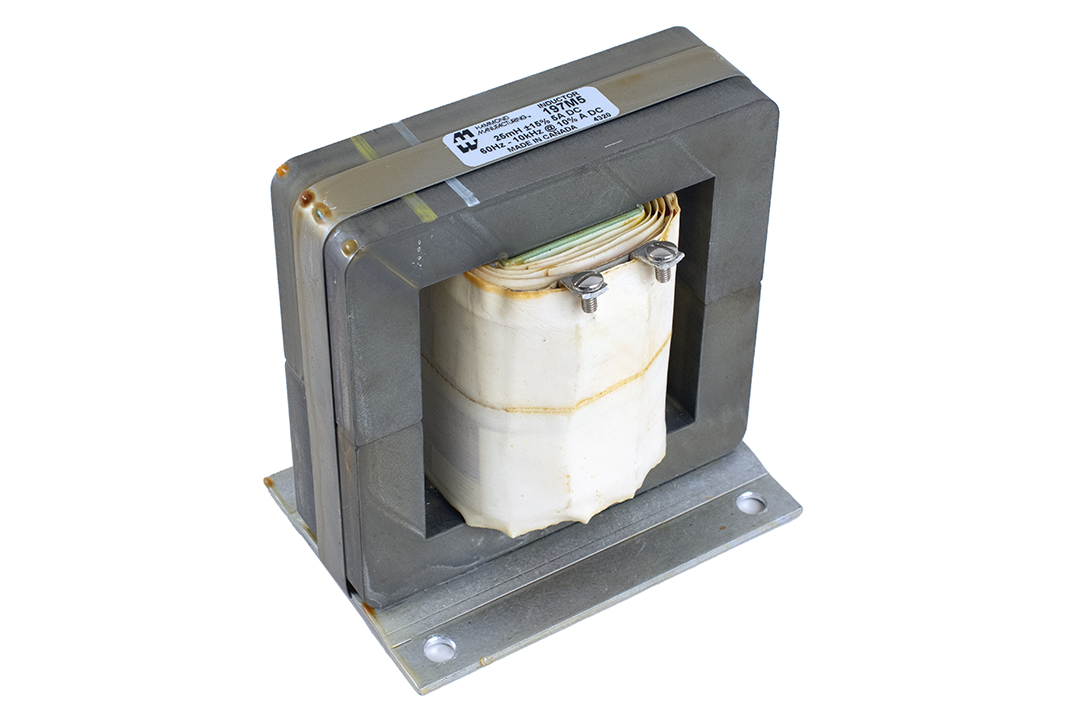

| 197M5 | 25 | 5 | 72.4 | 403 | 6.40 | 6.10 | 4.38 | 5.00 | x | 3.50 | 16 | $206.15In stock | Buy now |
Features:
- ■Perfect for high frequency filtering applications.
- ■High self-resonant frequency values
- ■Operating Frequency: 60Hz - 10kHz
- ■Some models feature universal channel mount packaging with flexible insulated leads (6" min.).
- ■Some models feature rugged construction with aluminum base and stainless steel band along with open-style terminals for maximum versatility.
- ■Consult datasheets for further design details.
- ■For DC applications try out 195-196 Series
