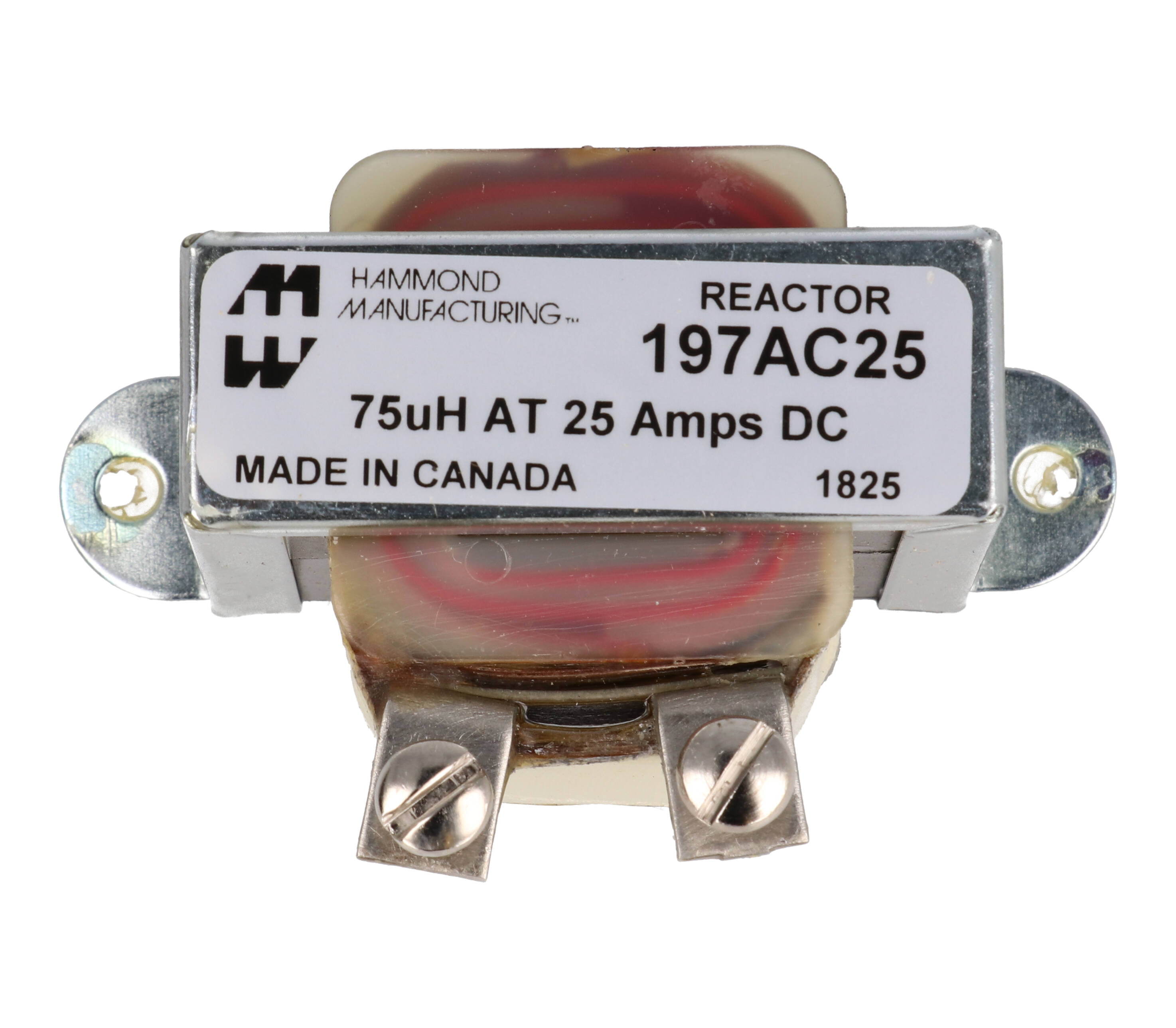

Hammond 197AC25 0.075mH 25A High Frequency Reactor, Wire Leads
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 0.075 mH (75 uH) at 25 A DC
- 272.3 kHz self-resonant frequency
- 18 mOhm DCR (part page)
- 125 uH ±25% without bias; 75 uH ±25% with 25 ADC bias
- Coil-to-core hipot 2500 V, 60 Hz, 1 sec
- Wire leads, 6 in minimum
- Operating frequency 60 Hz to 10 kHz
The 197AC25 is the lowest-inductance part in the 197 Series of high frequency reactors, rated 0.075 mH (75 uH) at 25 A DC with wire leads of 6 in minimum. It is intended for high frequency filtering from 60 Hz to 10 kHz where a low inductance must carry 25 A.
The part page lists a self-resonant frequency of 272.3 kHz and a DCR of 18 mOhm. The part drawing, titled Filter Choke, gives test criteria between Lug 1 and Lug 2: inductance without bias of 125 uH ±25%, inductance with 25 ADC bias of 75 uH ±25%, DCR of 7 mOhm ±20%, and a coil-to-core hipot of 2500 V, 60 Hz for 1 second.
Size is 2.00 x 3.25 x 1.60 in (51 x 83 x 41 mm) with a 2.81 in (71 mm) mounting hole pattern. The series table lists 0.875 lbs and the shipping weight is 0.86 lbs (0.39 kg). The drawing label marks 75uH at 25ADC and Made in Canada, and the part is RoHS and REACH compliant. For DC applications, the manufacturer points to the 195-196 Series.
Ideal For
- High frequency filtering from 60 Hz to 10 kHz
- 25 A low-inductance filter choke
- Lead-wired high frequency filter reactor
Overview
| Series | 197 Series (High Frequency Reactors) |
| Product Type | High Frequency Reactor |
| Drawing Title | Filter Choke |
| Short Description | CHOKE |
Dimensions
| Dimension A | 2.00 in (51 mm) |
| Dimension B | 3.25 in (83 mm) |
| Dimension C | 1.60 in (41 mm) |
| Size A X B X C | 2 in x 3.25 in x 1.6 in (51 mm x 83 mm x 41 mm) |
| Mounting Hole Pattern | 2.81 in (71 mm) |
Electrical
| DC Current | 25 A |
| Inductance | 0.075 mH |
| Hipot (Drawing) | Coil to core, 2500V, 60Hz, 1 sec |
| DCR (Drawing Test) | 7m Ohms ±20%, Lug 1 - Lug 2 |
| DC Resistance (DCR) | 18 mOhm |
| Operating Frequency | 60Hz - 10kHz |
| Self-Resonant Frequency | 272.3 kHz |
| Inductance Without Bias (Drawing Test) | 125uH ±25%, Lug 1 - Lug 2 |
| Inductance With 25 ADC Bias (Drawing Test) | 75uH ±25%, Lug 1 - Lug 2 |
Identifiers
| UPC | 623980436258 |
| UNSPSC | 39121301 |
| Part Number | 197AC25 |
Packaging & Shipping
| Shipping Weight | 0.86 lbs (0.39 kg) |
| Weight (Series Table) | 0.875 lbs |
Construction & Finish
| Connection | Wire leads, 6 inch min. |
| Label Marking | Reactor 197AC25, 75uH at 25ADC, date code |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What inductance does the 197AC25 have?▾
0.075 mH (75 uH) at 25 A DC. The drawing specifies 125 uH ±25% without bias and 75 uH ±25% with 25 ADC bias.
What is the DCR of the 197AC25?▾
The part page lists 18 mOhm; the drawing test criterion is 7 mOhm ±20% between Lug 1 and Lug 2.
How does the 197AC25 connect?▾
It has wire leads, 6 in minimum.
What hipot test does the 197AC25 pass?▾
Coil to core, 2500 V, 60 Hz for 1 second.
