Audio TX B-Cast w/ Leads
- Application Emitter or MIC to Line
- Ohms *12/48
- Ohms 150/600
- Ohms 70
$122.90In stock
Buy now

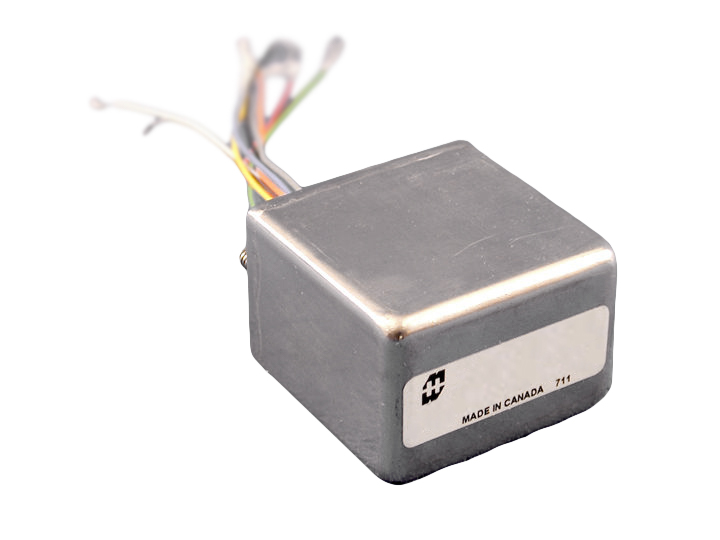

Audio Broadcast Quality · 850A Series
Brand: Hammond Manufacturing · 8 part numbers
Sealed

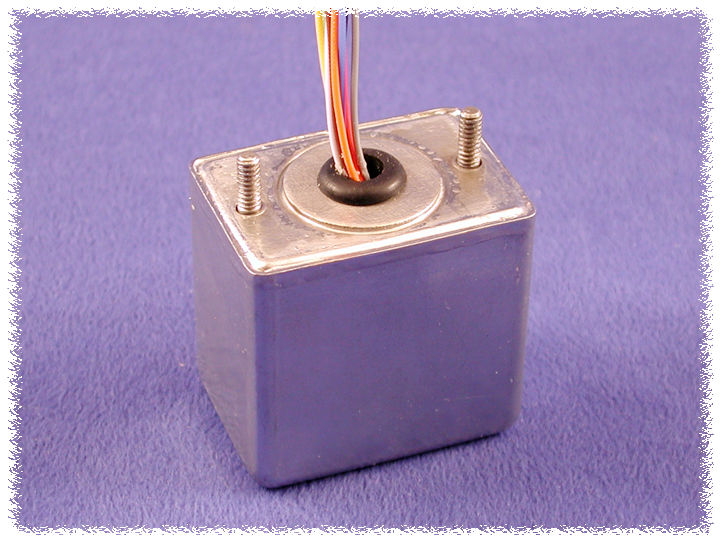

- ■Deep-drawn steel case with tin plated finish, with two convenient 6-32 mounting studs with mounting hardware.
- ■Sealed case and wax potted core internally for stable characteristics and long life.
- ■Wide frequency response +/- 0.5 db max. from 20 Hz. to 20 Khz. (except units over 5K ohms impedance, may be down 1 db @ 20 Khz.)
- ■Insertion loss of apx. 1 db.
- ■Maximum power level +15 dbm. with specified characteristics, or higher levels with reduced low frequency performance.
- ■Distortion is apx. 1.5% @ 20 Hz. under full power.
from $122.90
8 of 8 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 850A Series part number
Filter 8 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
8 of 8 part numbers · 8 priced online
Audio TX B-Cast w/ Leads
- Application Emitter or MIC to Line
- Ohms 50/200
- Ohms 150/600
- Ohms 68
$122.90In stock
Buy nowAudio TX B-Cast w/ Leads
- Application Line Isolation or Hybrid
- Ohms 150/600
- Ohms 150/600
- Ohms 71
$122.90In stock
Buy nowAudio TX B-Cast w/ Leads
- Application Line Isolation or Hybrid
- Ohms 150/600
- Ohms 300/1200
- Ohms 140
$122.90In stock
Buy nowAudio TX B-Cast w/ Leads
- Application Output to Line, or Line to Base
- Ohms 150/600
- Ohms 1200/4800
- Ohms 570
$122.90In stock
Buy nowAudio TX B-Cast w/ Leads
- Application Output to Line, Matching or Bridging
- Ohms 5K/20K
- Ohms 150/600
- Ohms 69
$122.90In stock
Buy nowAudio TX B-Cast w/ Leads
- Application Output to Line, Matching or Interstage
- Ohms 150/600
- Ohms 10K/40K
- Ohms 4980
$122.90In stock
Buy nowAudio TX B-Cast w/ Leads
- Application Interstage or Isolating
- Ohms 10K/40K
- Ohms 10K/40K
- Ohms 4980
$122.90In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Application | Nominal Impedance · (Ohms) · Primary | Nominal Impedance · (Ohms) · Secondary | Nominal Resistance · (Ohms) +/- 20% · Primary | Nominal Resistance · (Ohms) +/- 20% · Secondary | Overall Dimensions · A | Overall Dimensions · B | Overall Dimensions · C | Overall Dimensions · D | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 850CA | Emitter or MIC to Line | 12/48 | 150/600 | 6 | 70 | 1.20 | 1.70 | 1.65 | 1.32 | $122.90In stock | Buy now |
| 850EA | Emitter or MIC to Line | 50/200 | 150/600 | 27 | 68 | 1.20 | 1.70 | 1.65 | 1.32 | $122.90In stock | Buy now |

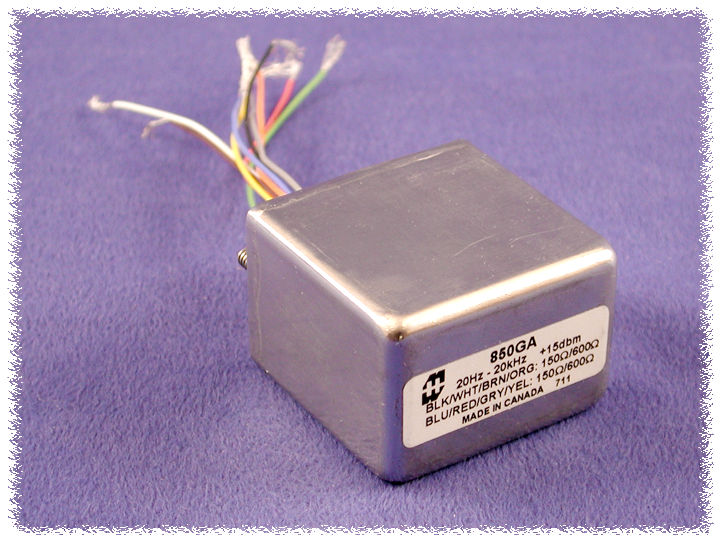

| 850GA | Line Isolation or Hybrid | 150/600 | 150/600 | 71 | 71 | 1.20 | 1.70 | 1.65 | 1.32 | $122.90In stock | Buy now |
| 850HA | Line Isolation or Hybrid | 150/600 | 300/1200 | 70 | 140 | 1.20 | 1.70 | 1.65 | 1.32 | $122.90In stock | Buy now |
| 850JA | Output to Line, or Line to Base | 150/600 | 1200/4800 | 69 | 570 | 1.20 | 1.70 | 1.65 | 1.32 | $122.90In stock | Buy now |
| 850LA | Output to Line, Matching or Bridging | 5K/20K | 150/600 | 2240 | 69 | 1.20 | 1.70 | 1.65 | 1.32 | $122.90In stock | Buy now |
| 850NA | Output to Line, Matching or Interstage | 150/600 | 10K/40K | 65 | 4980 | 1.20 | 1.70 | 1.65 | 1.32 | $122.90In stock | Buy now |
| 850QA | Interstage or Isolating | 10K/40K | 10K/40K | 4890 | 4980 | 1.20 | 1.70 | 1.65 | 1.32 | $122.90In stock | Buy now |
Features
- ■Deep-drawn steel case with tin plated finish, with two convenient 6-32 mounting studs with mounting hardware.
- ■Sealed case and wax potted core internally for stable characteristics and long life.
- ■Wide frequency response +/- 0.5 db max. from 20 Hz. to 20 Khz. (except units over 5K ohms impedance, may be down 1 db @ 20 Khz.)
- ■Insertion loss of apx. 1 db.
- ■Maximum power level +15 dbm. with specified characteristics, or higher levels with reduced low frequency performance.
- ■Distortion is apx. 1.5% @ 20 Hz. under full power.
- ■Electrostatic shield between pri. & sec. connected to the green lead.
- ■Humbucking construction
- ■Balanced split windings on pri. & sec. for circuit versatility. Primary may be used as a secondary and vice versa for impedance matching.
- ■Includes mounting hardware.
- ■Lead length: Min. 4"
- ■Shipping weight 0.4 lb. (0.18 kg).
