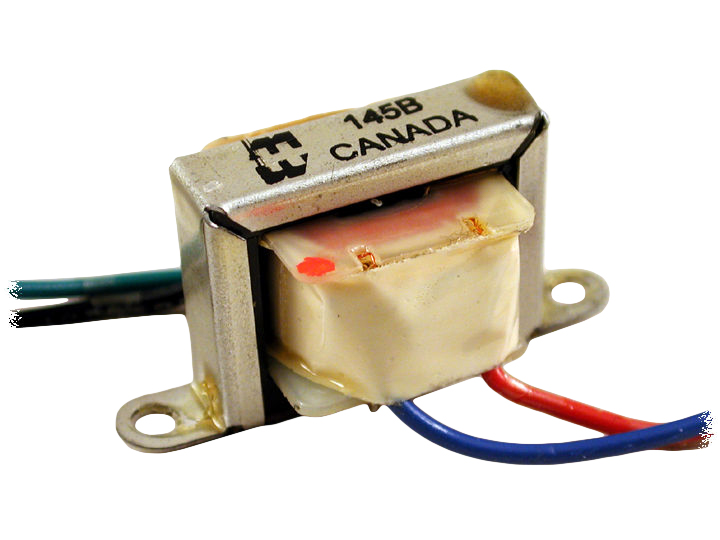

Audio Chassis Mount 143-146 Series

Audio Chassis Mount · 143-146 Series

Brand: Hammond Manufacturing · 42 part numbers

  • ■Small, economical, open, two hole horizontal bracket mount.
  • ■Insulated, color coded flexible leads, 4" long minimum (143, 144 & 145 Series) or 3" long minimum (146 Series).
  • ■For a similar version designed to be PC Board mounted, refer to the 148 and 149 series.
  • ■Frequency response 150 Hz. to 15 Khz. (+/- 1 db, reference 1000 Hz.)
  • ■When operating at impedances below nominal, power capability and the frequency spectrum are proportionately lower; conversely, at higher impedances power capability and frequency spectrum will be proportionately higher.
  • ■Net weight: 0.5 oz. (143, 144, 146 Series) & 1.4 oz. (145 Series).

from $17.78

42 of 42 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your 143-146 Series part number

Filter 42 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

42 of 42 part numbers · 42 priced online

143B

Audio TX Pri:10kOhm Sec:2k CT

  • Application Input
  • mW 15
  • ma 0
  • Pri. D.C. Resistan 0.4
$27.39In stock
Buy now
143D

Audio TX Pri:200kOhm Sec:1k CT

  • Application Input
  • mW 25
  • ma 0
  • Pri. D.C. Resistan 4500
$27.39In stock
Buy now
143H

Audio TX Pri:1.5kOhm Sec:500ct

  • Application Driver
  • mW 30
  • ma 4
  • Pri. D.C. Resistan 111
$27.39In stock
Buy now
143J

Audio TX Pri:3kOhm Sec:1k CT

  • Application Driver
  • mW 30
  • ma 2.6
  • Pri. D.C. Resistan 265
$27.39In stock
Buy now
143L

Audio TX Pri:10kOhm Sec:200ct

  • Application Driver
  • mW 30
  • ma 1.5
  • Pri. D.C. Resistan 720
$27.39Backorder
Buy now
143N

Audio TX Pri:10kOhm Sec:2k CT

  • Application Driver
  • mW 30
  • ma 1.5
  • Pri. D.C. Resistan 720
$27.39Backorder
Buy now
143R

Audio TX Pri:25kOhm Sec:600ct

  • Application Driver
  • mW 30
  • ma 1
  • Pri. D.C. Resistan 1890
$27.39Backorder
Buy now
144B

Audio TX Output Chassis Mount

  • Application Output
  • mW 150
  • ma 10
  • Pri. D.C. Resistan 10
$17.78Backorder
Buy now
144D

Audio TX Output Chassis Mount

  • Application Output
  • mW 150
  • ma 9
  • Pri. D.C. Resistan 15
$17.78In stock
Buy now
144F

Audio TX Output Chassis Mount

  • Application Output
  • mW 150
  • ma 6
  • Pri. D.C. Resistan 27
$17.78In stock
Buy now
144G

Audio TX Output Chassis Mount

  • Application Output
  • mW 150
  • ma 6
  • Pri. D.C. Resistan 27
$17.78In stock
Buy now
144H

Audio TX Output Chassis Mount

  • Application Output
  • mW 150
  • ma 6
  • Pri. D.C. Resistan 28
$17.78In stock
Buy now
144I

Audio TX Output Chassis Mount

  • Application Output
  • mW 150
  • ma 6
  • Pri. D.C. Resistan 45
$17.78In stock
Buy now
144P

Audio TX Output Chassis Mount

  • Application Output
  • mW 50
  • ma 5
  • Pri. D.C. Resistan 575
$17.78In stock
Buy now
144Q

Audio TX Output Chassis Mount

  • Application Output
  • mW 50
  • ma 5
  • Pri. D.C. Resistan 575
$17.78In stock
Buy now
144S

Audio TX Output Chassis Mount

  • Application Output
  • mW 50
  • ma 3.5
  • Pri. D.C. Resistan 1240
$17.78In stock
Buy now
145A

Audio TX Driver Chassis Mount

  • Application Driver
  • mW 100
  • ma 45
  • Pri. D.C. Resistan 14
$17.78Backorder
Buy now
145B

Audio TX Driver Chassis Mount

  • Application Driver-Output
  • mW 200
  • ma 18
  • Pri. D.C. Resistan 30
$17.78In stock
Buy now
145C

Audio TX Input Chassis Mount

  • Application Input
  • mW 50
  • ma 1
  • Pri. D.C. Resistan 2400
$17.78In stock
Buy now
145D

Audio TX Input Chassis Mount

  • Application Input
  • mW 10
  • ma 0.5
  • Pri. D.C. Resistan 3600
$17.78In stock
Buy now
145E

Input Or Output Transformer

  • Application Input-Output
  • mW 200
  • ma 5
  • Pri. D.C. Resistan 65
$17.78In stock
Buy now
145F

Audio TX Driver Chassis Mount

  • Application Driver
  • mW 135
  • ma 20
  • Pri. D.C. Resistan 45
$17.78Backorder
Buy now
145G

Audio TX Driver Chassis Mount

  • Application Driver
  • mW 135
  • ma 12
  • Pri. D.C. Resistan 140
$17.78In stock
Buy now
145H

Audio TX Driver Chassis Mount

  • Application Driver
  • mW 135
  • ma 12
  • Pri. D.C. Resistan 148
$17.78In stock
Buy now
145J

Audio TX Driver Chassis Mount

  • Application Driver
  • mW 135
  • ma 8
  • Pri. D.C. Resistan 340
$17.78In stock
Buy now
145L

Audio TX Driver Chassis Mount

  • Application Driver
  • mW 135
  • ma 8
  • Pri. D.C. Resistan 340
$17.78In stock
Buy now
145N

Audio TX Driver Chassis Mount

  • Application Driver
  • mW 135
  • ma 5
  • Pri. D.C. Resistan 700
$17.78In stock
Buy now
145O

Transformer

  • Application Driver
  • mW 135
  • ma 4
  • Pri. D.C. Resistan 850
$17.78In stock
Buy now
145P

Audio TX Driver Chassis Mount

  • Application Driver
  • mW 135
  • ma 3.5
  • Pri. D.C. Resistan 1180
$17.78In stock
Buy now
145R

Audio TX Driver Chassis Mount

  • Application Driver
  • mW 135
  • ma 3.5
  • Pri. D.C. Resistan 1180
$17.78In stock
Buy now
146B

Audio TX Output Chassis Mount

  • Application Output
  • mW 700
  • ma 20
  • Pri. D.C. Resistan 2.4
$17.78In stock
Buy now
146C

Audio TX Output Chassis Mount

  • Application Output
  • mW 700
  • ma 20
  • Pri. D.C. Resistan 2.4
$17.78In stock
Buy now
146D

Audio TX Output Chassis Mount

  • Application Output
  • mW 700
  • ma 14
  • Pri. D.C. Resistan 4.4
$17.78Backorder
Buy now
146E

Audio TX Output Chassis Mount

  • Application Output
  • mW 700
  • ma 14
  • Pri. D.C. Resistan 4.4
$17.78In stock
Buy now
146F

Audio TX Output Chassis Mount

  • Application Output
  • mW 700
  • ma 8
  • Pri. D.C. Resistan 11
$17.78In stock
Buy now
146G

Audio TX Output Chassis Mount

  • Application Output
  • mW 700
  • ma 8
  • Pri. D.C. Resistan 11
$17.78In stock
Buy now
146H

Audio TX Output Chassis Mount

  • Application Output
  • mW 700
  • ma 6
  • Pri. D.C. Resistan 26
$17.78In stock
Buy now
146I

Audio TX Output Chassis Mount

  • Application Output
  • mW 700
  • ma 6
  • Pri. D.C. Resistan 26
$17.78In stock
Buy now
146J

Audio TX Output Chassis Mount

  • Application Output
  • mW 700
  • ma 4
  • Pri. D.C. Resistan 56
$17.78In stock
Buy now
146K

Audio TX Output Chassis Mount

  • Application Output
  • mW 700
  • ma 4
  • Pri. D.C. Resistan 56
$17.78Backorder
Buy now
146N

Audio TX Output Chassis Mount

  • Application Output
  • mW 700
  • ma 3
  • Pri. D.C. Resistan 97
$17.78In stock
Buy now
146S

Audio TX Output Chassis Mount

  • Application Output
  • mW 700
  • ma 2
  • Pri. D.C. Resistan 220
$17.78In stock
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Part No.ApplicatonNominal Impedance · (Ohms) · PrimaryNominal Impedance · (Ohms) · SecondaryPrimary · D.C. · (*1) maD.C. Resistance · (Ohms) +/- 15% · PrimaryD.C. Resistance · (Ohms) +/- 15% · SecondaryOutput · (mW)Overall Dimensions · AOverall Dimensions · BOverall Dimensions · COverall Dimensions · DSchematicPriceOrder
143BInput3.2400000.4245151.260.690.691.061$27.39In stockBuy now
143DInput200K10000450030251.260.690.691.061$27.39In stockBuy now
143HDriver1500500 ct411124301.260.690.691.062$27.39In stockBuy now
143JDriver30001000 ct2.626553301.260.690.691.062$27.39In stockBuy now
143LDriver10000200 ct1.57209301.260.690.691.062$27.39BackorderBuy now
143NDriver100002000 ct1.572089301.260.690.691.062$27.39BackorderBuy now
143RDriver25000600 ct1189025301.260.690.691.062$27.39BackorderBuy now
144BOutput200 ct3.2101001501.260.690.691.063$17.78BackorderBuy now
144DOutput300 ct3.29150.331501.260.690.691.063$17.78In stockBuy now
144FOutput500 ct3.26270.331501.260.690.691.063$17.78In stockBuy now
144GOutput500 ct86270.91501.260.690.691.063$17.78In stockBuy now
144HOutput500 ct506287.31501.260.690.691.063$17.78In stockBuy now
144IOutput600 ct150 ct6458.21501.260.690.691.064$17.78In stockBuy now
144POutput100003.255750.5501.260.690.691.061$17.78In stockBuy now
144QOutput10000855750.9501.260.690.691.061$17.78In stockBuy now
144SOutput2000083.512400.9501.260.690.691.061$17.78In stockBuy now
145ADriver100200 ct4514191001.630.880.811.382$17.78BackorderBuy now
145BDriver-Output6006001830382001.630.880.811.381$17.78In stockBuy now
145CInput500001500 ct1240052501.630.880.811.382$17.78In stockBuy now
145DInput200K10000.5360033101.630.880.811.381$17.78In stockBuy now
145EInput-Output600 ct600 ct565832001.630.880.811.384$17.78In stockBuy now
145FDriver600 ct200 ct204591351.630.880.811.384$17.78BackorderBuy now
145GDriver2000200 ct1214091351.630.880.811.382$17.78In stockBuy now
145HDriver2000500 ct12148171351.630.880.811.382$17.78In stockBuy now
145JDriver4000600 ct8340241351.630.880.811.382$17.78In stockBuy now

Features

  • ■Small, economical, open, two hole horizontal bracket mount.
  • ■Insulated, color coded flexible leads, 4" long minimum (143, 144 & 145 Series) or 3" long minimum (146 Series).
  • ■For a similar version designed to be PC Board mounted, refer to the 148 and 149 series.
  • ■Frequency response 150 Hz. to 15 Khz. (+/- 1 db, reference 1000 Hz.)
  • ■When operating at impedances below nominal, power capability and the frequency spectrum are proportionately lower; conversely, at higher impedances power capability and frequency spectrum will be proportionately higher.
  • ■Net weight: 0.5 oz. (143, 144, 146 Series) & 1.4 oz. (145 Series).

Documents

Specification Sheet

Any questions? Talk with an expert

Call us (224) 955-1644
