Audio TX PC Mount
- Max. Pri. D.C. Cur 4
- Ohms 720
- ohms 10K C.T.
$4.02In stock
Buy now
Audio Open Frame · 142 Series
Brand: Hammond Manufacturing · 4 part numbers
PC Board Mount
- ■Applications: Driver, Input, Interstage, Isolation
- ■100mW power level at 200Hz. - 15kHz
- ■Pin type (0.0375" x .02"), P.C. board mount.
- ■Economical, open type construction.
- ■Frequency response 200 Hz. - 15 Khz. (+/- 1 db, ref. @ 1 Khz.).
- ■Total distortion less than 0.5% for outputs at 200 Hz., decreasing at higher frequencies.
from $4.02
4 of 4 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 142 Series part number
Filter 4 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
4 of 4 part numbers · 4 priced online
Dimension tables (inches / mm)
| Part No. | Nominal Impedance · (Ohms) · Primary | Nominal Impedance · (Ohms) · Secondary | Max. Primary · D.C. current · (ma.) · (See Note 1) | D.C. Resistance · (Ohms) +/- 15% · (See Note 2) · Primary | D.C. Resistance · (Ohms) +/- 15% · (See Note 2) · Secondary | Price | Order |
|---|---|---|---|---|---|---|---|

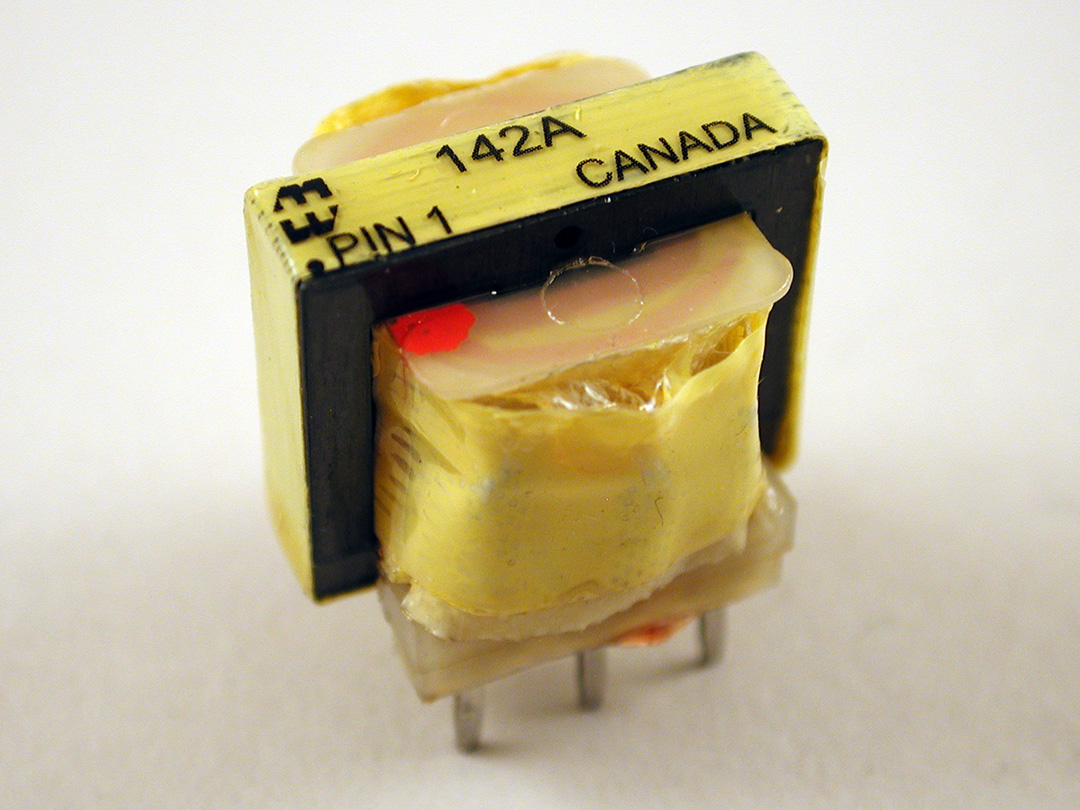

| 142A | 10K C.T. | 10K C.T. | 4 | 720 | 925 | $4.02In stock | Buy now |

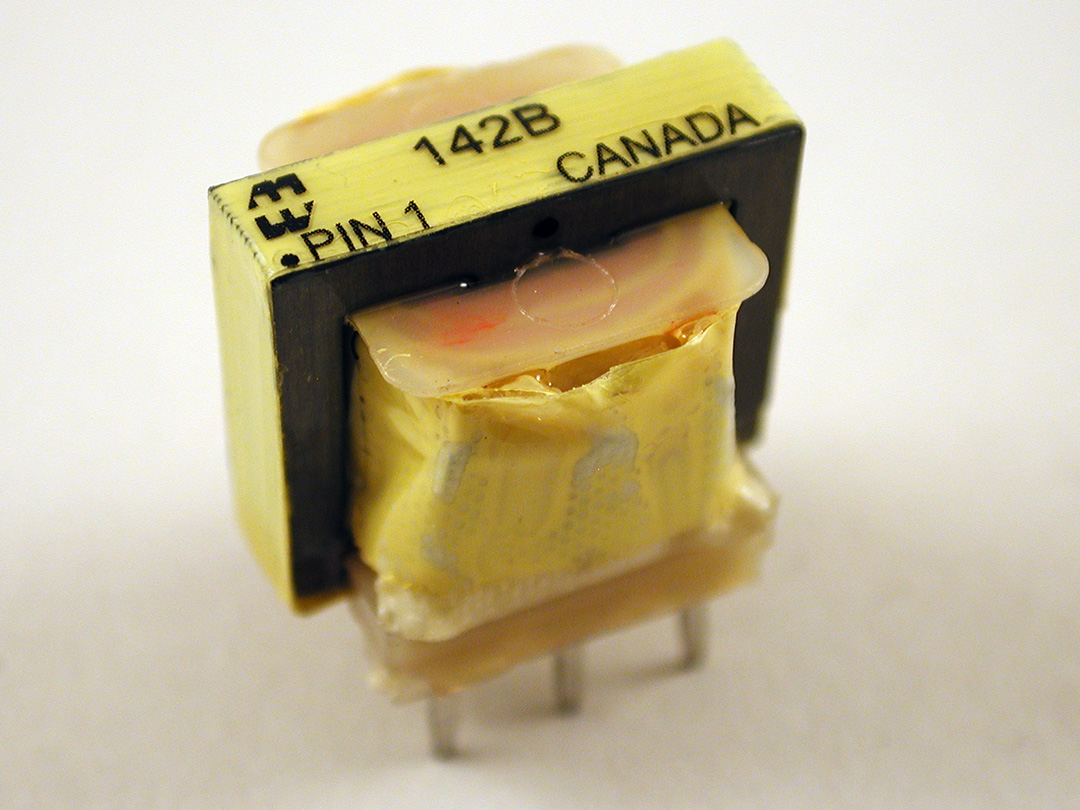

| 142B | 10K C.T. | 2K C.T. | 4 | 720 | 210 | $4.02In stock | Buy now |

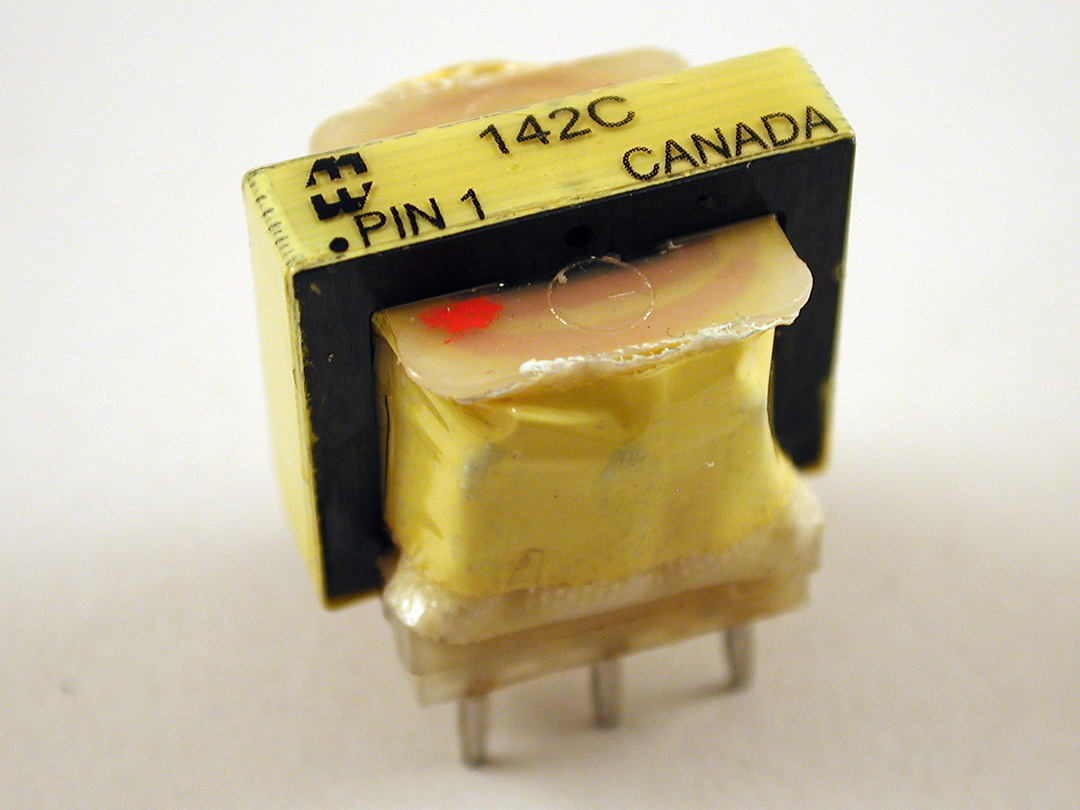

| 142C | 15K C.T. | 15K C.T. | 4 | 1020 | 1390 | $4.02In stock | Buy now |

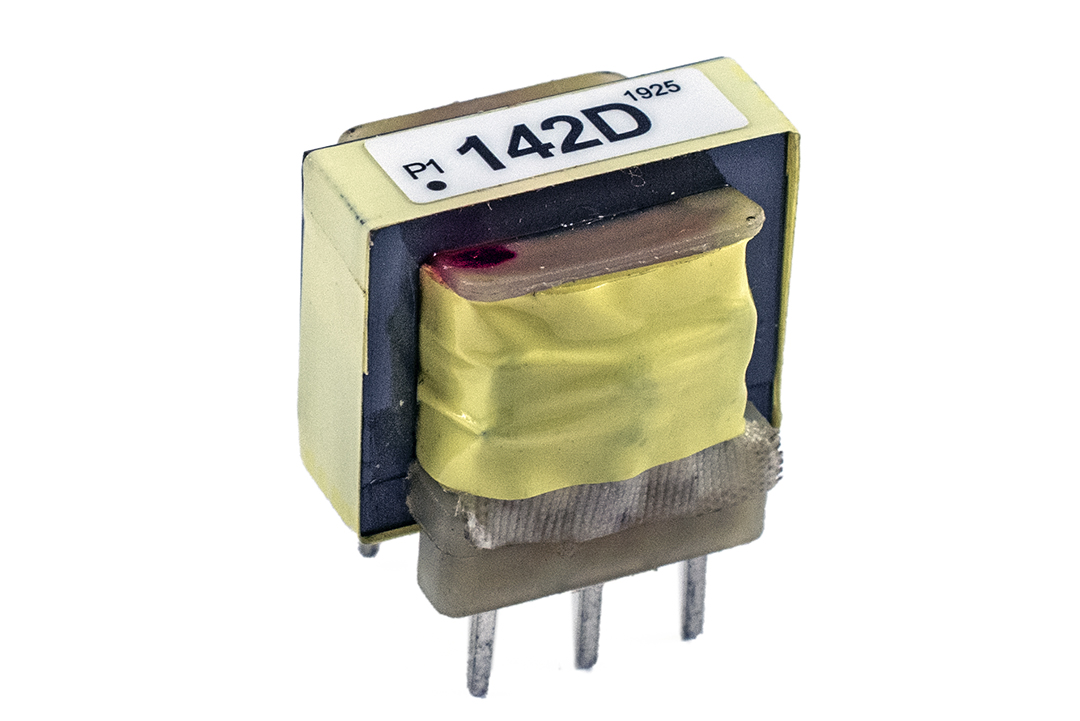

| 142D | 600 C.T. | 600 C.T. | 15 | 44 | 58 | $4.42In stock | Buy now |
Features
Notes: 1)The current figure is for maximum unbalanced current. 2) D.C. resistance shown is for the total primary or secondary windings.
- ■Applications: Driver, Input, Interstage, Isolation
- ■100mW power level at 200Hz. - 15kHz
- ■Pin type (0.0375" x .02"), P.C. board mount.
- ■Economical, open type construction.
- ■Frequency response 200 Hz. - 15 Khz. (+/- 1 db, ref. @ 1 Khz.).
- ■Total distortion less than 0.5% for outputs at 200 Hz., decreasing at higher frequencies.
- ■Insertion loss less than 1/2 db.
- ■Bifilar wound for balanced capacitive and resistance characteristics, on pin bobbins for standard 0.187" grid pin spacing.
- ■Insulation test 1500V rms.
- ■Net weight: 0.5 oz.
Documents
