Audio TX Sheilded Chassis Mnt
- Typical Applicatio Crystal/Ceramic MIC. to Base
- Nominal Impedance 100K
- Nominal Impedance 1500
$60.04In stock
Buy now

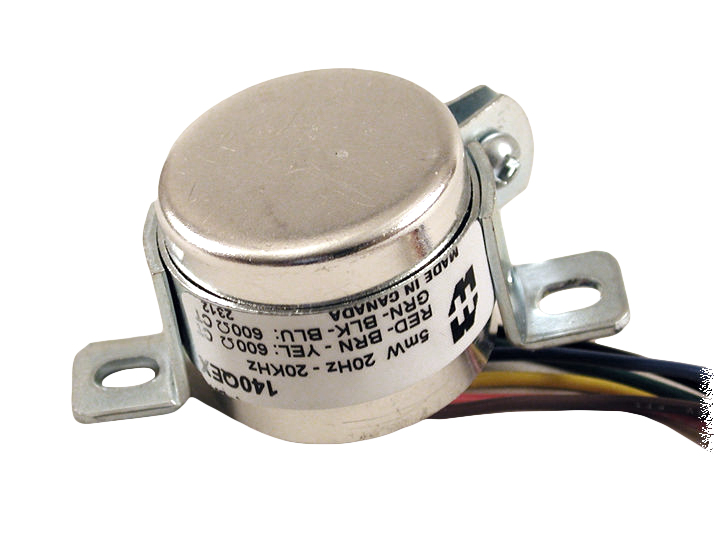

Studio Grade - Impedance Matching Audio Transformers · 140EX Series
Brand: Hammond Manufacturing · 7 part numbers
- ■Studio grade frequency response: 20 Hz. - 20 Khz. (+/- 1 db, ref. @ 1 Khz.) minimum (see individual PDF data sheets below).
- ■Excellent frequency response utilizing a 80% nickel core providing high permeability combined with low losses.
- ■Designed for maximum bandwidth, lowest distortion at +10 dbm power level or less (see individual PDF data sheets below).
- ■Plated steel cans
- ■Adjustable height case bracket.
- ■Net weight 3 oz.
from $60.04
7 of 7 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 140EX Series part number
Filter 7 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
7 of 7 part numbers · 7 priced online
Audio TX Sheilded Chassis Mnt
- Typical Applicatio Dynamic MIC to Base
- Nominal Impedance 50
- Nominal Impedance 1500
$60.04In stock
Buy nowAudio TX Sheilded Chassis Mnt
- Typical Applicatio Line to Base
- Nominal Impedance 150/600
- Nominal Impedance 600/2,400
$73.01In stock
Buy nowAudio TX Sheilded Chassis Mnt
- Typical Applicatio Line to Line, Isolation
- Nominal Impedance 600 C.T.
- Nominal Impedance 600 C.T.
$73.01In stock
Buy nowAudio TX Sheilded Chassis Mnt
- Typical Applicatio Line to Line, Isolation
- Nominal Impedance 600 C.T.
- Nominal Impedance 150
$73.01In stock
Buy nowAudio TX Sheilded Chassis Mnt
- Typical Applicatio Input/Output Isolation
- Nominal Impedance 1000
- Nominal Impedance 1000
$73.01In stock
Buy nowAudio TX Sheilded Chassis Mnt
- Typical Applicatio Input/Output Isolation
- Nominal Impedance 10K
- Nominal Impedance 10K
$73.01In stock
Buy nowDimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Typical · Applications | Nominal Impedance (Ohms) · Primary | Nominal Impedance (Ohms) · Seconday | Overall Turns Ratio · Pri. to Sec. | Lead · Length | Case · Height | Case · Diameter | Mounting · Holes | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| 140MEX | Crystal/Ceramic MIC. to Base | 100K | 1500 | 8:1 | 5.00 | 1.00 | 1.25 | 1.88 | $60.04In stock | Buy now |
| 140NEX | Dynamic MIC to Base | 50 | 1500 | 1:5:5 | 5.00 | 1.00 | 1.25 | 1.88 | $60.04In stock | Buy now |
| 140PEX | Line to Base | 150/600 | 600/2,400 | 1:2 | 5.00 | 1.00 | 1.25 | 1.88 | $73.01In stock | Buy now |

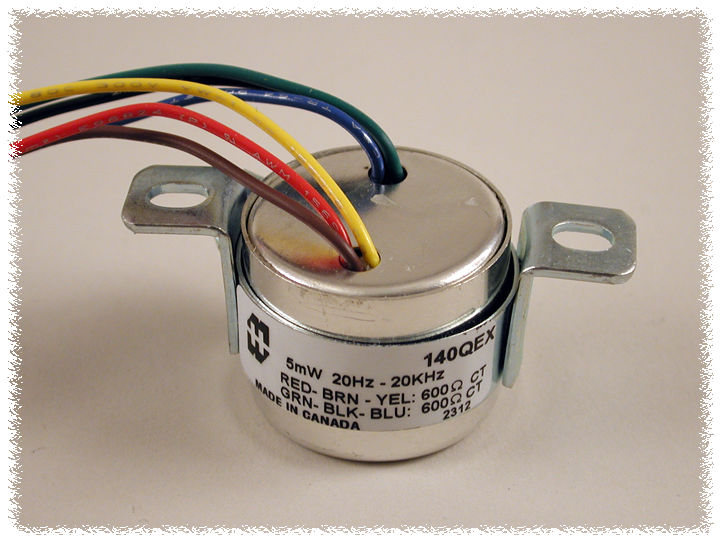

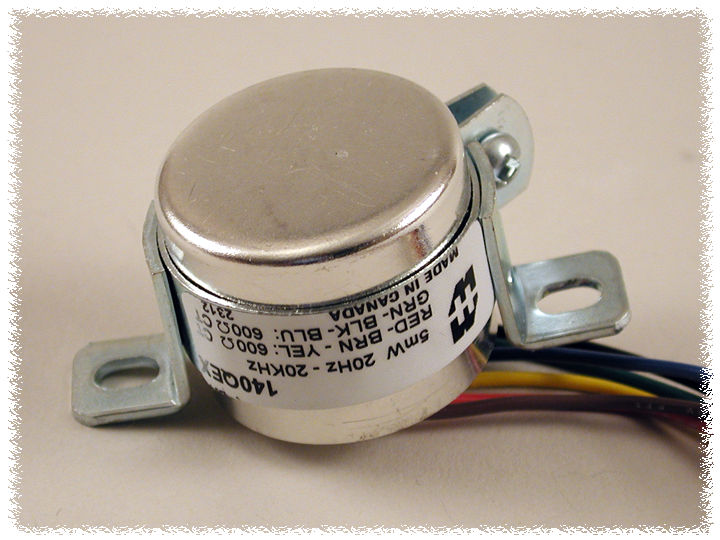

| 140QEX | Line to Line, Isolation | 600 C.T. | 600 C.T. | 1:1 | 5.00 | 1.00 | 1.25 | 1.88 | $73.01In stock | Buy now |
| 140REX | Line to Line, Isolation | 600 C.T. | 150 | 2:1 | 5.00 | 1.00 | 1.25 | 1.88 | $73.01In stock | Buy now |
| 140TEX | Input/Output Isolation | 1000 | 1000 | 1:1 | 5.00 | 1.00 | 1.25 | 1.88 | $73.01In stock | Buy now |
| 140UEX | Input/Output Isolation | 10K | 10K | 1:1 | 5.00 | 1.00 | 1.25 | 1.88 | $73.01In stock | Buy now |
Features
- ■Studio grade frequency response: 20 Hz. - 20 Khz. (+/- 1 db, ref. @ 1 Khz.) minimum (see individual PDF data sheets below).
- ■Excellent frequency response utilizing a 80% nickel core providing high permeability combined with low losses.
- ■Designed for maximum bandwidth, lowest distortion at +10 dbm power level or less (see individual PDF data sheets below).
- ■Plated steel cans
- ■Adjustable height case bracket.
- ■Net weight 3 oz.
