Audio TX Single Ended
$51.43In stock
Buy now

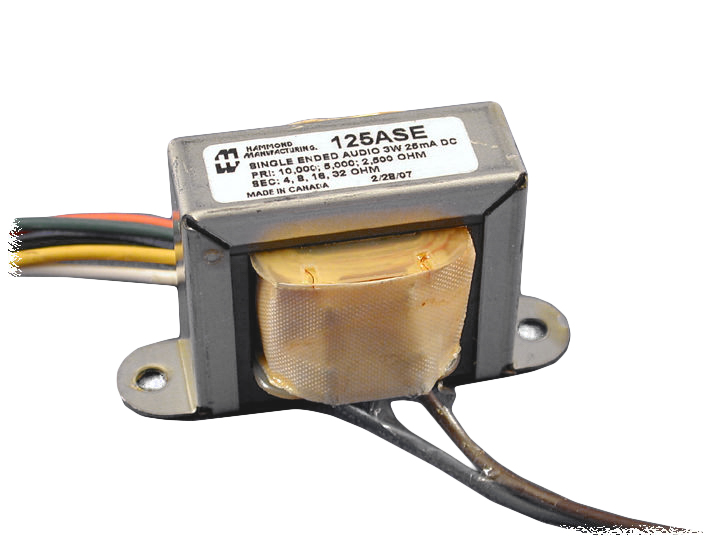

Universal Single Ended Tube Output · 125SE Series
Brand: Hammond Manufacturing · 7 part numbers
Audio
- ■Designed for general purpose or replacement use (not Hi-Fi), in single ended, tube output circuits.
- ■Frequency response: 100 Hz. - 15 Khz at full rated power (+/- 1db max. - ref. 1 Khz).
- ■For full frequency response (20 Hz. to 20 Khz.) - see our 1627-1642 Series .
- ■For push-pull output use, see our 125 Series .
- ■Open style with minimum 12" long primary & secondary leads.
- ■All sizes use butt stacked cores (using 29M6 steel) with an air gap, to reduce D.C. core saturation.
from $51.43
7 of 7 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 125SE Series part number
Filter 7 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
7 of 7 part numbers · 7 priced online

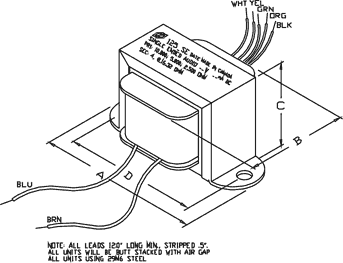

Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm

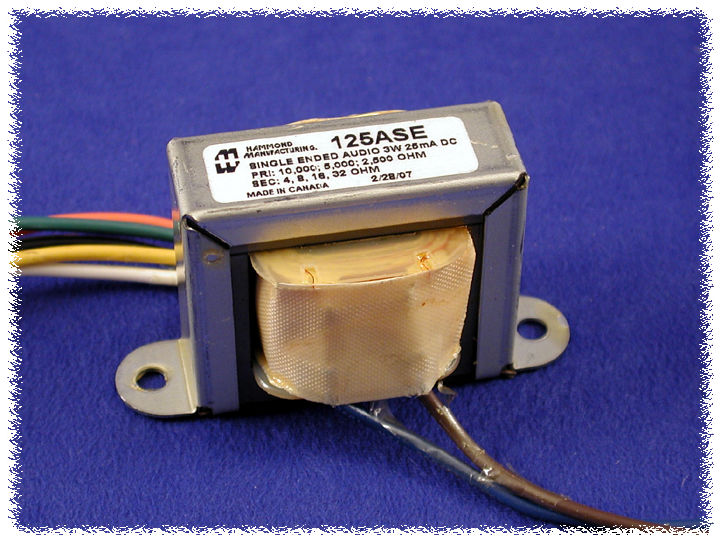

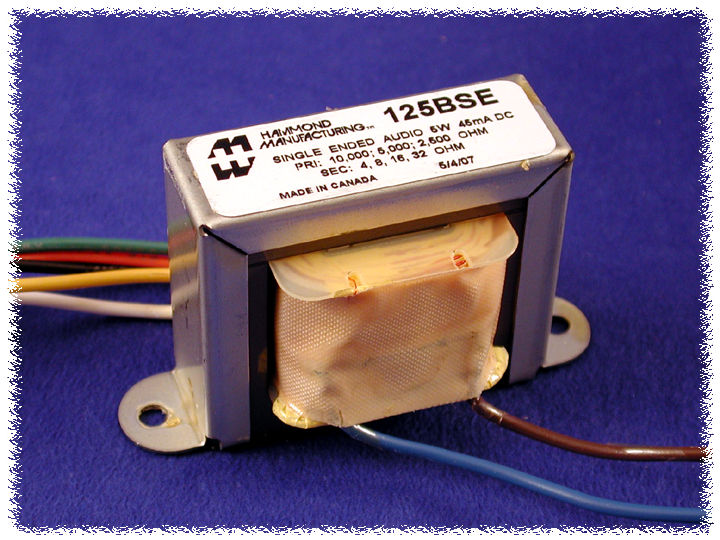

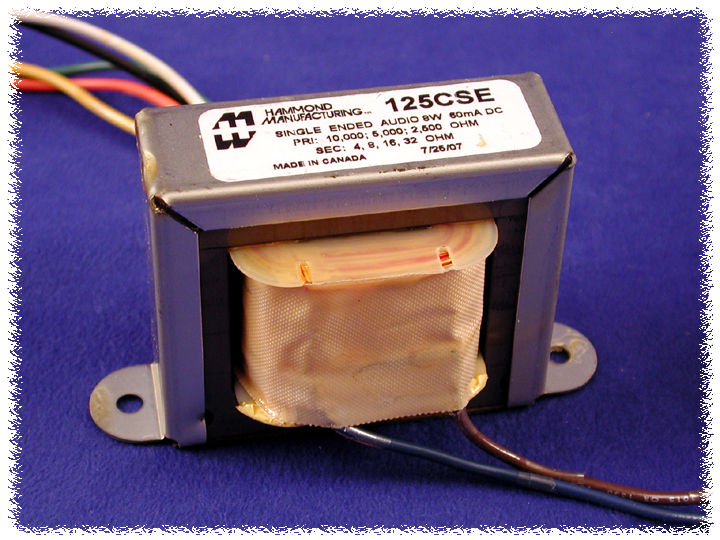

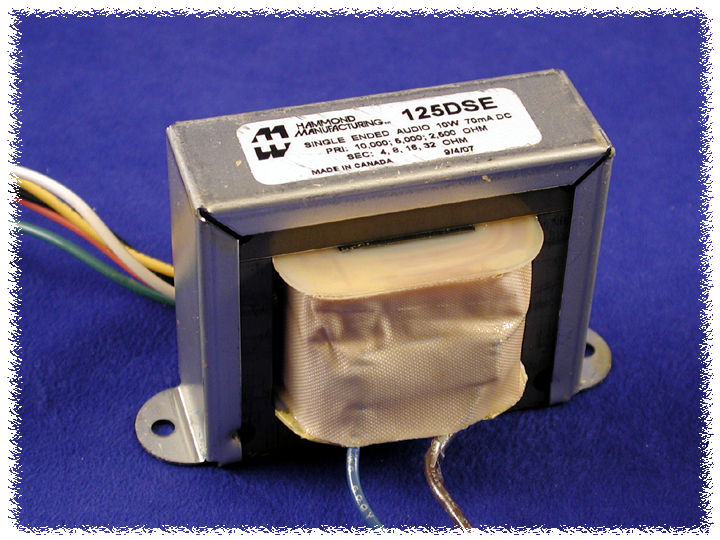

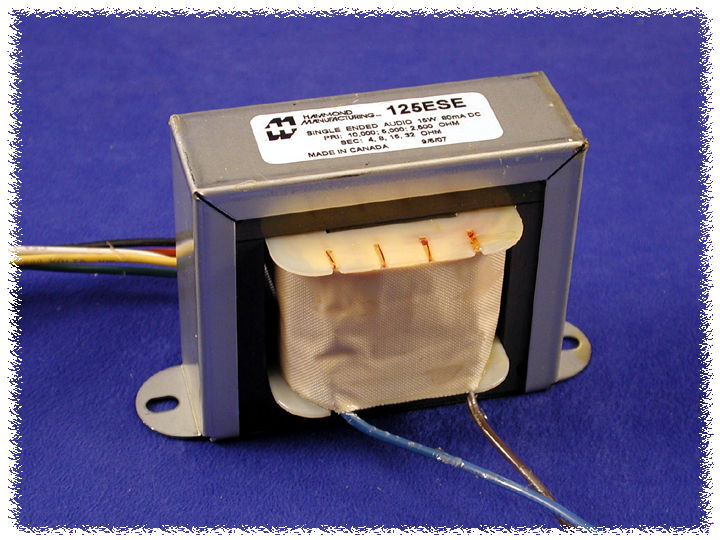

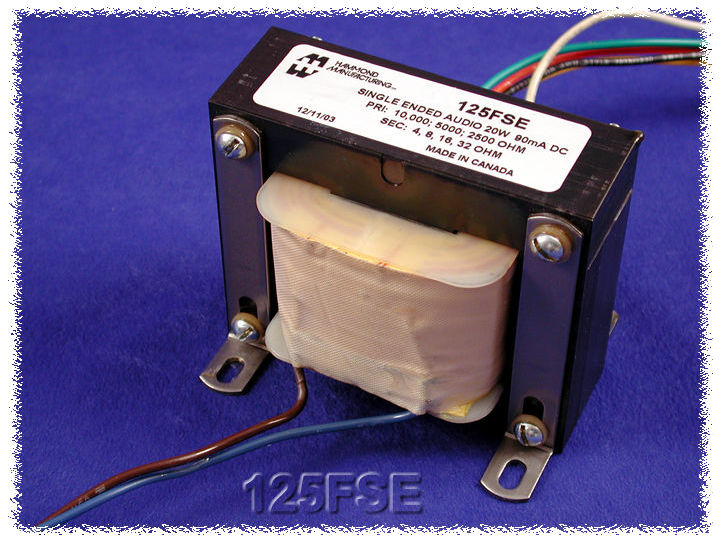

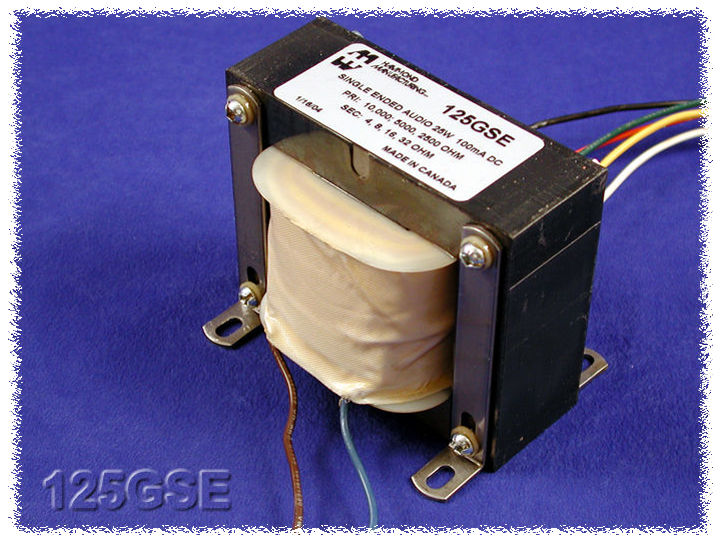

| Part No. | Audio Power · (Watts) | Max. D.C. Bias · (ma) | Weight · ( lbs.) | Dimensions · A | Dimensions · B | Dimensions · C | Dimensions · D | Dimensions · E | Mounting Hole · G | Mounting Hole · G (2) | Mounting Hole · G (3) | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 125ASE | 3 | 25 | 0.5 | 2.81 | 1.35 | 1.69 | 2.38 | - | 0.19 | 0.19 | 0.19 | $51.43In stock | Buy now |
| 125BSE | 5 | 45 | 1.1 | 3.25 | 1.63 | 2.00 | 2.81 | - | 0.19 | 0.19 | 0.19 | $54.18In stock | Buy now |
| 125CSE | 8 | 60 | 1.3 | 3.69 | 1.86 | 2.31 | 3.13 | - | 0.19 | 0.19 | 0.19 | $55.98In stock | Buy now |
| 125DSE | 10 | 70 | 2 | 4.00 | 2.10 | 2.63 | 3.56 | - | 0.19 | 0.19 | 0.19 | $61.38In stock | Buy now |
| 125ESE | 15 | 80 | 3 | 4.50 | 2.36 | 2.94 | 4.00 | - | 0.19 | 0.19 | 0.19 | $71.29In stock | Buy now |
| 125FSE | 20 | 90 | 4.5 | 3.76 | 2.52 | 3.15 | 3.13 | 2.25 | 0.20 | x | 0.38 | $95.68In stock | Buy now |
| 125GSE | 25 | 100 | 6 | 4.15 | 2.88 | 3.46 | 3.45 | 2.50 | 0.20 | x | 0.38 | $115.52In stock | Buy now |
Features
- ■Designed for general purpose or replacement use (not Hi-Fi), in single ended, tube output circuits.
- ■Frequency response: 100 Hz. - 15 Khz at full rated power (+/- 1db max. - ref. 1 Khz).
- ■For full frequency response (20 Hz. to 20 Khz.) - see our 1627-1642 Series .
- ■For push-pull output use, see our 125 Series .
- ■Open style with minimum 12" long primary & secondary leads.
- ■All sizes use butt stacked cores (using 29M6 steel) with an air gap, to reduce D.C. core saturation.
- ■Primary impedance range from 2,500 to 10,000 Ohms.
- ■Secondary impedance range from 4 to 32 Ohms.
Documents
Additional information
Part Details
| Part No. | Audio Power · (Watts) | Max. D.C. Bias · (ma) | Weight · ( lbs.) | Dimensions · A | Dimensions · B | Dimensions · C | Dimensions · D | Dimensions · E | Mounting Hole · G | Mounting Hole · G (2) | Mounting Hole · G (3) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 125ASE | 3 | 25 | 0.5 | 2.81 | 1.35 | 1.69 | 2.38 | - | 0.19 | 0.19 | 0.19 |
| 125BSE | 5 | 45 | 1.1 | 3.25 | 1.63 | 2.00 | 2.81 | - | 0.19 | 0.19 | 0.19 |
| 125CSE | 8 | 60 | 1.3 | 3.69 | 1.86 | 2.31 | 3.13 | - | 0.19 | 0.19 | 0.19 |
| 125DSE | 10 | 70 | 2 | 4.00 | 2.10 | 2.63 | 3.56 | - | 0.19 | 0.19 | 0.19 |
| 125ESE | 15 | 80 | 3 | 4.50 | 2.36 | 2.94 | 4.00 | - | 0.19 | 0.19 | 0.19 |
| 125FSE | 20 | 90 | 4.5 | 3.76 | 2.52 | 3.15 | 3.13 | 2.25 | 0.20 | x | 0.38 |
| 125GSE | 25 | 100 | 6 | 4.15 | 2.88 | 3.46 | 3.45 | 2.50 | 0.20 | x | 0.38 |
Part Details
| Part No. | Primary Winding Data · Inductance · (Minimum) | Primary Winding Data · DC Resistance · (+/- 20%) |
|---|---|---|
| 125ESE | 5.43 H | 103 Ohms |
